    Program 2018 Dodge RAM 3500 Key Fob with Autel IM508 and 12+8 Cable

    chrysler-key-programmer
    — (0)
    Chrysler vehicles 2018- now require the 12+8 cable to clear DTCs and to add keys.  Here we successfully added a new key fob with Autel IM508 XP400 and autel 12+8 cable for Dodge RAM 3500 year 2018 with secure gateway module (SGM). Program key in auto mode.

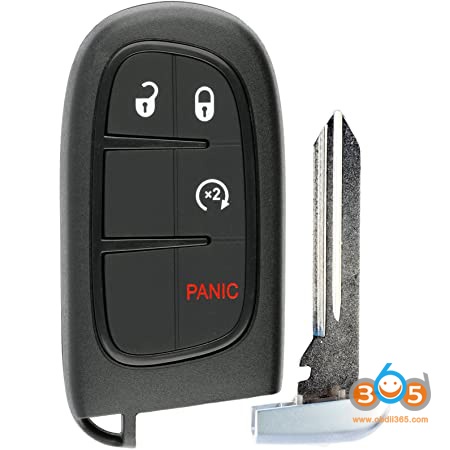

    4 buttons remote key fob
    Dodge Ram 1500 2018 Key Fob

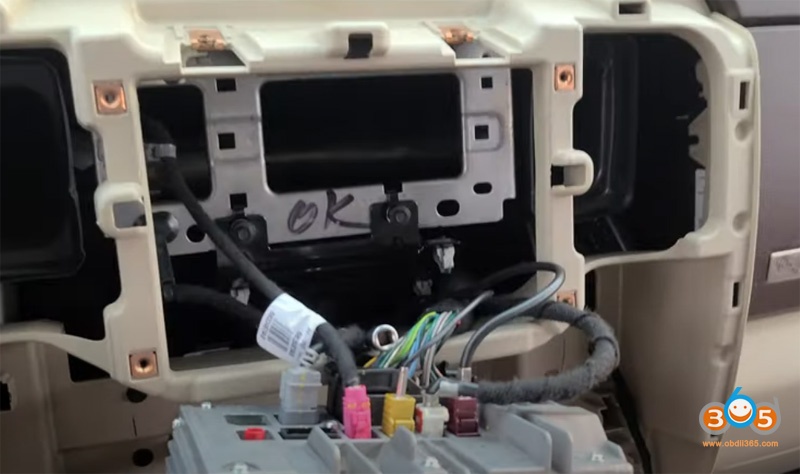

    2018 Dodge RAM3500 SGM location:

    Need to remove the stereo in order to get to the secure gateway module.  Remove everything and you will see.

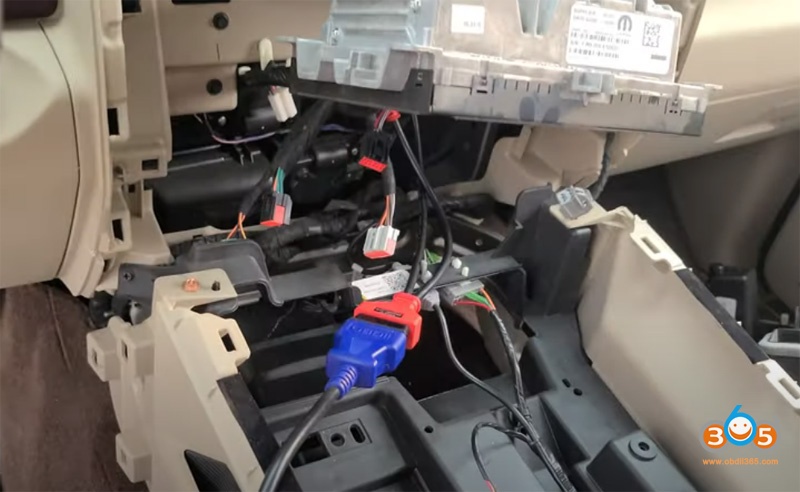

    Autel Im608 2018 Dodge Ram 3500 Key Fob 1 Autel Im608 2018 Dodge Ram 3500 Key Fob 2

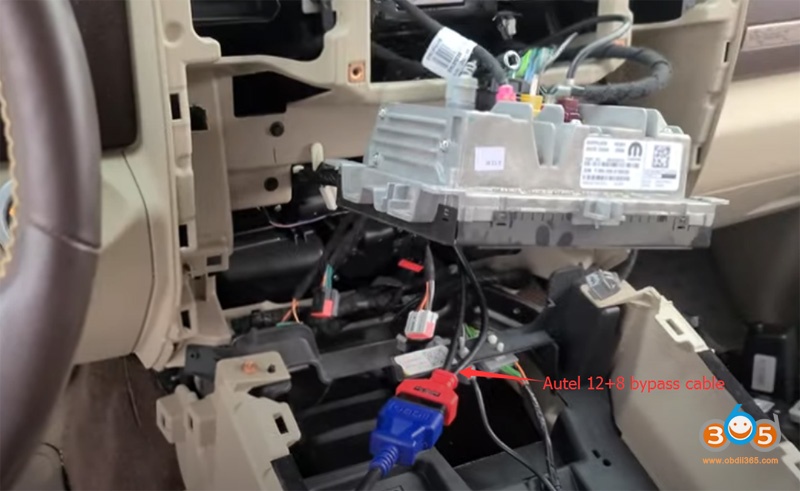

    Go to Dodge 3500 key programming menu, IM508 asks to hook up a Chrysler FCA 12+8 adapter

    We’ve got that connected right there behind the stereo

    Turn the ignition off and turn on the emergency flashers

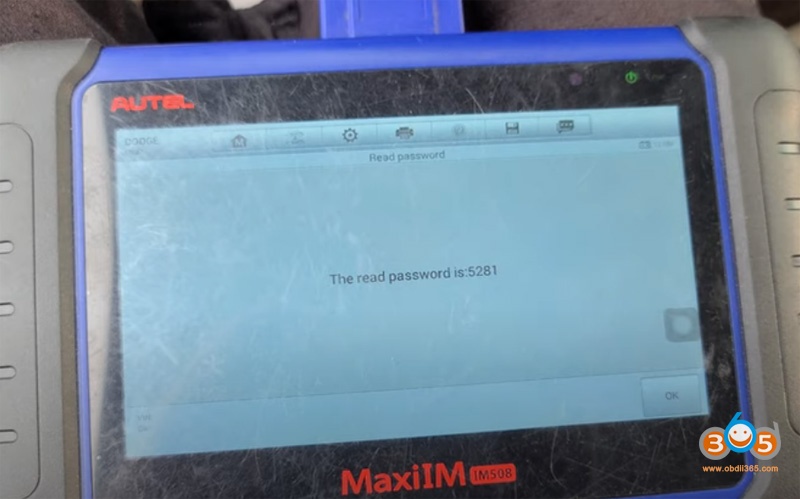

    Autel Im608 2018 Dodge Ram 3500 Key Fob 5
    Read security password

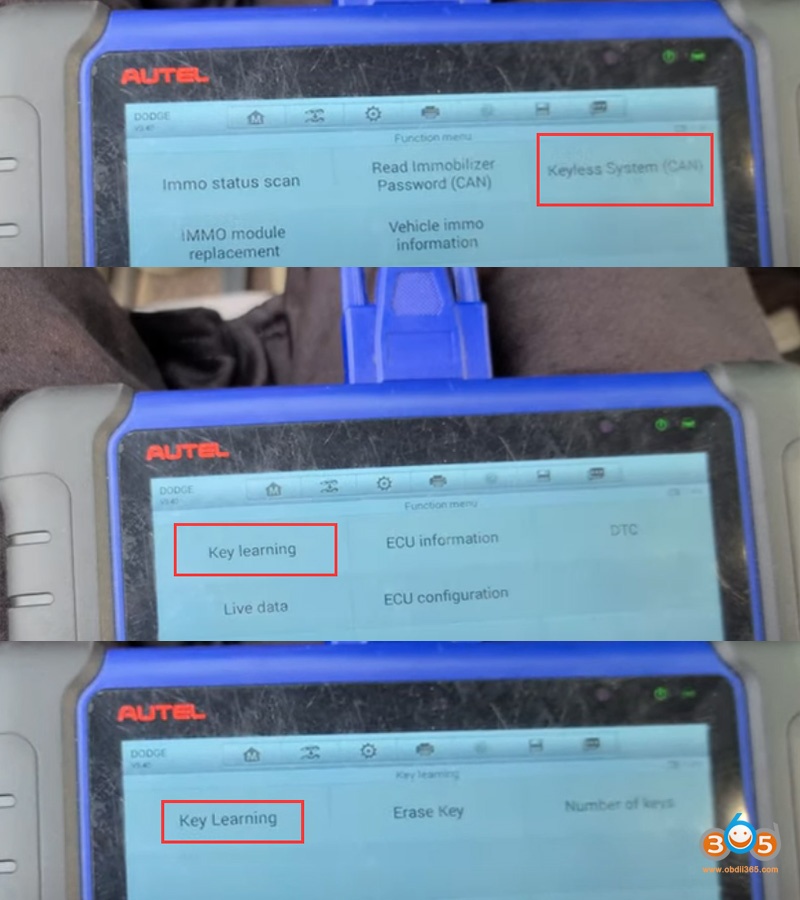

    Select Keyless System (CAN) – Key Learning – Key Learning

    Autel Im608 2018 Dodge Ram 3500 Key Fob 6

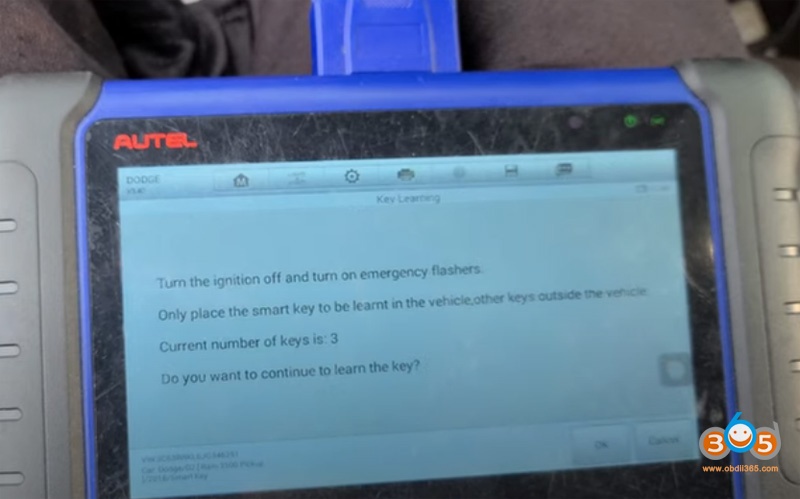

    Turn the ignition off and turn on the emergency flashers

    Autel Im608 2018 Dodge Ram 3500 Key Fob 7
    Put smart be to be learned in vehicle and take other keys out of the vehicle
    Auto fill-in 4-digit pin to access

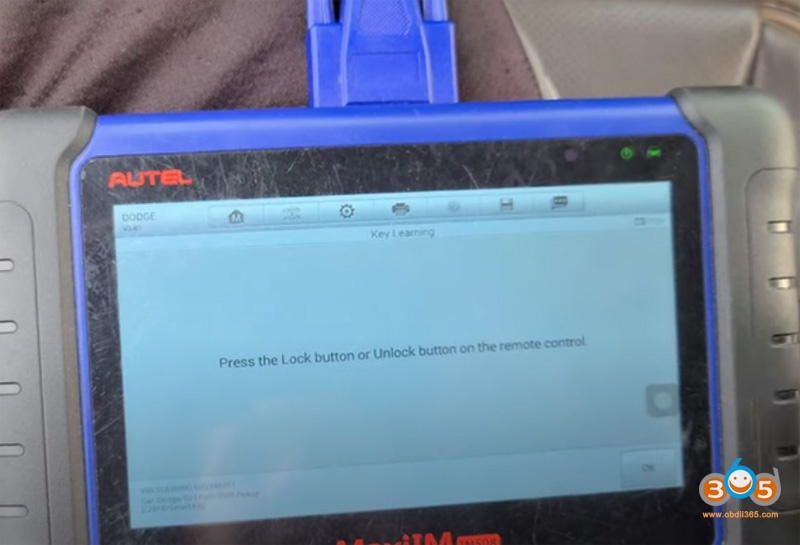

    Autel Im608 2018 Dodge Ram 3500 Key Fob 9
    Press LOCK or UNLOCK button on the remote control

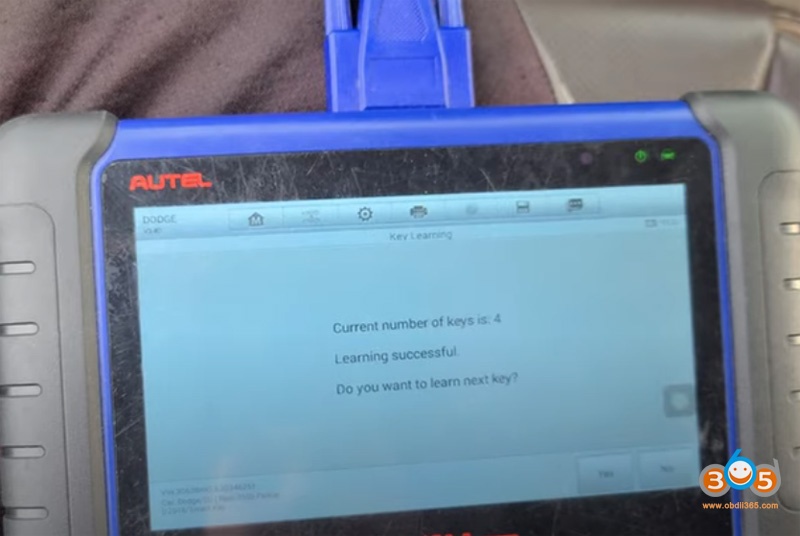

    Autel Im608 2018 Dodge Ram 3500 Key Fob 10
    Key learning successful
    Put everything back
    And test remote control and new key.

    Done.
