    How to Renew Smart 454 PCF7941 Remote with Keydiy KD-X2?

    car-key-copy-machine
    — (0)

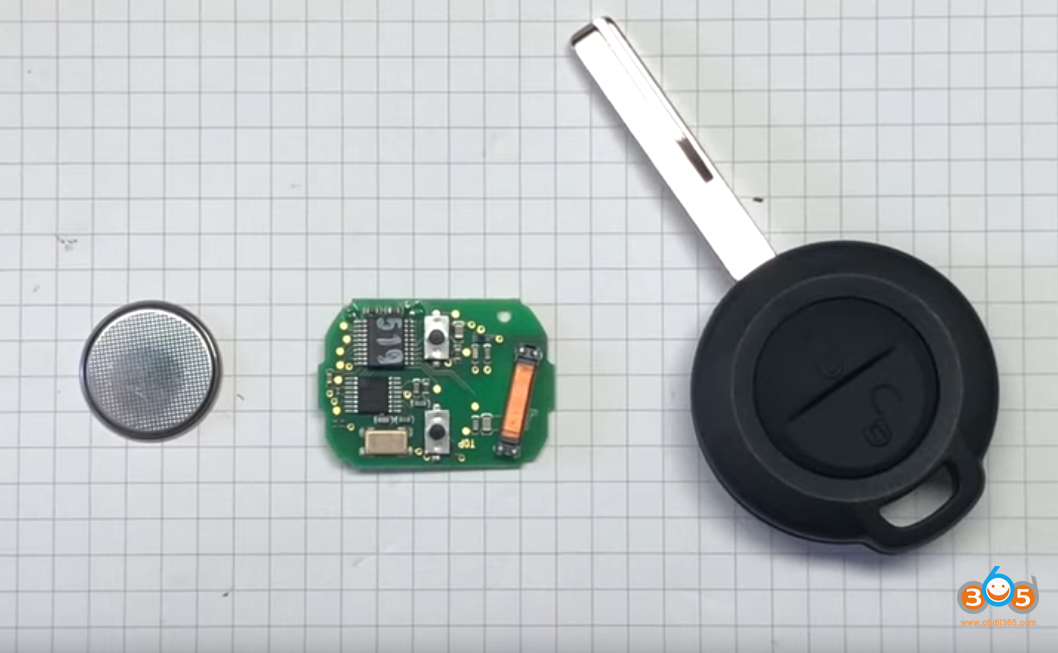

    Keydiy KD-X2 remote maker can unlock and renew the used Smart 454 / Mitsubishi Colt PCF7941 remote key so that it can be programmed to another vehicle.

    Keydiy Kx X2 Unlock Smart 454 Key 1

    Keydiy Kx X2 Unlock Smart 454 Key 2

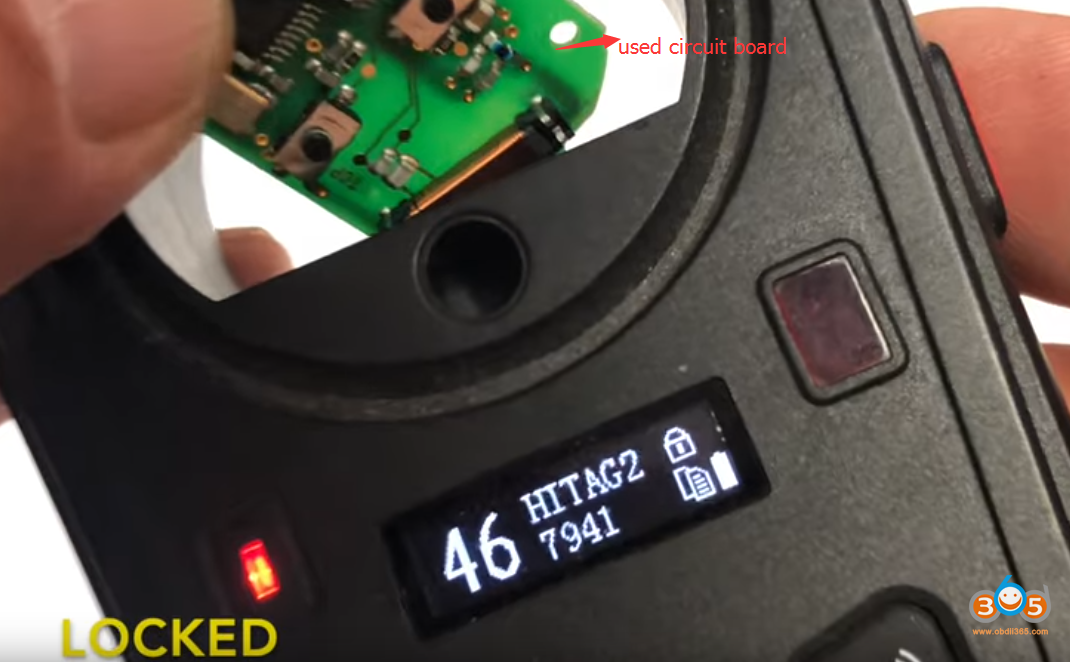

    Smart 454 / Mitsubishi Colt remote is the same, Hitag ID46 PCF7941, locked.

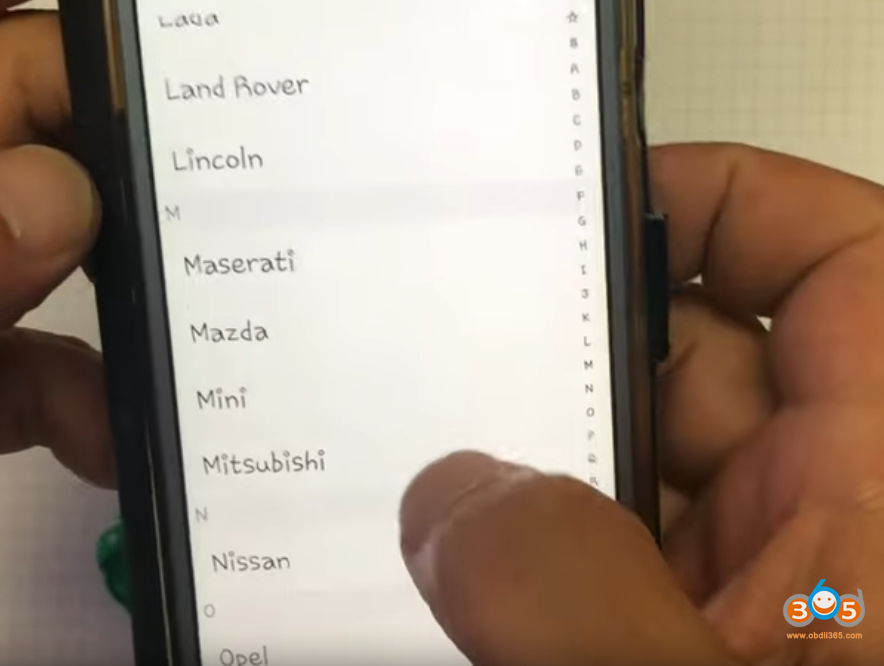

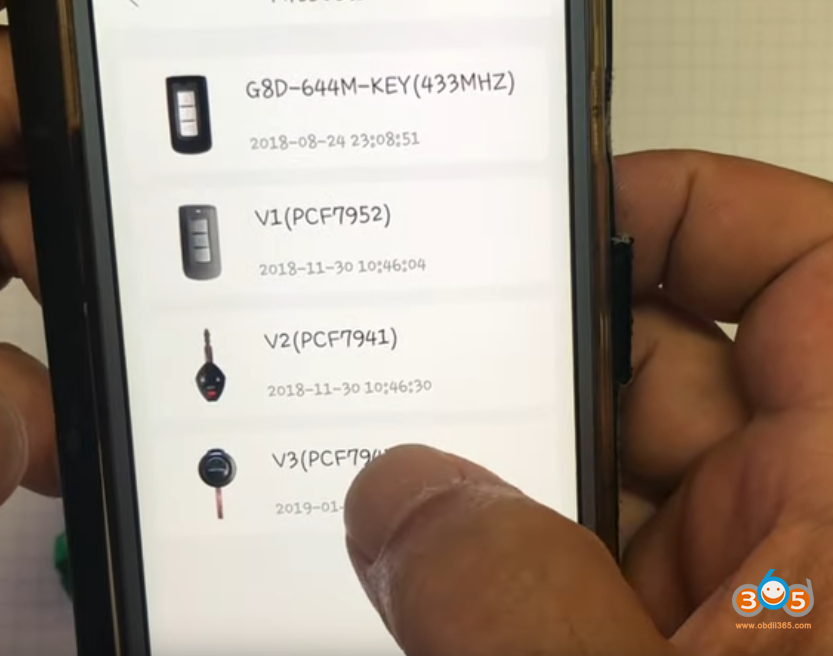

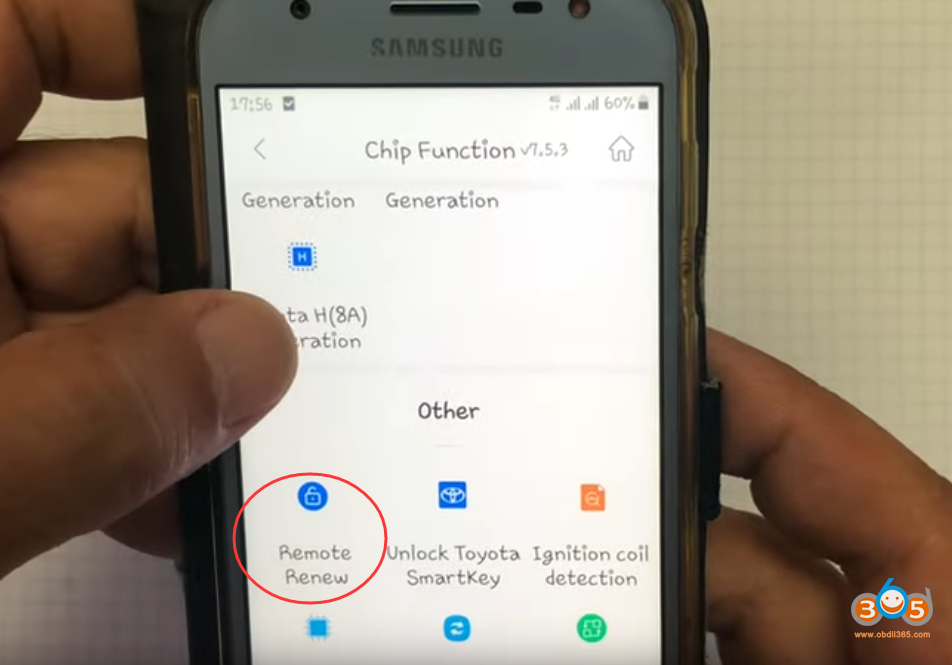

    Go to Keydiy App- Chip function- Remote Renew -Mitsubishi- V3 PCF7941

    Keydiy Kx X2 Unlock Smart 454 Key 3

    Keydiy Kx X2 Unlock Smart 454 Key 4

    Keydiy Kx X2 Unlock Smart 454 Key 5

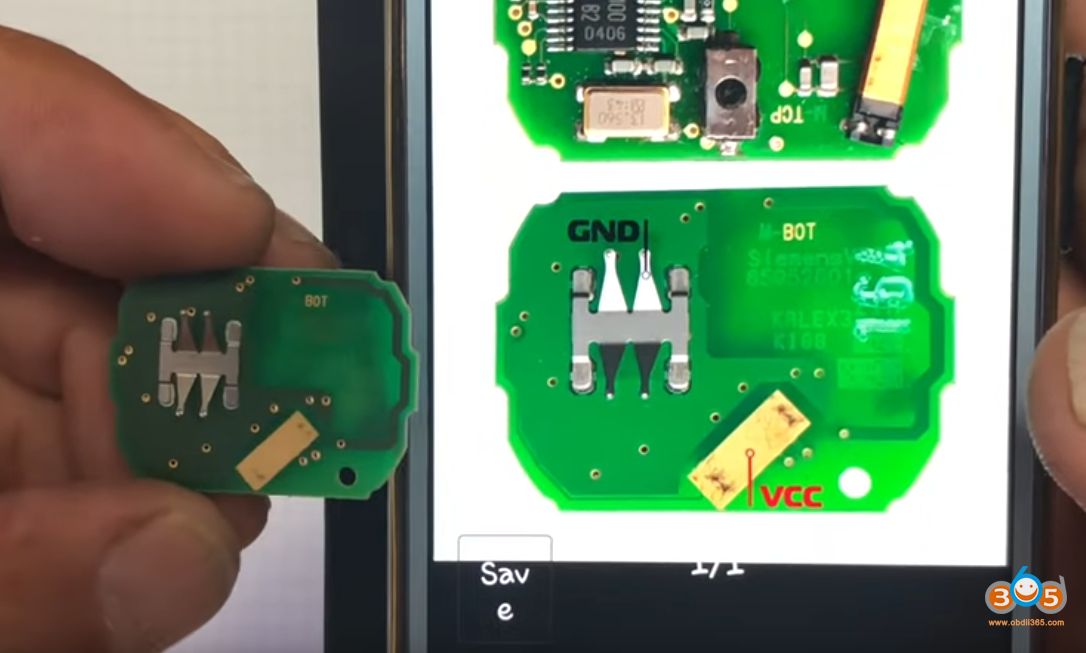

    Keydiy App will show you wiring diagram, the circuit board is the same as in the app

    Keydiy Kx X2 Unlock Smart 454 Key 6

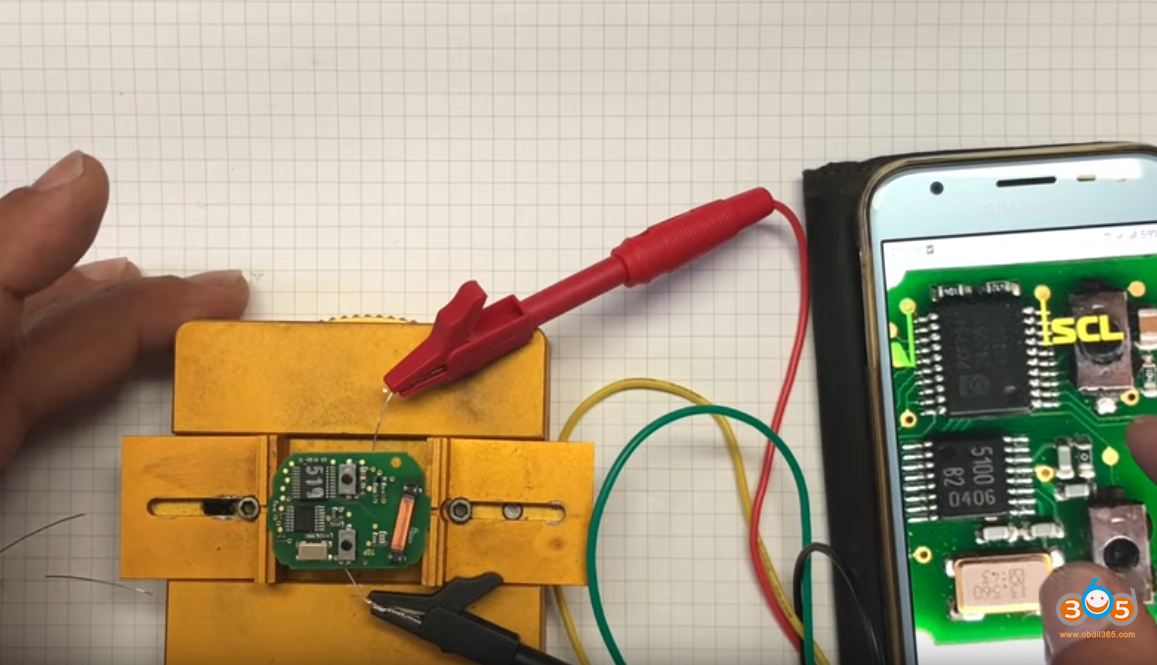

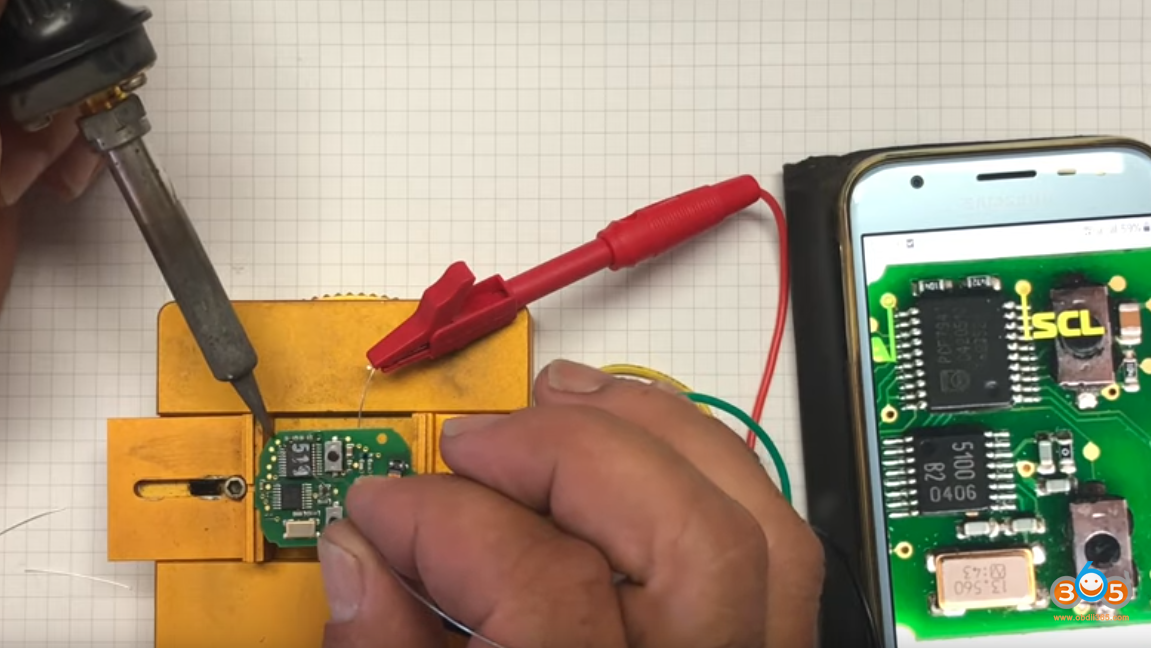

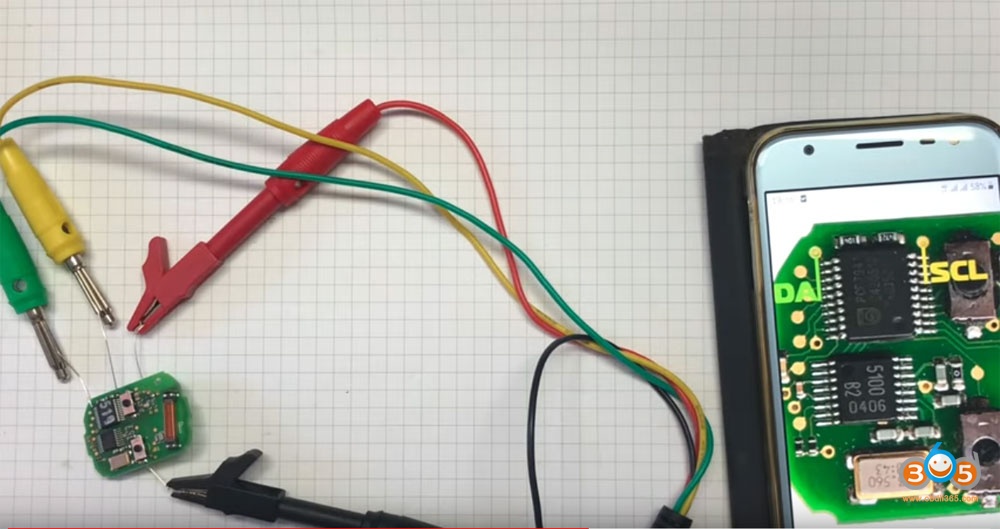

    Connect circuit board with kd-x2 remote maker

    Keydiy Kx X2 Unlock Smart 454 Key 7

    Keydiy Kx X2 Unlock Smart 454 Key 8

    Keydiy Kx X2 Unlock Smart 454 Key 9

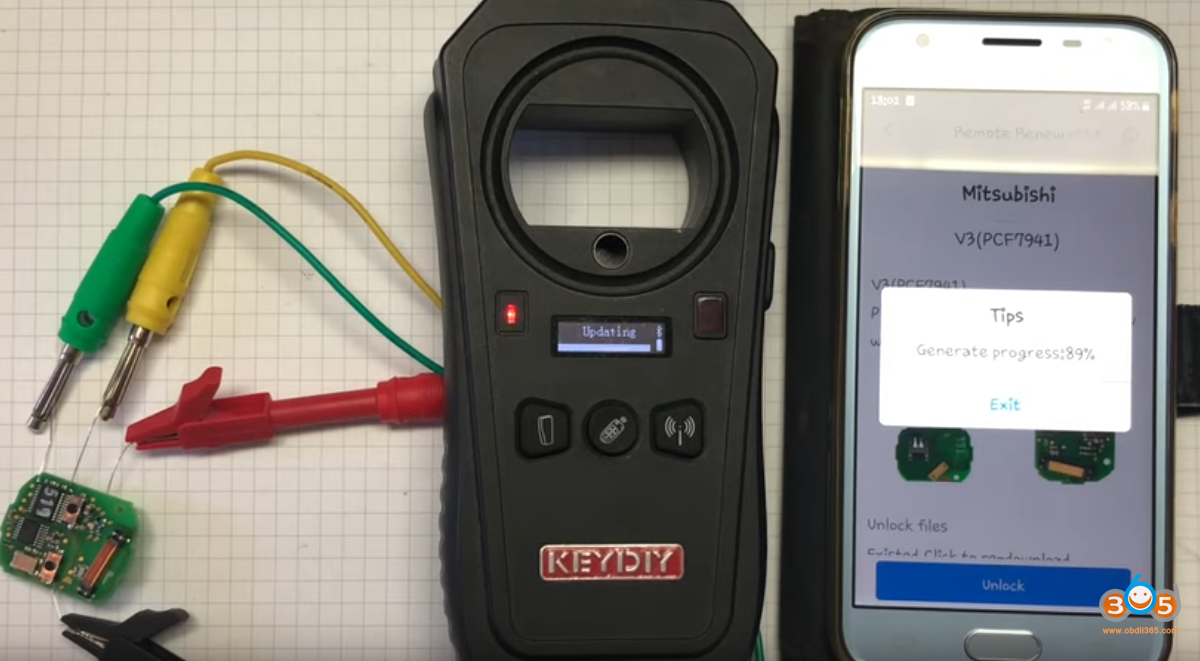

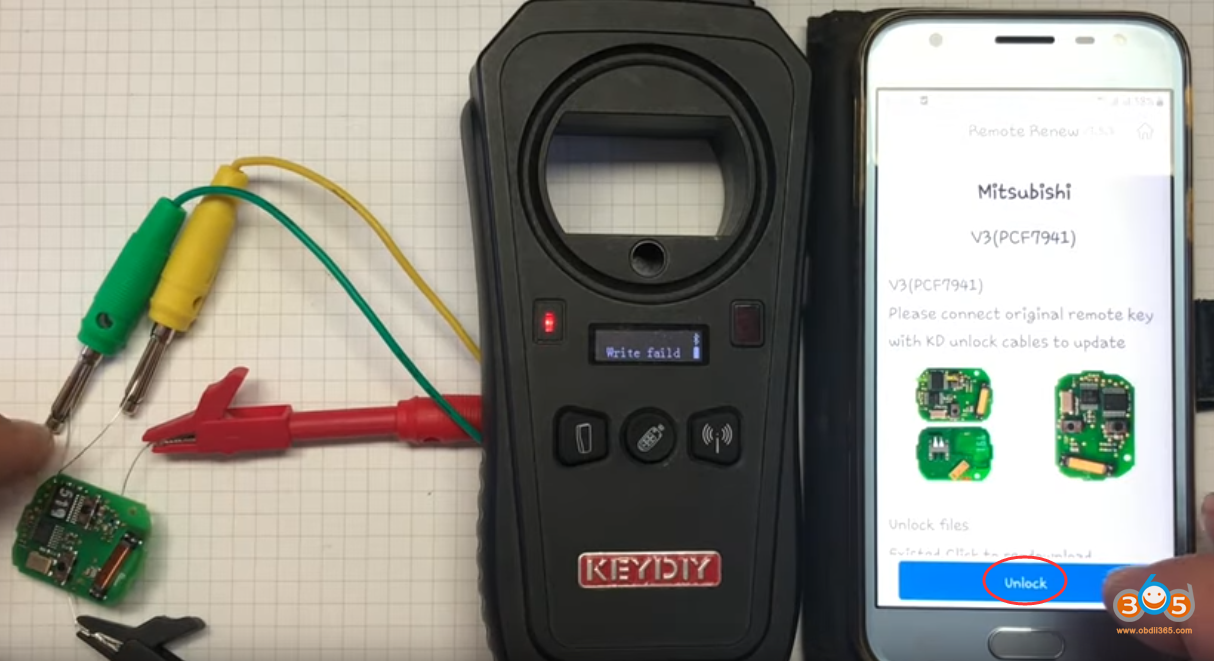

    Press UNLOCK

    Keydiy Kx X2 Unlock Smart 454 Key 10

    If failed to unlock, check connection and try again

    Keydiy Kx X2 Unlock Smart 454 Key 11

    Keydiy Kx X2 Unlock Smart 454 Key 12

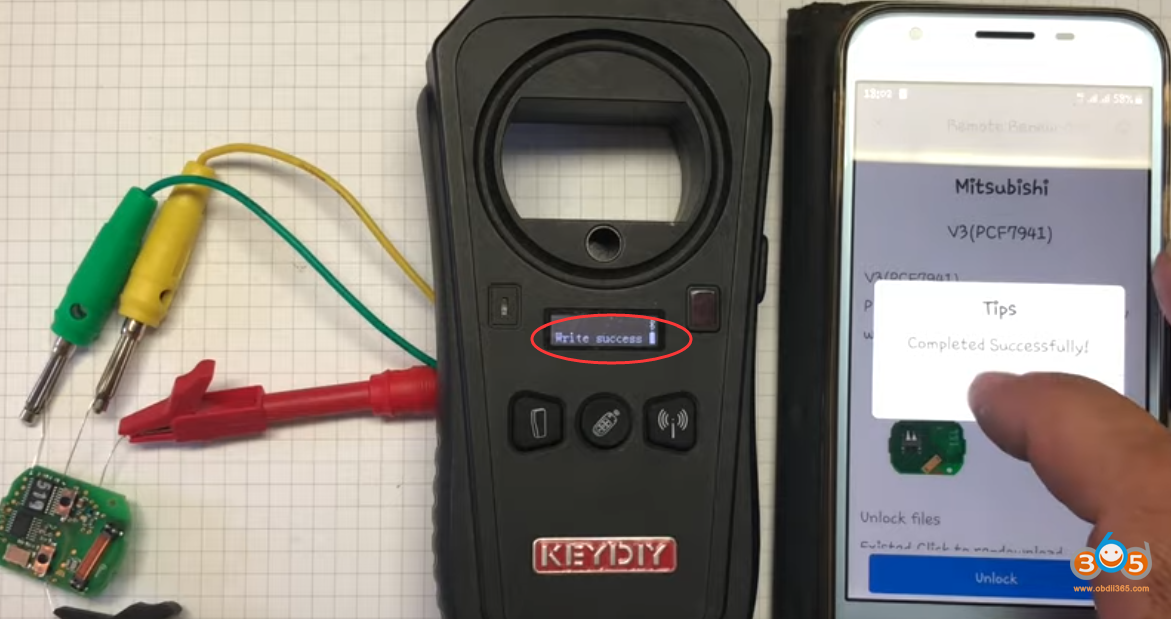

    Renew remote success

    Keydiy Kx X2 Unlock Smart 454 Key 13

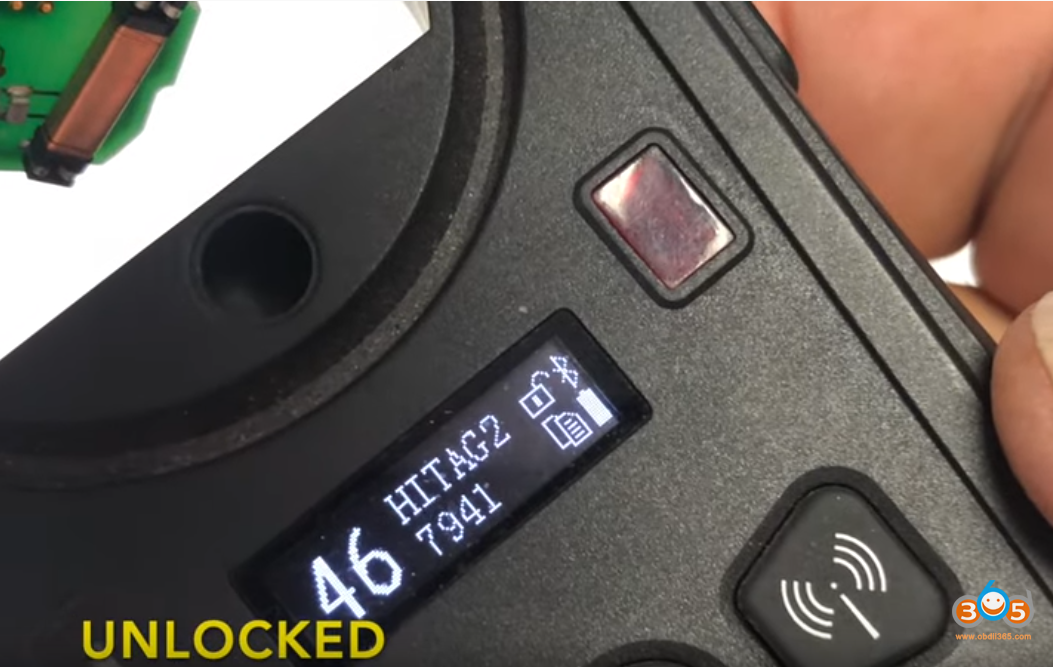

    The remote is unlocked.

    Keydiy Kx X2 Unlock Smart 454 Key 13

    Install circuit board and battery to key shell

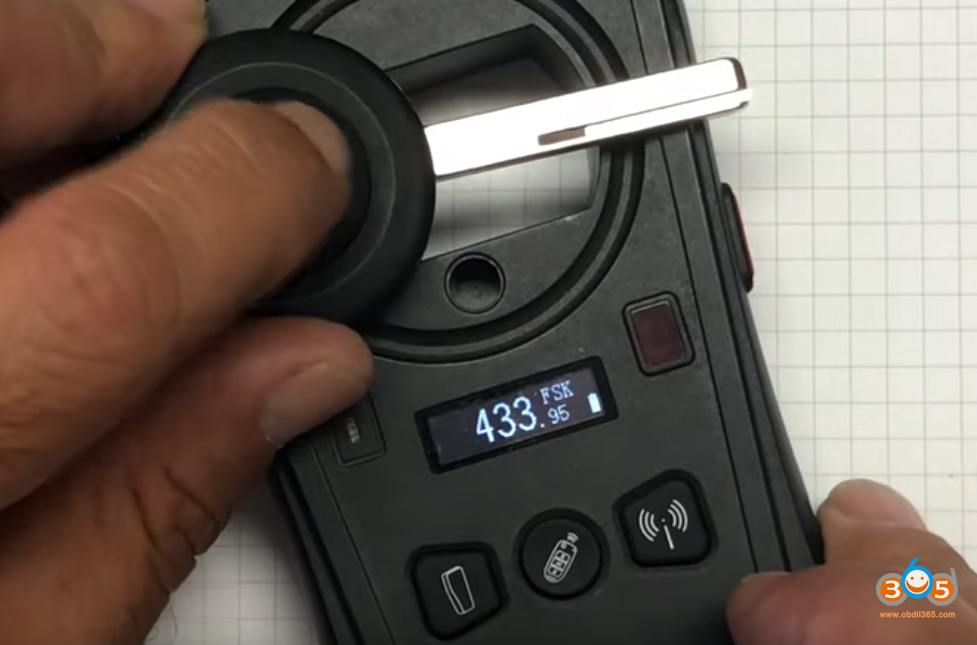

    Test key frequency: 433MHz

    Keydiy Kx X2 Unlock Smart 454 Key 14
    now the new key is ready to be programmed to another vehicle.

    Done.
