How to Program GILERA ACI60X Motorcycle Key with OBDSTAR?
OBDSTAR can program GILERA ACI60X motorcycle in both OBD mode and Bench mode. Check instructions below:
Tools required:
OBDSTAR MS80 motorcycle diagnostic tool
or OBDSTAR X300 DP Plus/X300 Pro4 with Motor IMMO license and adapter
Instruction:

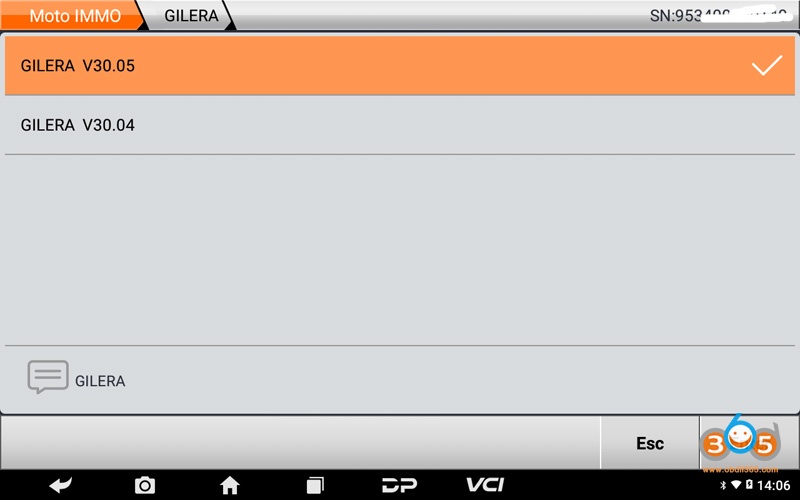

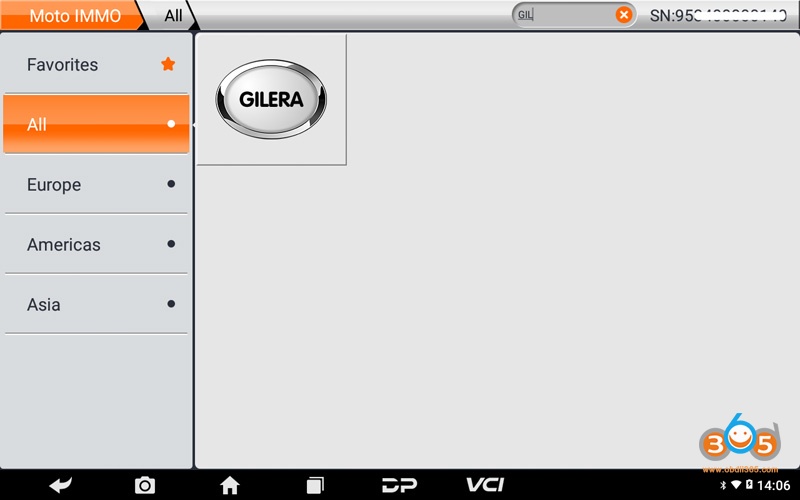

Connect OBDSTAR device to Motorcycle, enter into Moto IMMO function – All- GILERA- select newest GILERA edition- Select the corresponding ECU type, such as ACI600 click ACI600/601/602/603/604/605/606
Diagnostic Connector Mode

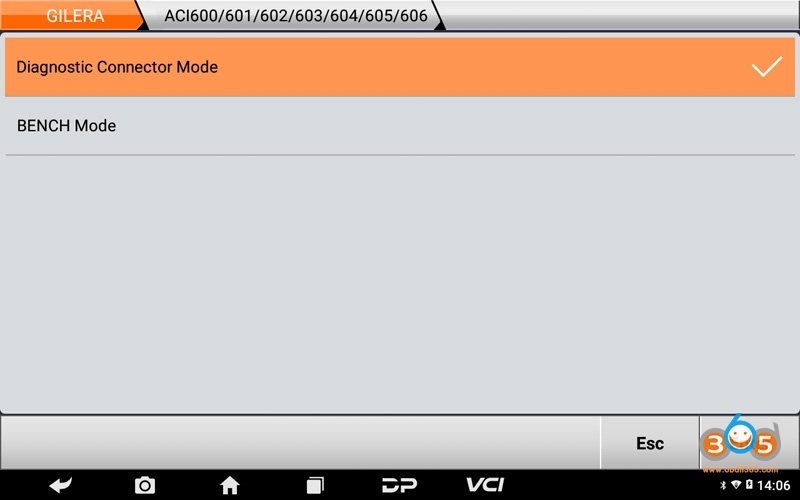

Click Diagnostic Connector Mode

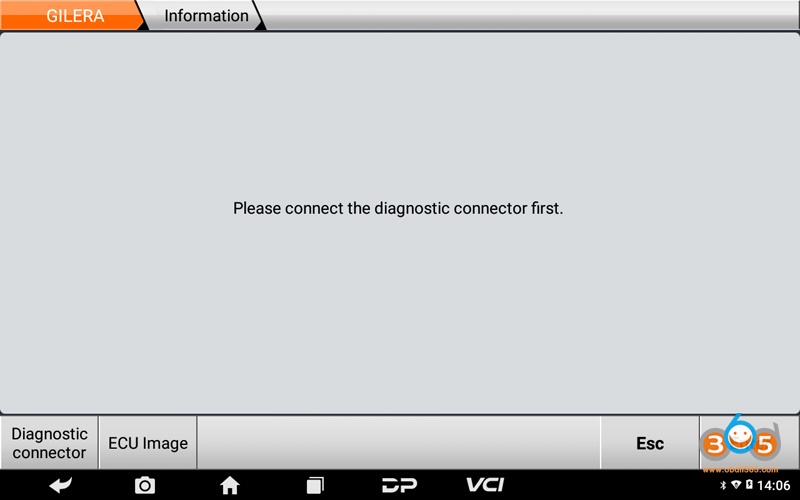

Connect the diagnostic connector, click Enter ;
Tips: can click Diagnostic Connector to check connecting method; click ECU Image to check ECU type;

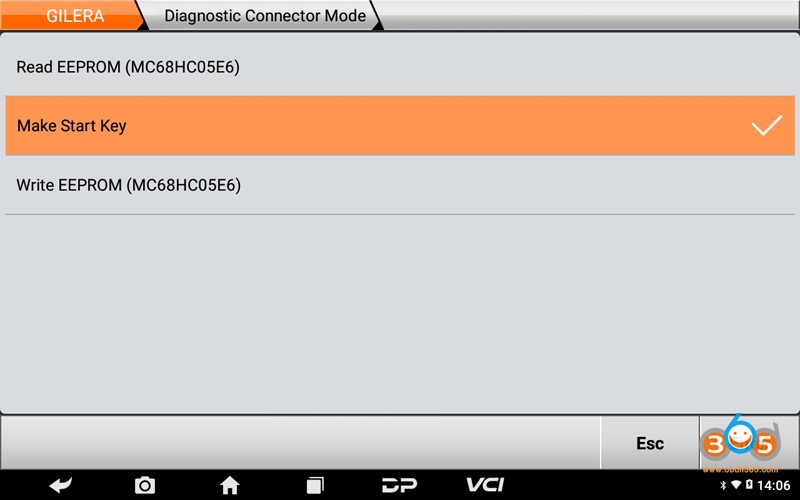

Click Make Start Key
ensure the internet connection is normal

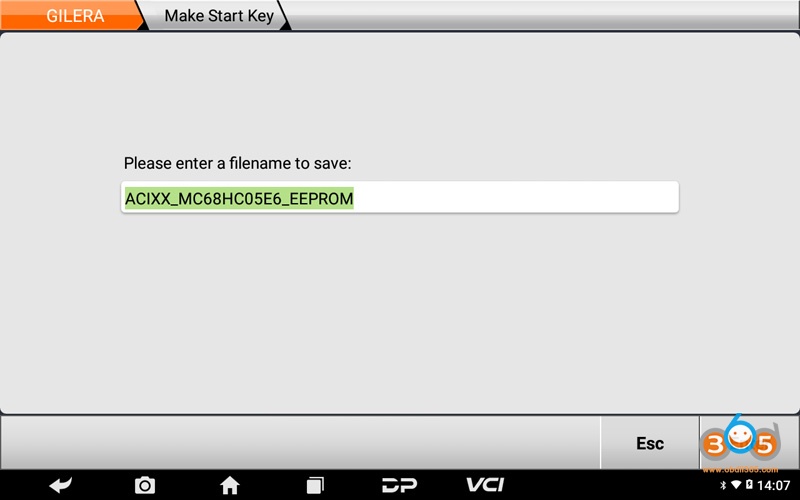

Enter a file name to save, click Enter;
Tips: the file folder position saved: DP-device serial number-Data

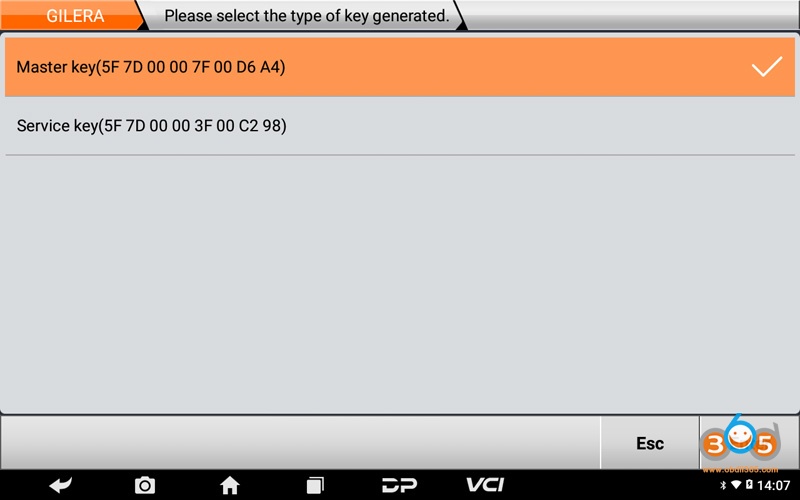

Select the type of key generate, such as click Master Key (5F7D00007FD6A4)
Connect P001 with diagnostic device, click Enter
Put the new key in P001, click Enter
Make the key successfully.
Bench Mode

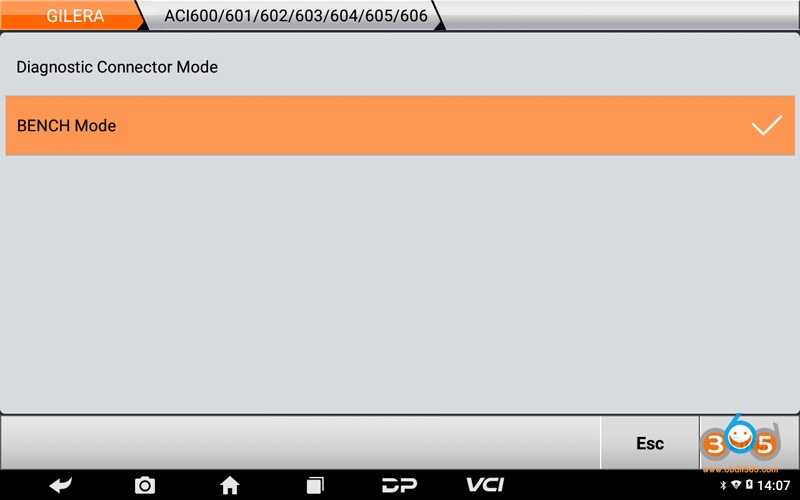

After select motor model, go to Bench Mode

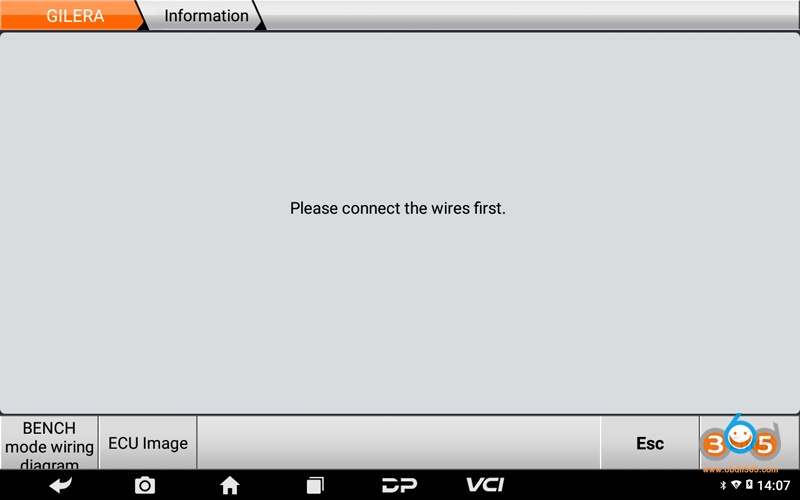

Connect the wires, click Enter
Tips: click ENCH mode wiring diagram to check wiring diagram, click ECU Image to check ECU type;
Click Make Start Key
ensure the internet connection is normal
Enter a file name to save, click Enter;
Tips: the file folder position saved: DP-device serial number-Data
Select the type of key generate, such as click Master Key (5F7D00007FD6A4)
Connect P001 with diagnostic device
Put the new key in P001
Make the key successfully.
Done.
