    How to Program Volvo XC70 2013 Key with Yanhua Mini ACDP?

    Illustration for How to Program Volvo XC70 2013 Key with Yanhua Mini ACDP?
    Volvo Key Programmer
    — (0)

    How to proceed if you need to add a semi keyless key for volvo xc70 year 2013. Here’s tips: first you have to read CEM at the bench and then do key in OBD.

    The procedure can be applied to XC70 2010-2016.



    What is required:

    Yanhua ACDP + Volvo Module 12

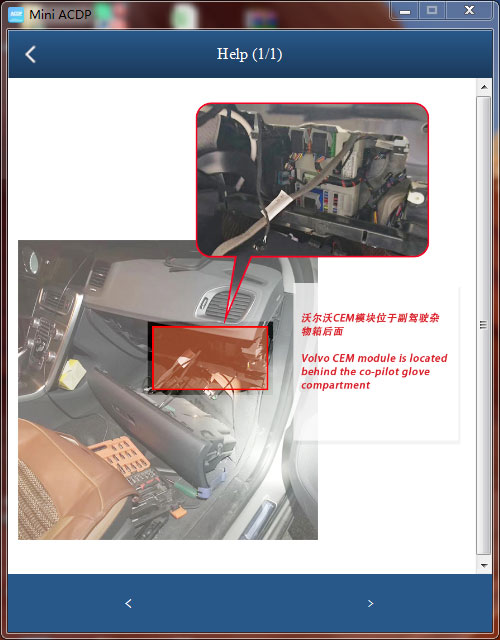

    Step 1: Read CEM data

    Yanhua Acdp Volvo Xc70 2013 Key 2

    Remove CEM module, connect Volvo interface board with ACDP and module following connection diagrams below:

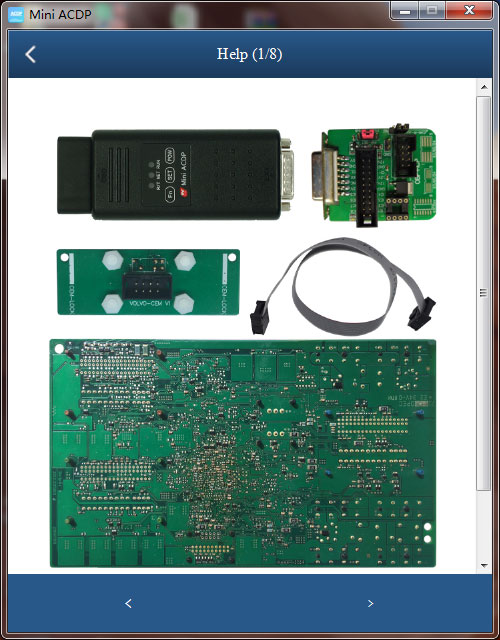

    Yanhua Acdp Volvo Xc70 2013 Key 3

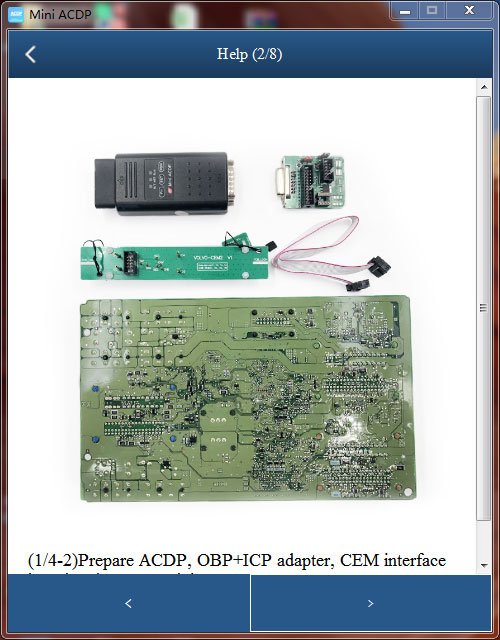

    Yanhua Acdp Volvo Xc70 2013 Key 4

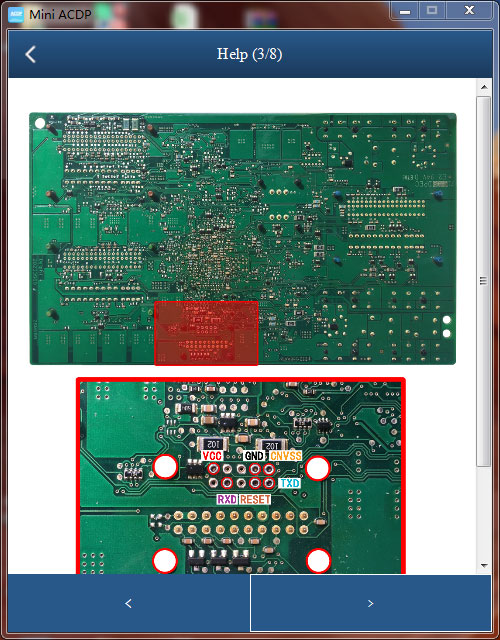

    Yanhua Acdp Volvo Xc70 2013 Key 5

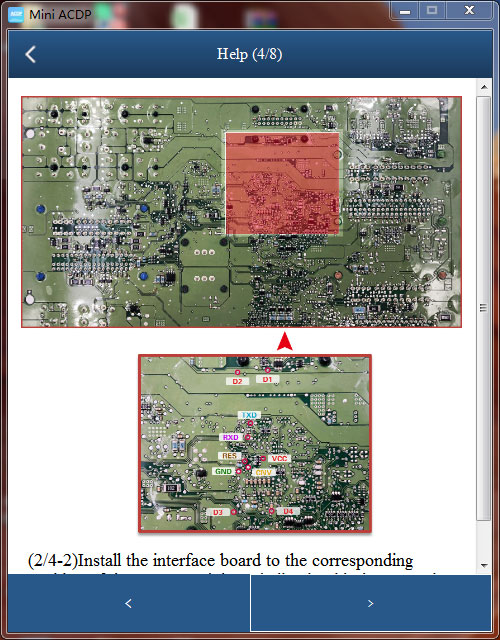

    Yanhua Acdp Volvo Xc70 2013 Key 6

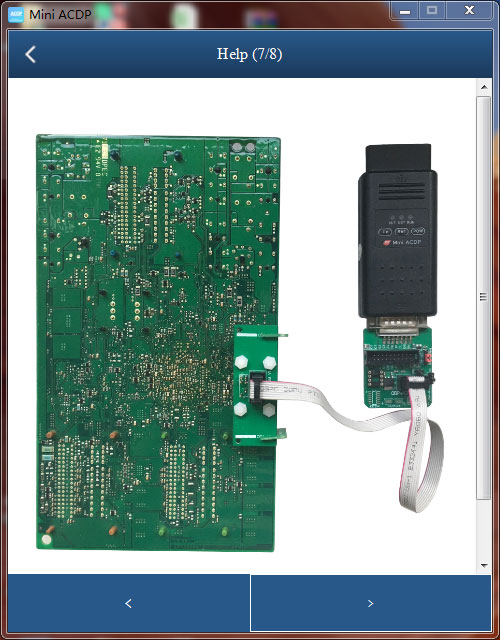

    Yanhua Acdp Volvo Xc70 2013 Key 7

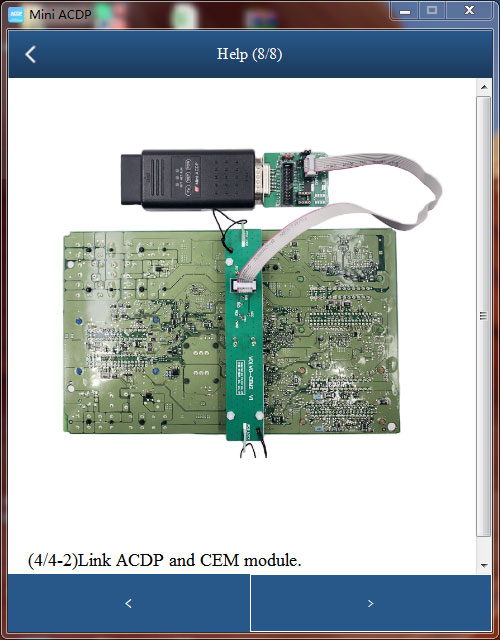

    Yanhua Acdp Volvo Xc70 2013 Key 8

    Then to go to App, Select Volvo module- XC70(2010-2016)-Semi-Keyless
    Then read CEM

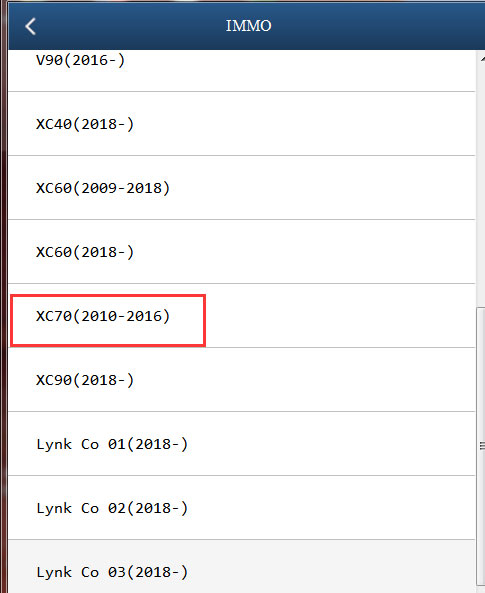

    Yanhua Acdp Volvo Xc70 2013 Key 1

    Check operation demo on XC60

    Step 2: Add key via OBD

    Reinstall CEM module back to vehicle

    To add key via OBD, you all need a double-CAN adapter which comes with module 12 in default

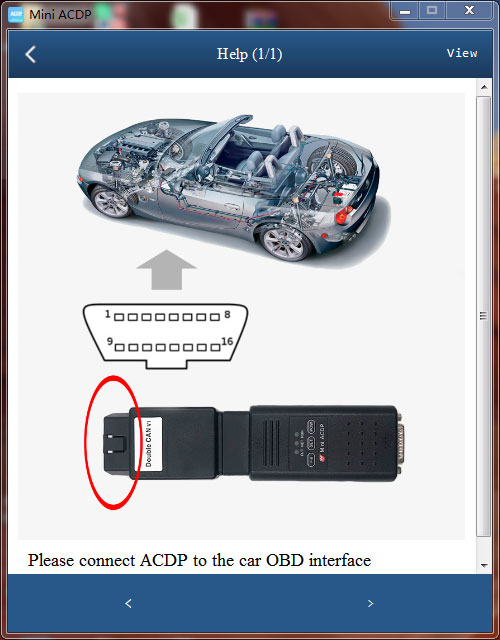

    Yanhua Acdp Volvo Xc70 2013 Key 9

    Then follow App to add key until completed.

    Yanhua Mini ACDP Program Volvo XC70 2010-2016 Semi Smart Key (Bench + OBD)
