    OBDSTAR Read PIN and Program Honda SH125 All Keys Lost on Bench

    motorcycle-key-programmer
    — (0)

    Today we have done a Honda SH 125 motorcycle year 2017 all keys lost with obdstar x300 dp plus on bench.  I take the 9 digit pin code from SCU and program key successfully.



    Device used:

    OBDSTAR X300 DP Plus (or X300 DP and X300 Pro4)

    Configuration Moto Immo kit with cables (incl. the P002 adapter)

    New motor keys to be programmed

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 0

    Procedure:

    1. Read PIN code from EEPROM

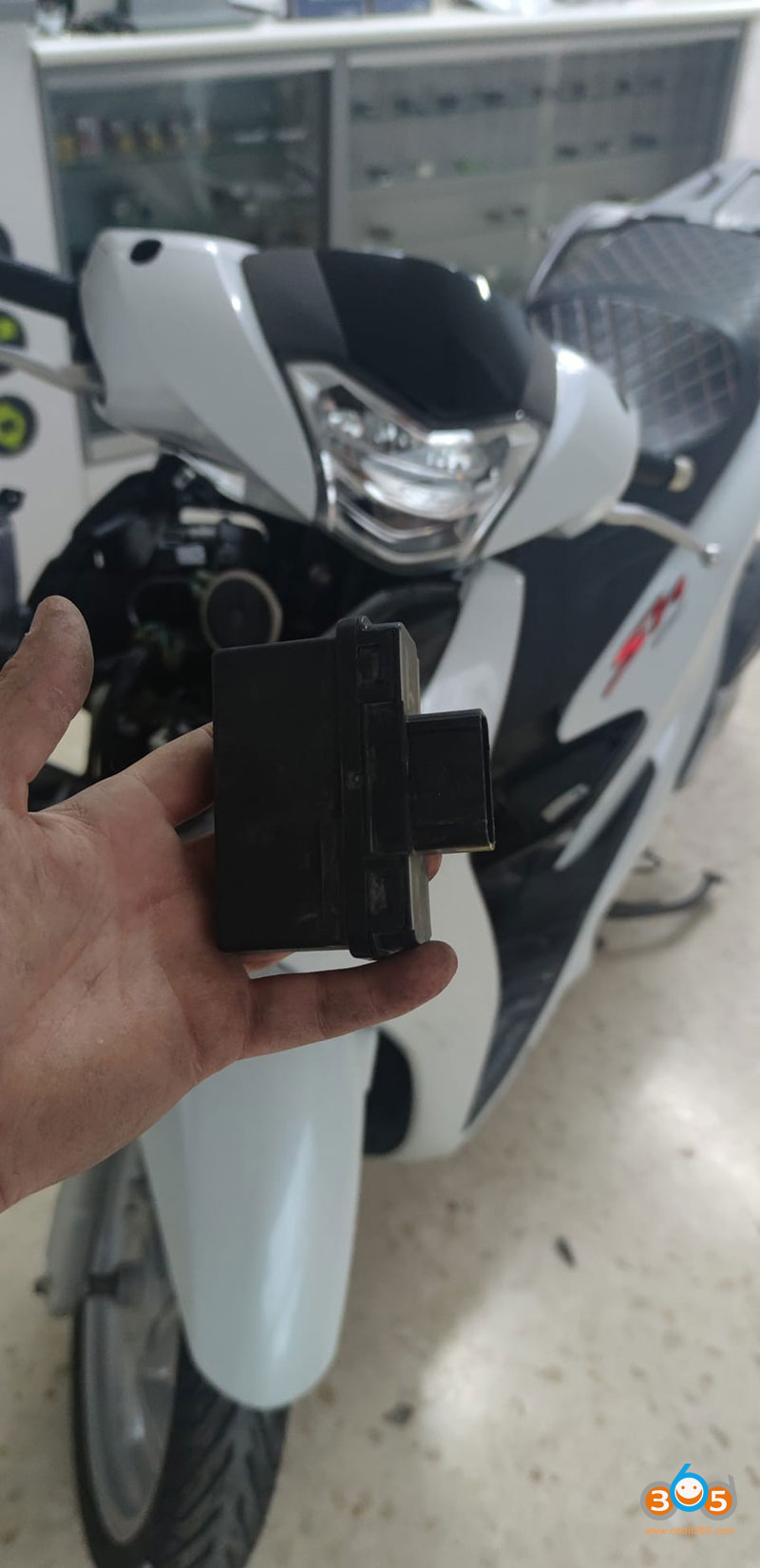

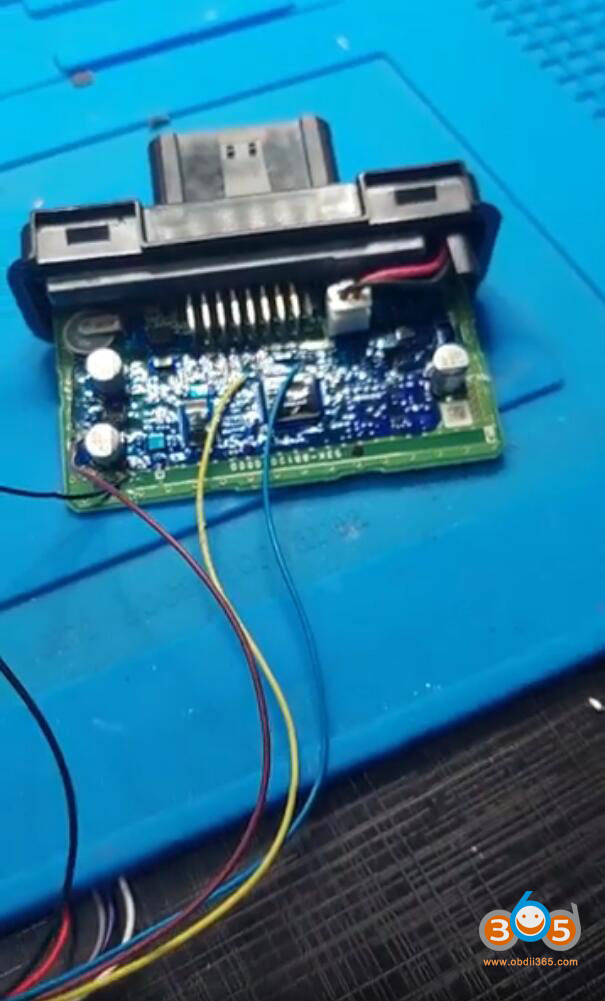

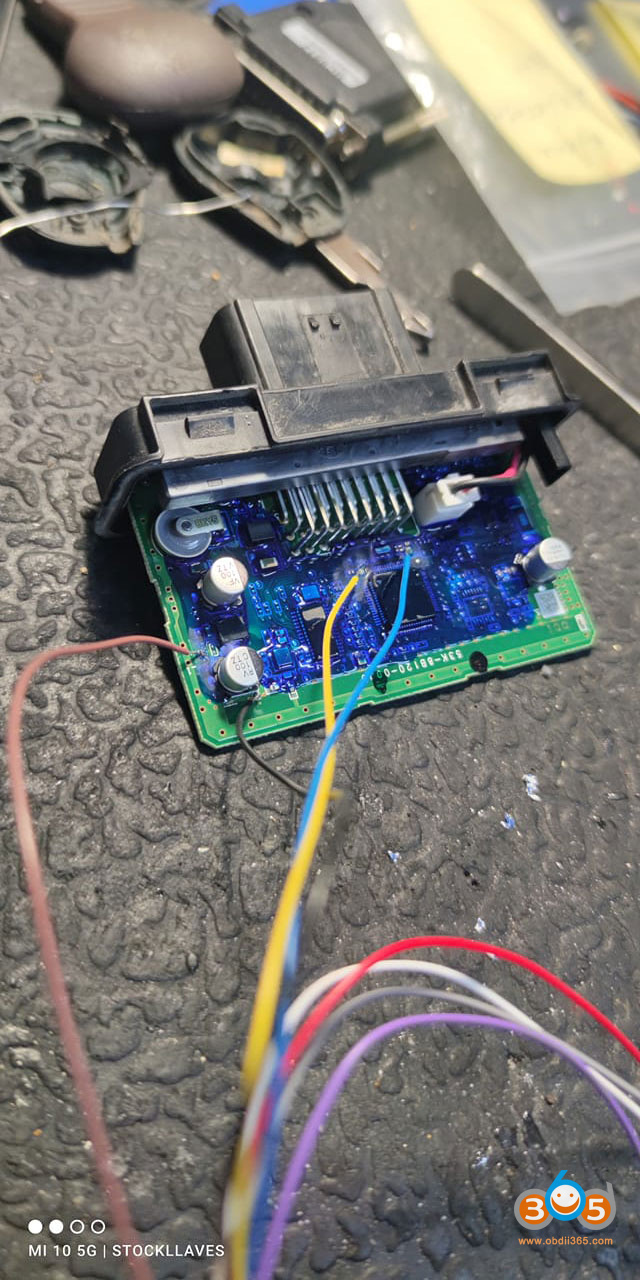

    Remove SCU from motorbike

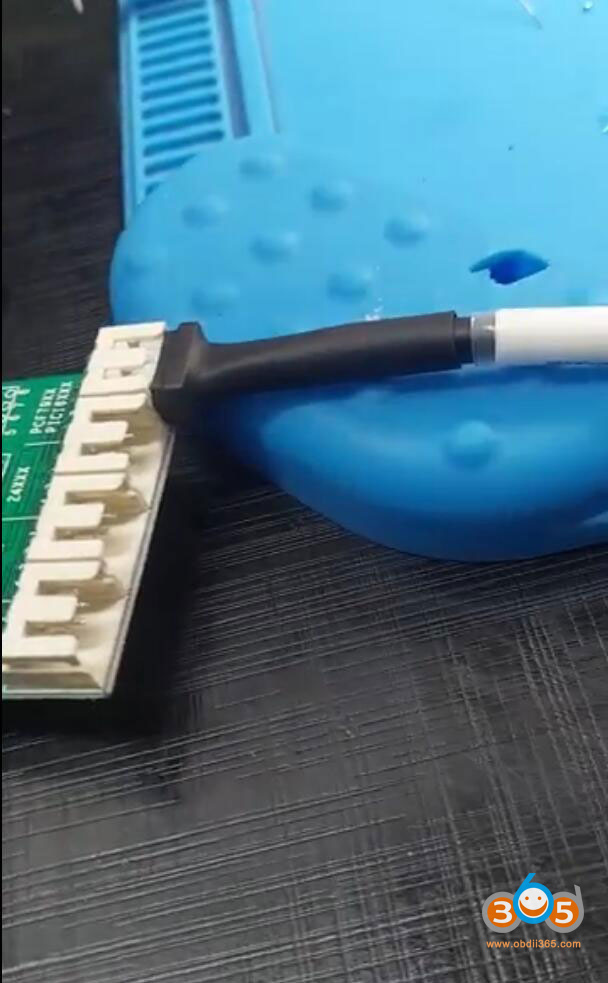

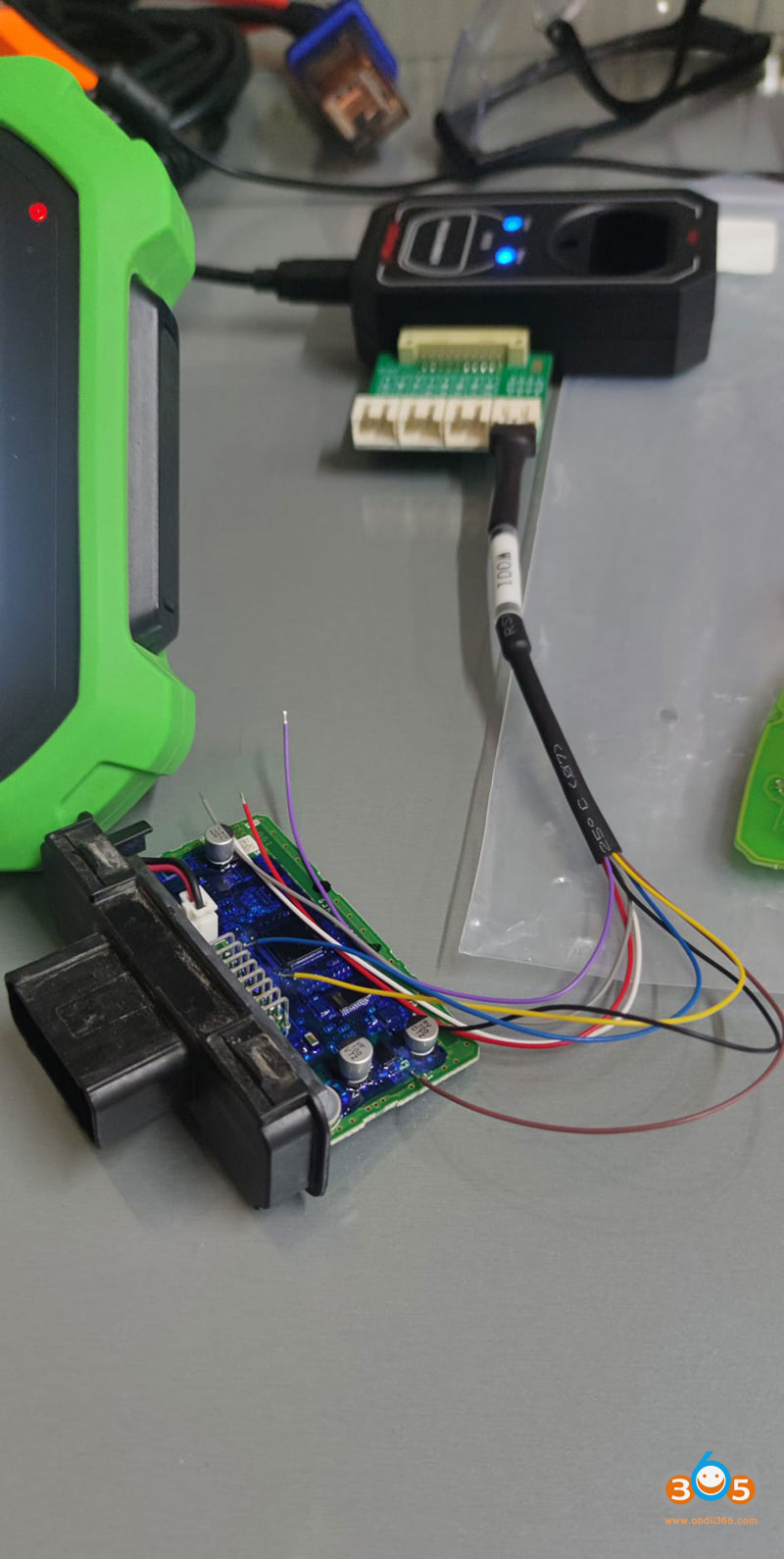

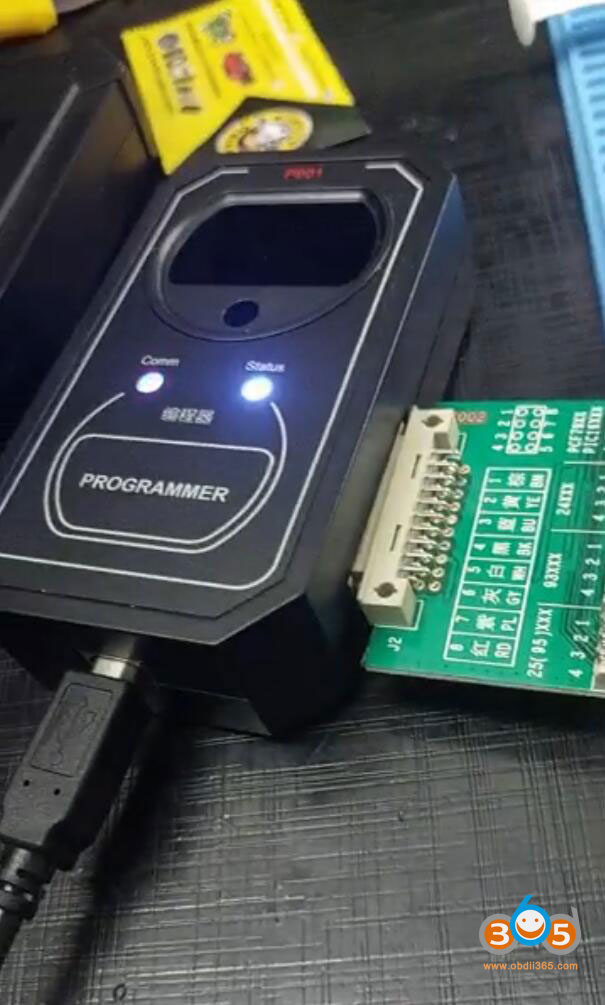

    Connect SCU with x300 dp p001 programmer via eeprom adapter

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 1

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 2

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 3

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 4

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 5

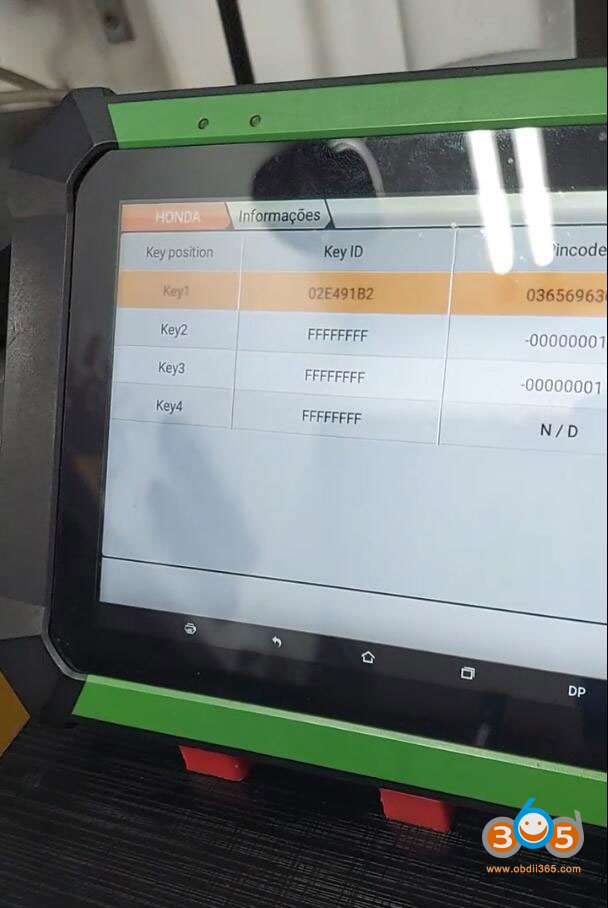

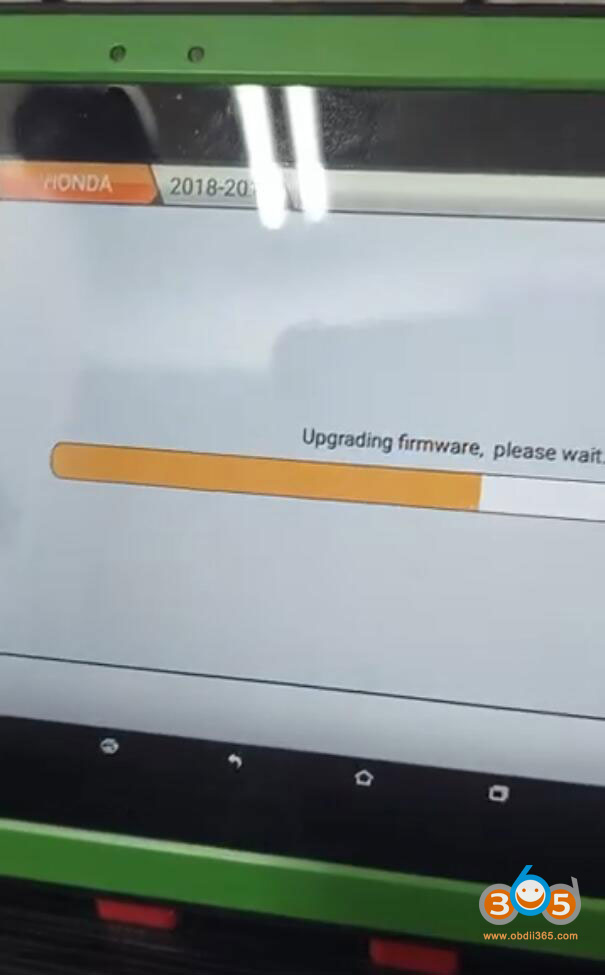

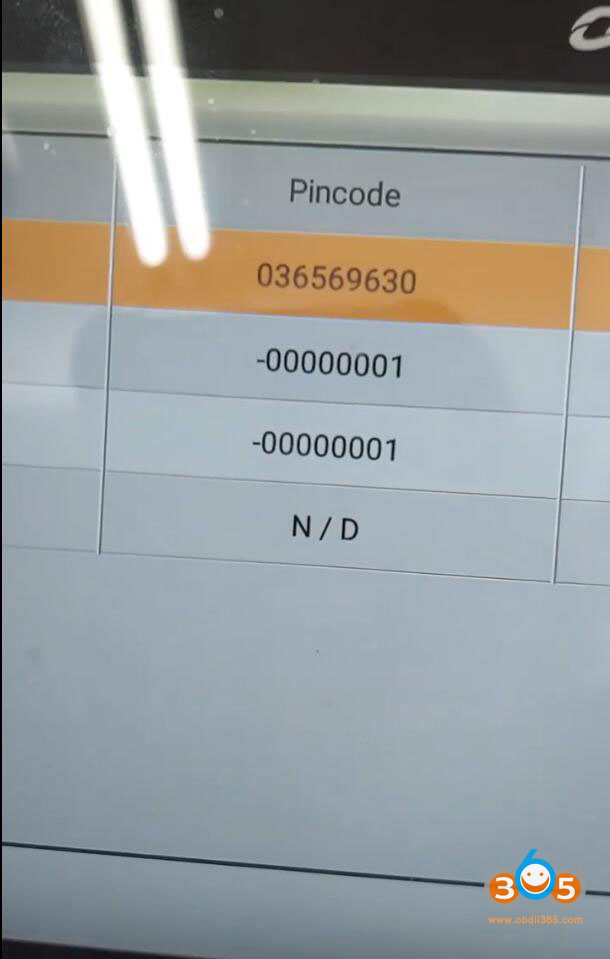

    In X300 DP plus, select Honda-2018 to 2019 menu, update p001 firmware and read 9-digit pin code

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 6

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 7

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 8

    2. Program key

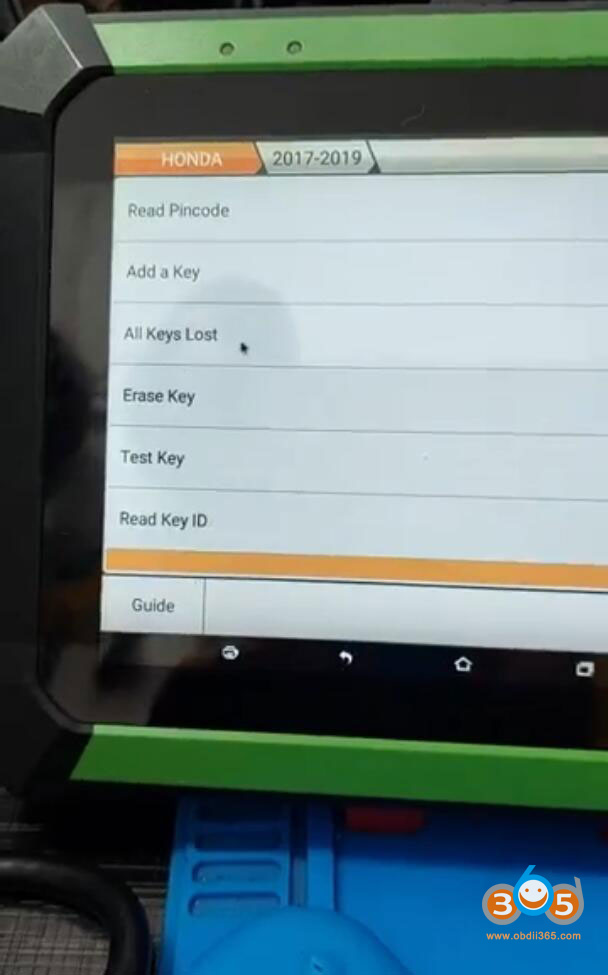

    Go to Honda- 2017 to 2019- All Keys Lost

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 9

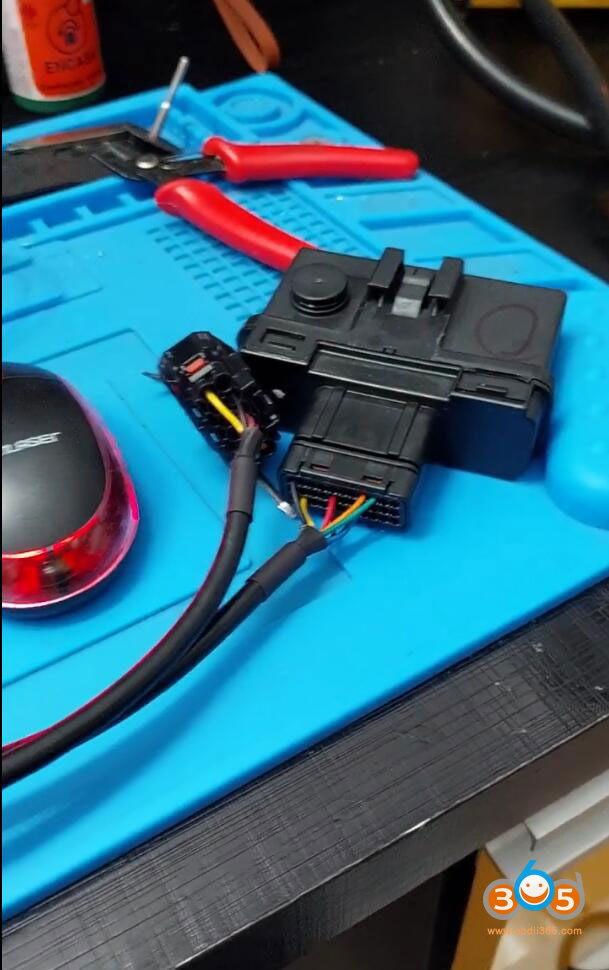

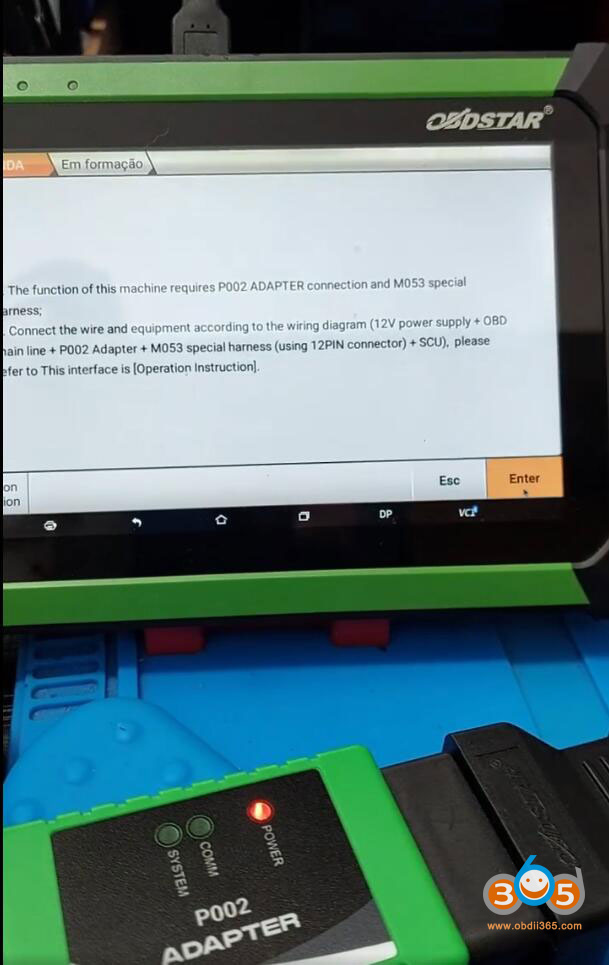

    Connect SCU immo module with X300 DP or DP Plus with P001 adapter and M053 harness

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 10

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 10 1

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 11

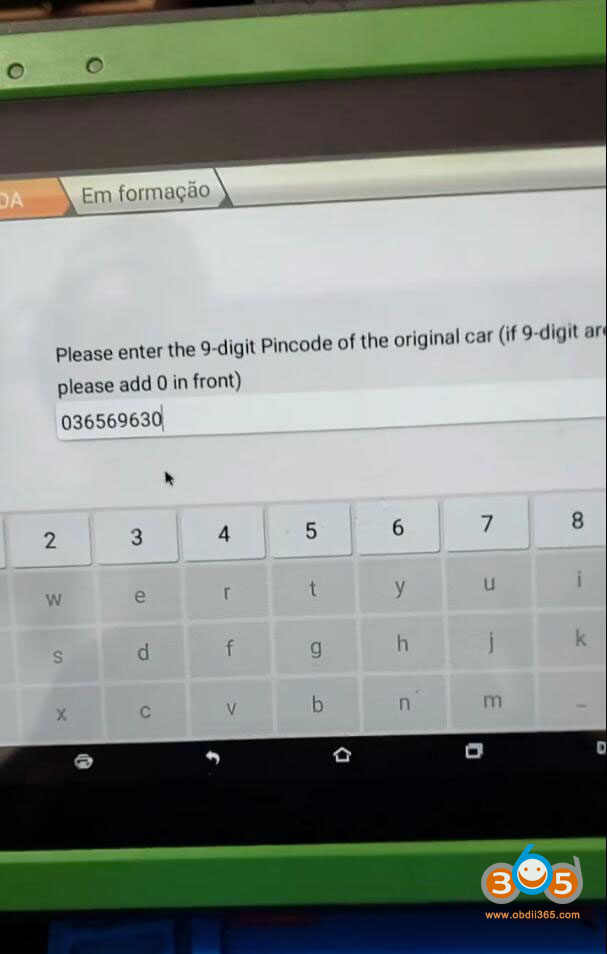

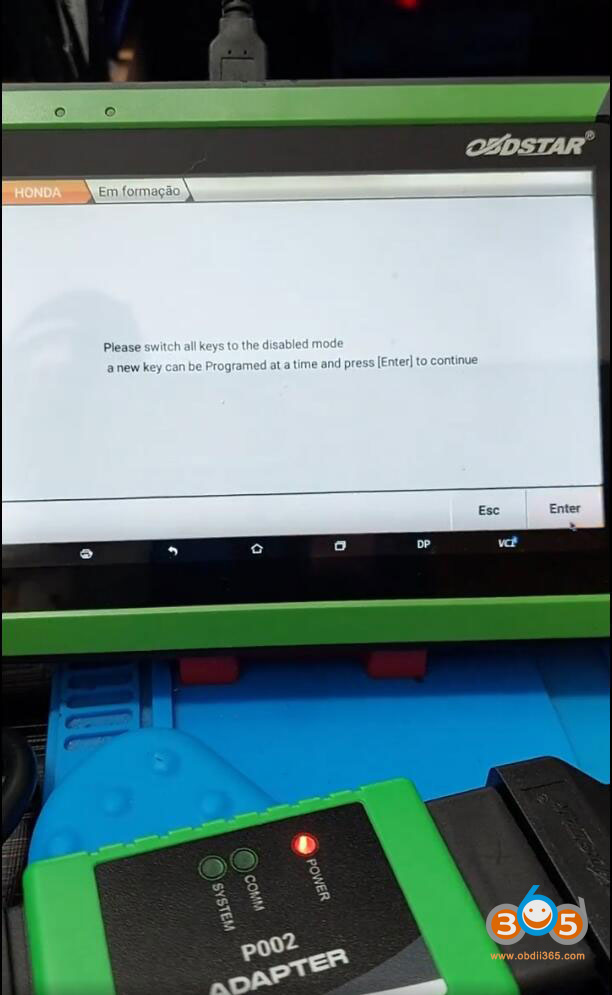

    Input pin code read from Step 1 to continue

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 12

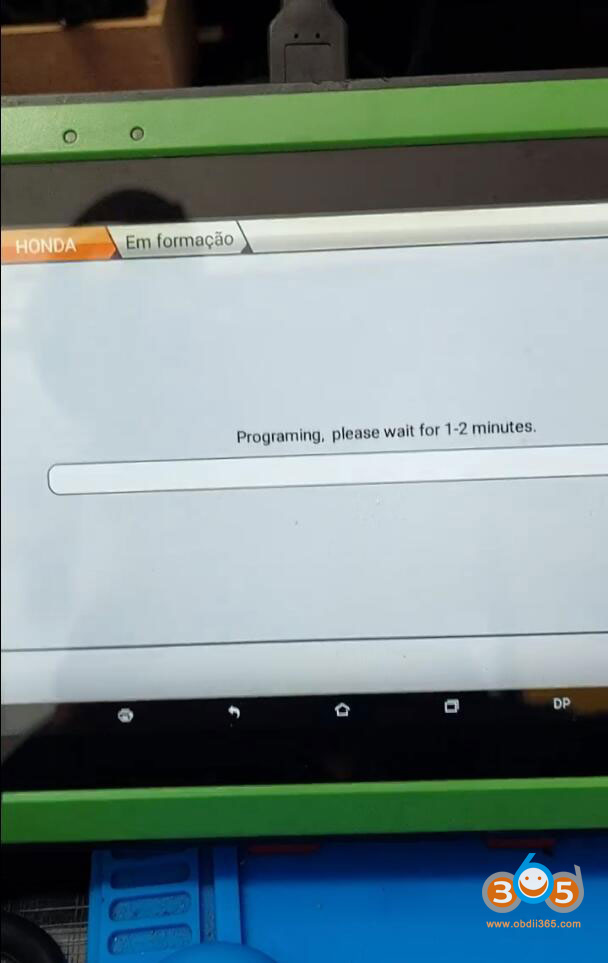

    Program key in the process, wait until completed.

    Obdstar X300 Dp Honda Sh 2017 All Keys Lost 13

    Reinstall immo module back to the motorbike. Test the new key.

    Done.
