    How to Obtain VAG Simos 2.1 CS and PIN with OBDSTAR P003 Adapter?

    vw-key-programmer
    — (0)

    Volkswagen, Audi, Seat and Skoda series models require obtaining the CS, PIN and MAC values of the current vehicle first before immo programming.  Some models need to read Immo data from the engine system, and some models equipped with Continental PCR2.1 engine can not directly read the engine data through OBD diagnostic socket at present.  OBDSTAR released a new way to read VAG Simos 2.1 on bench mode using OBSDTAR P003 adapter.

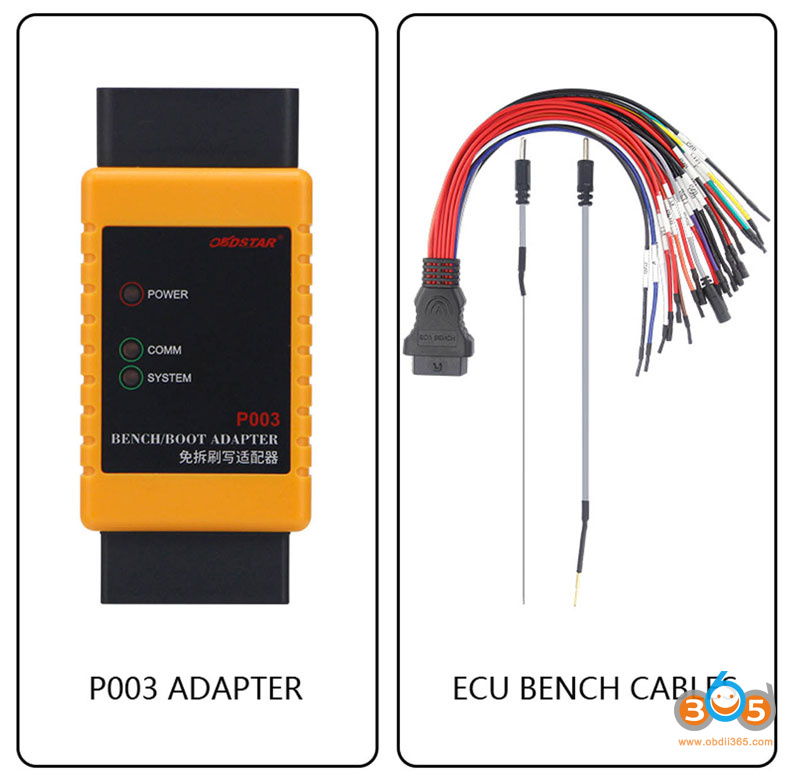

    Obdstar P003 Adapter

    The P003 adapter can be used with x300 dp/key master dp, x300 pro4/key master 5 and x300 dp plus/key master dp plus IMMO tablets.



    VAG models affected:

    2010-2014 Audi A1 (8X) 1.6L Diesel

    2009-2012 Audi A3 (8P) 1.6L Diesel

    2009-2013 Seat Altea 1.6L Diesel

    2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

    2010-2012 Seat Leon II 1.6L Diesel

    2014 Seat Toledo (KG) 1.6L Diesel

    2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

    2010-2013 Skoda Fabia II (5J) 1.6L Diesel

    2010-2011 Skoda Roomster (5J) 1.6L Diesel

    2013-2014 Skoda Rapid (NH) 1.6L Diesel

    2011-2013 Skoda Superb (3T) 1.6L Diesel

    2012/2015 Skoda Yeti (5L) 1.6L Diesel

    2010-2015 VW Caddy (2K) 1.6L Diesel

    2009-2013 VW Golf VI 1.6L Diesel

    2010-2013 VW Golf Plus 1.6L Diesel

    2011-2014 VW New Beetle (9C) 1.6L Diesel

    2011 VW Passat (B7) 1.6L Diesel

    2009-2014 VW Polo V 1.6L Diesel

    2010-2015 VW Touran (1T)





    P003 Bench Adapter Overview

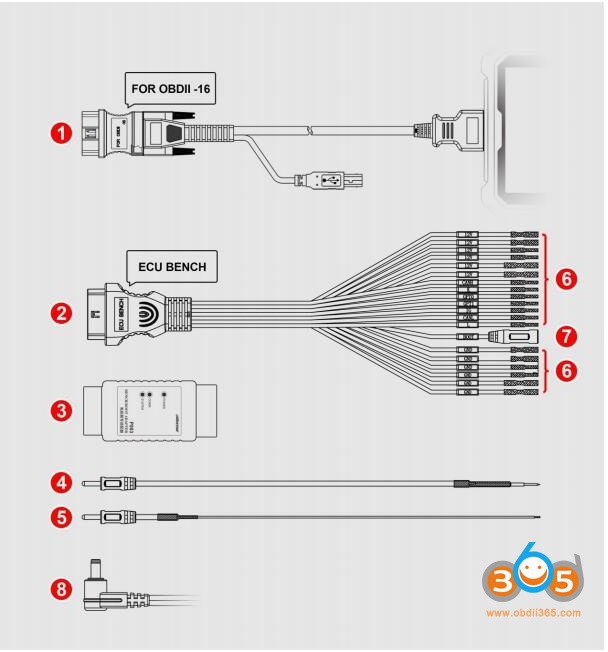

    Obdstar P003 Bench Connection

    1. Diag cable OBD connector(male)
    2. Connect P003 connector(female)
    3. P003 adapter
    4. Boot jumper(spring needle)
    5. Boot jumper(welding)
    6. ECU pin connector
    7. ECU boot connector
    8. 12V power



    Read VAG Siemens Continental SIMOS PCR 2.1 IMMO data through OBDSTAR P003

    This function requires network connection.

    Menu path:

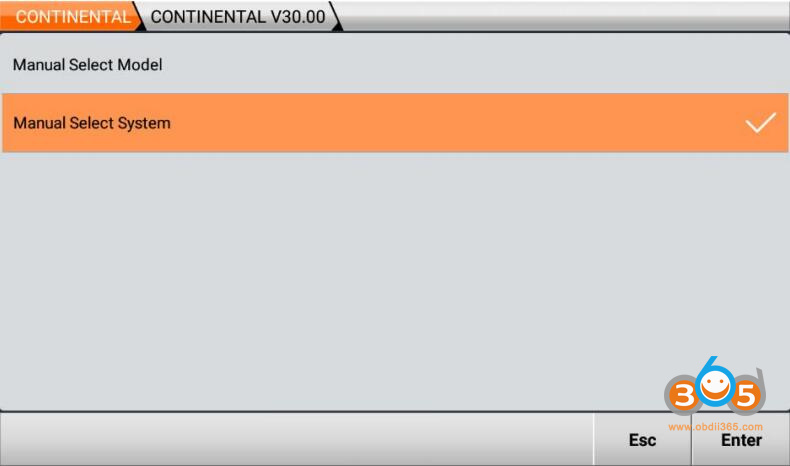

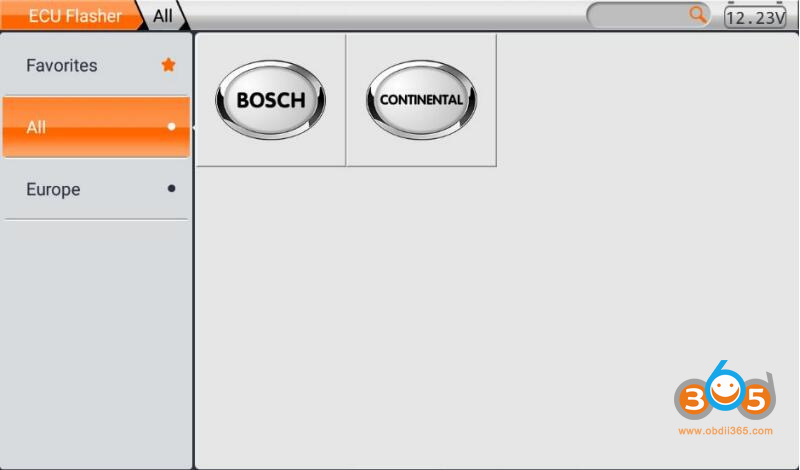

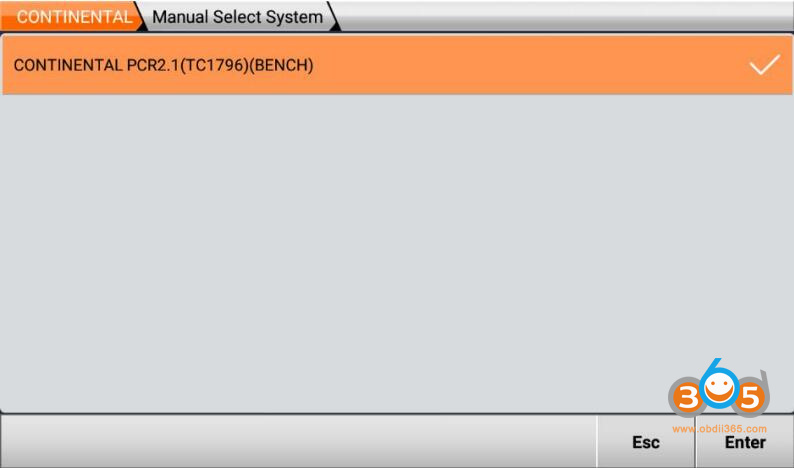

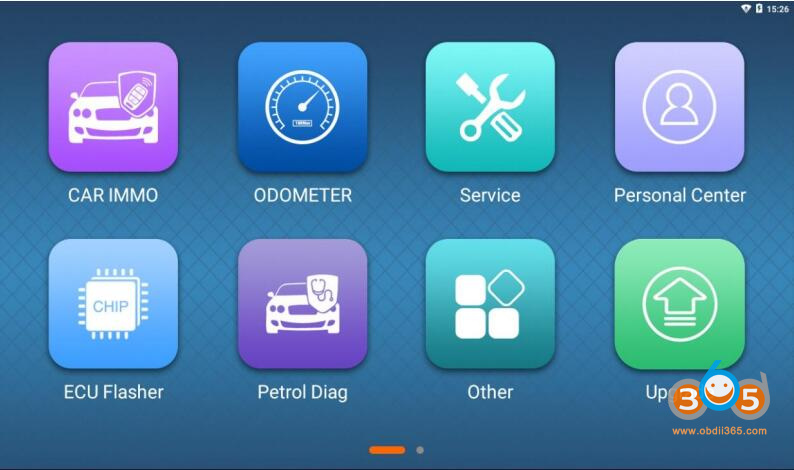

    Go to ECU Flasher-> CONTINENTAL V30.00->  Manual Select System -> CONTINENTAL PCR2.1(TC1796)(BENCH)

    Obdstar P003 Read Pcr 2.1 Immo Data 1

    Obdstar P003 Read Pcr 2.1 Immo Data 2

    Obdstar P003 Read Pcr 2.1 Immo Data 3

    Obdstar P003 Read Pcr 2.1 Immo Data 4

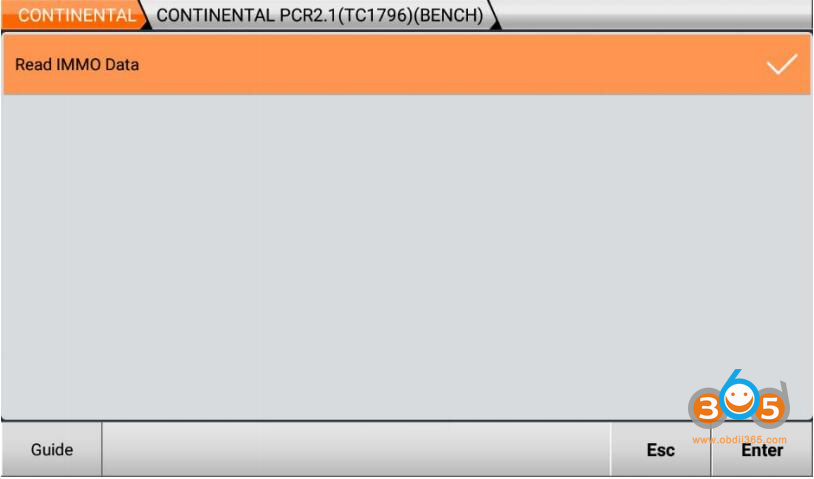

    Obdstar P003 Read Pcr 2.1 Immo Data 5

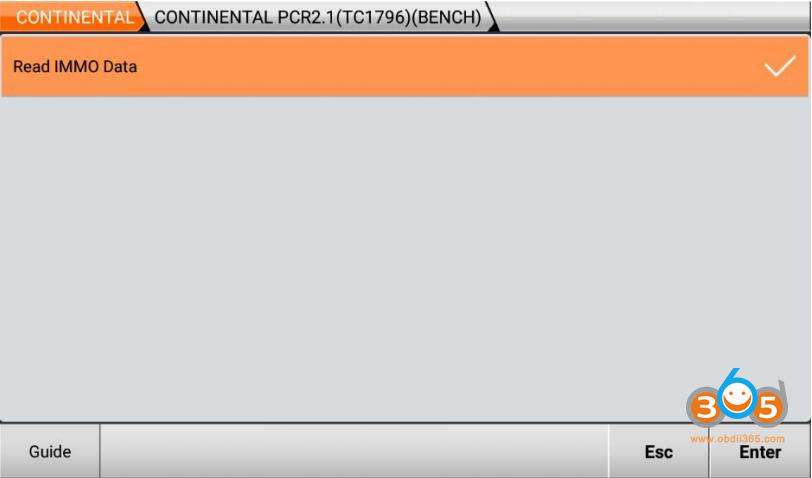

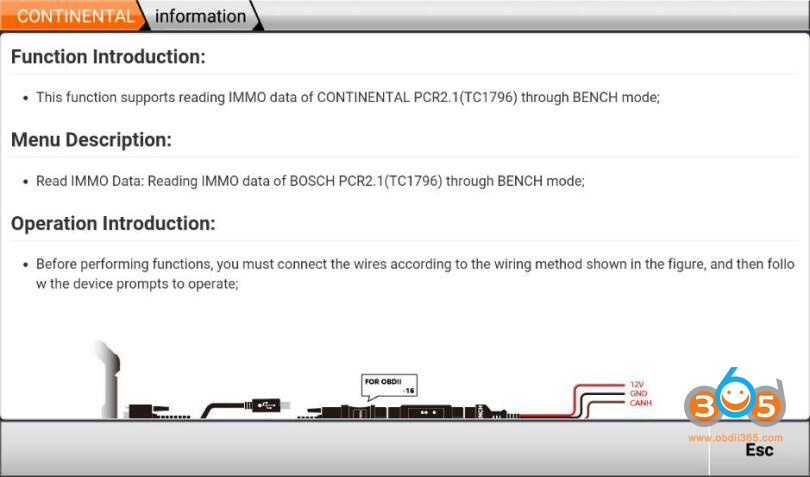

    OBDSTAR will show you an operation guide and connection diagram

    Obdstar P003 Read Pcr 2.1 Immo Data 7

    Obdstar P003 Read Pcr 2.1 Immo Data 8

    Obdstar P003 Read Pcr 2.1 Immo Data 9

    Obdstar P003 Read Pcr 2.1 Immo Data 10

    Obdstar P003 Read Pcr 2.1 Immo Data 10

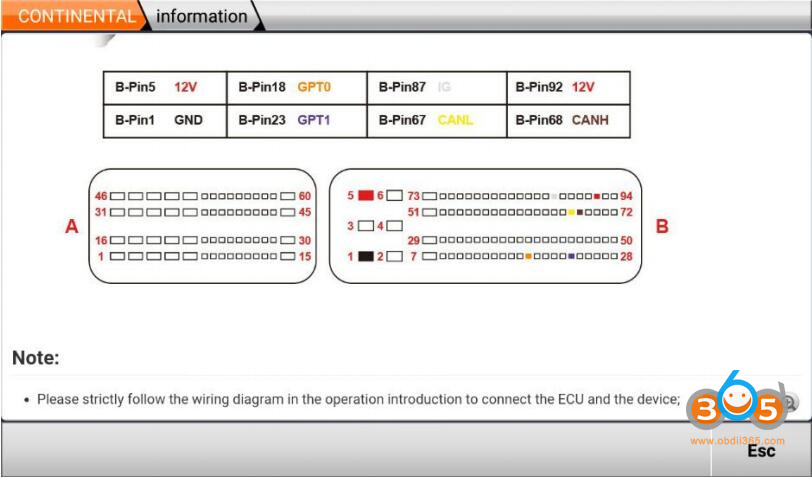

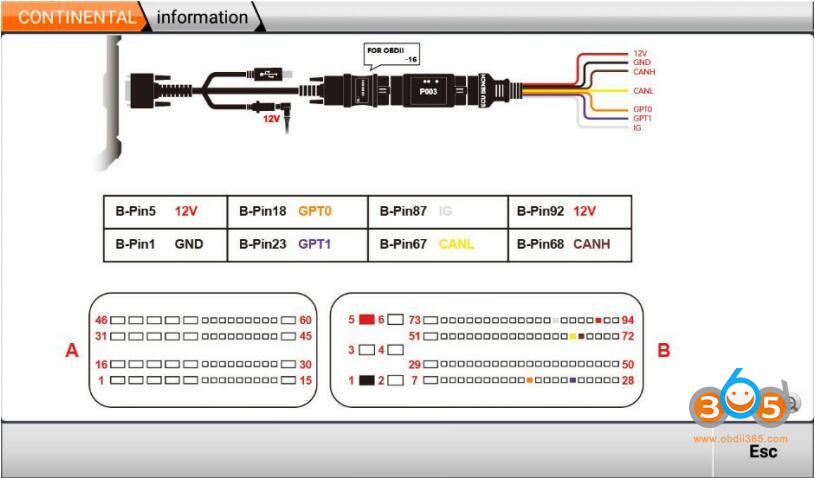

    Follow wiring diagram to connect obdstar tablets and p003 adapter

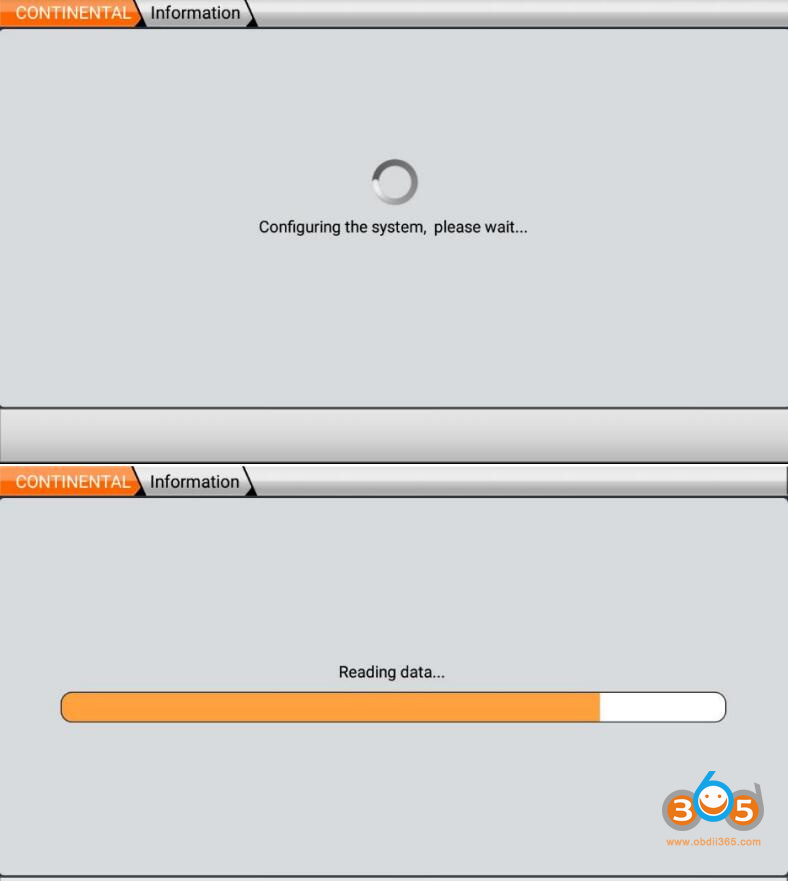

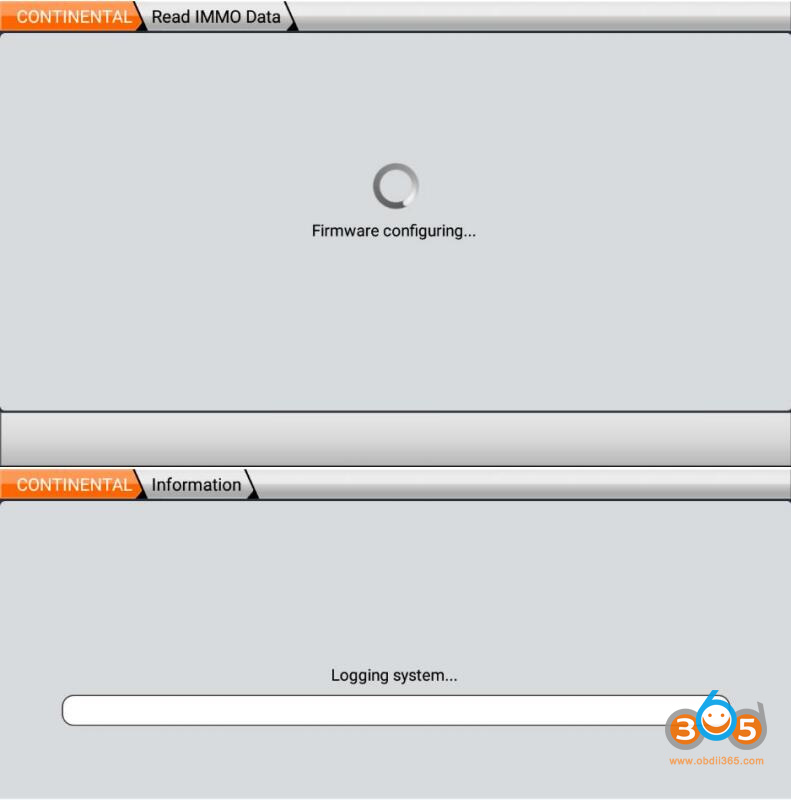

    Reading immo data in process

    Obdstar P003 Read Pcr 2.1 Immo Data 13

    Obdstar P003 Read Pcr 2.1 Immo Data 14

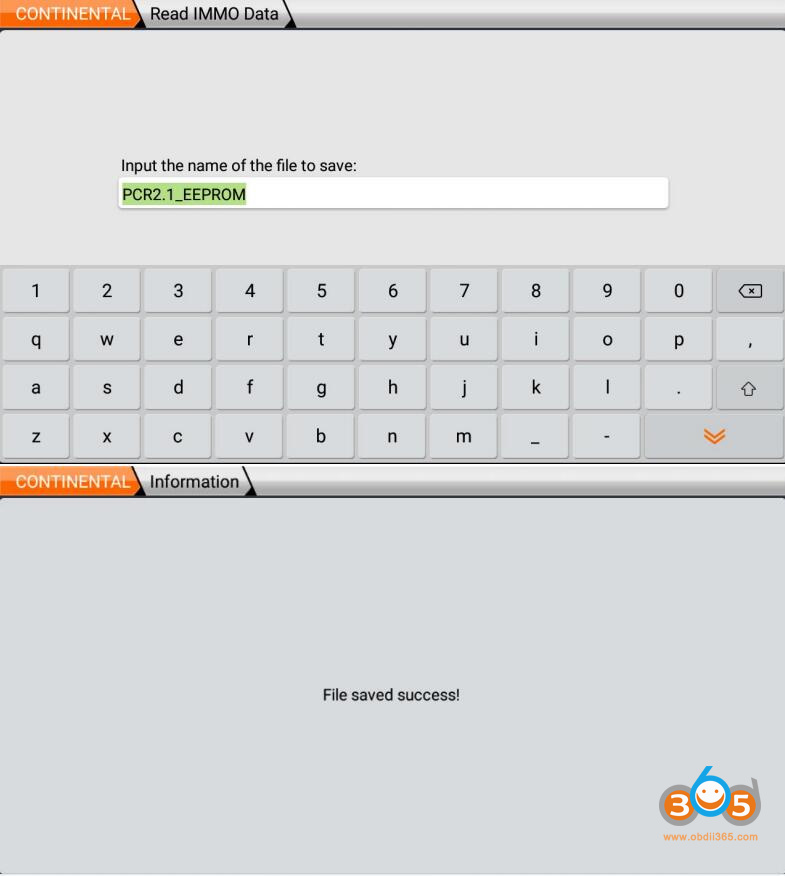

    Save data

    Obdstar P003 Read Pcr 2.1 Immo Data 15

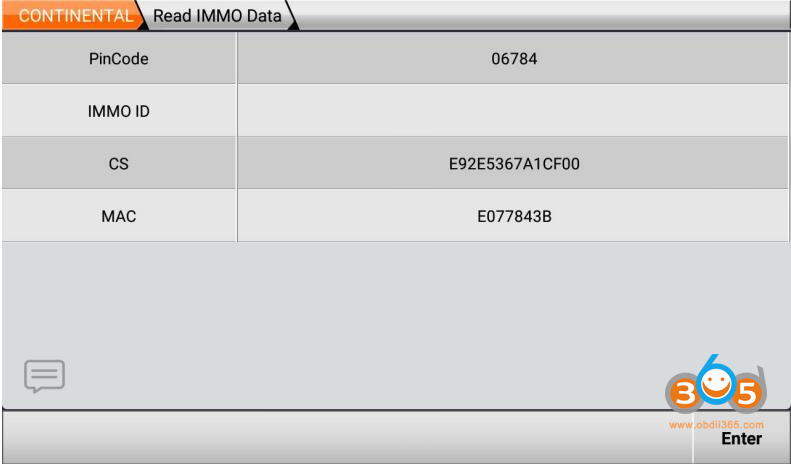

    Read PIN, CS and MAC successfully.
