Xtool X100 PAD3 Program Mercedes W211 All Keys Lost with M821 Adapter in 3 Mins
Mercedes W211 All Key Lost successfully done with Xtool X100 Pad3 and the Xtool M821 Adapter in 3 minutes.
Device required:
Xtool X100 PAD3/Pad Elite/H6 Pro/A80 Pro etc
*M821 adapter cannot be used with x100 pad/pad2.

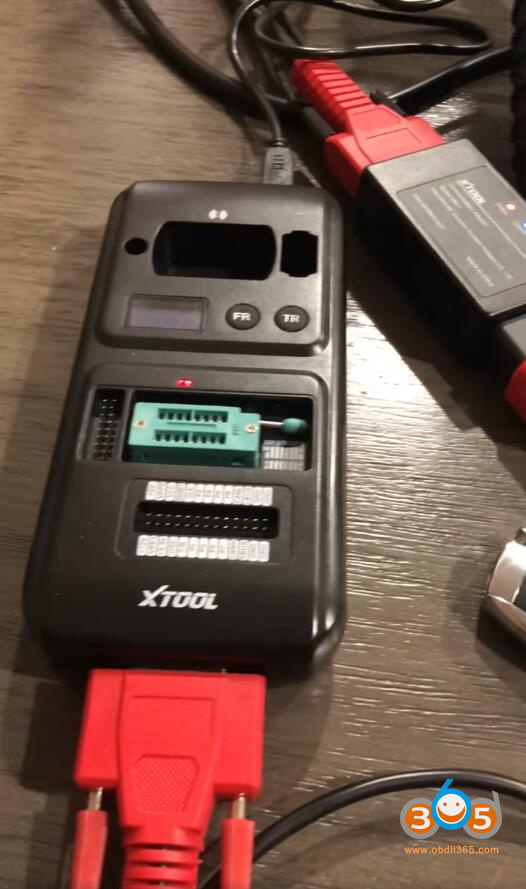

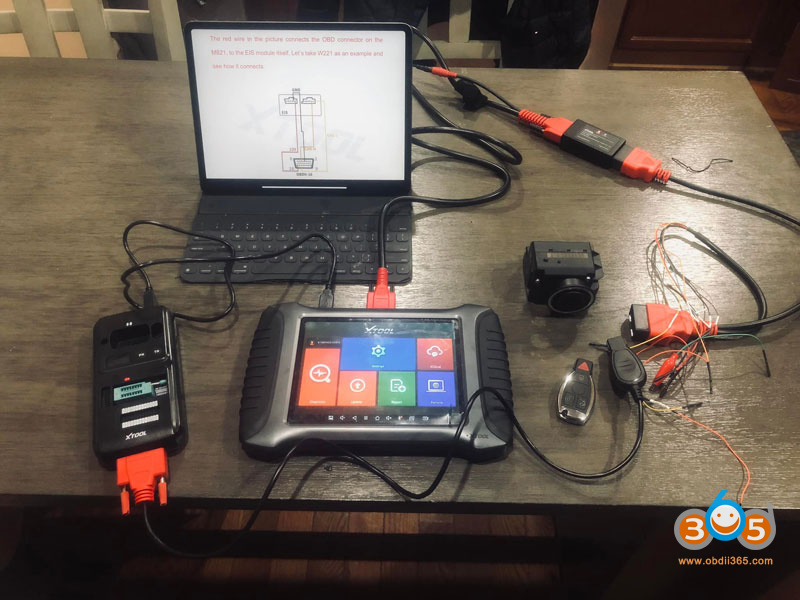

1. Set up connection
x100 pad3 will show you wiring diagram

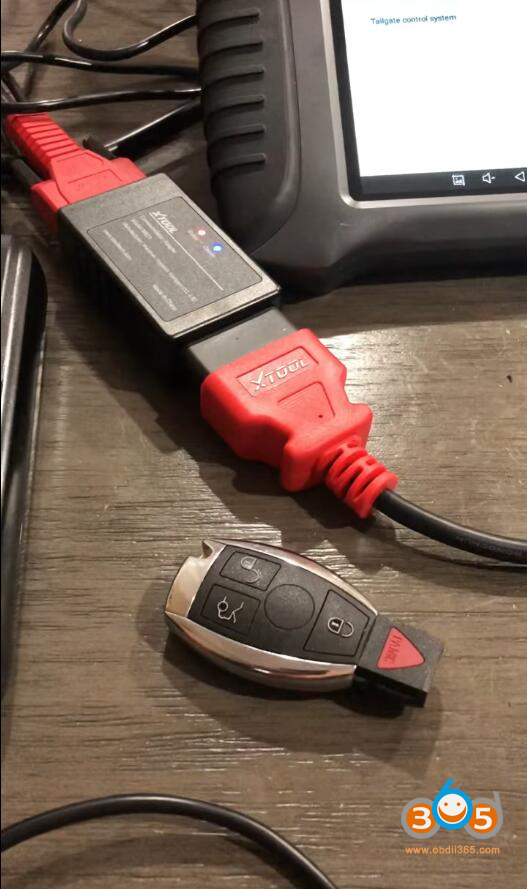

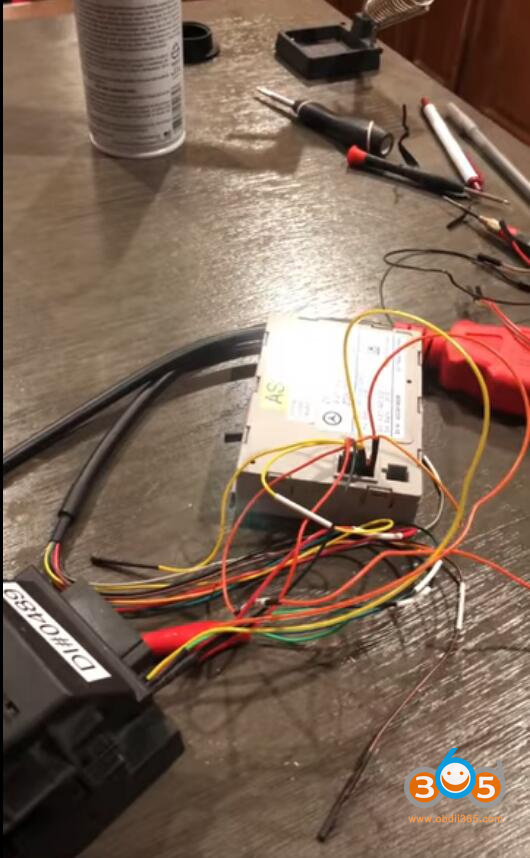

The brief connection should be like this:

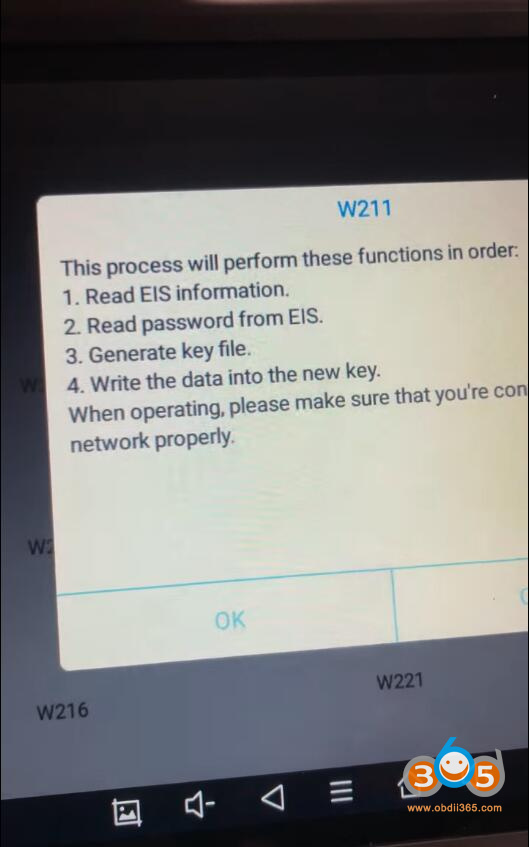

2. Main steps
- Read EIS information
- Read EIS password
- Generate key file
- Write key

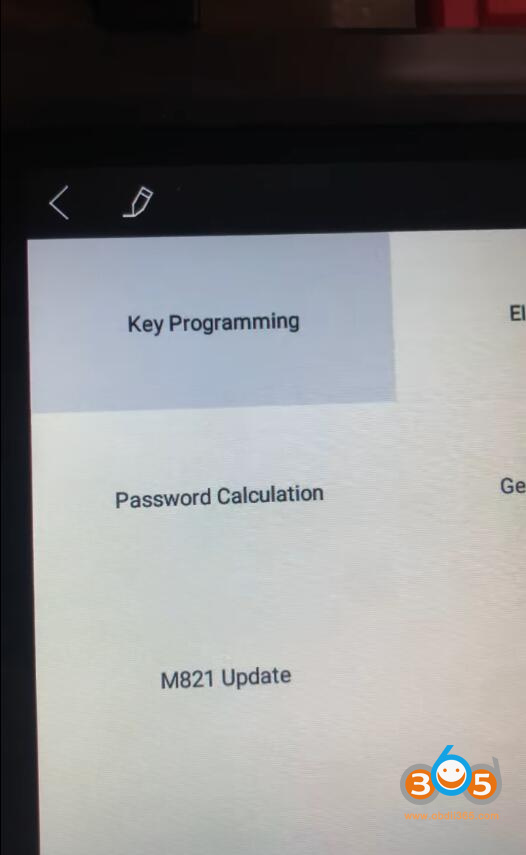

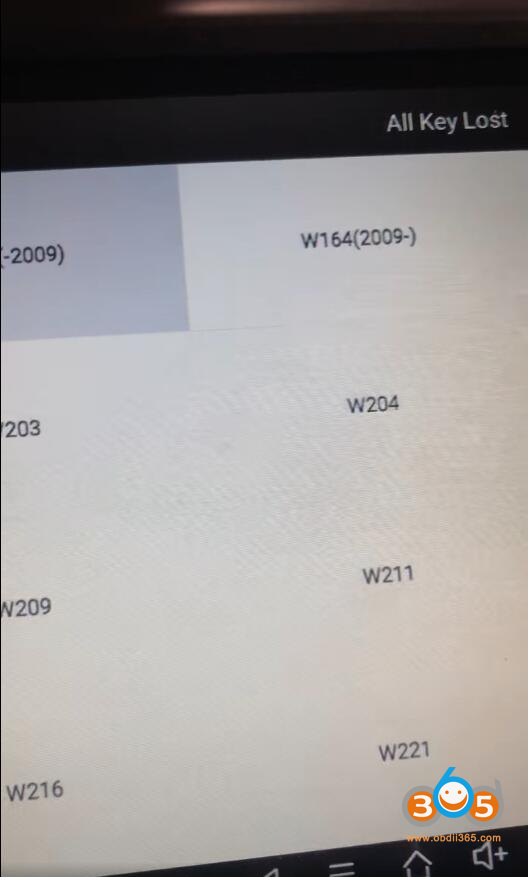

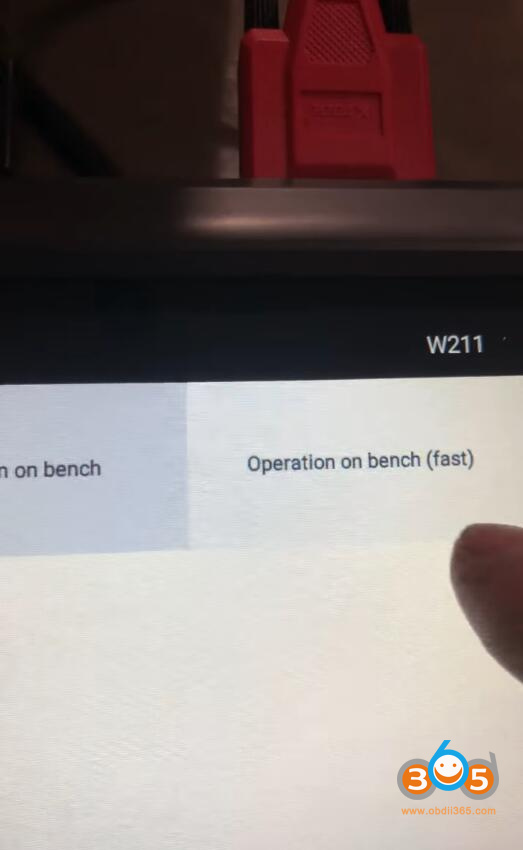

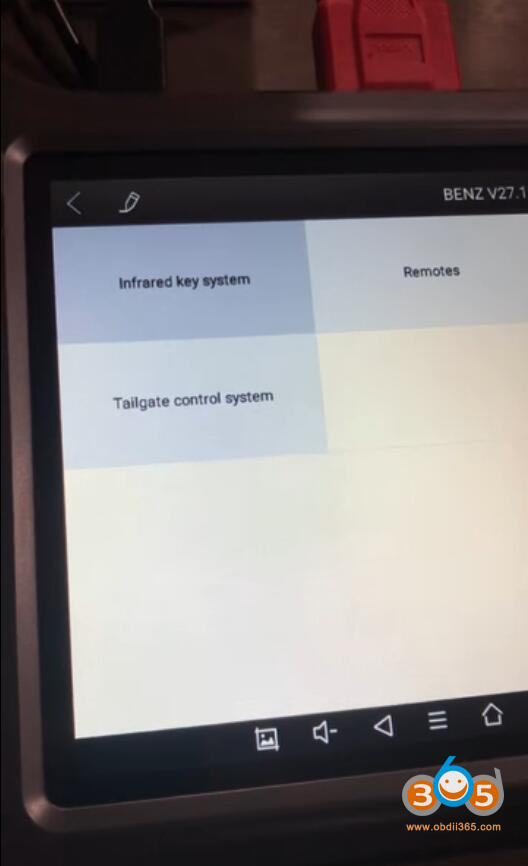

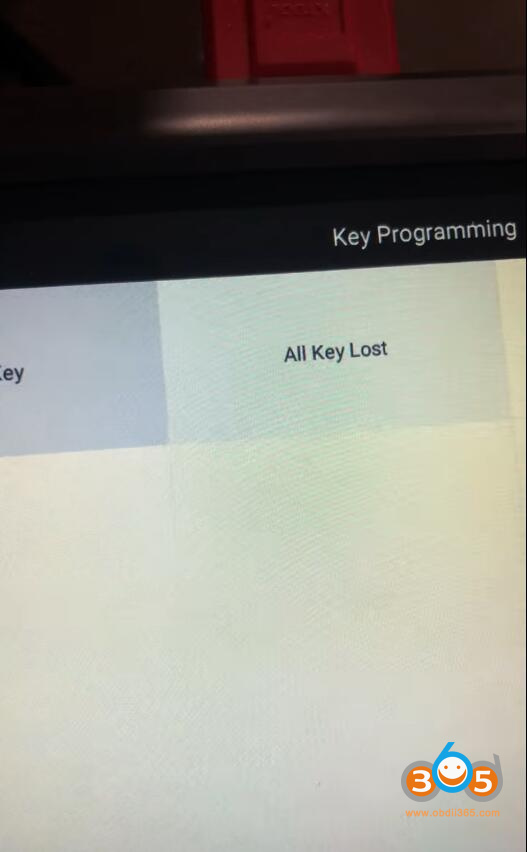

Go to Immo-Mercededs-Infrared Key System- Key Programming- All keys lost-W211-Operation on bench (Fast)

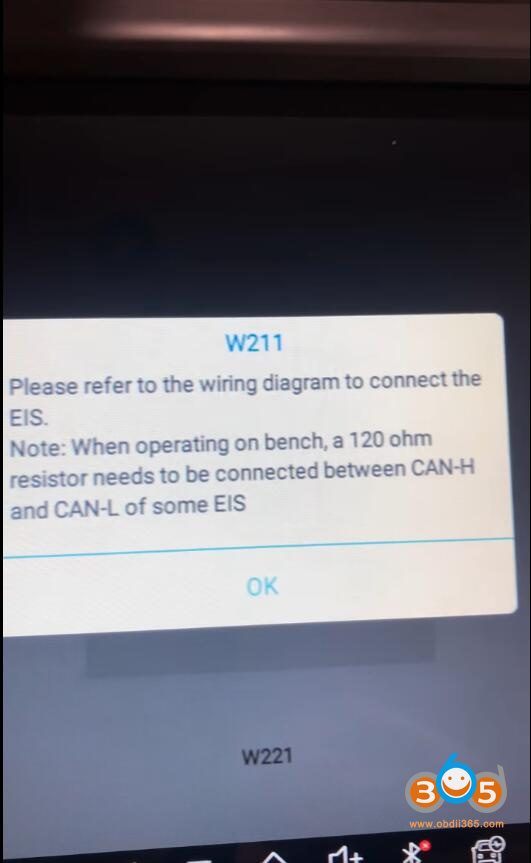

When operating on bench, a 120-ohm resistor needs to be connected between CAN-H and CAN-L of some EIS.

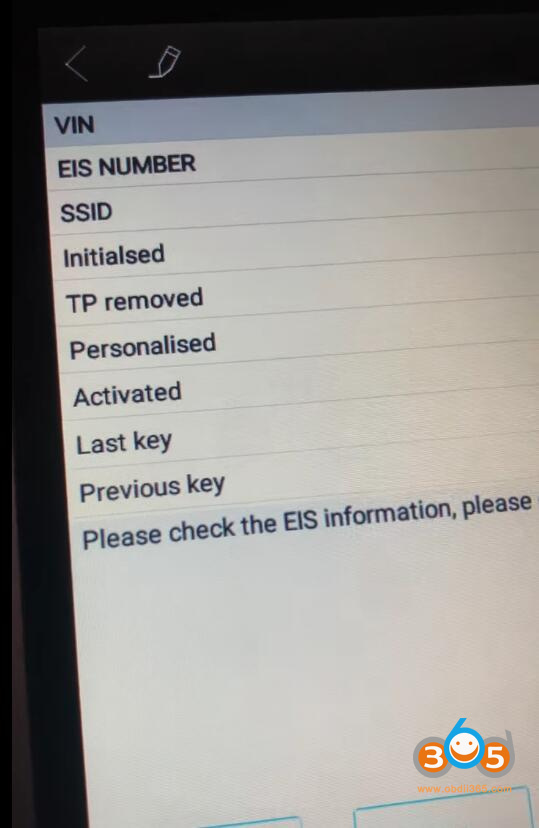

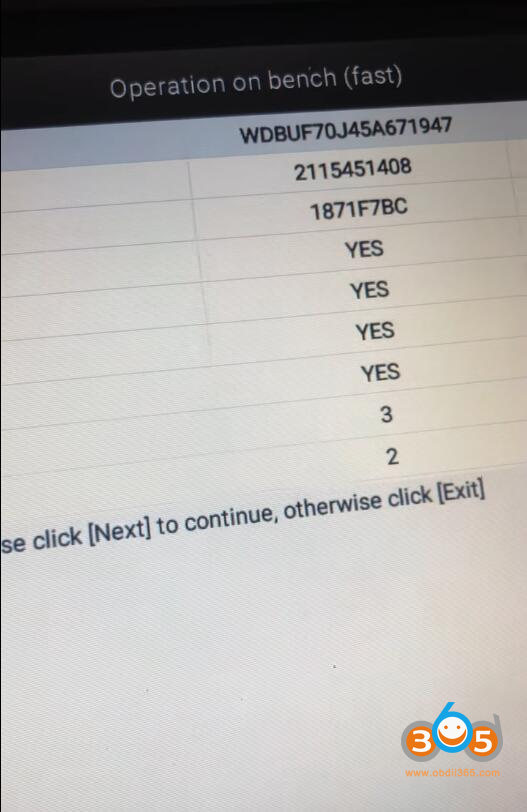

Read EIS information
Press OK

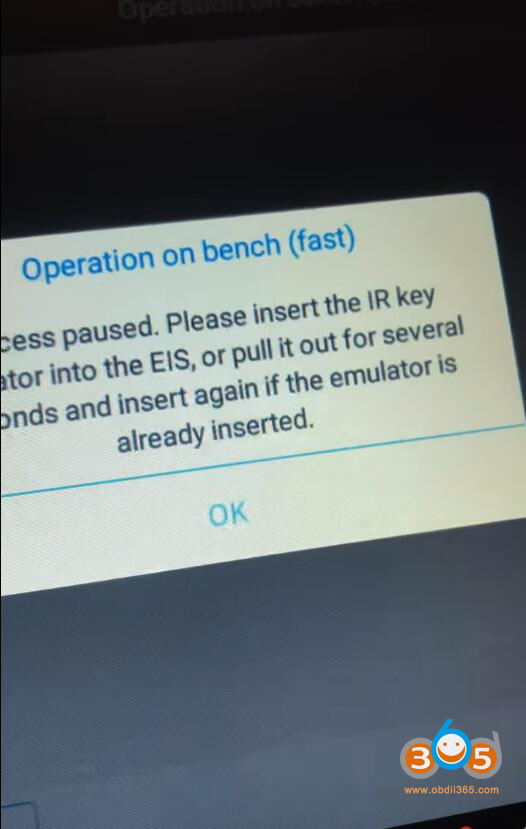

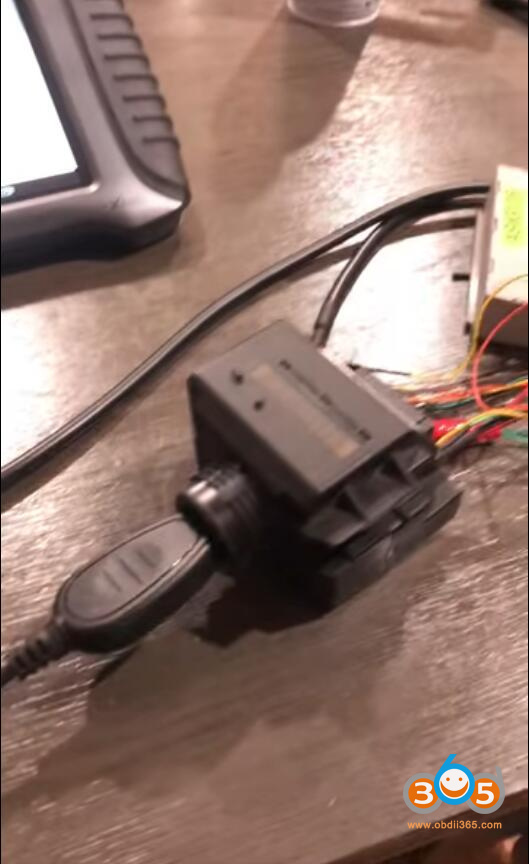

Insert the IR key adapter into the EIS

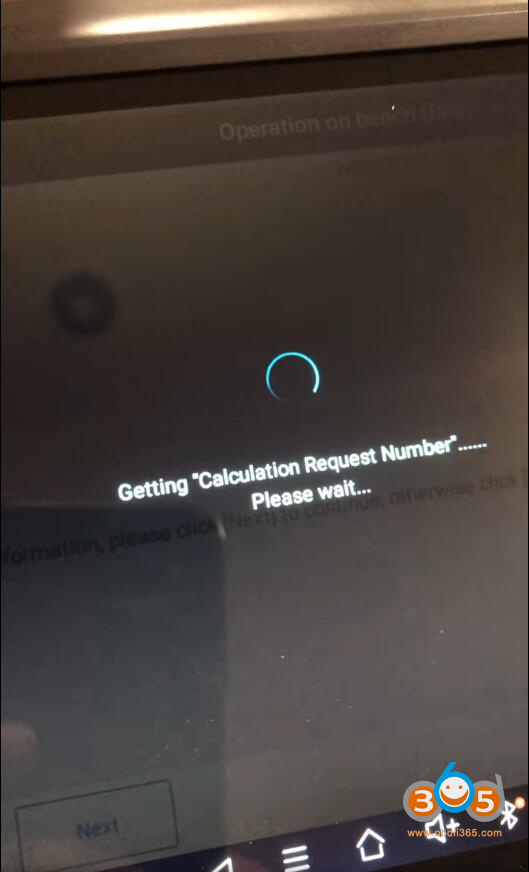

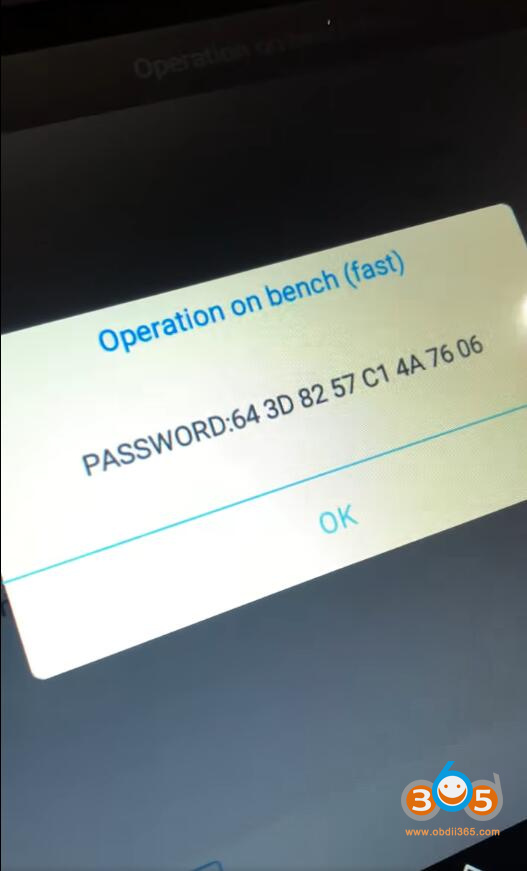

Calculate password success

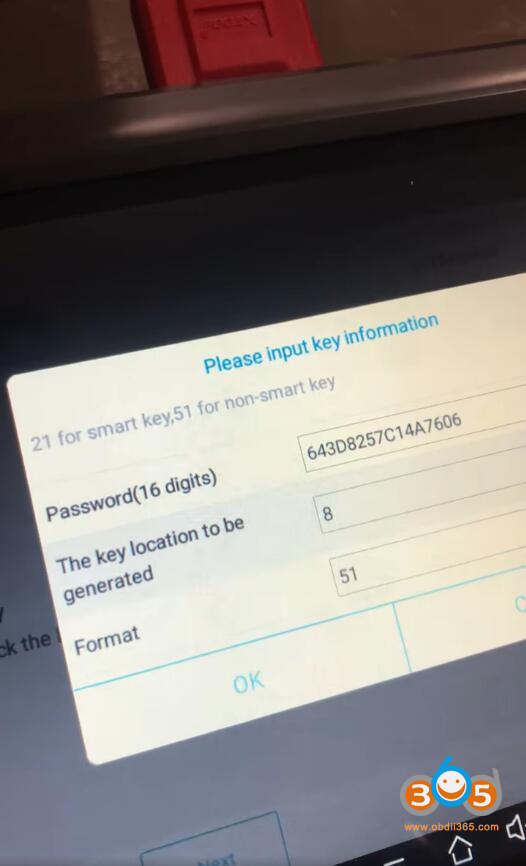

Press OK and select key position to be generated and key format
Press OK to continue

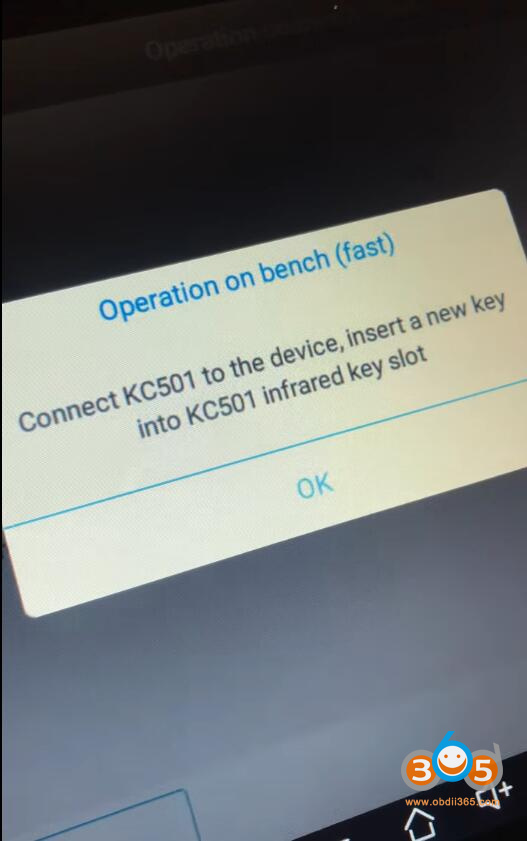

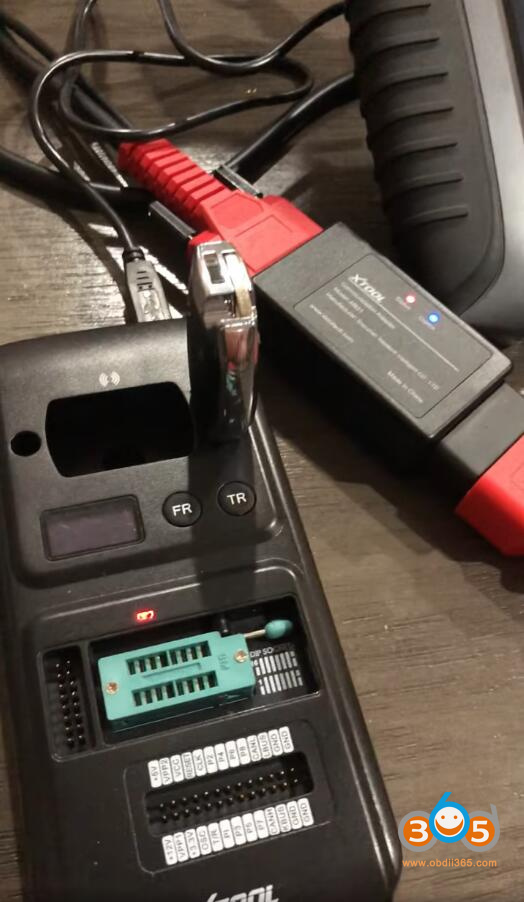

Then insert a new key into KC501 infrared key slot

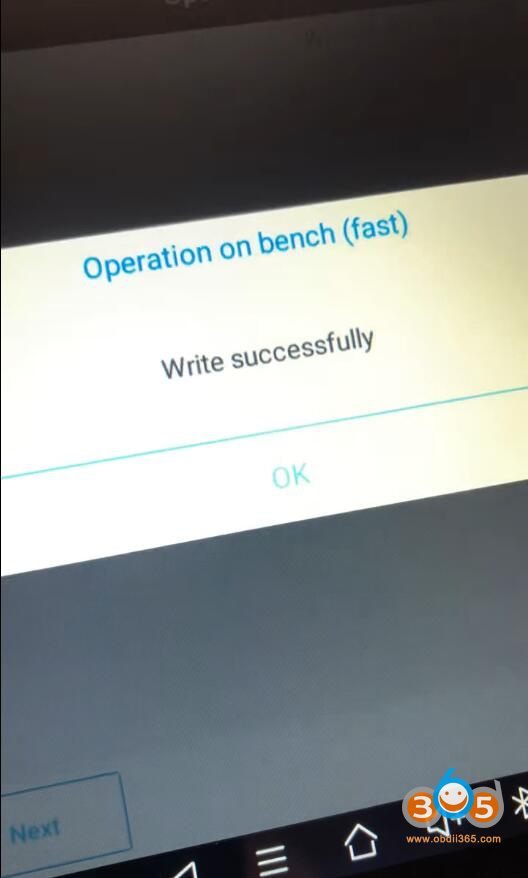

Write key successfully.

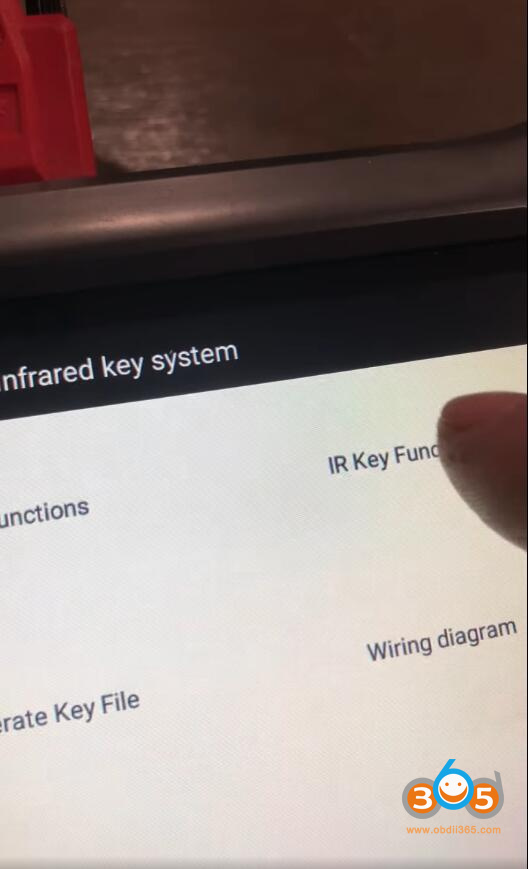

Go to IR key Function-Read key information

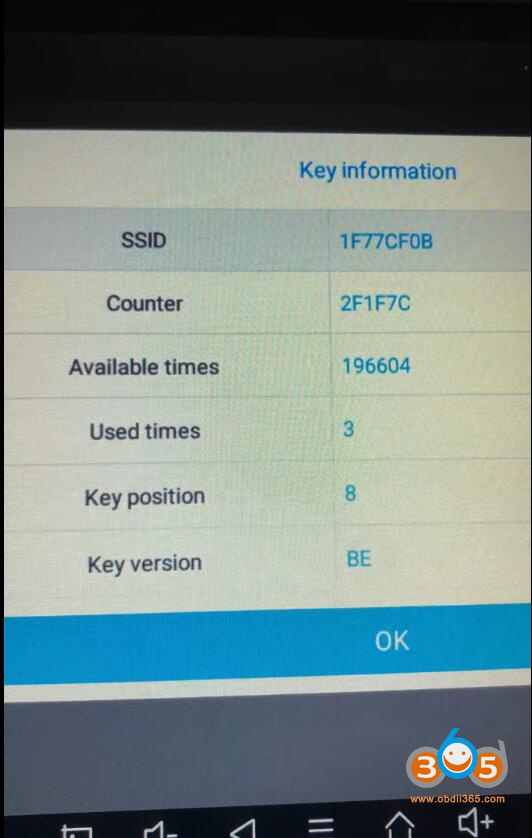

Read new key information and test the new BE key.
