Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

Audi A3 2004 to 2013 all keys lost requires 7th byte CS code via eeprom. Here is the trick. The job can be done by Autel IM508/IM608 with APB112 emulator directly via OBD without removing immo box.  It is easy to do as long as no one else touched it and does under lost keys. It is safe because there is no working transponder. Need good power as well.

Model example: Audi A3 2005.

How to:

Make device and vehicle connection

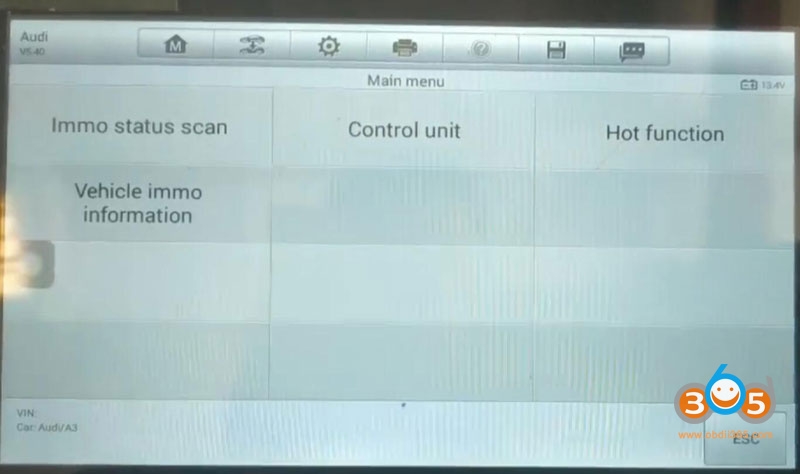

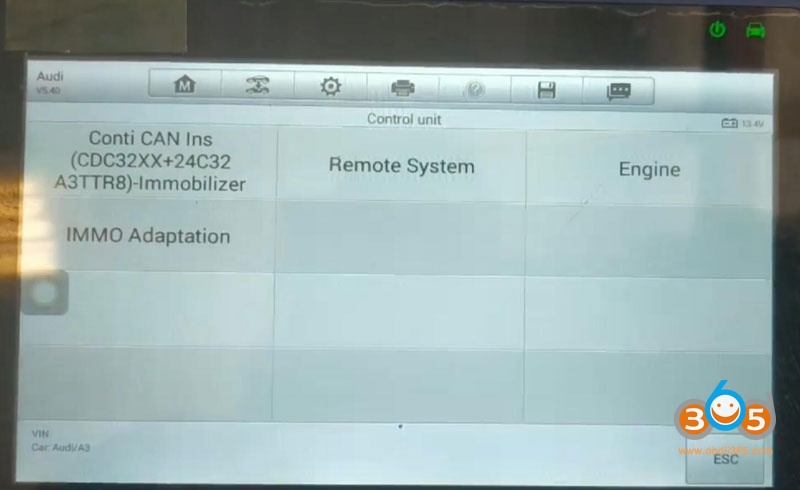

Select Immobilizer-Audi -A3- 2004 to 2013 -Control Unit- Conti CAN Ins (CDC32XX+ 24C32 A3TTR8) immobilizer- Read Immo Data of ECM


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

Detecting engine type

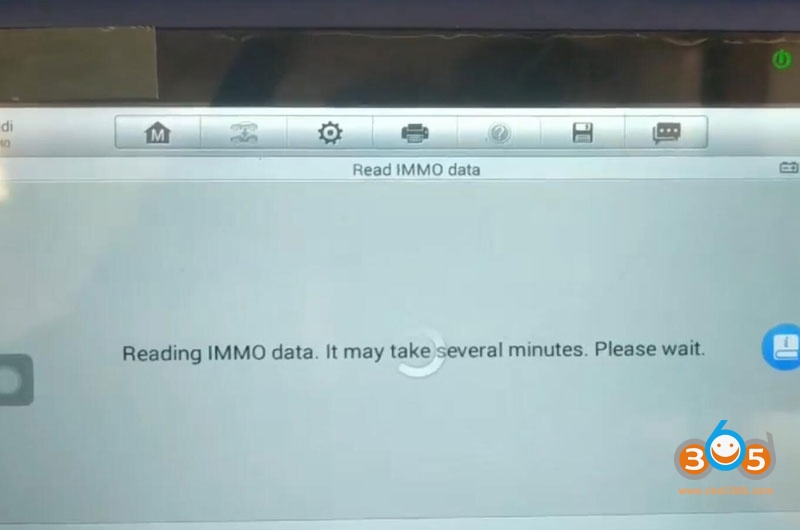

it takes sevral minutes to read immo data

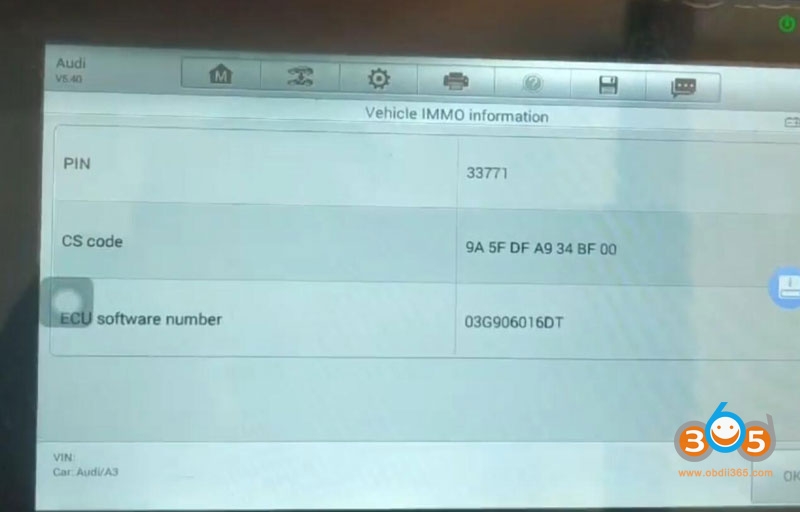

Read CS, PIN and ECU software number and confirm


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

IM508/IM608 read only 6-bytes CS code
you need to find 7th byte CS

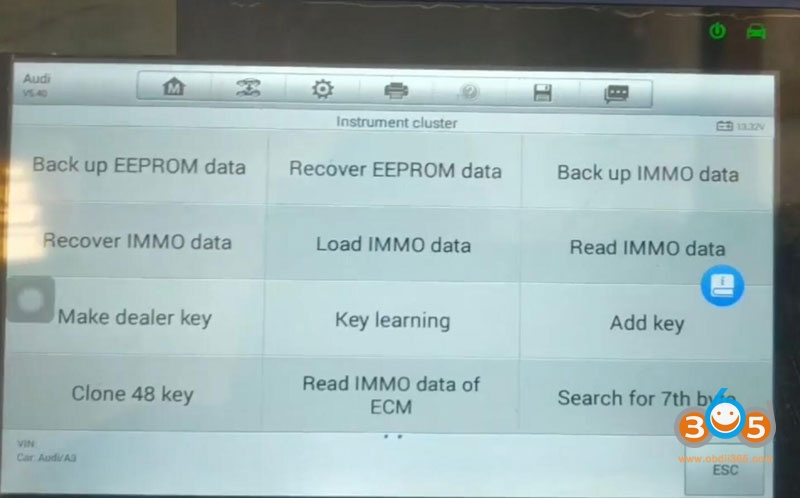

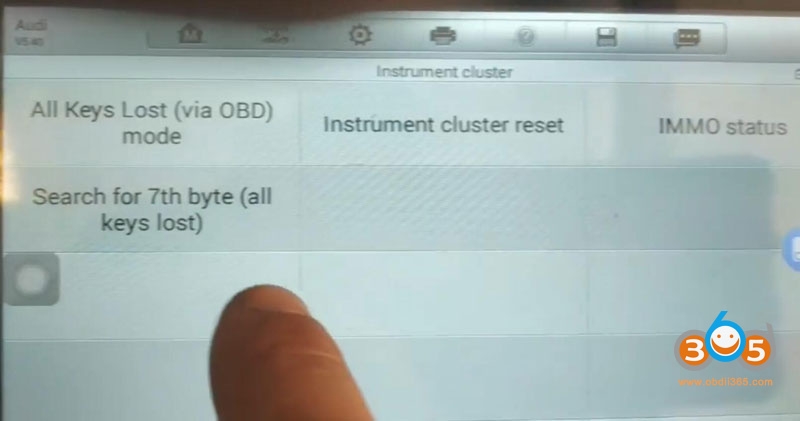

Select Search for 7th byte (all keys lost)

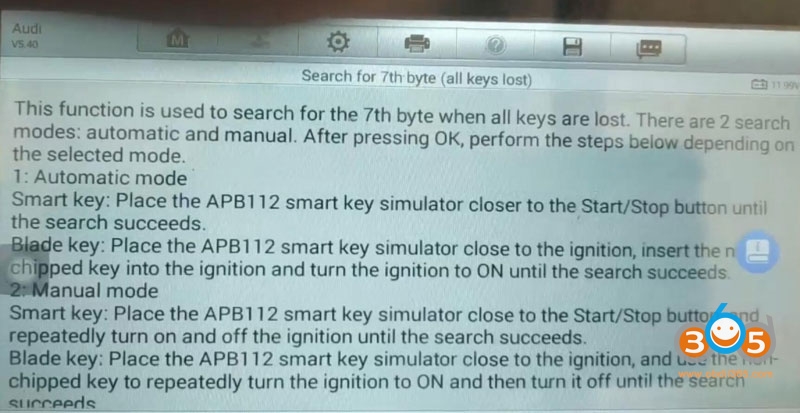

This function is used to search for the 7th byte when all keys are lost. There are 2 search modes: Automatic and manual.


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

Automatic mode:
Smart key: Place the apb112 smart key simulator close to the Start/Stop button until the search succeeds.

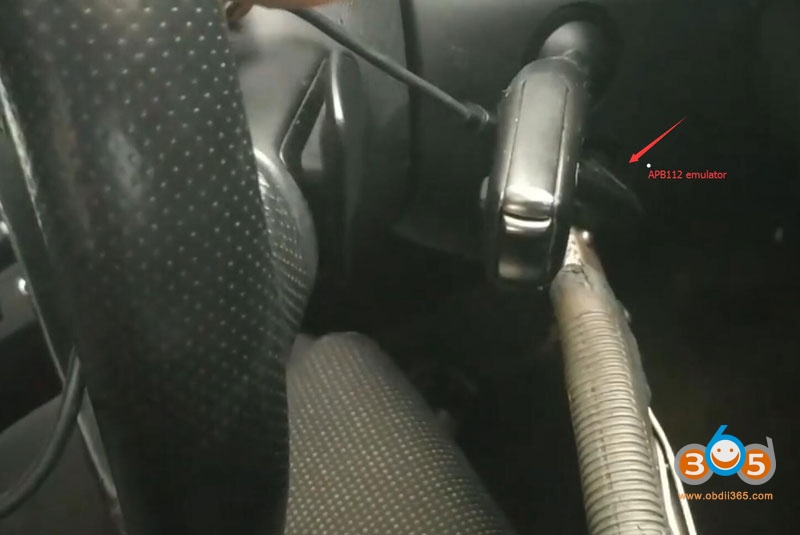

Blade key: Place the APB112 smart key simulator close to the ignition, insert the non-chip key into the ignition and turn ignition to ON until the search succeeds.

Manual mode:

Smart key: Place the apb112 smart key simulator close to the Start/Stop button, and repeatedly turn on and off the ignition until the search succeeds
Blade key: Place the APB112 smart key simulator close to the ignition, and use the non-chipped key to repeated turn on the ignition to ON and then turn it off until search succeeds.

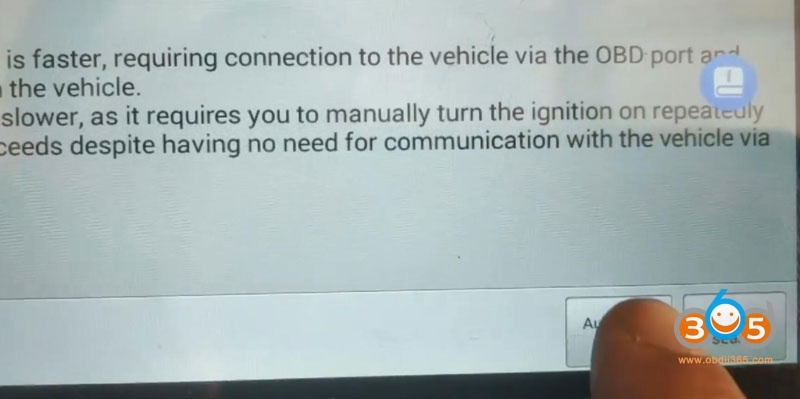

Automatic search is faster and manual search is slower as it requires manually turn on/off ignition until the search succeeds.

This model has smart key. Here we use automatic mode.

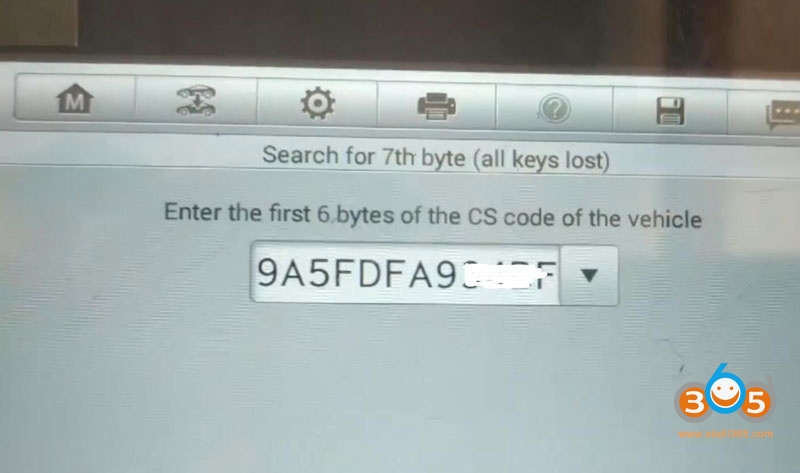

Enter the first 6 bytes of the CS code of the vehicle
Connect the APB112 smart key simulator and then press OK
Select Automatic search


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

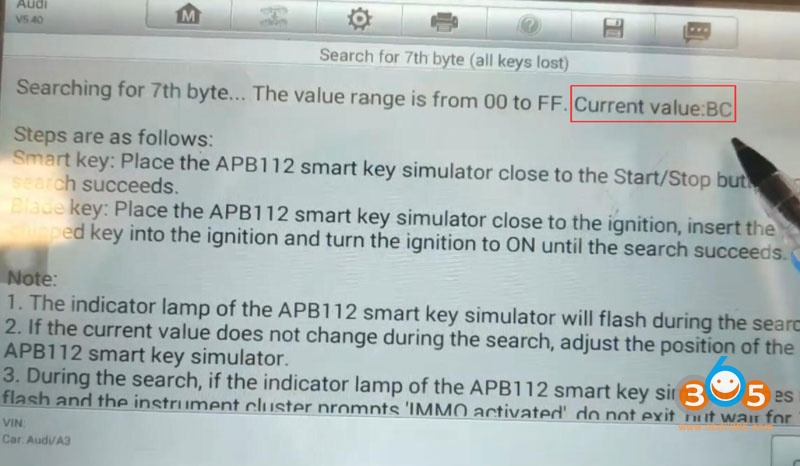

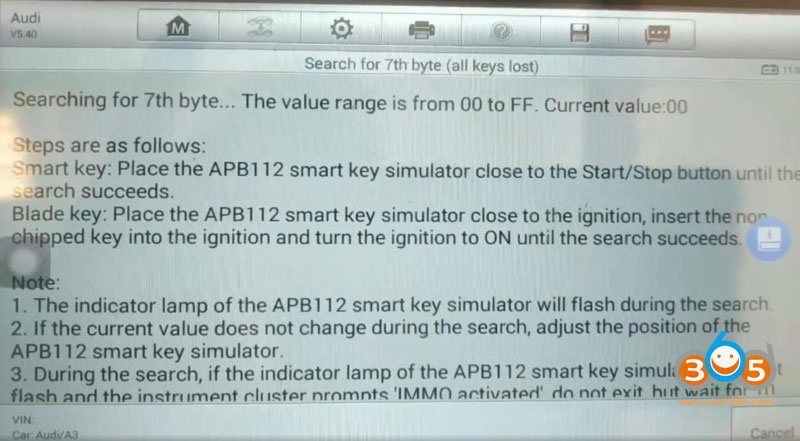

Follow steps below to search for 7th byte

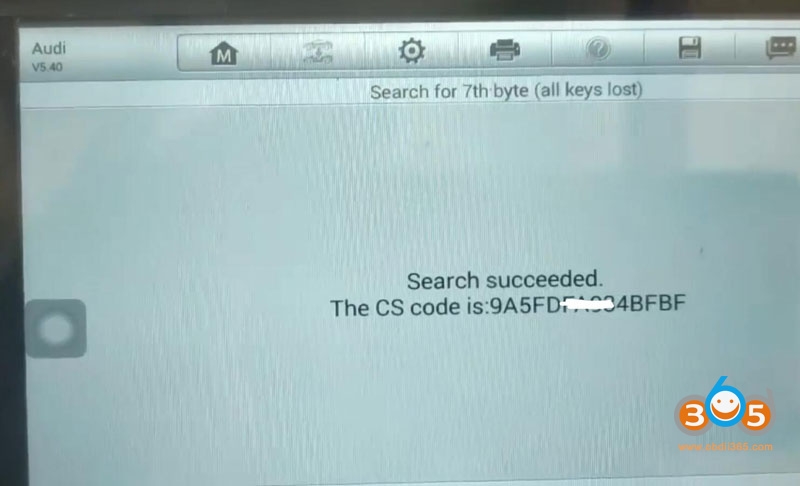

Search 7th byte CS code successfully.


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD


			Audi A3 2004-2013 All Keys Lost with Autel IM508/IM608 & APB112 OBD

You can now add key and learn key.

Enjoy.
