How to Solve Autel IM508 Renault Kadjar Failed Read PIN Key Not Working?

Here comes the common problem of Renault Kadjar 4A smart card with Autel IM508/IM608 or other tools.

Renault Kadjar 2017 Add key (aftermarket 4a card), i have battery support 14V from another tuning car.

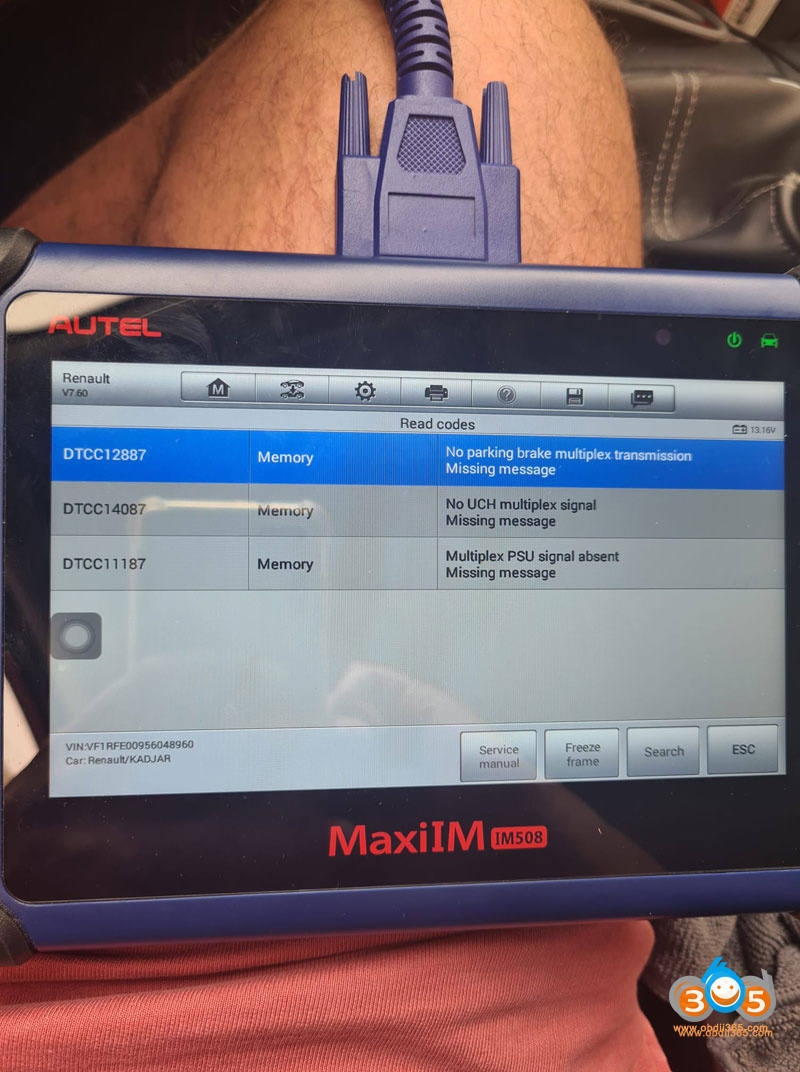

I want to immo status scan, Clear DTC, then ESC,

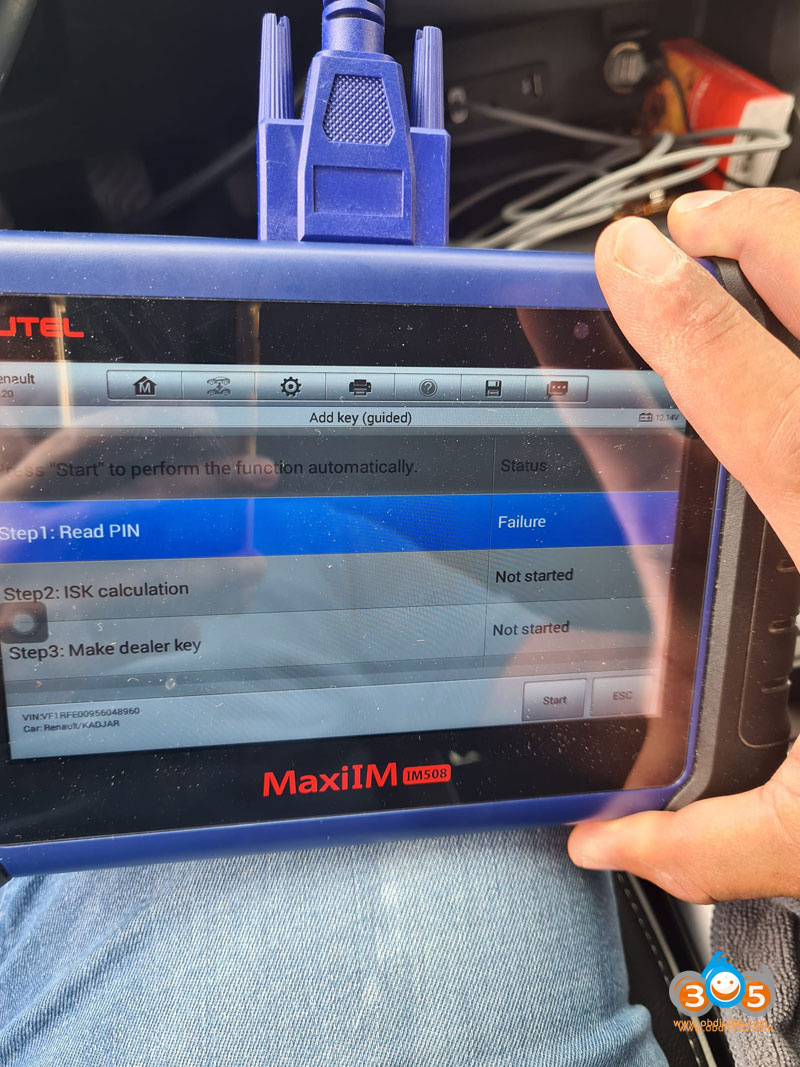

Tried to read pin and shows failure

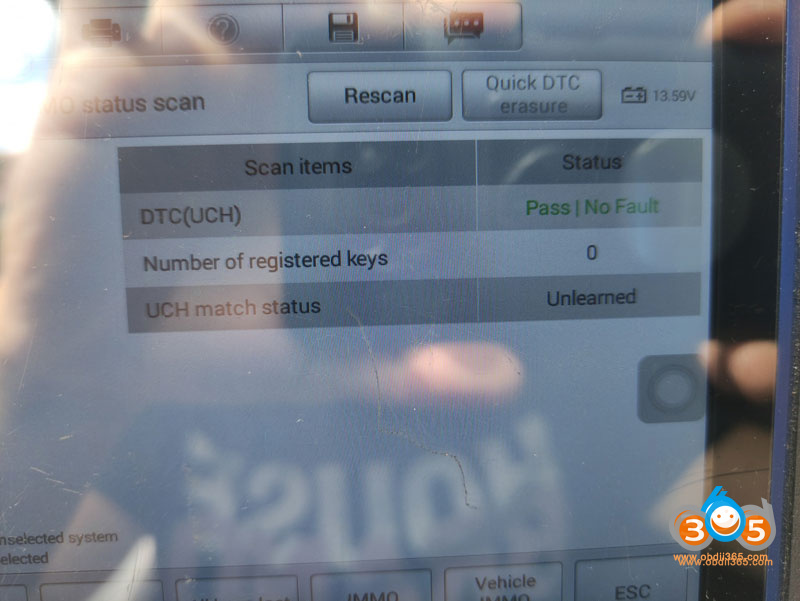

Back to: immo status scan, and then looks like UCH is blank.  It wipes the keys when you read the pin. Now the original key doesn’t work either. 0 cards and UCH unlearned.

It also deletes the original key. Try once again ‘Add key’ procedure.

Go back to immo status scan, clear DTC and try once again – immobilizer – remote learning – key learning and execute “Add key” procedure.
You need battery support 14V.

And then everything was ok, made dealer key and successfully learned 2 cards.
