How to Use Autel KM100 to Clone VAG ID48 Transponder via OBD?

Here obdii365.com will demonstrate how to copy VAG Megamos 48 key transponder with Autel MaxiIM KM100 key tool via OBD.  Don’t need to collect data and upload to the server to calculate like xhorse key tool max does.  Only network connection and an ID modifiable blank key are required to copy ID48 just like IM508 IM608  does.

VW Caddy 2013 (UDS)

ID48 Clone via OBD

Approximate 3 minutes

Copy OEM Megamos ID48 T6 transponder

Connect PLC adapter with vehicle via OBD, pair KM100 with PLC via Bluetooth

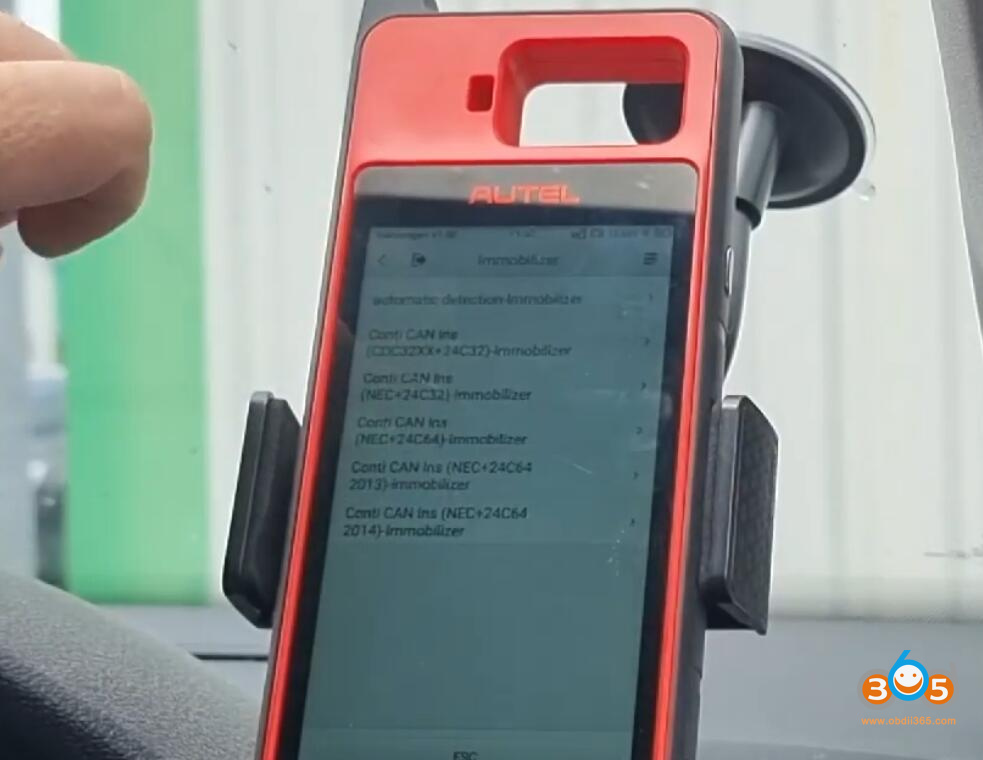

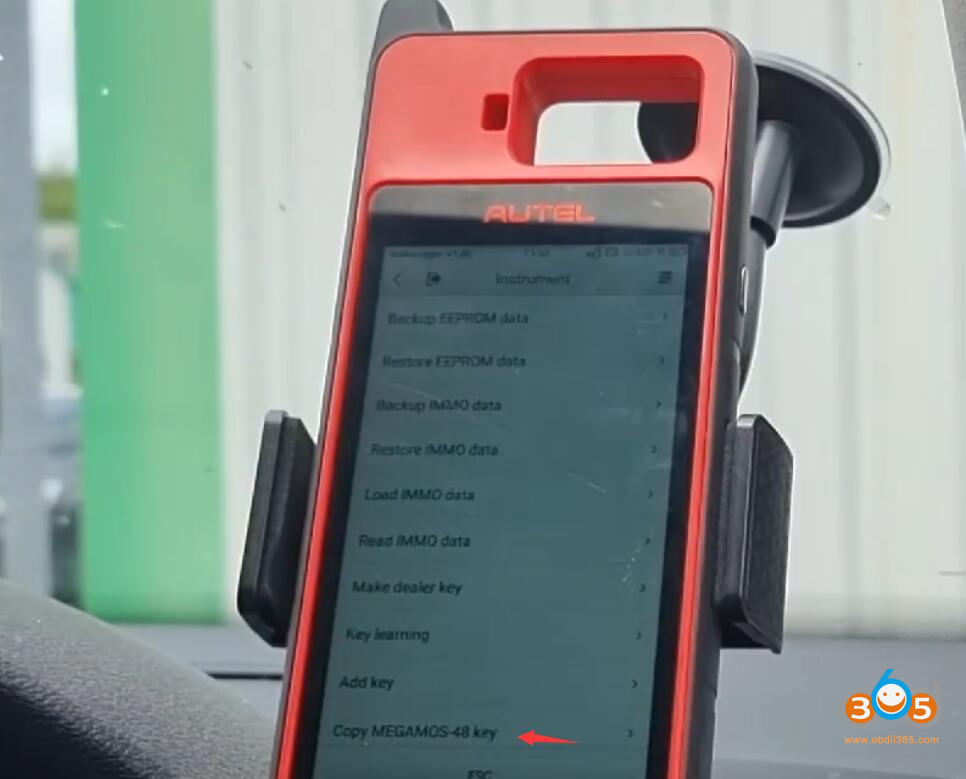

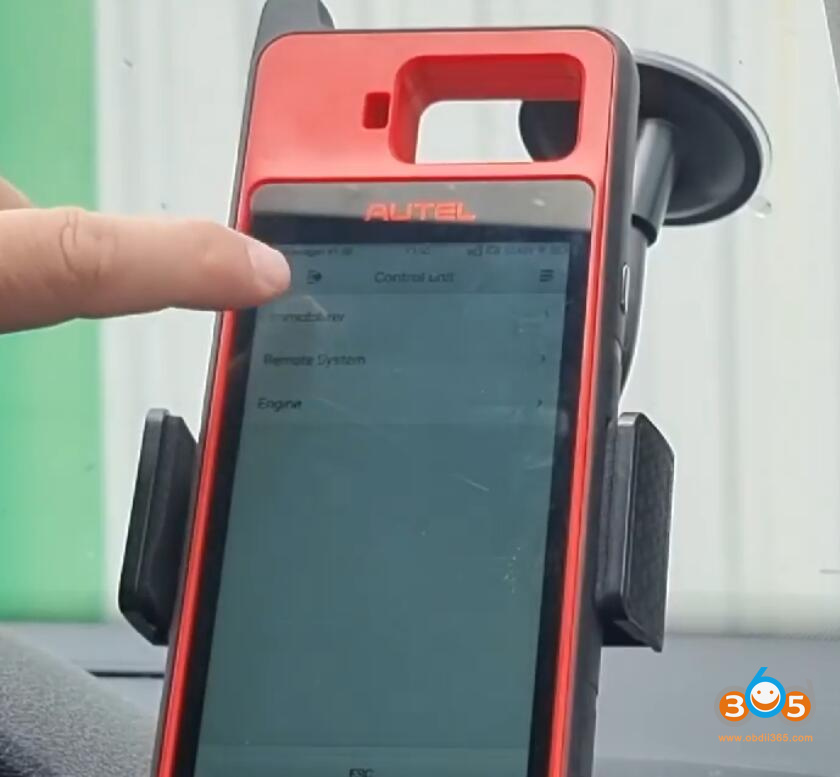

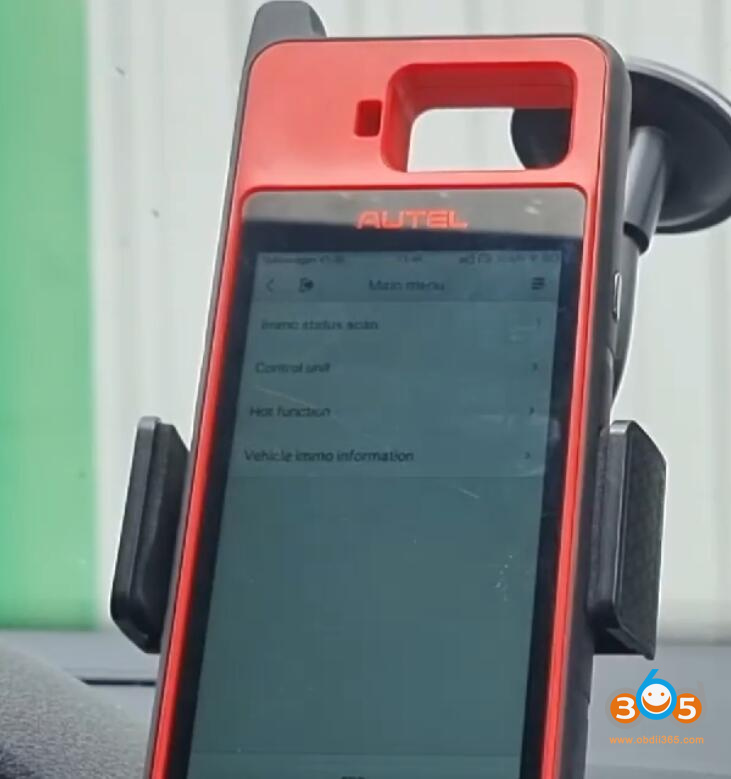

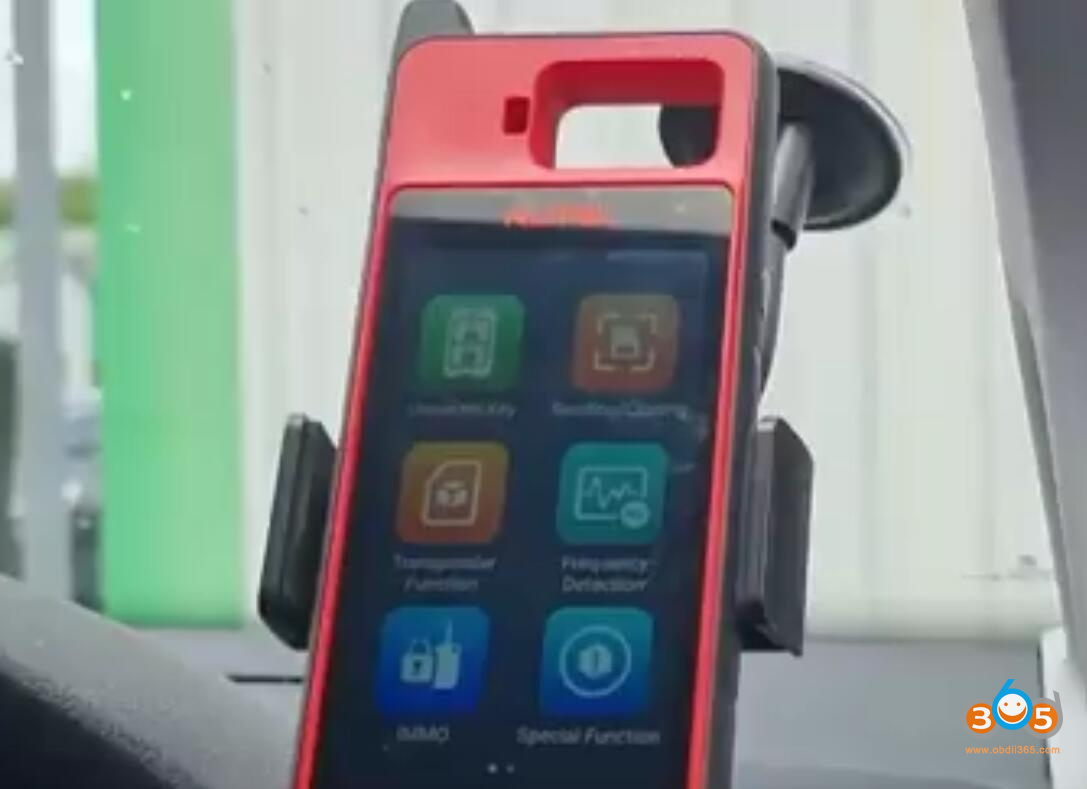

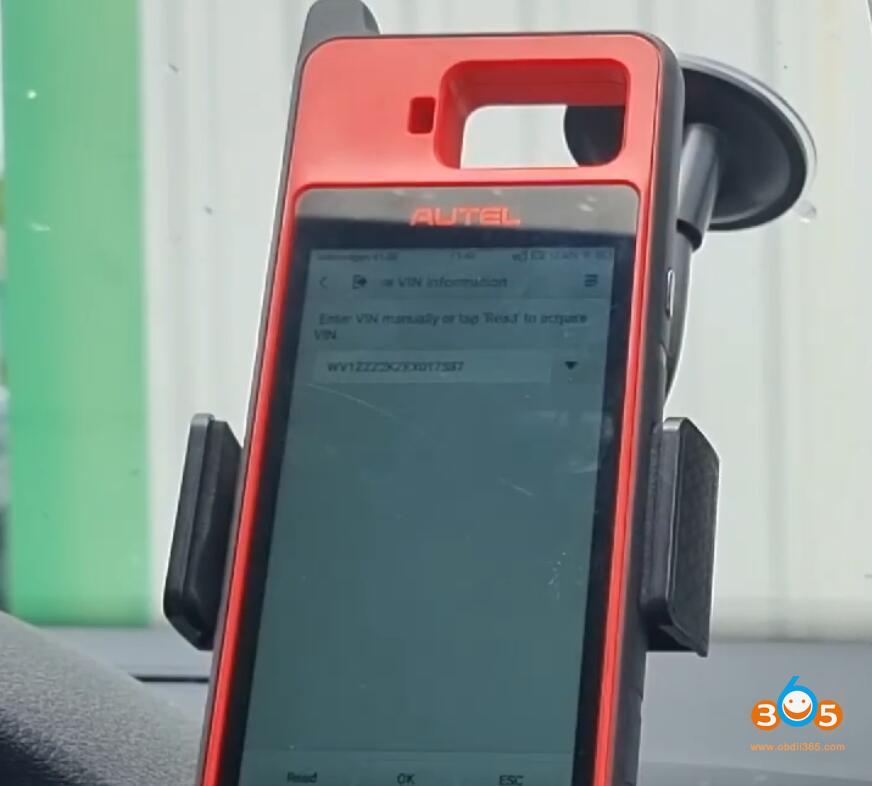

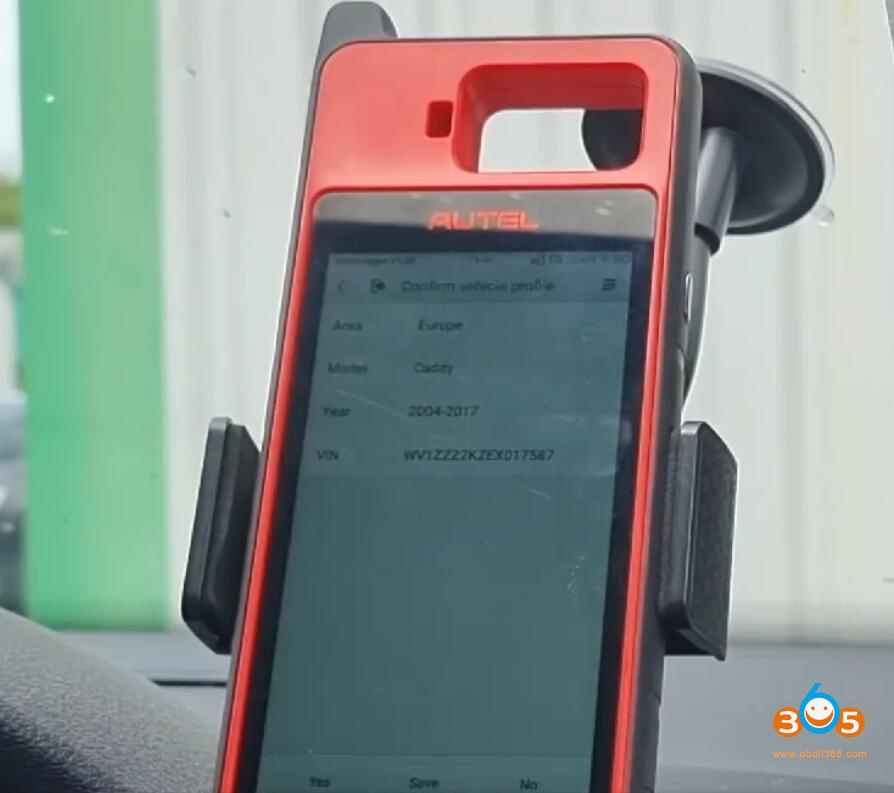

Go to IMMO- Auto VIN- Detect VIN- Control Unit- Immobilizer- Instrument- Copy Megamos 48 Key

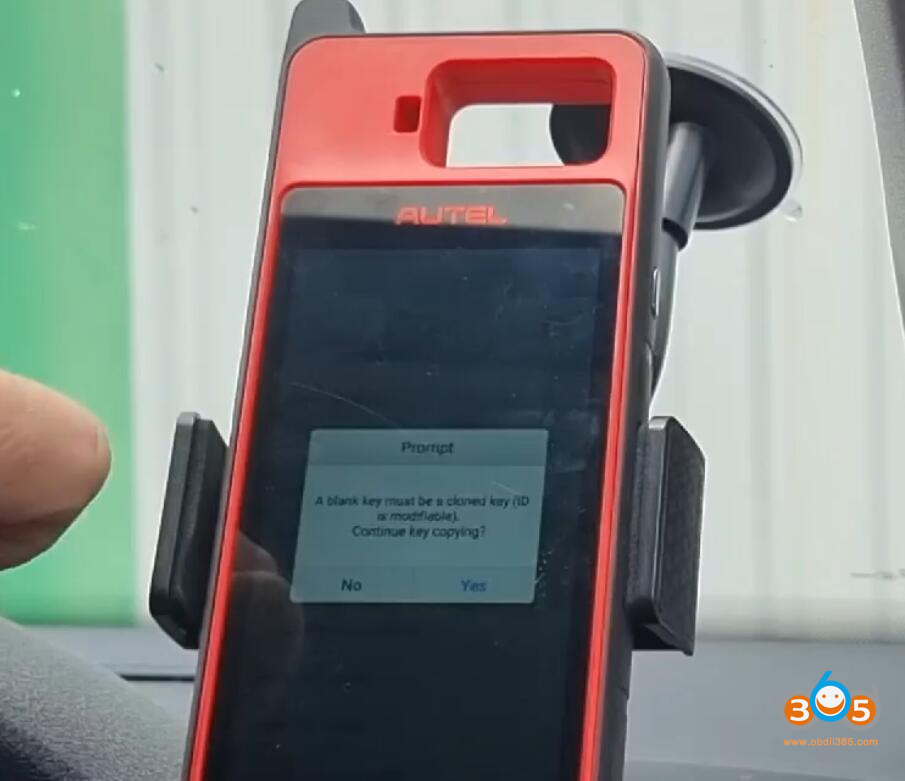

A blank key must be a cloned key (ID is modifiable)
Insert the start key and then turn the ignition switch to ON
the instrument screen turns black screen which is normal, it will reset automatically later

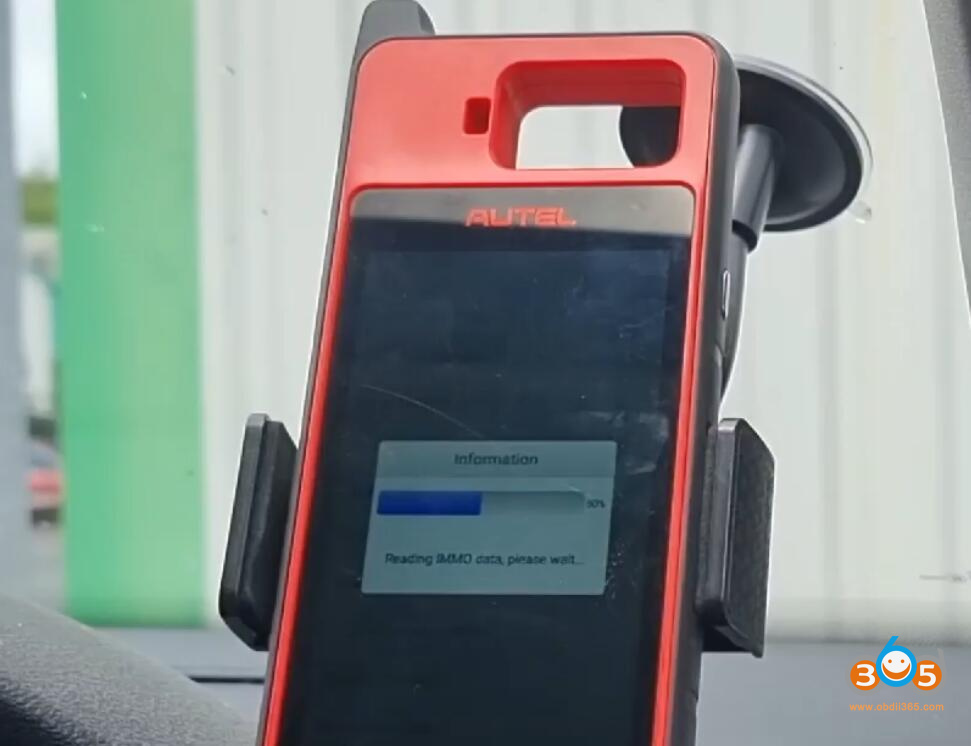

Reading immo data

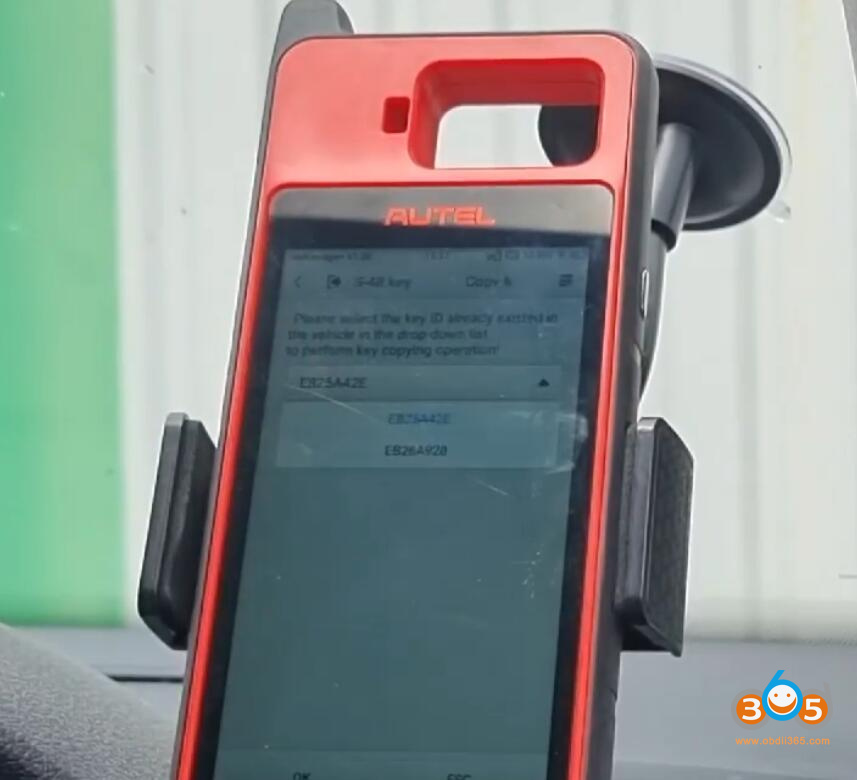

select the key ID already exists in the vehicle in the drop-down list to perform key cloning operation

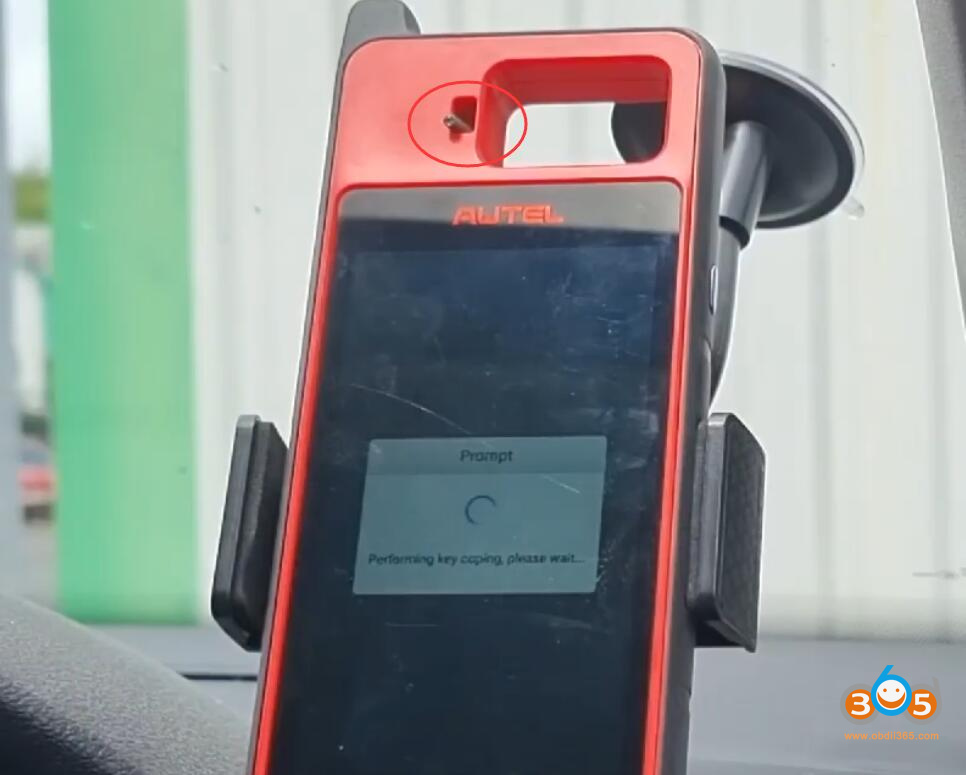

Place a blank key chip into the Autel KM100 induction coil
Clone key in the process

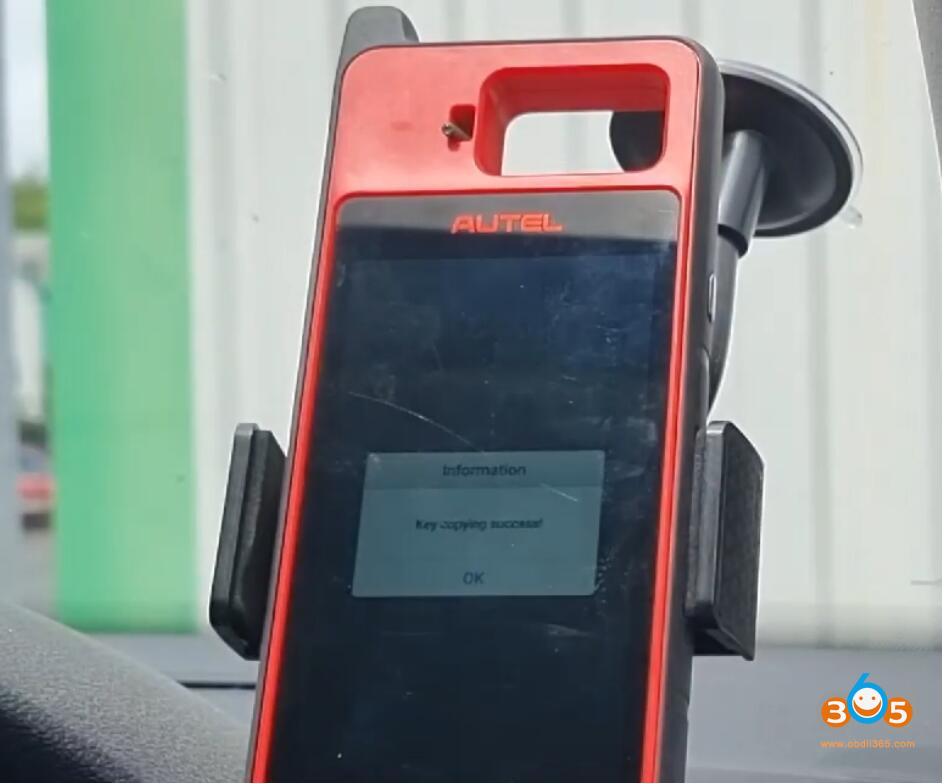

Copy key succeed.

Enjoy.
