Autel KM100 Program Land Cruiser 4D All Smart Keys Lost via OBD

Tutorial: How to program Toyota Land Cruiser 2017 Smart Key chip 4D (all keys lost) with Autel MaxiIM KM100 and Xhorse XM smart key.

Step 1: Backup Immo Data

Step 2: Generate Simulator Key (Don’t need APB112)

Step 3:  Add Smart Key

Step 1: Backup Immo Data

Connect V200 dongle with vehicle, Pair V200 with KM100 via Bluetooth

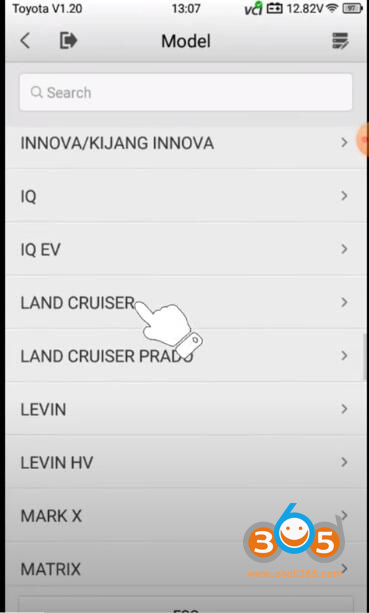

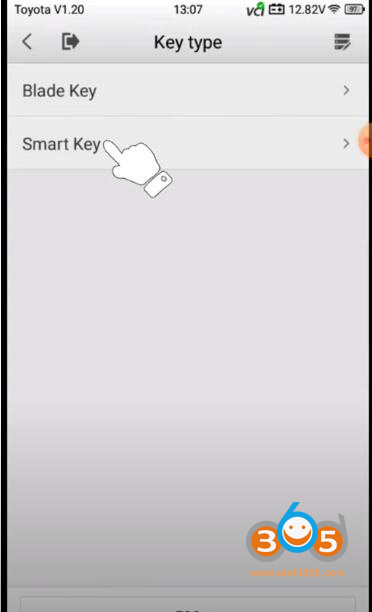

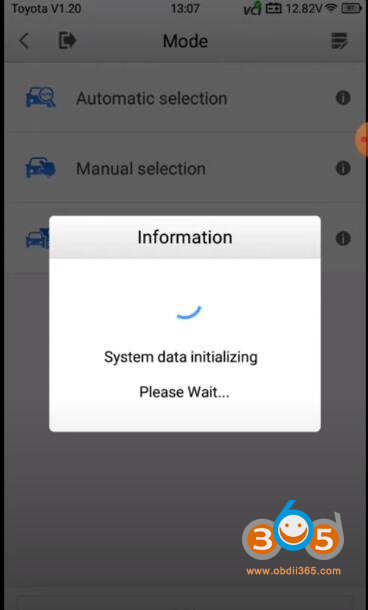

Select Automatic selection- Toyota- Europe- Land cruiser- Smart Key

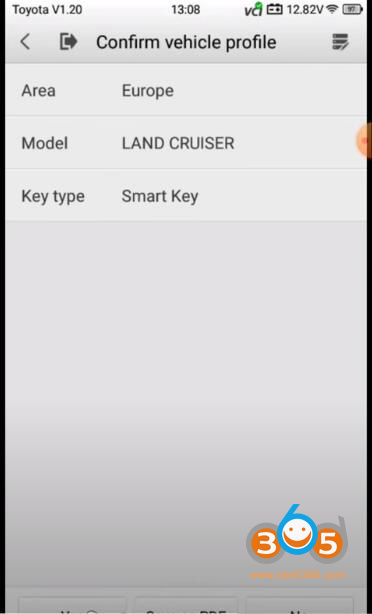

Confirm vehicle information

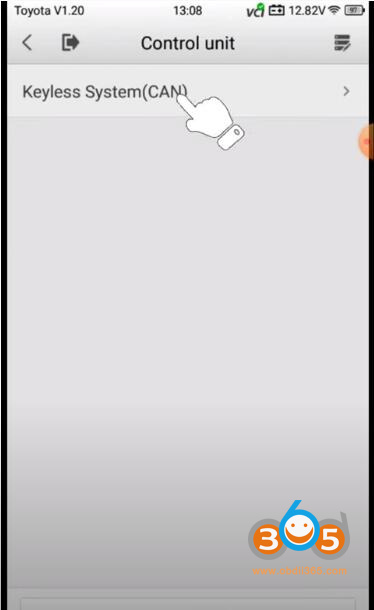

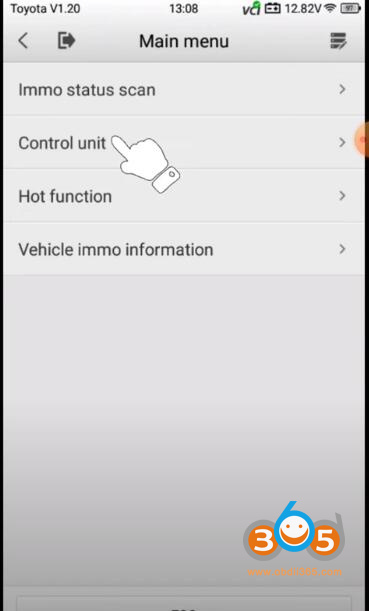

Select Control Unit->Keyless System (CAN)

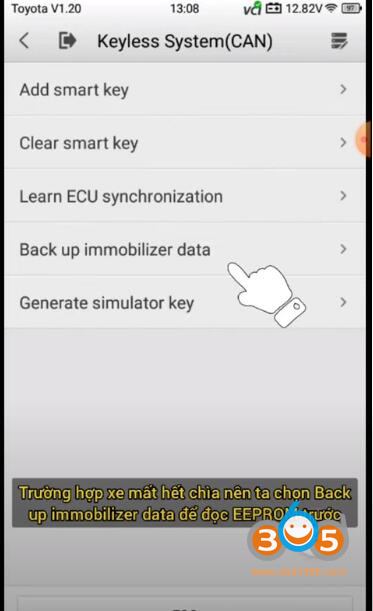

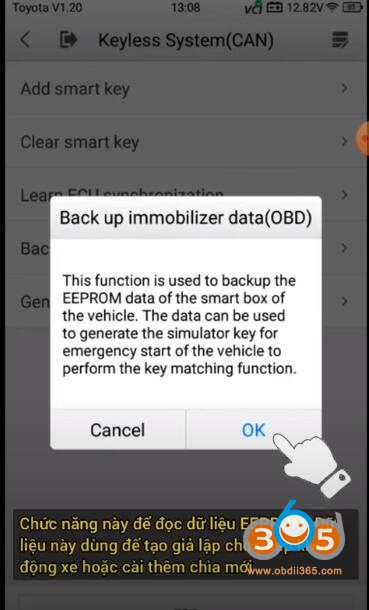

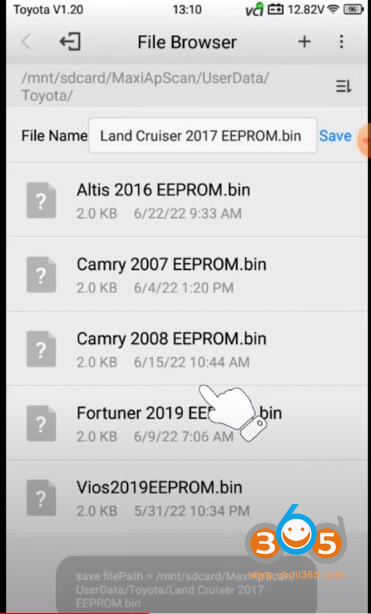

Backup immobilizer data

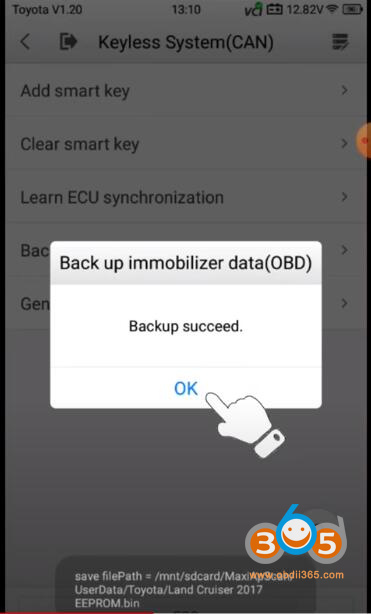

Backup immo data successfully

Step 2: Generate Simulator Key

KM100 has built-in simulator.  You don’t need apb112 emulator.

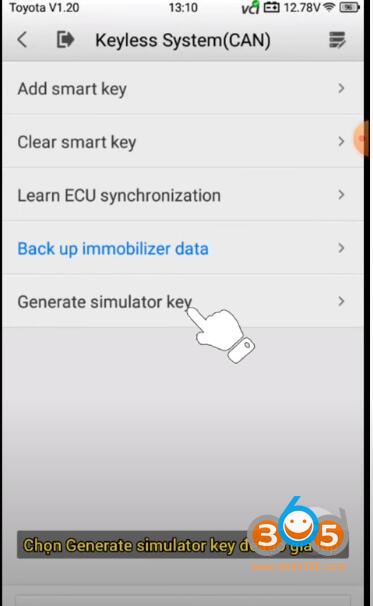

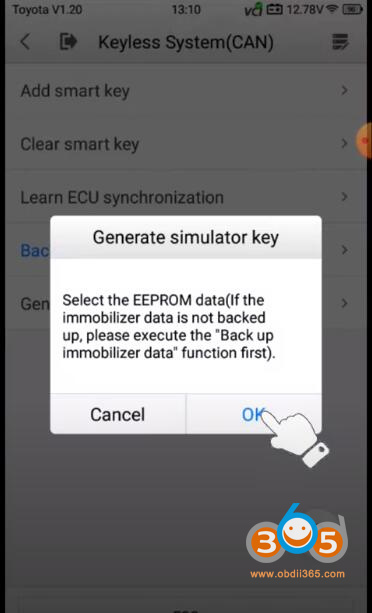

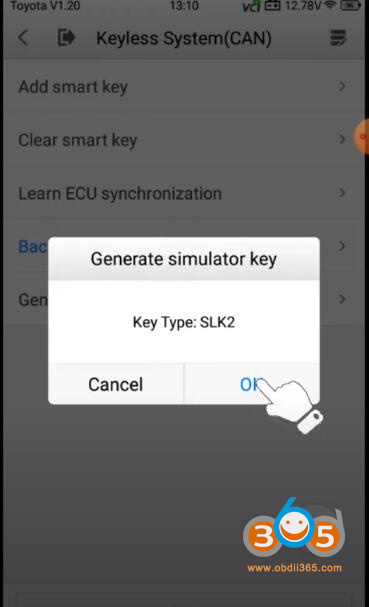

Now select Generate simulator key

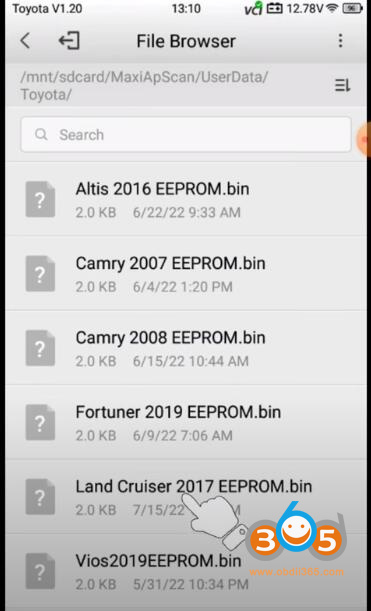

Select eeprom data just backuped

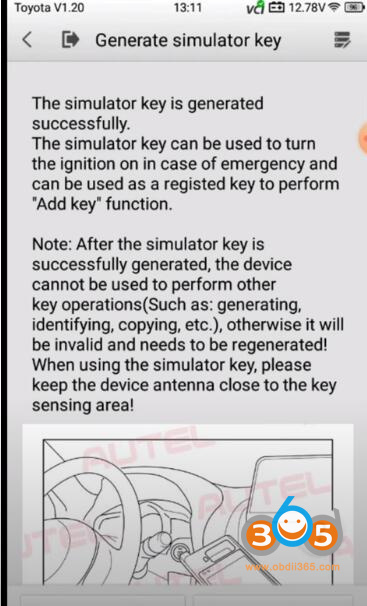

Generate emulator key successfully

Step 3:  Add Smart Key

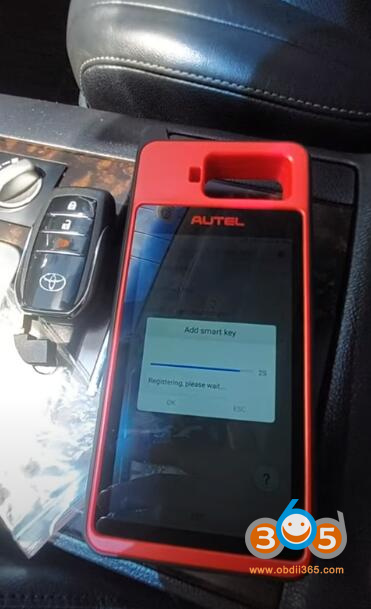

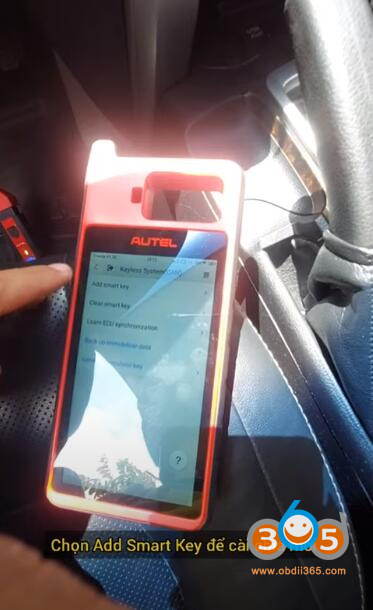

Now Add smart key

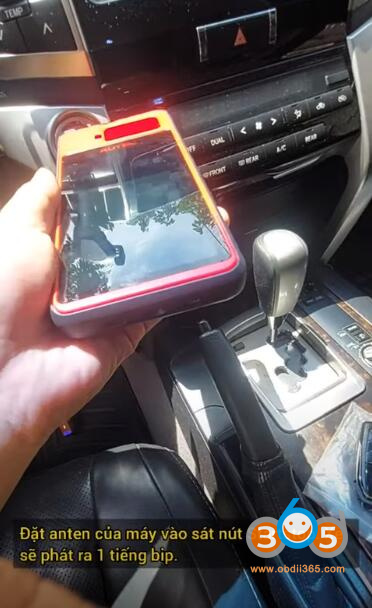

Connect your device antenna to the Startstop button. The car will make 1 beep

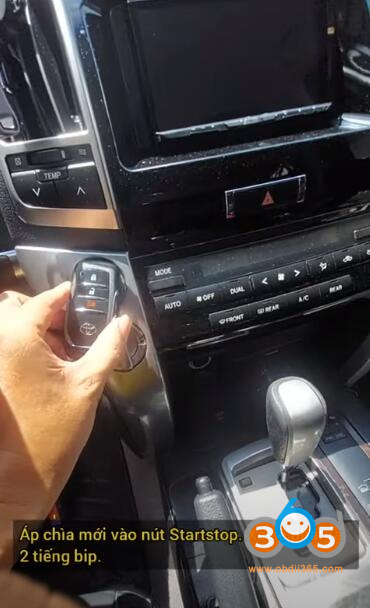

Put new xhorse xm28 smart key to the Startstop button, the car will make 2 beeps

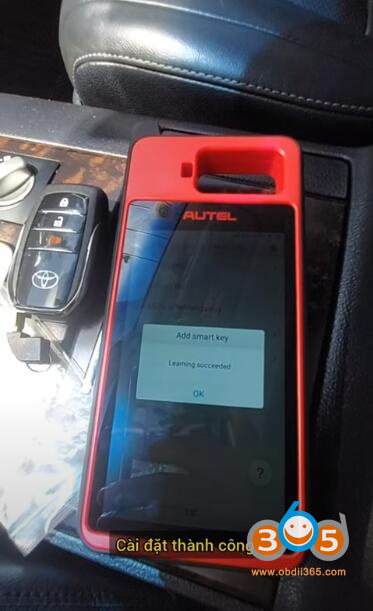

Add smart key successfully

Test the new smart key
