VW Golf 6 NEC24C64 AKL by Autel IM608 Service Mode with Gbox

We have introduced how to program VW VDO NEC+24C64 all keys lost with Autel IM508/IM608/IM608 Pro service mode via dump previously.  Here we have another way to get it done.

Let’s get started.

Example: VW Golf 6 cluster instrument NEC23C64 all keys lost on bench with gbox, put polo to cable.

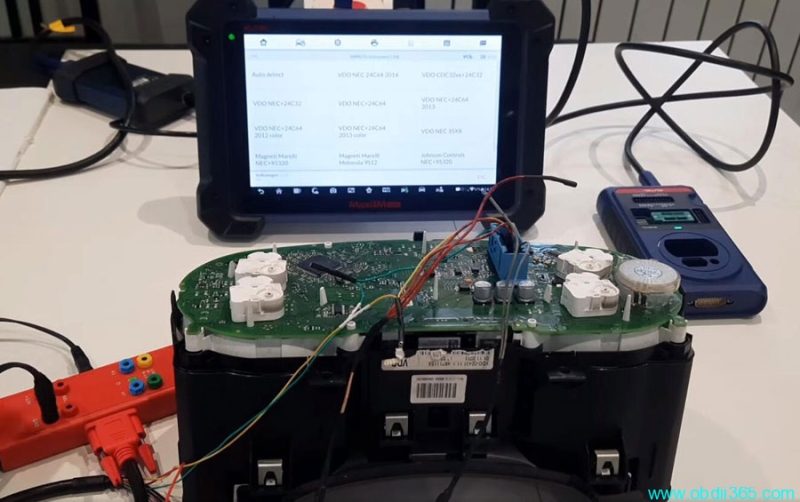

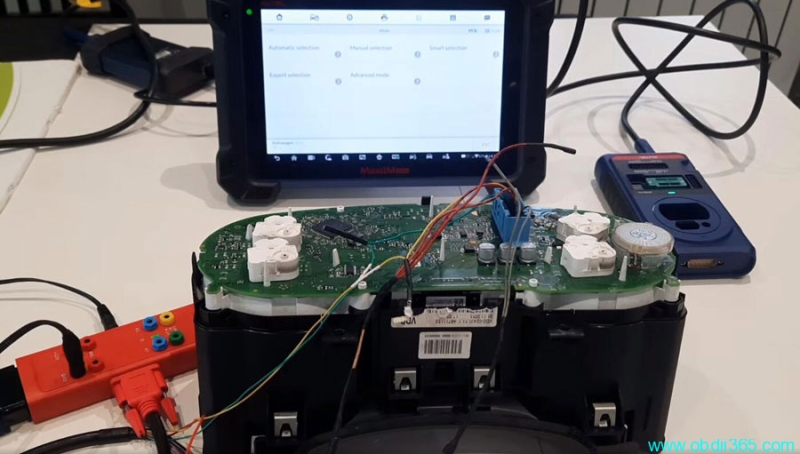

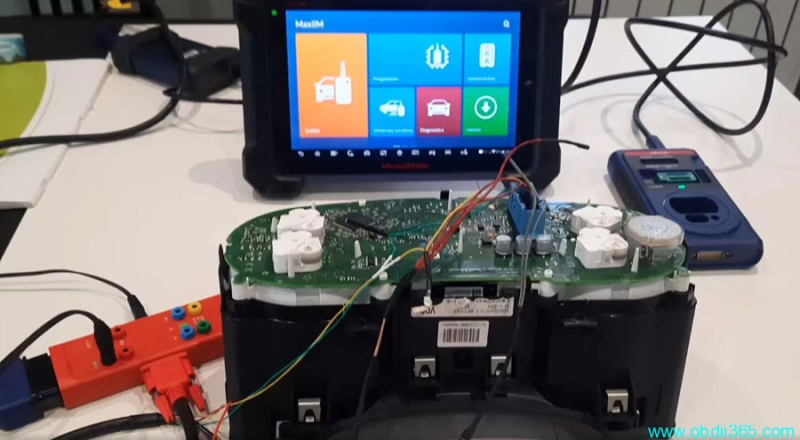

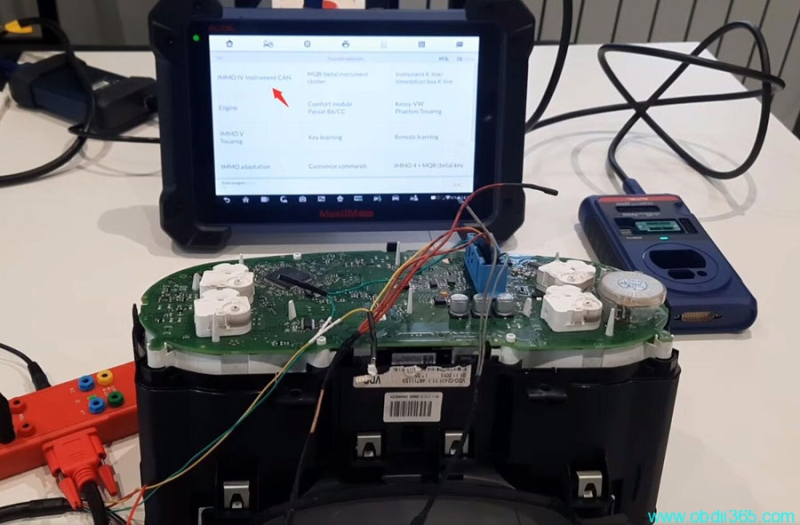

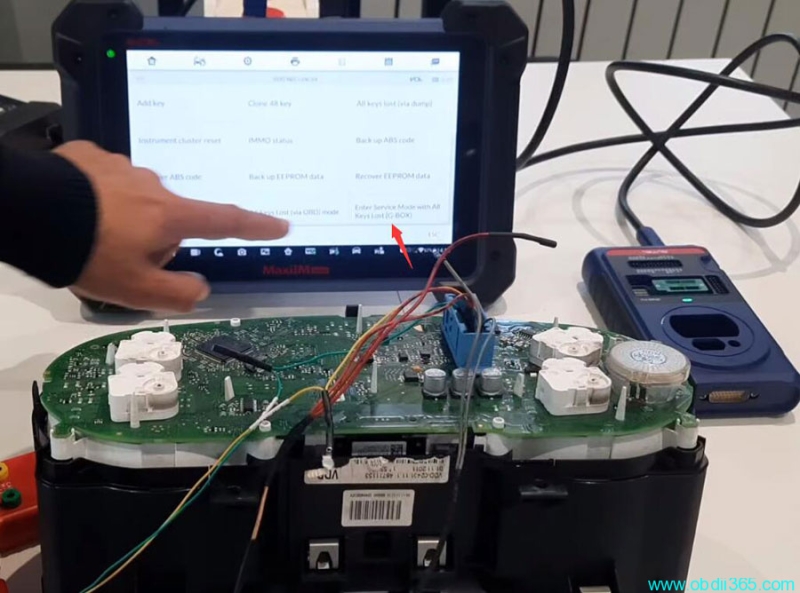

Select IMMO-> VW-> Expert Selection-> Immo IV Instrument CAN->VDO+ NEC24C64->Enter Service Mode All Keys Lost (G-box)

Immo data will be directly read after performing this operation.

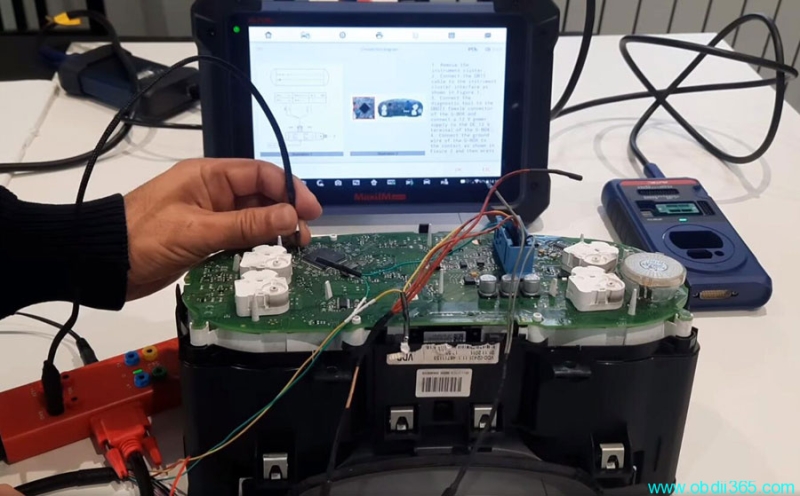

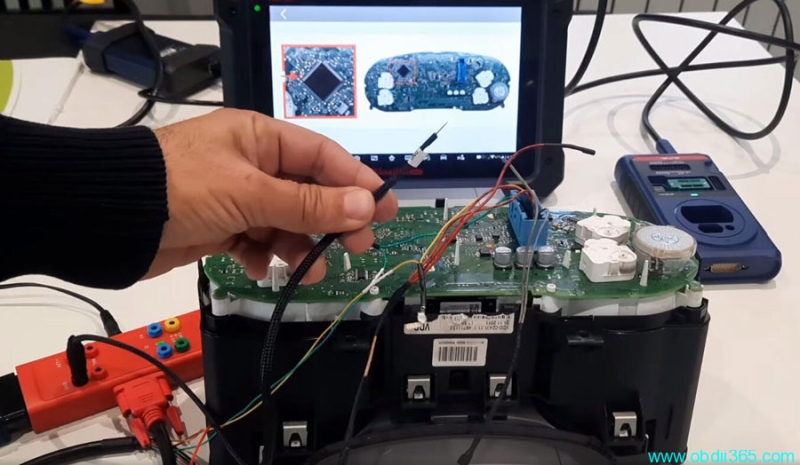

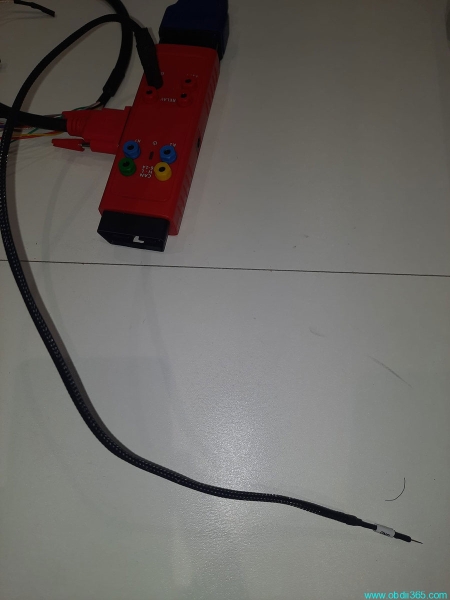

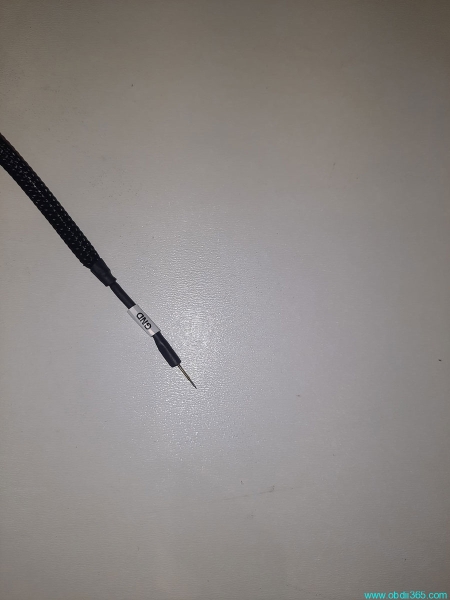

Check wiring diagram in im608. Make a GND needle by yourself.

Connect the GND wire of the g-box.

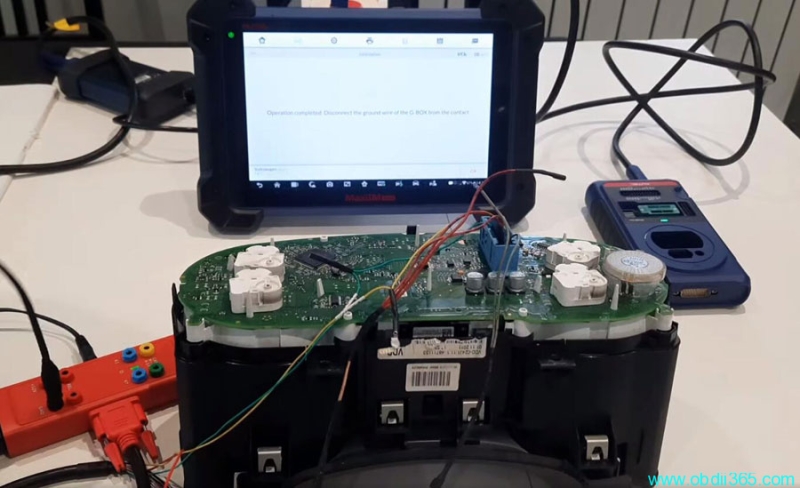

Operation completed.
Disconnect the ground wire of the G-box from the contact.

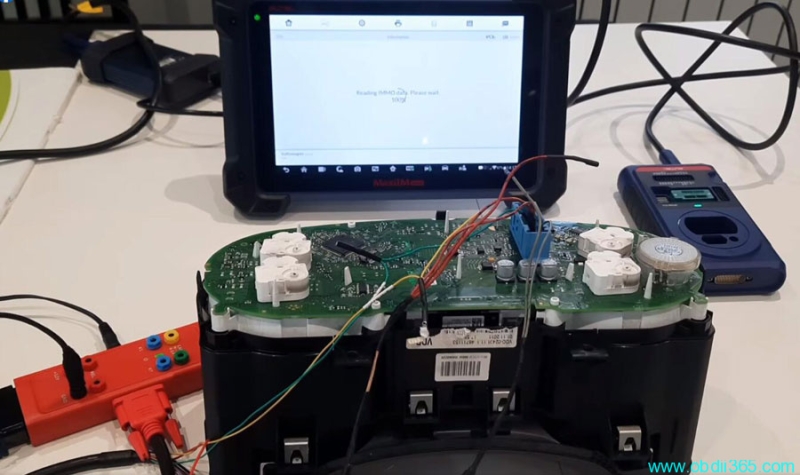

Start reading immo data

Read CS, PIN, MAC etc, save immo data.

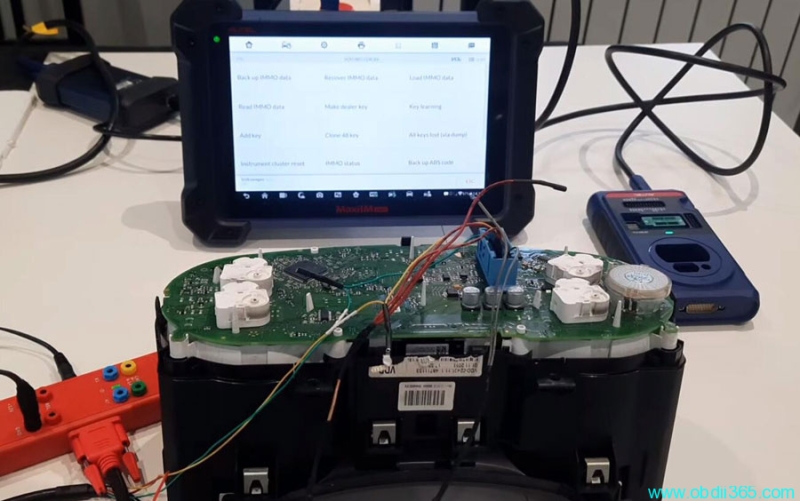

Then select Make Dealer Key function

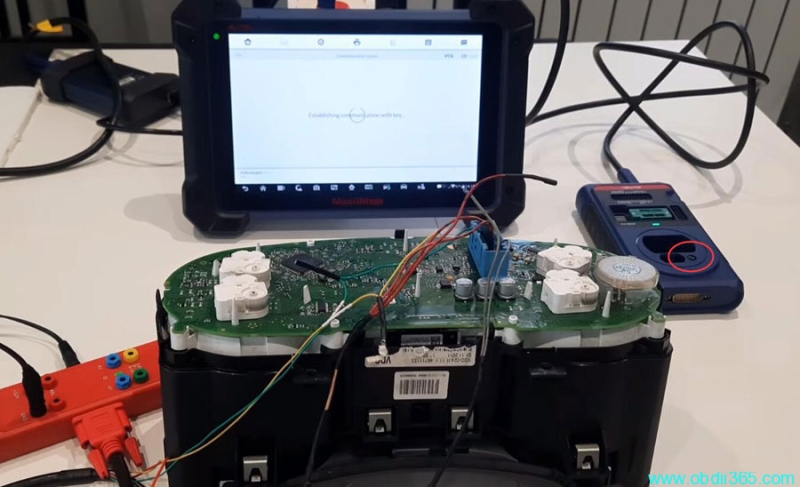

Place a black key/chip into the key slot of the programmer and press OK

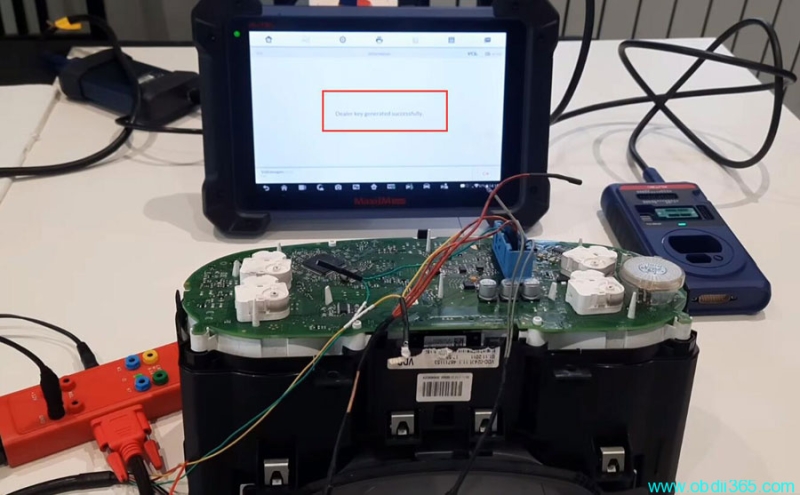

Generate dealer key successfully

Then perform learn key.
