    How to Connect Launch X431 IMMO Plus with X-prog3?

    universal-car-key-programmer
    — (0)

    Here is the instruction on connecting Launch X431 IMMO series tablets (IMMO PAD/IMMO PRO/IMMO PLUS/IMMO Elite) with DBScar and X-prog3 immobilizer programmer.



    *DBScar & x-prog3 are included in the immo tablet package.

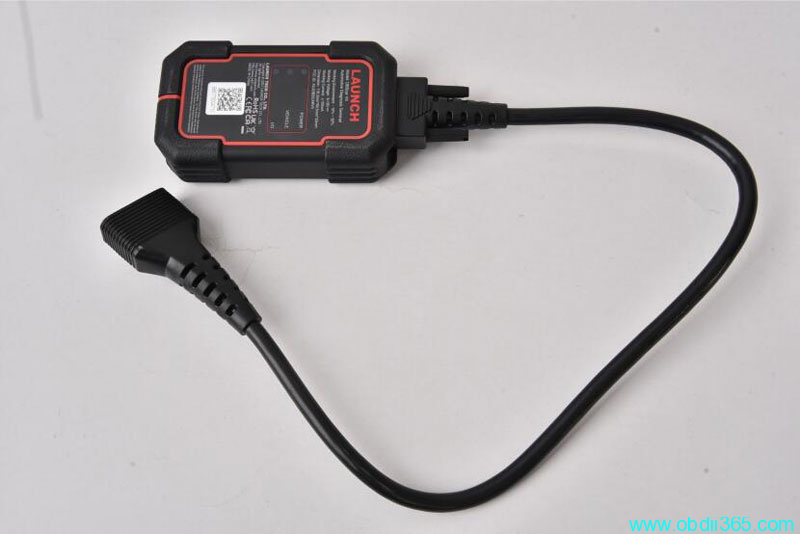

    Connect Dbscar With Launch X431 Immo Plus 1
    Connect DBScar VCI with main cable

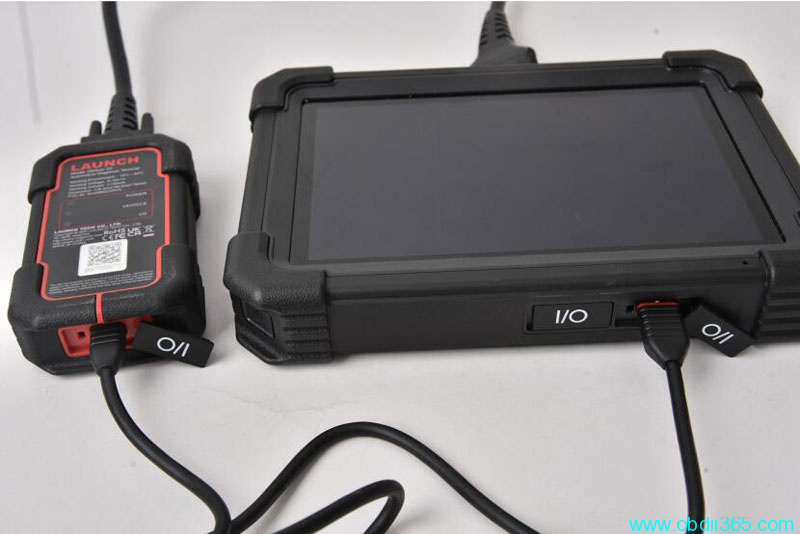

    Connect Dbscar With Launch X431 Immo Plus 2

    Connect DBScar VCI with X431 IMMO tablet via USB cable

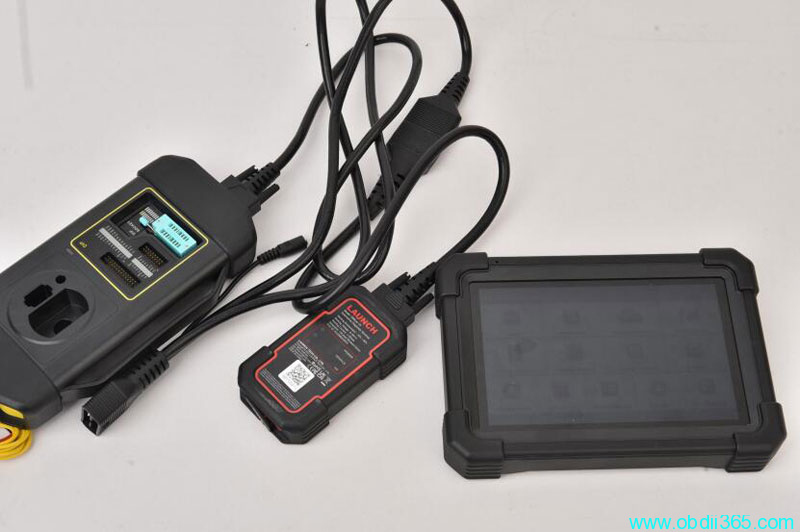

    Connect Dbscar With Launch X431 Immo Plus 3

    Connect DBScar VII with X-prog 3 with the extension cable ( the cable with the port to connect the power )

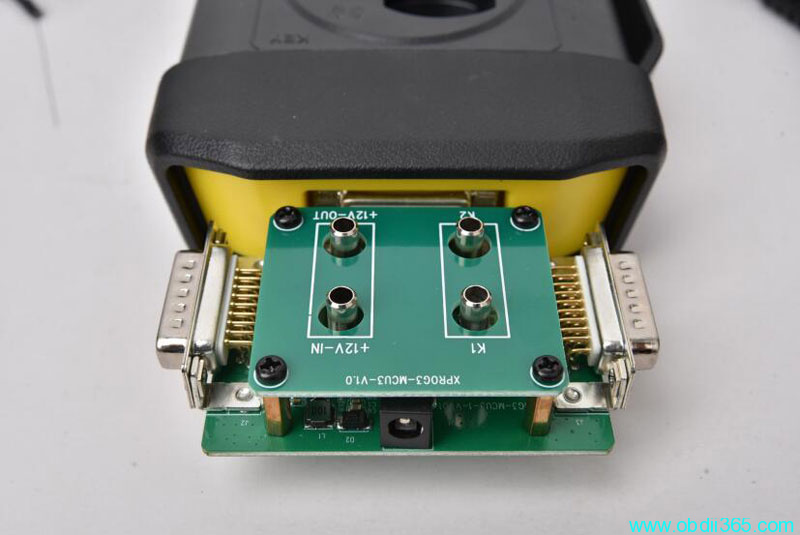

    Connect Dbscar With Launch X431 Immo Plus 4

    if have MCU V3 cable, connect MCU adapter via DB26 diagnostic connector of X-PROG3

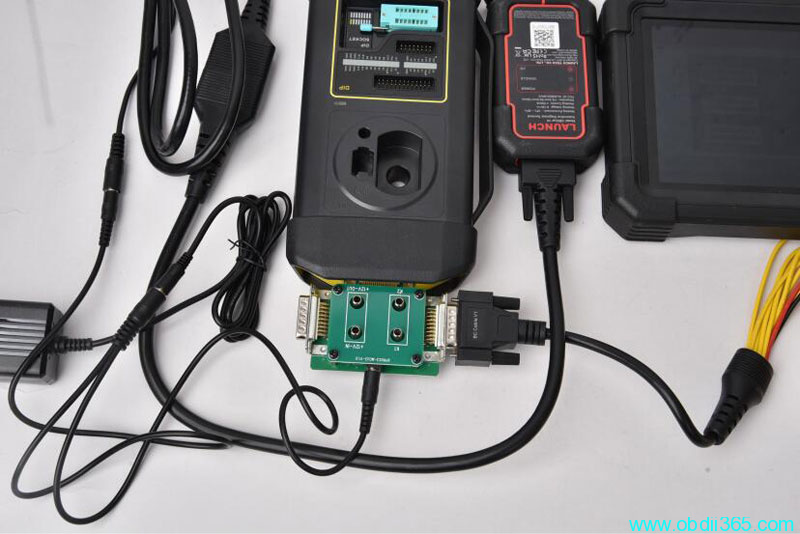

    Connect Dbscar With Launch X431 Immo Plus 5

    Connect power cable. The power cable needs to connect X-PROG 3 well ( use the cable in Step 3, if you connect MCU-V3 board , just connect MCU-V3 board directly ) ,  then connect the Bench model Cable connect to X-prog 3 or MCU-V3

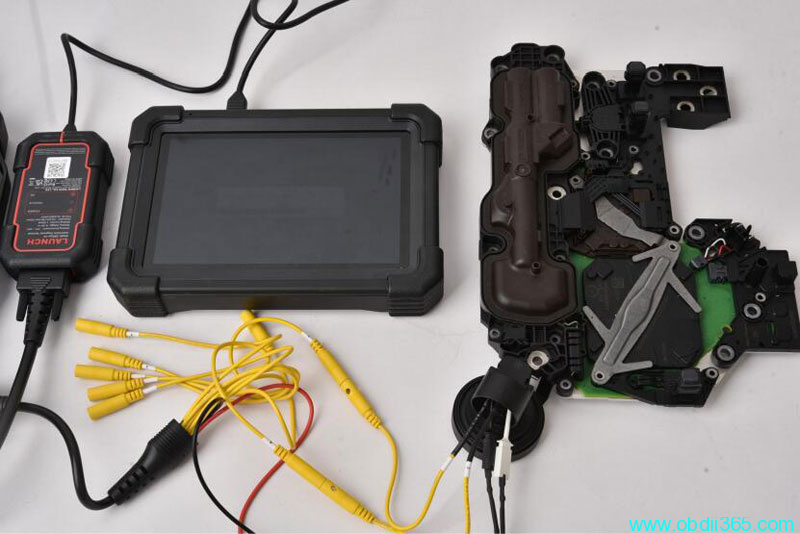

    Connect Dbscar With Launch X431 Immo Plus 6

    Use the exchange cable to connect Bench Model cable with the IMMO Model of the car.

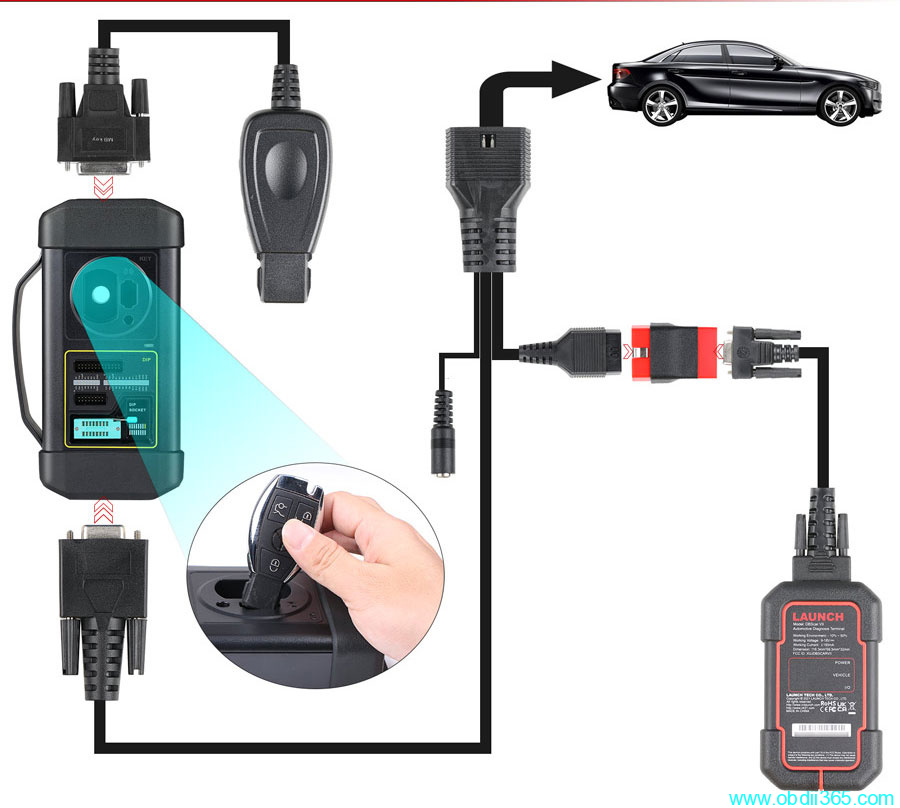

    Overall connection diagram
    Connect Dbscar With Launch X431 Immo Plus 7
