How to Add Renault Kadjar 2018+ Smart Key with Autel KM100?

Autel MaxiIM KM100 will read pin code, add key and do all keys lost for Renault Kadjar 2018+.

Smart key card and keyless system. Same procedure as Renault Scenic iv 2019.

Select IMMO function, read and device VIN

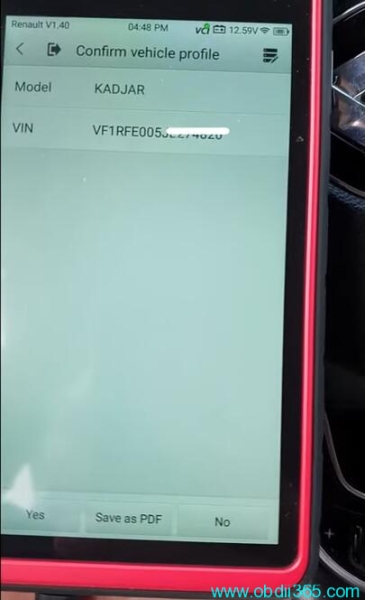

Confirm vehicle information.

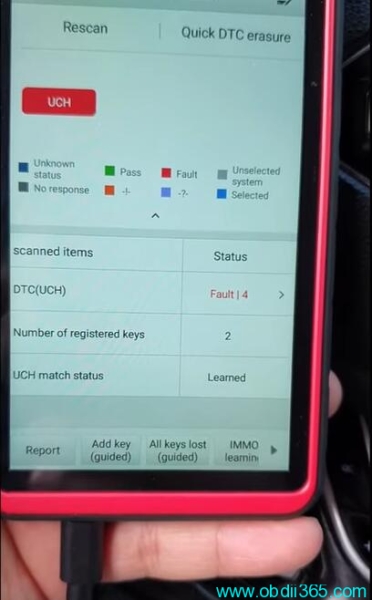

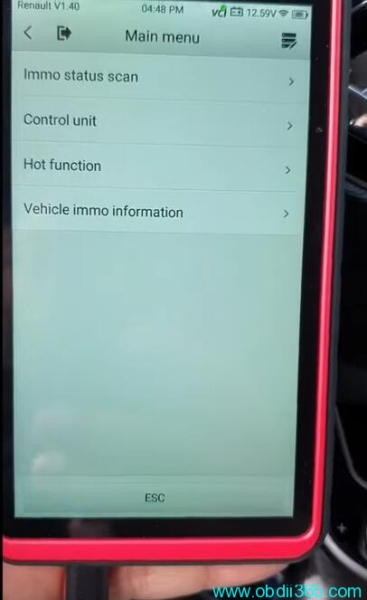

Do an IMMO Status Scan, there are fault codes in UCH.

Select Add Key (Guided)->Smart Key
You must turn off the Bluetooth function of the device and connect VCI to KM100 with USB cable.

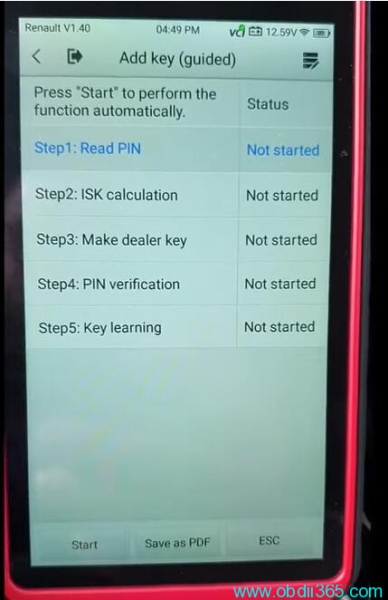

Perform 5 steps to add key

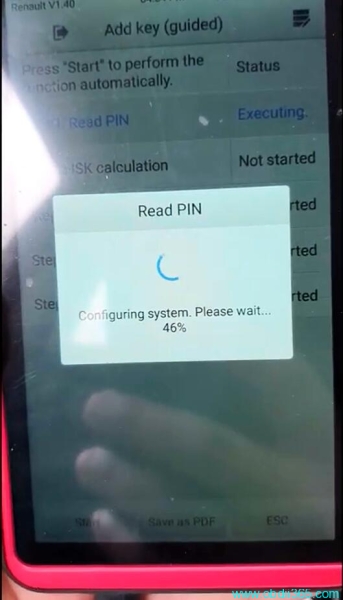

Step 1: Read PIN
Step 2: Calculate ISK

Step 3: Make dealer key

Step 4: Verify PIN
Step 5: Key Learning

Turn ignition off
Open and close the driver door

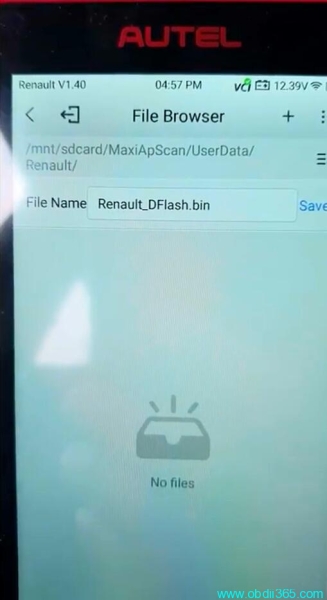

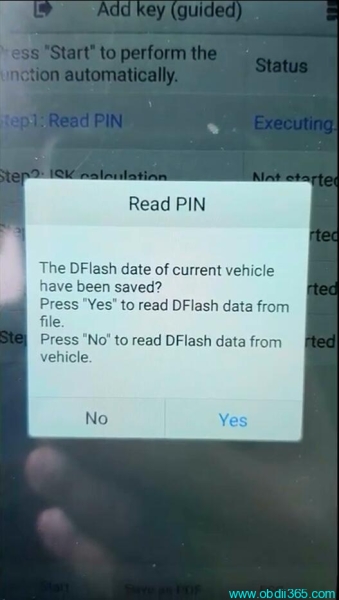

Save DFlash data

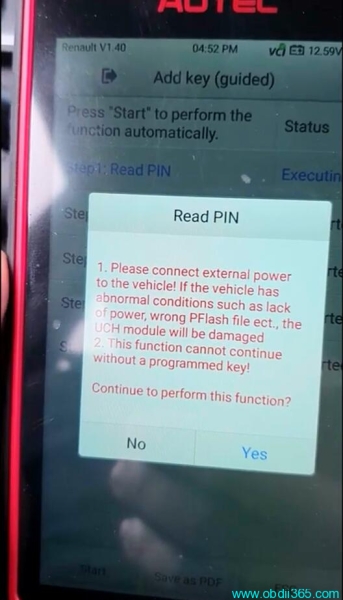

MUST connect an external power supply to vehicle.
Have good power support is very important on Renault Kadjar 2018+.

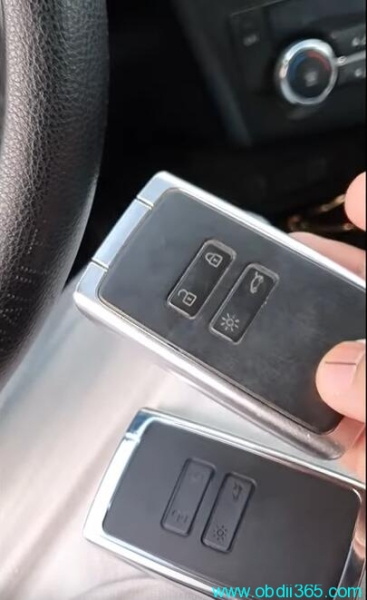

Then turn on switch ignition with a working key

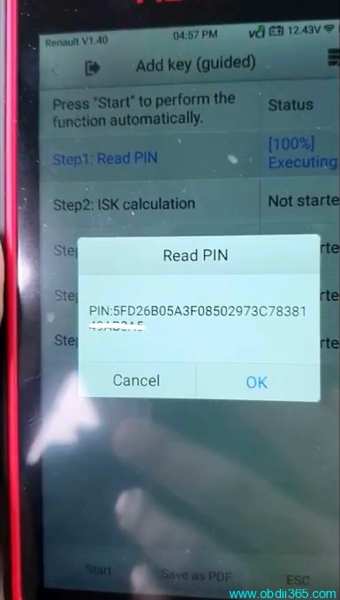

Autel KM100 Read pin successfully

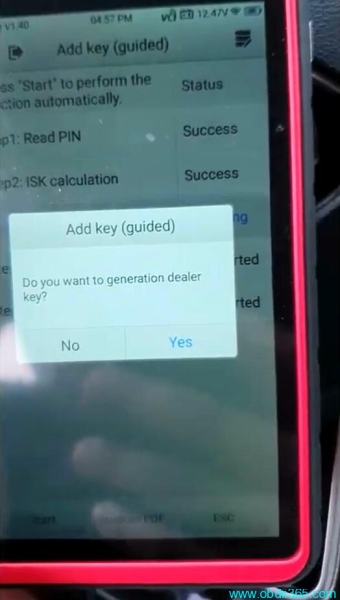

Press OK to generate dealer key

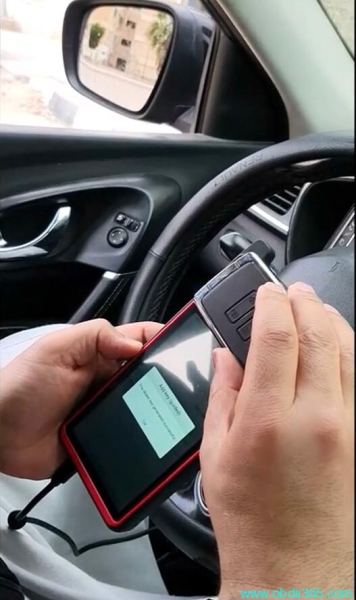

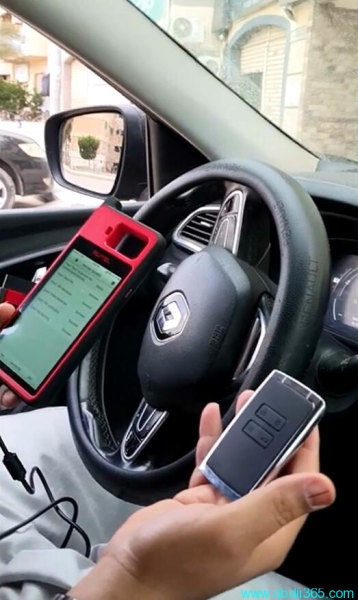

Put new key into the key induction area of the KM100

Place the key to be learned again to the sensing area (Start/Stop button)

Wait until programming is completed.
Now you have a new working key.
