Autel IM608 Program Toyota RAV4 2023 All Keys Lost with APB112

Tutorial: how to program 2023 Toyota Rav4 All smart Keys Lost using Autel IM608 Pro and APB112 emulator.

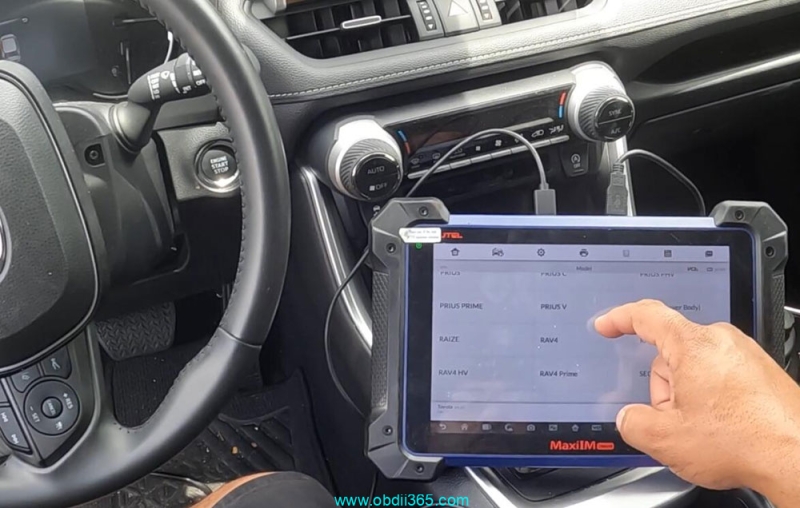

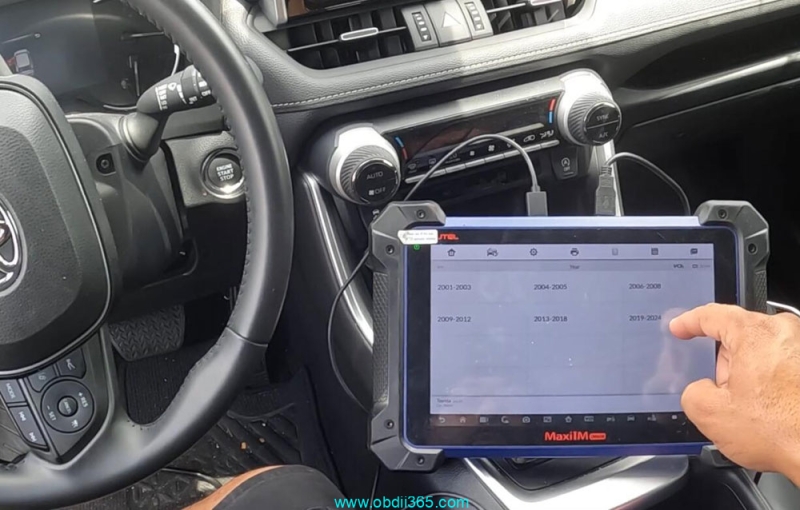

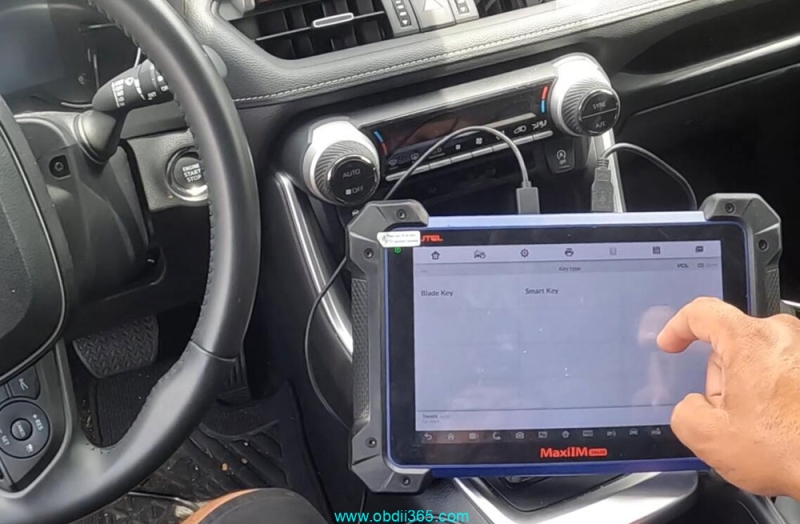

Select USA->RAV4->2019-2024->Smart Key
Read and confirm Vehicle information

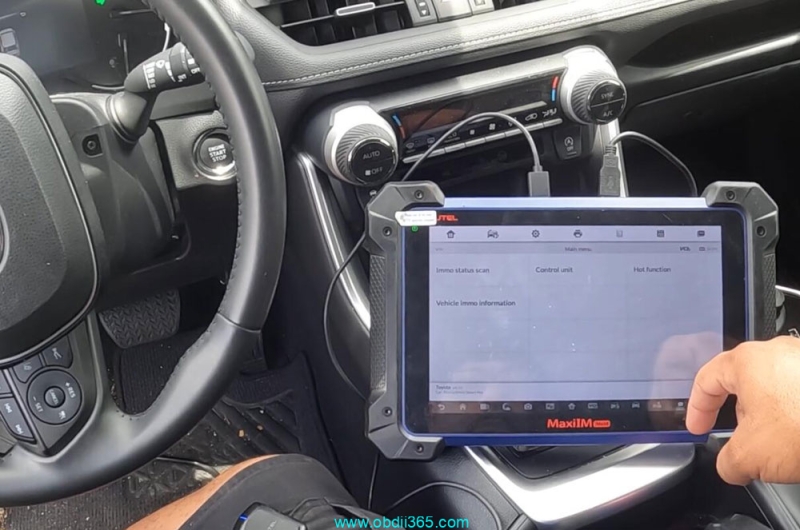

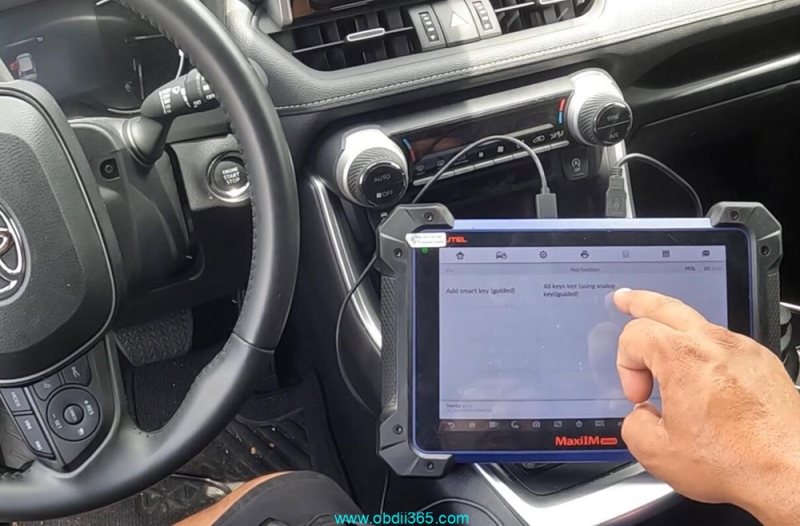

Select Hot Function->All keys lost (using analog key (guided))
Make sure network connection is good.

If IM608 says no communication, press the Start button and try again.

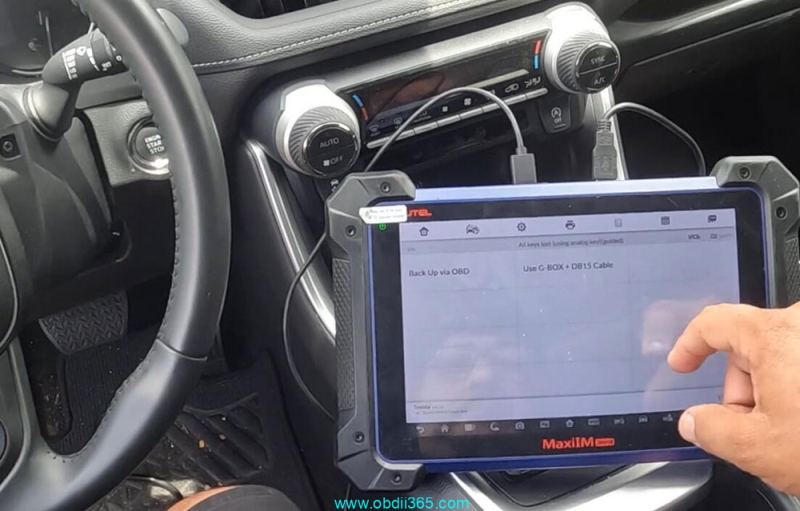

Select Back up via OBD

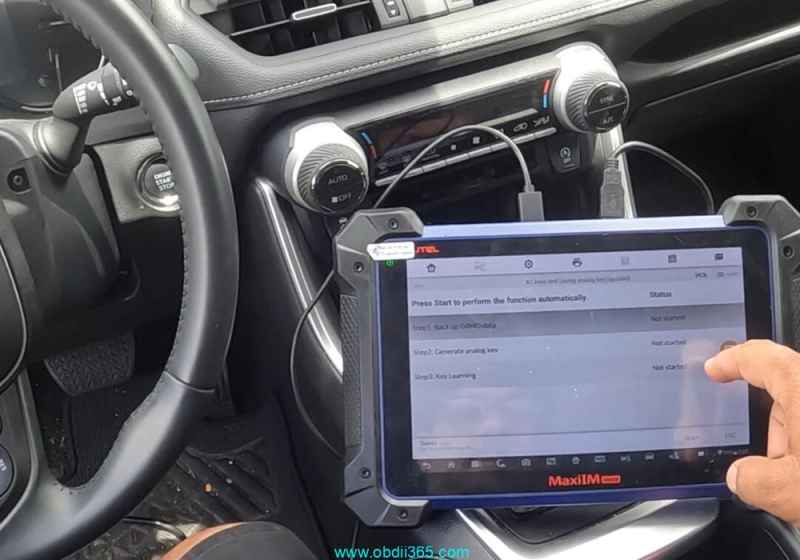

Then perform back up IMMO data, generate analog key and learn key.
Back up IMMO data successfully.

Start generating analog key
Detect key type SLK4

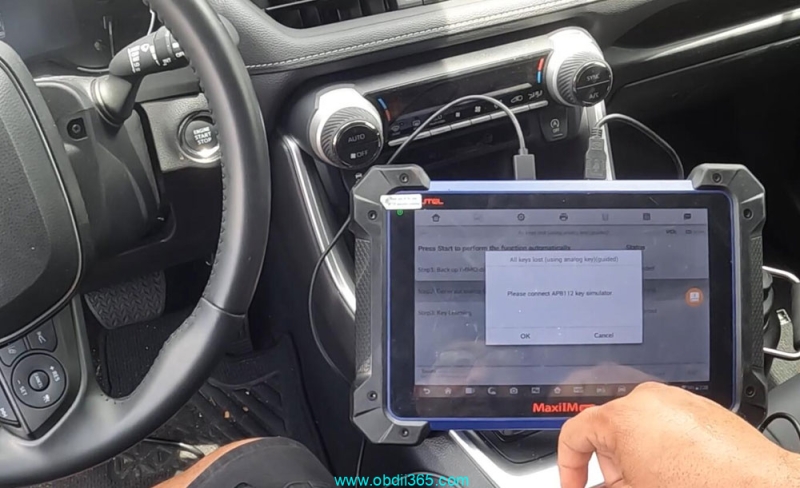

Connect APB112 key simulator with IM608

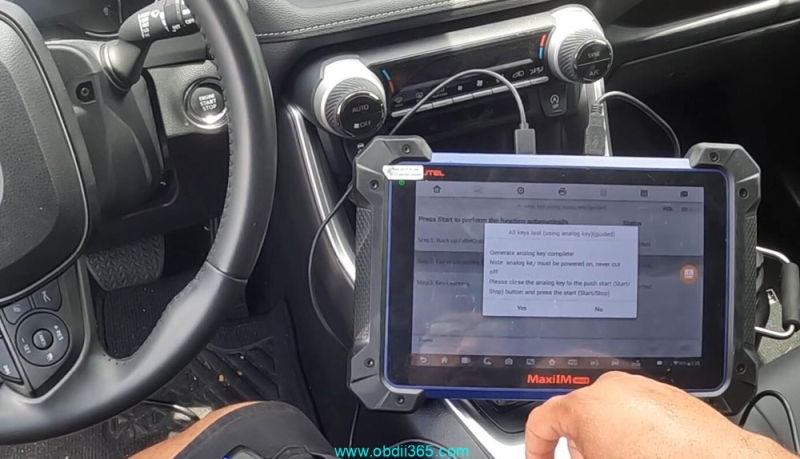

Generate analog key completely.

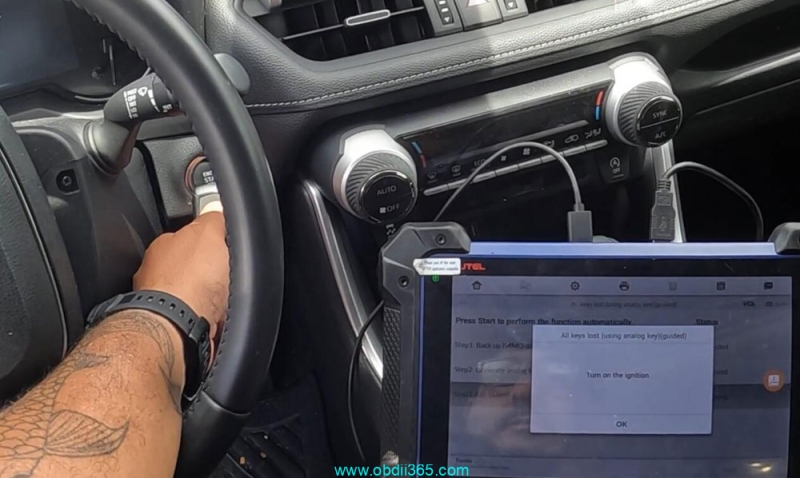

Turn the ignition on with the APB112 emulator

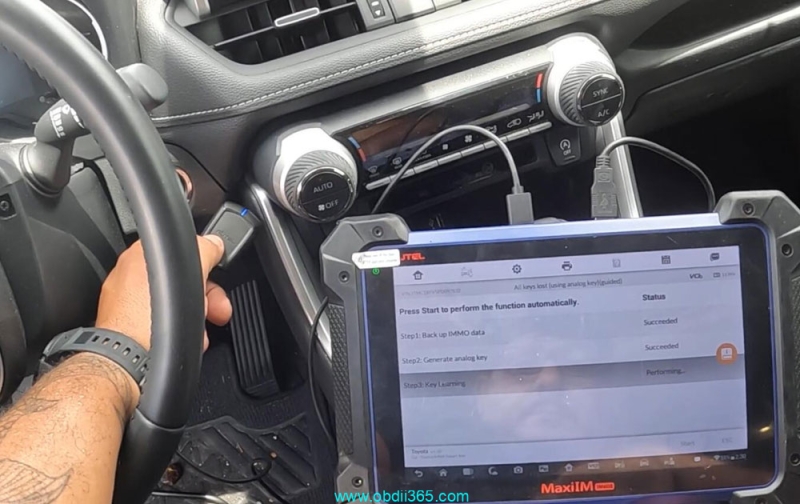

Then learn key using the emulator
Enter VIN
Select EEPROM data to learn key
If failed to learn key
Don’t be sad. Just try again. Generate analog key again.
Until it will auto detects VIN
Turn the ignition off and turn on the hazard warning lights.

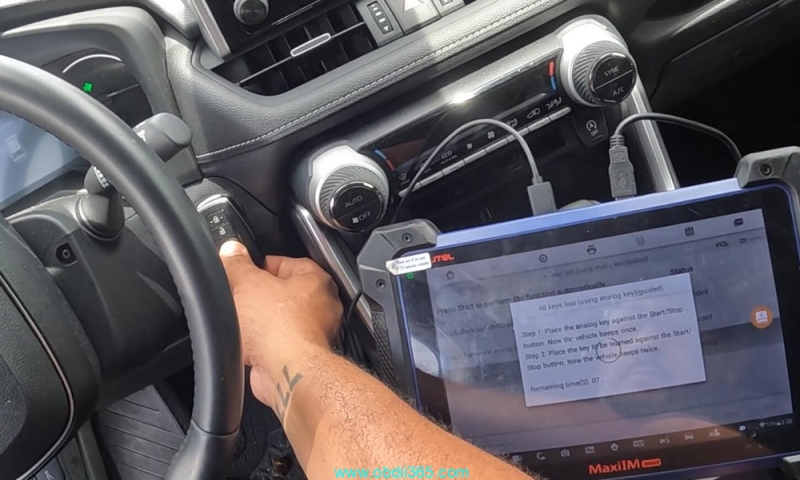

Step 1: Place the analog key again the Start/Stop button. The vehicle beeps once.

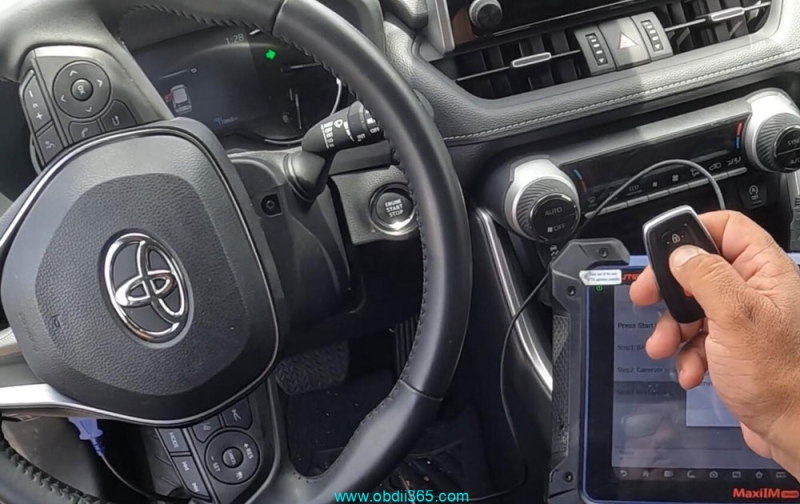

Step 2: Place the key to be learned against the Start/Stop button. The vehicle beeps twice.

Turn on ignition.

Key is working.
