OBDSTAR G3 Program 2021 Citroen C3 Blade Key

How to read pin code and add a spare blade key to a Citroen C3 2021 using OBDSTAR X300 Classic G3?

Need to update Peugeot/Citroen software to v42.77.

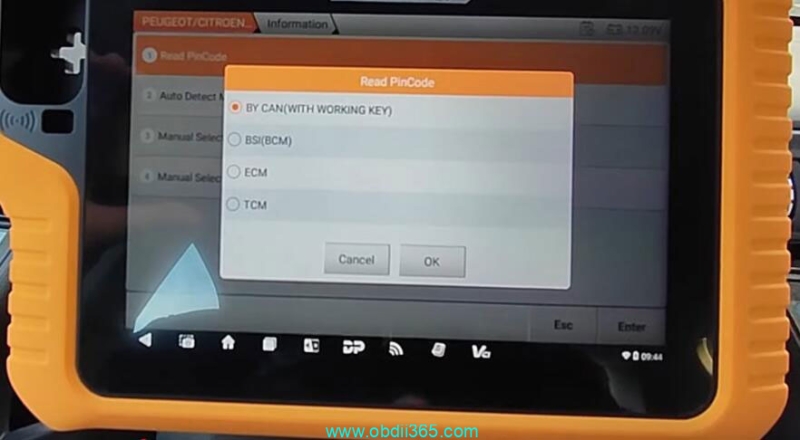

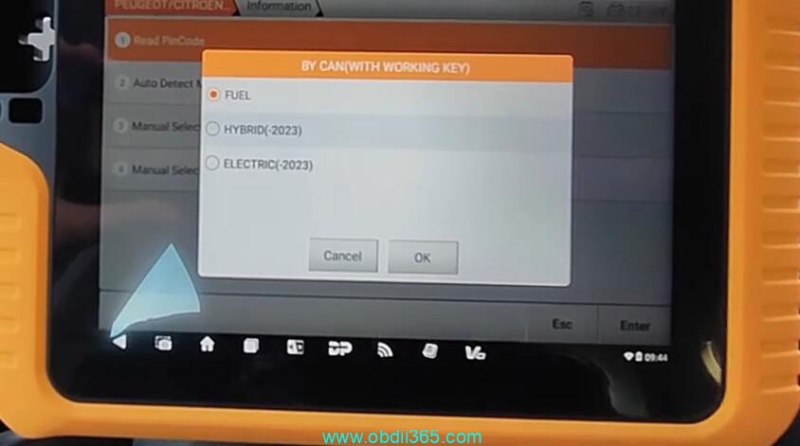

Select Read Pin Code (By CAN with working key)->Fuel type

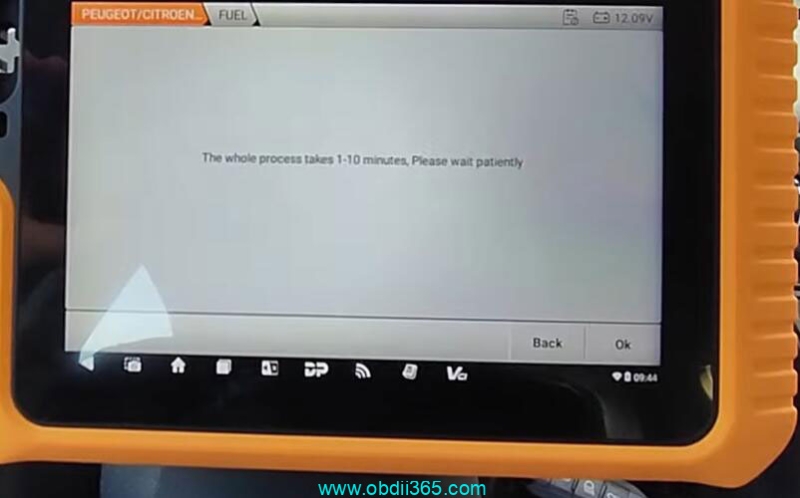

The process takes 1-10 minutes.
Turn off the ignition switch.

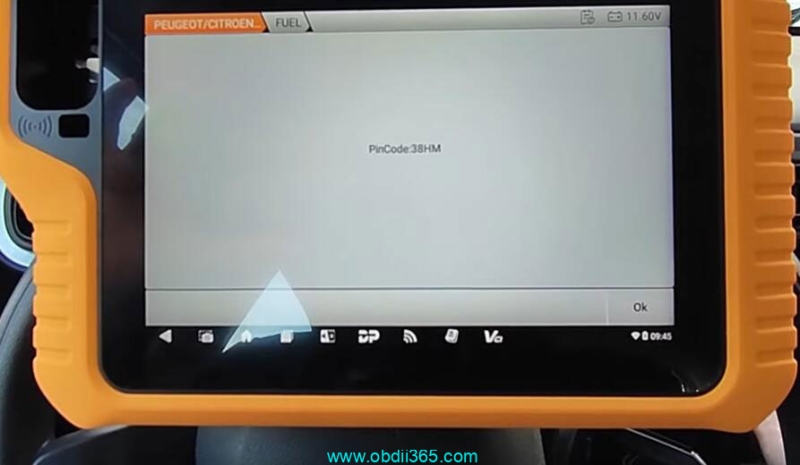

Read 4-digit pin code successfully.

Select Auto Detect Model->Peugeot
Enter VIN and confirm vehicle information
Press Yes

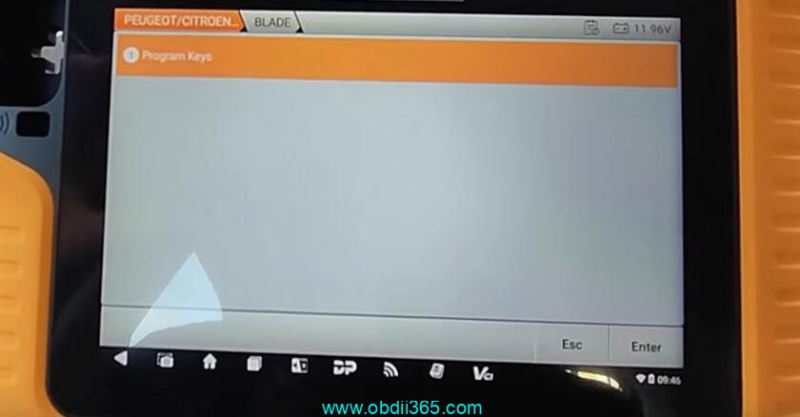

Select Blade key->Program Keys

Switch ignition on
All keys will be erased during this procedure.

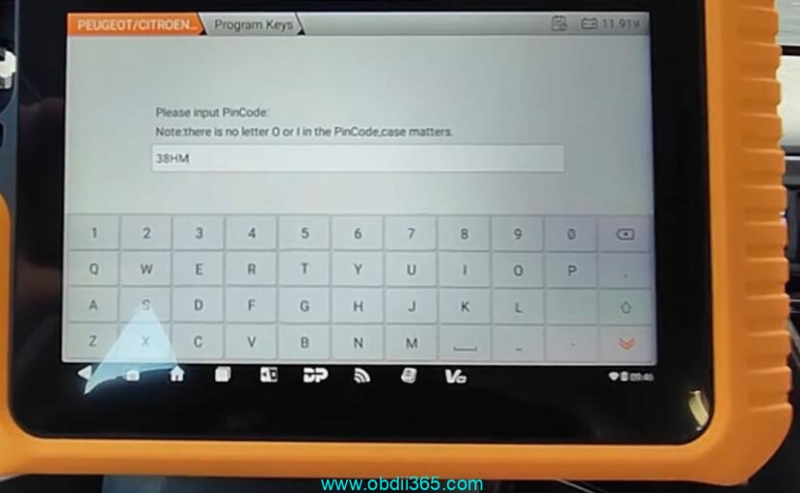

Enter pin code to access.

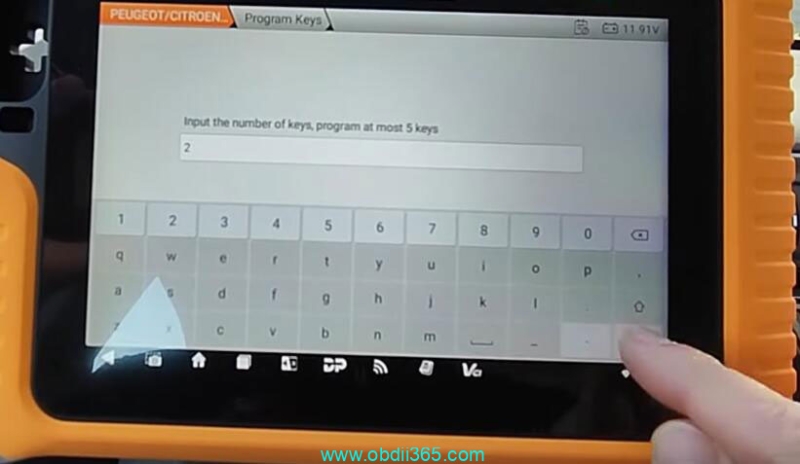

Enter number of keys to be programmed. All keys should be learned. Maximum is 5 keys.

Turn off ignition switch.
Insert 1st key within 15 sec and switch the ignition on

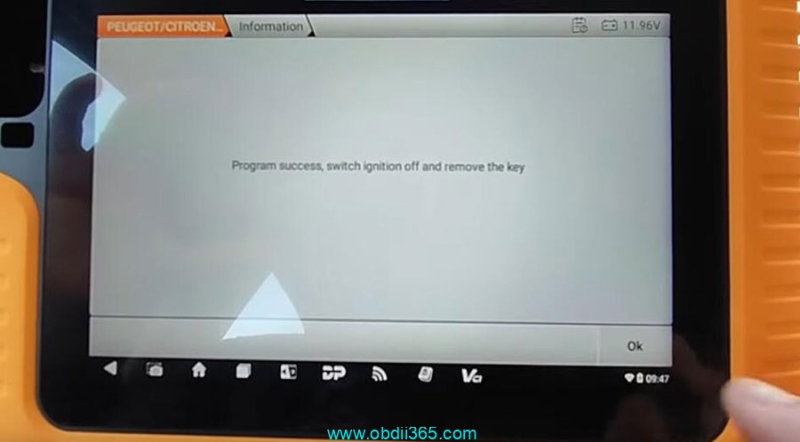

Program success. Switch ignition off and remove the key.

Insert 2nd key within 15sec and switch the ignition on.
Program success. Switch ignition off and remove the key.

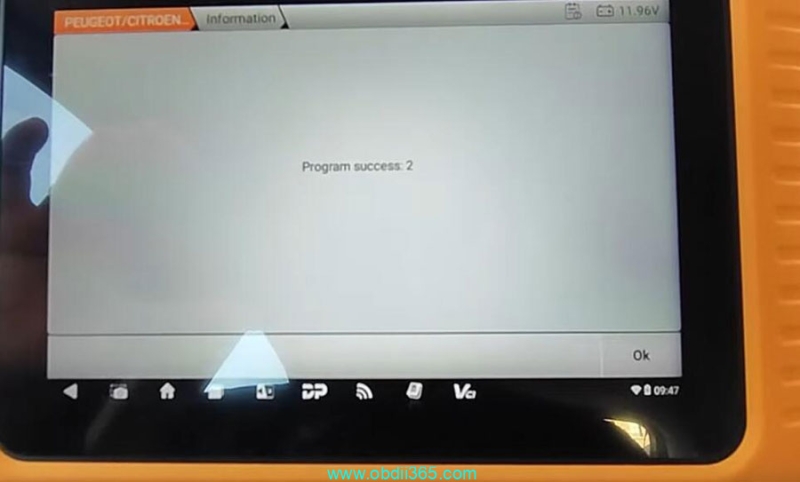

Program completed.
