Yanhua ACDP BMW EDC17CP45 ISN Wiring Diagram

Question:

Try to read ISN code from EDC17CP45 ECU with Yanhua ACDP, but cannot find wiring diagram in App. How to read it?

Solution:

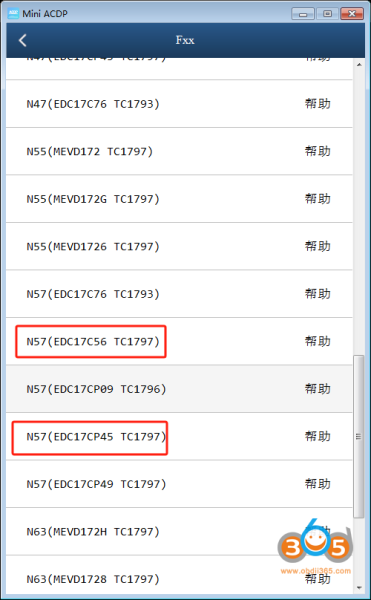

There is no wiring diagram for EDC17CP45/CP56 etc.

You need to use an interface board.

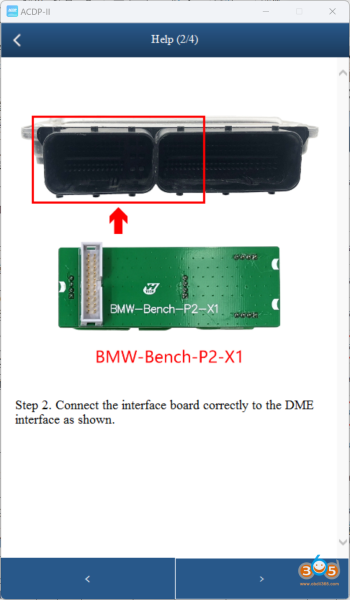

To read EDC17CP45 ECU, you will need X1 bench interface board.

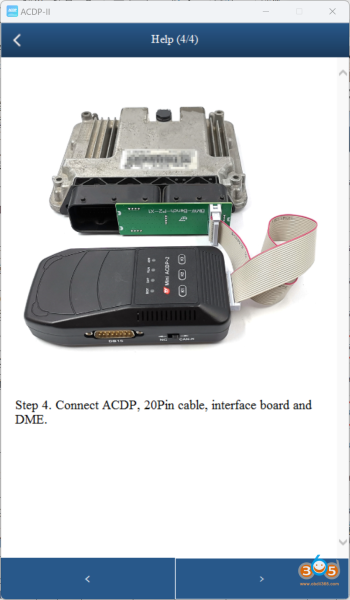

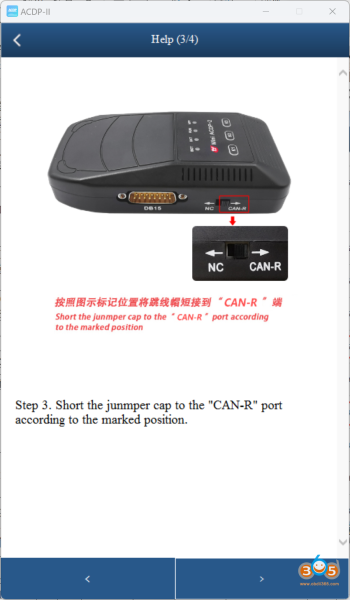

Check the connection here:
