Keydiy also released an Audi IMMO5 encrypted BCM2 solder free adapter kit for KD-X4 key programmer to program Audi BCM2 smart key without soldering.
Here we will show how to install the Keydiy Audi BCM2 adapter.
Keydiy BCM2 adapter kit has two interface boards for D70F3634 and D70F3635 processors.
Two adapters are each equipped with two card slot fasteners.
There is also a cable connecting the interface board and the KD-X4, along with some fixing pillars used to secure the interface board and the BCM2 module.

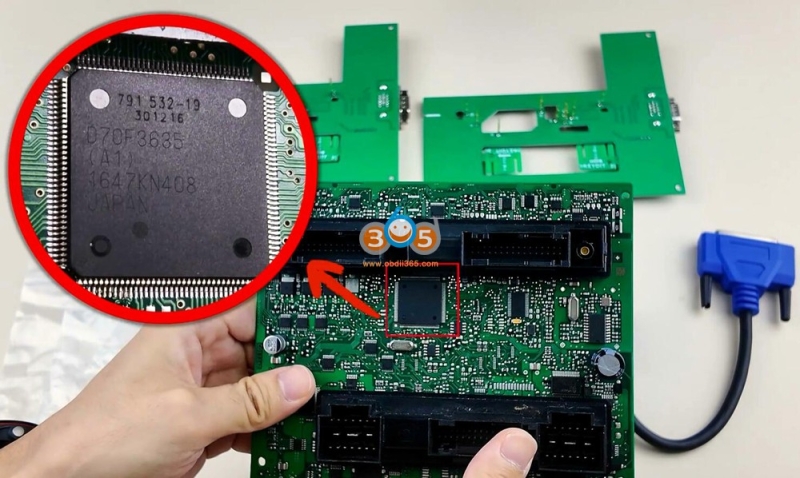

Select the corresponding interface board based on the processor chip.
It is essential to choose the correct cboard.

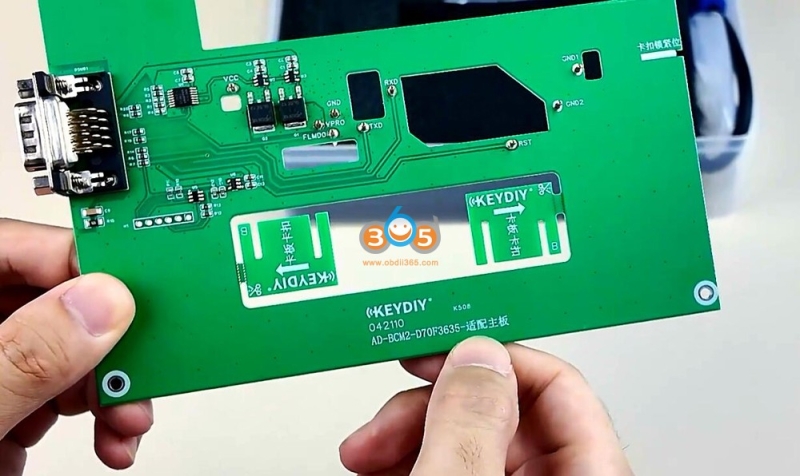

Takes D70F3635 board as an example.

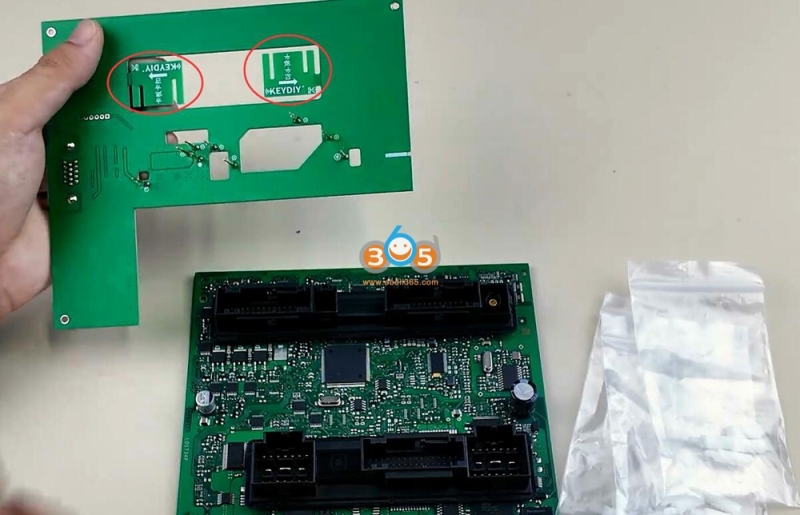

First, remove the two fasteners.

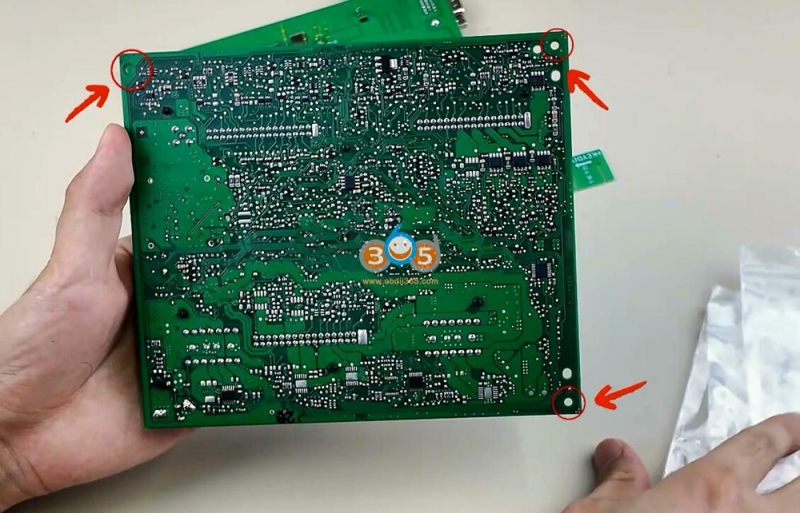

There are three holes on the back side of the BCM2 module.

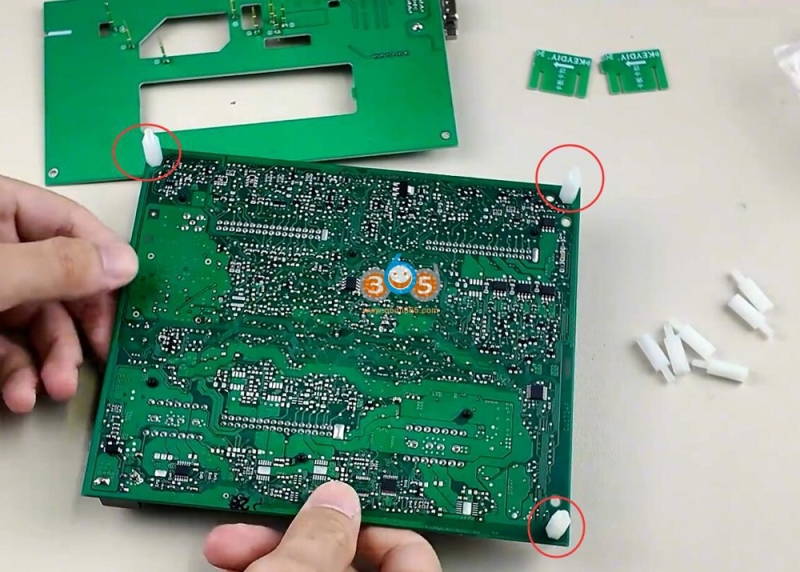

Secure these three holes using the fixing pillars.

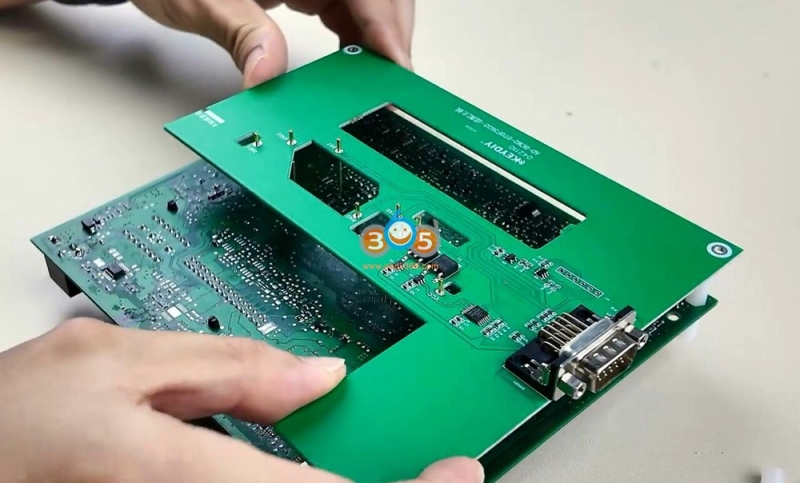

Align the three holes of the interface board with the three fixing pillars on the module.

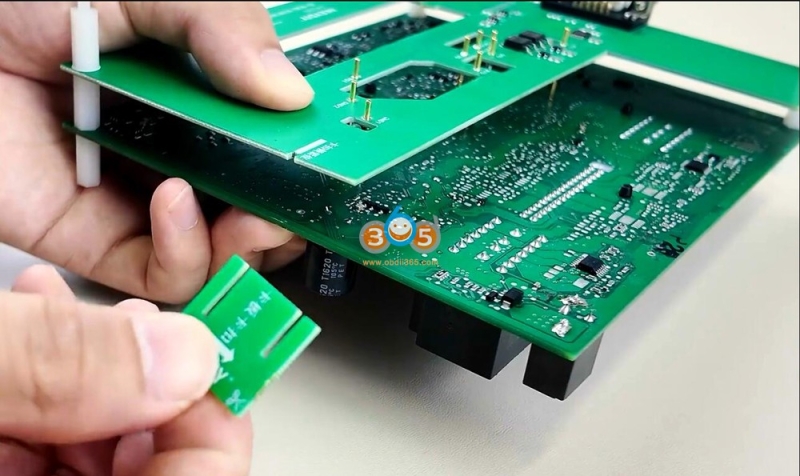

Press the BCM2 interface board downward.

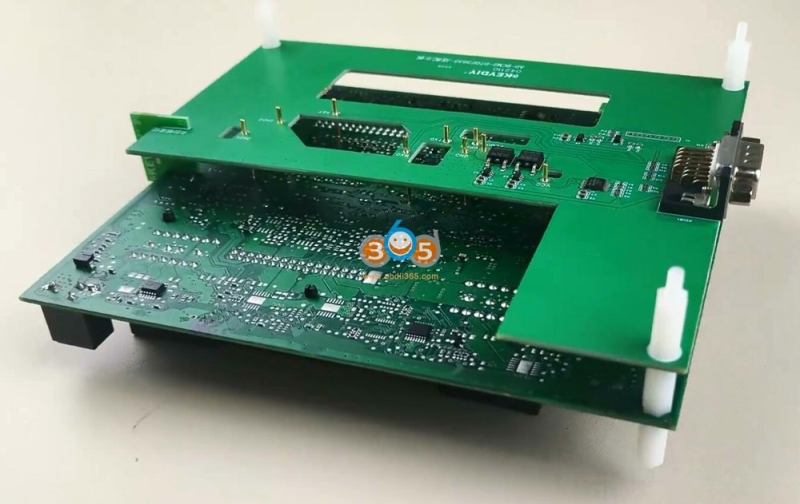

Continue installing the fixing pillars.

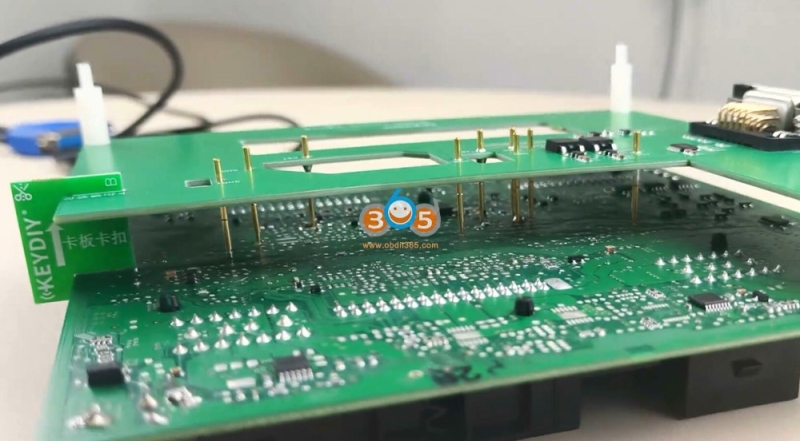

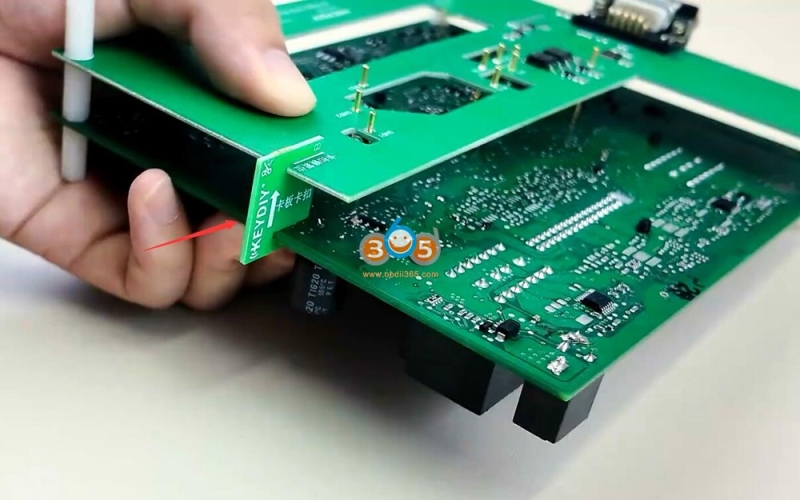

Then, fasten the board fasteners.
The shorter side should be on top, and the longer side should be at the bottom.

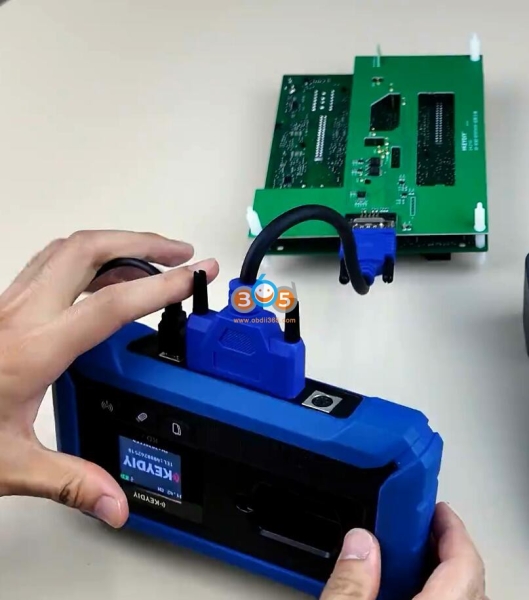

After installing the interface board, connect it to the KD-X4 device via the cable in the package.
Connect the KD-X4 to a mobile phone using an OTG cable, and use the app to operate the software and read data from the BCM2 module.
