How to use Keydiy KD-X4 programmer to add 5C chip key for Volkswagen 2025 T-Cross (T-Cross/TRoc), Virtus, and other vehicles in the 5C line?
Tools used:
Keydiy KD-X4 programmer
Original key
KD ZB smart key

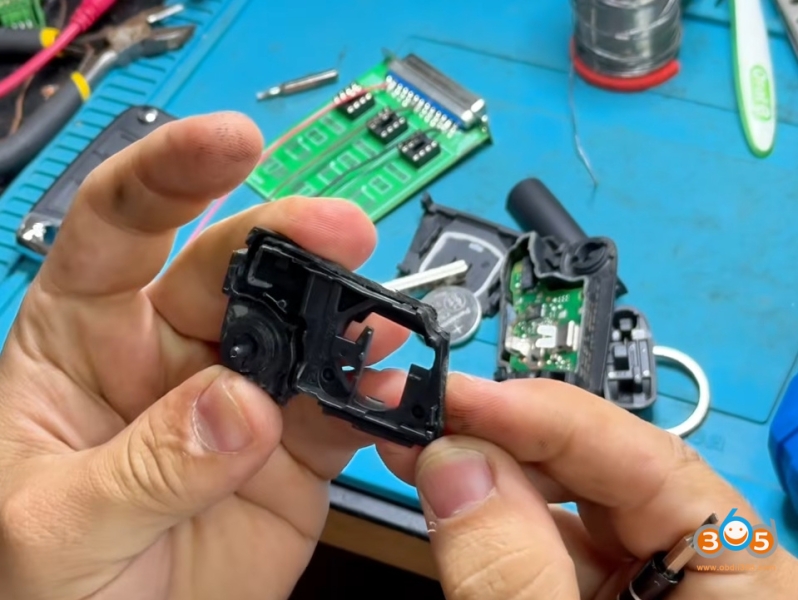

The Challenge: Remove the Key Shell

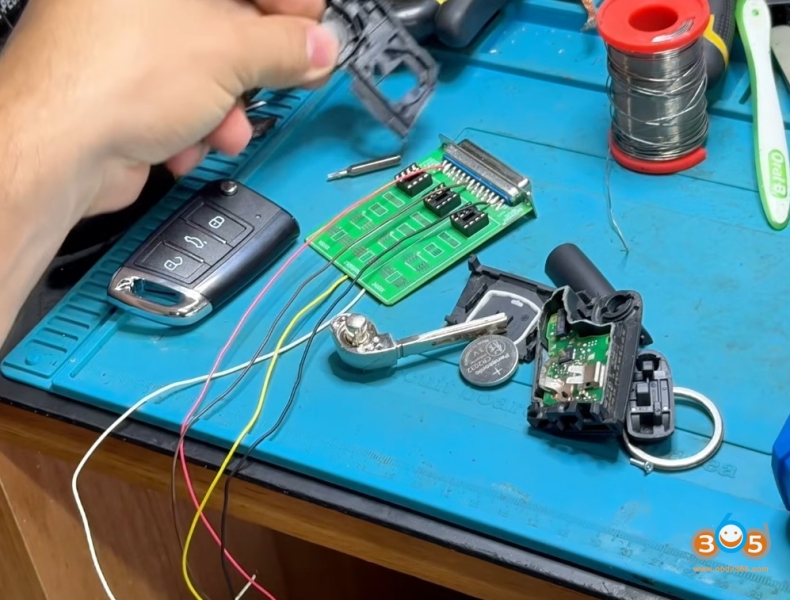

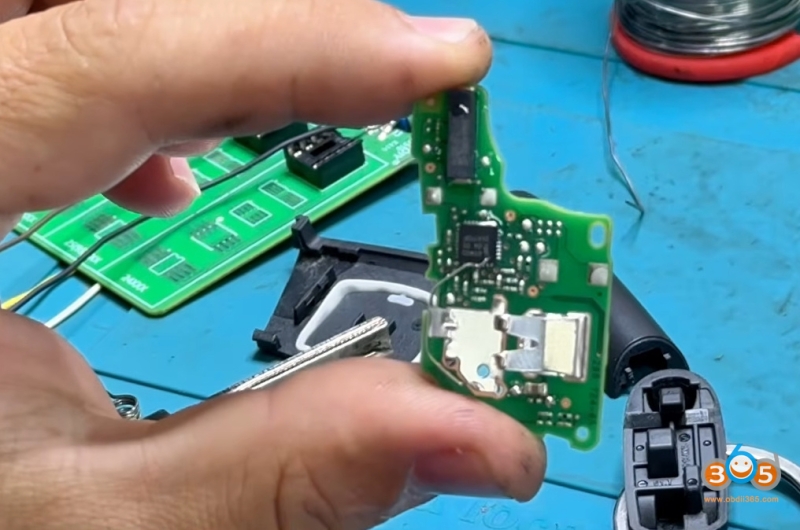

There is a common hurdle with newer Volkswagen keys: they are often fully glued shut, making physical access to the internal electronics a delicate and time-consuming task. We carefully uses a heat gun at controlled temperatures (200–230°C) and a small tool to separate the housing without damaging it. This step is crucial because the key must be opened to access the circuit board for reading the existing chip data—a necessary precursor to creating a functional duplicate.

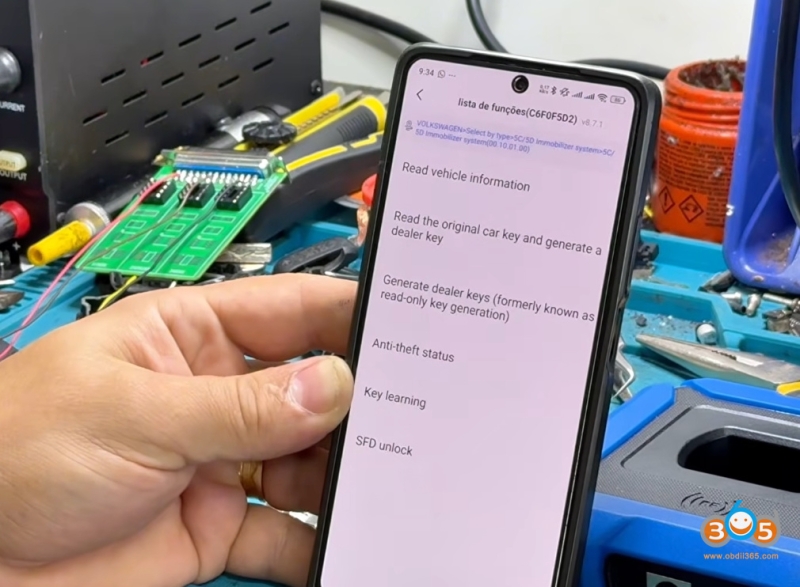

In KD-X4 go to MQB49 5C 5D function.

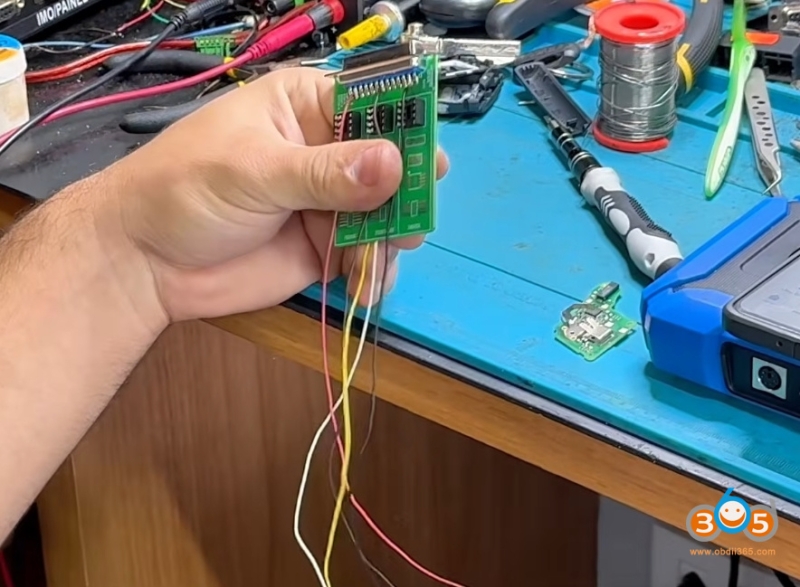

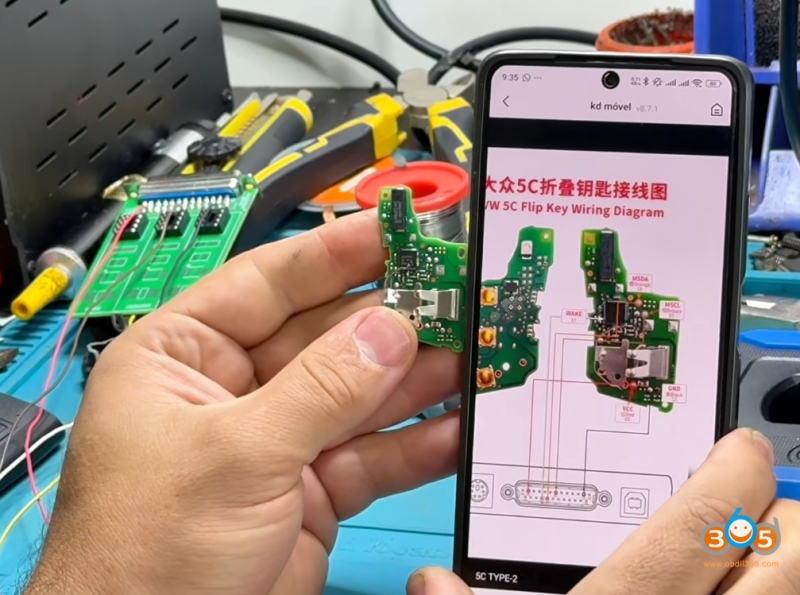

Check the corresponding key wiring diagram.

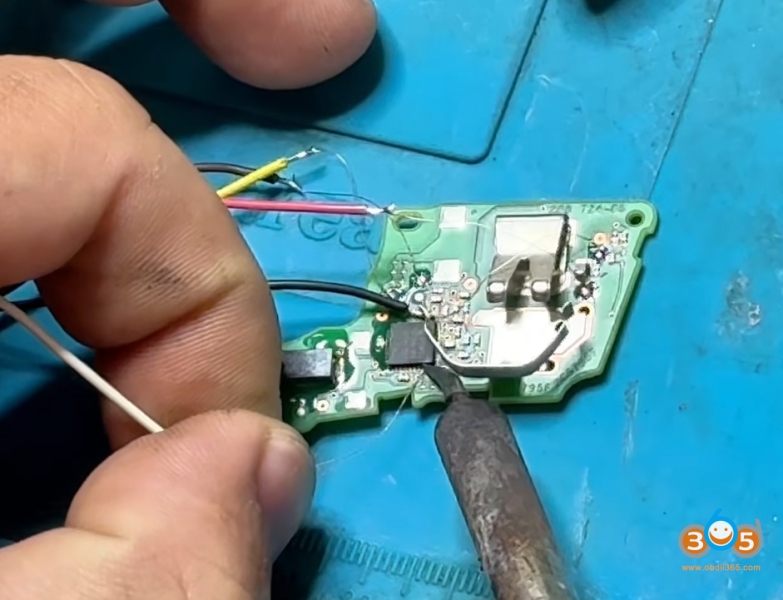

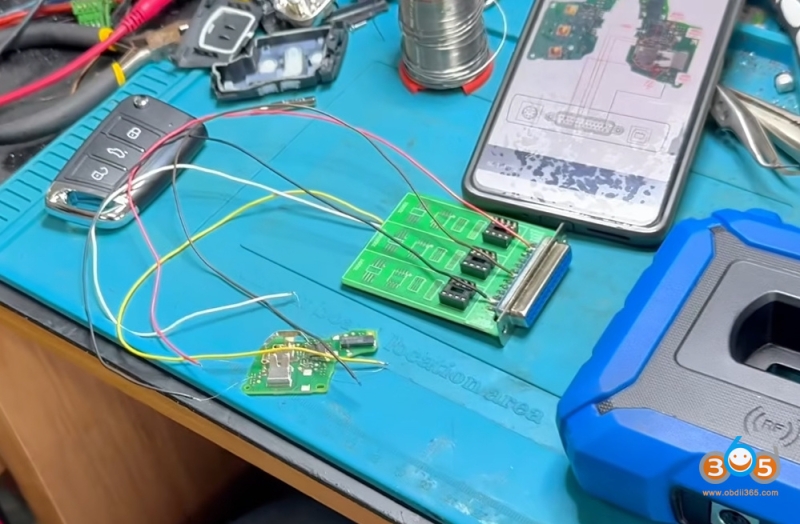

Connecting it to the key’s board via five precise soldering points.
The process involves:

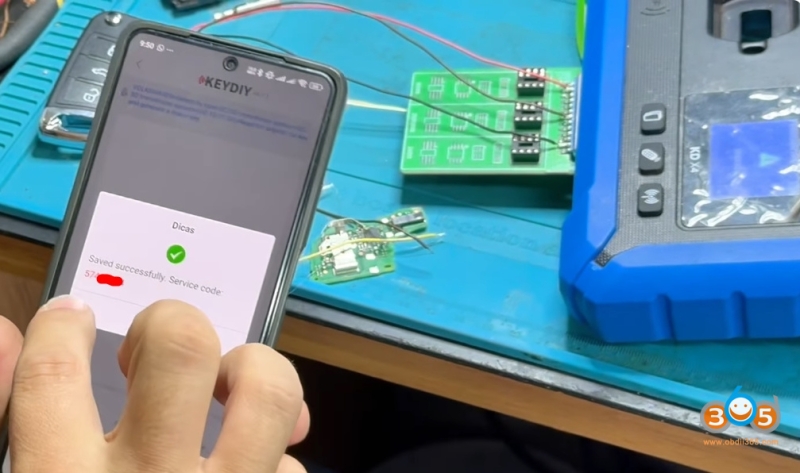

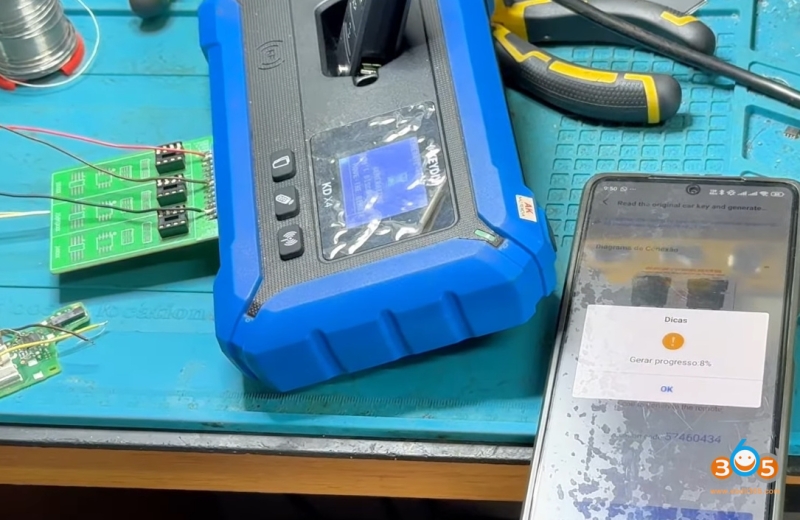

Reading the Original Key: The KD-X4 reads the chip data from the customer’s original key, generating a unique service code.
Generate dealer Key: A dedicated KD brand blank key (specifically designed for this service) is then connected. The device writes the necessary data to it, effectively cloning the original’s electronic signature.
Vehicle Programming: Finally, the new key (along with all existing customer keys) must be presented to the car to be registered into the vehicle’s immobilizer system.
The In-Vehicle Programming Process
With the dealer key generated, we move to the vehicle—a 2025 T-Cross. The car is put into “service mode” by opening the hood, a necessary step to allow the immobilizer system to accept new key programming.

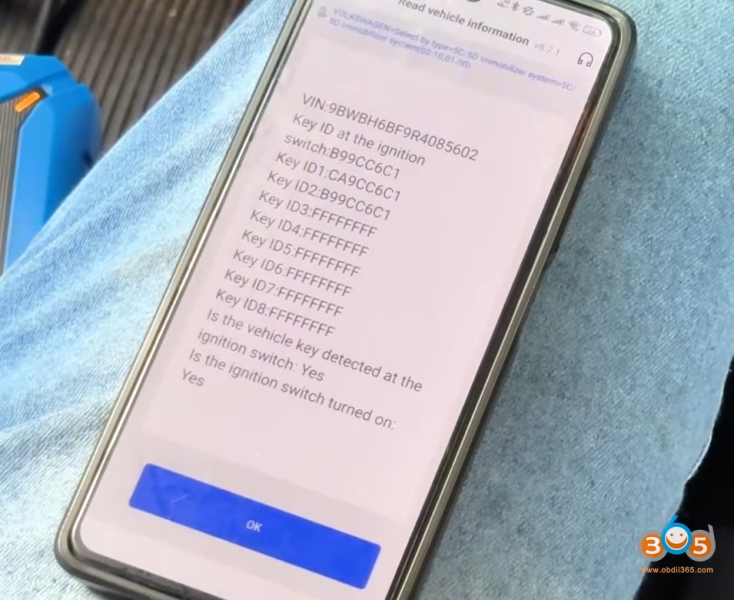

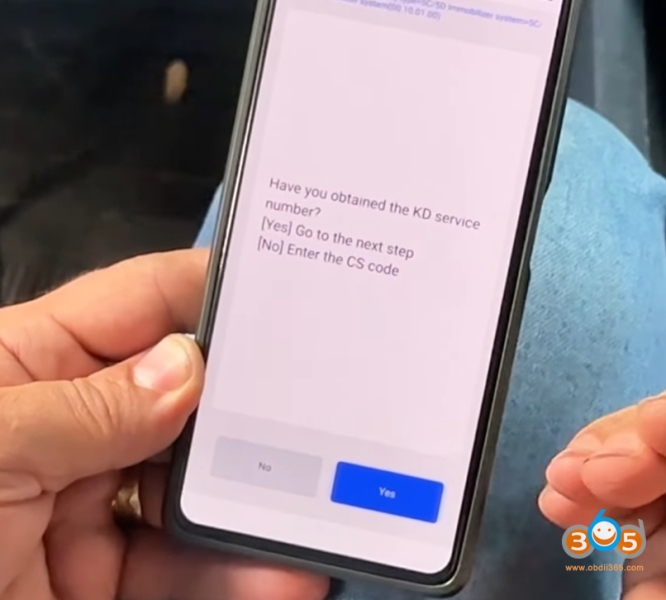

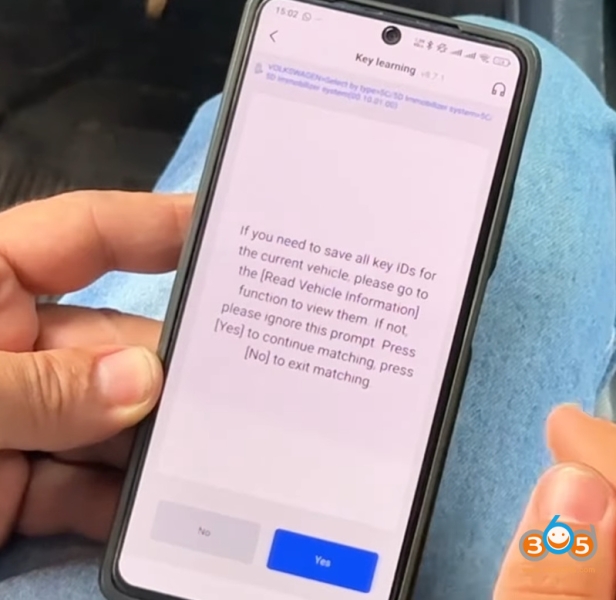

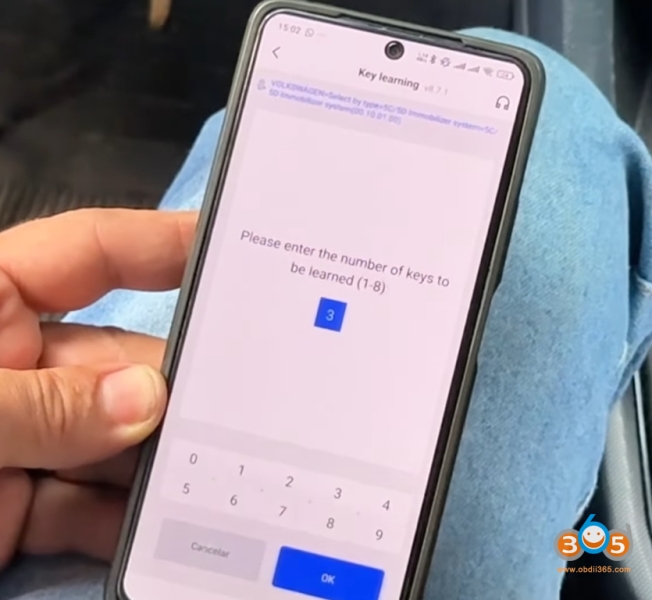

Using the KD-X4, we select the Volkswagen 5C system and connects to the car’s computer. The system detects the vehicle already has two keys registered. The programmer then guides the user through the “learn” procedure, specifying that three keys (the two originals plus the new clone) will be registered.
A critical step for some 2024/2025 models is dealing with SFD (Signed Function Data) locks—a software security barrier. The KD-X4 can generate a code to unlock this system when necessary, ensuring access to the programming functions.

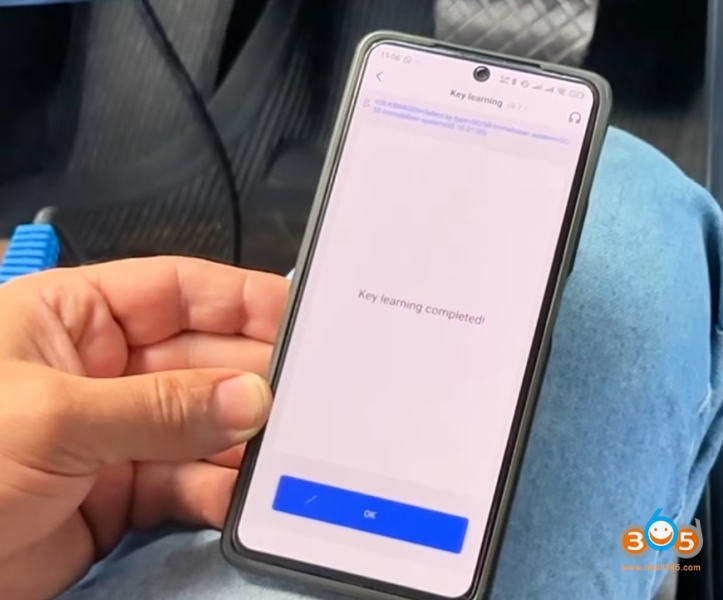

The actual key programming is a timed sequence: within 30 seconds, all three keys must be presented one by one to the car’s ignition or start button. The video shows this being done successfully—first the two original customer keys, then the newly cloned KD key.
The Result: Seamless Integration and Full Functionality
Both the original key and the new KD clone key successfully:
Start the vehicle.
Lock and unlock the doors via remote.
Activate and deactivate the alarm system.
The new key behaves identically to the factory original, proving the clone’s full integration into the vehicle’s security and convenience systems.
