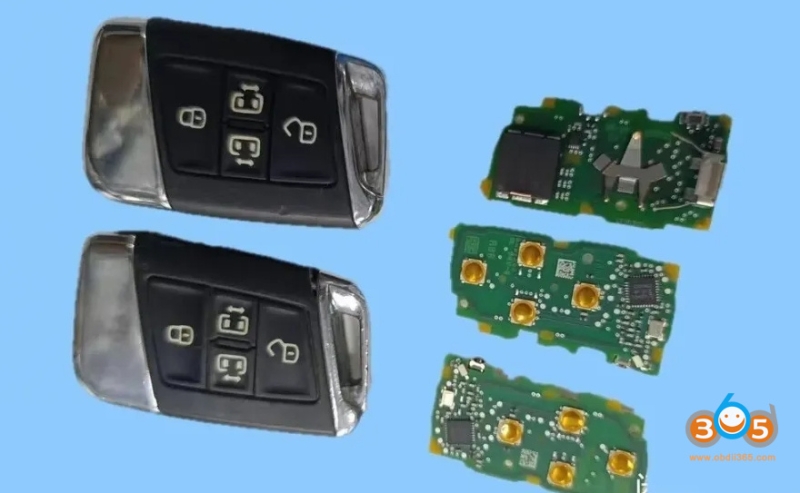

VAG VW Audi Porsche 5C 5D Key Model Year and Brief Instruduction

The VAG MQB49 5C/5D key is the next-generation immobilizer key for Volkswagen/Audi/Porsche, based on the MQB/MLBevo platform. It was gradually introduced from October 2019 onwards and became fully standardized from 2020.

Compatible Models & Years

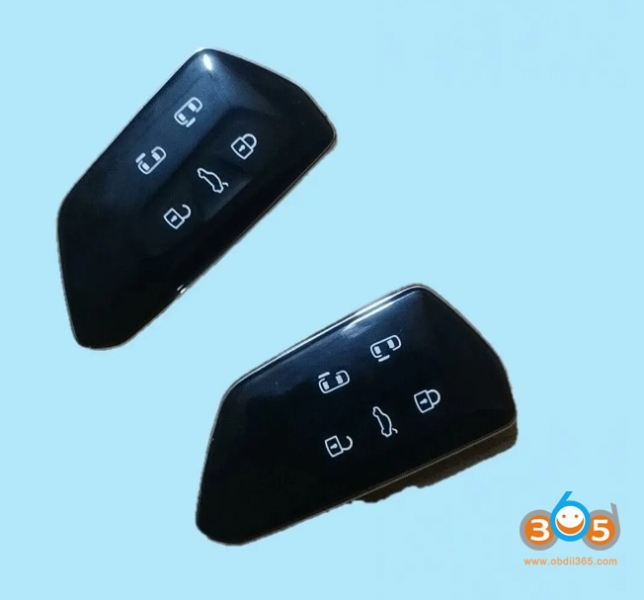

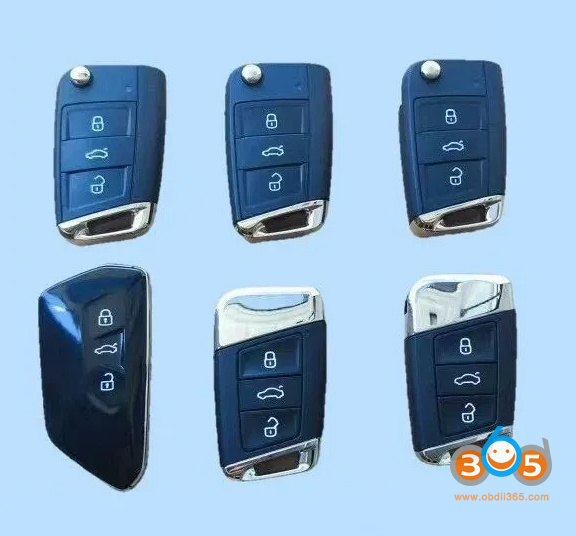

1. Volkswagen (incl. Škoda/Seat)

• Core Period: October 2019 – present. Full coverage for model year 2020+ vehicles.

• Representative Models:

  • 5C key: Golf 8, Lamando L, Tharu, T-Roc, Tayron, Tiguan L, Magotan B8, Passat, Polo, etc.

  • 5D key: VW ID series (ID.3/ID.4/ID.6), late-model Golf 8.

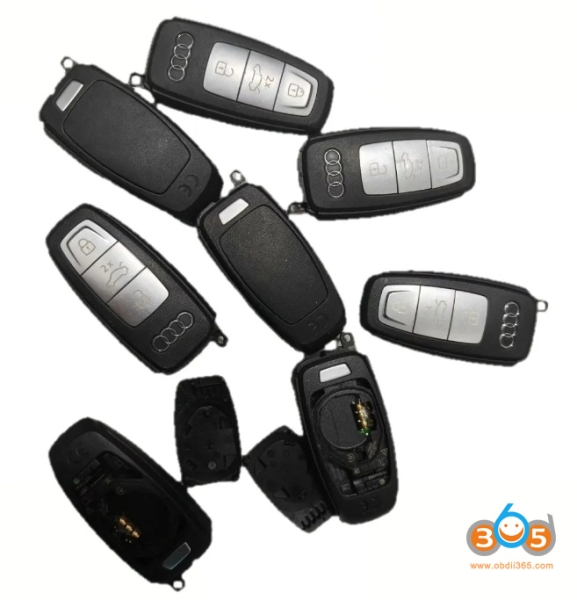

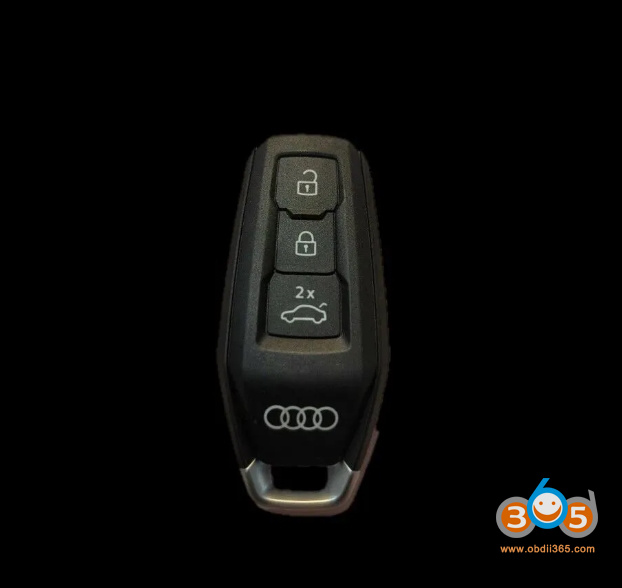

2. Audi

• Core Period: October 2019 – present. Primarily model year 2020+ vehicles.

• Representative Models: A3L, A5L, Q4 e-tron, Q5 e-tron, Q6, Q6 e-tron etc

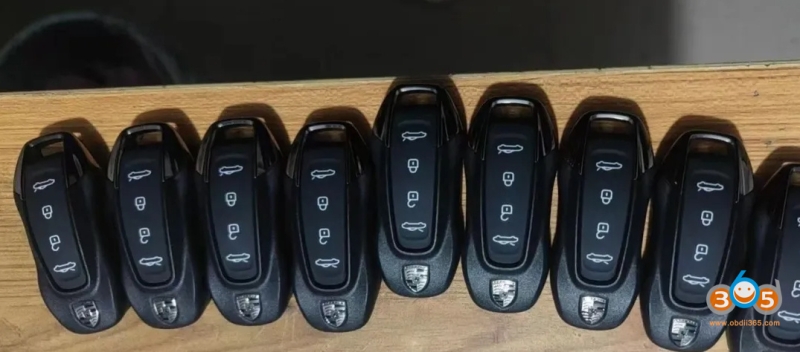

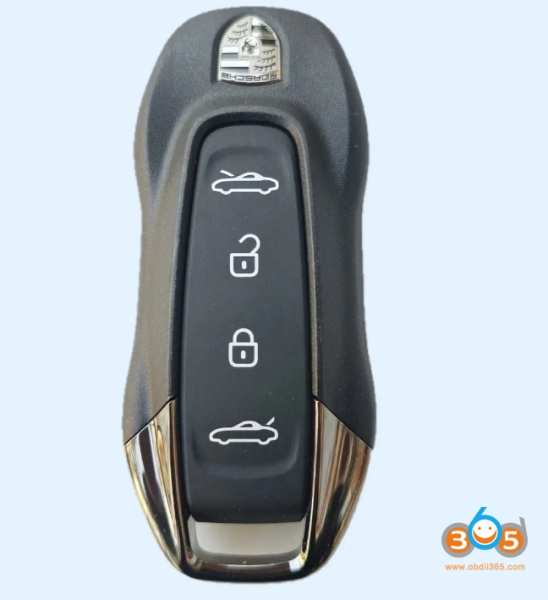

3. Porsche

• Core Period: October 2019 – present. Shares the 5C/5D key system with VW/Audi.

• Representative Models: Newer models including Cayenne, Macan, Panamera, 911.

Key Notes

1. Technical Specs: 5C corresponds to the MQB49 chip. 5D is a newer variant of the MQB49 chip. Both are smart keys/flip keys, designed for push-to-start (keyless start) models.

2. Matching Characteristics: Technically difficult to match before October 2019. Equipment was upgraded after 2025. With a working spare key, reading original key data to add a spare key is possible. For all keys lost, dealership original matching is still required.

3. Platform Relation:  Older MLB platform mostly uses 754C/754J keys, which are NOT interchangeable with 5C/5D.

Quick Differentiation Methods

1. Check Platform / Year: Pre-2019 MQB = MQB48; Post-2019 MQB = 5C/5D; Older MLB = MBL series.

2. Device Identification (Key Reader):

   • Reader shows “MQB48” = 5A.

   • Reader shows “5C” / “MQB49” = 5C.

   • Reader shows “5D” = New MQB49 (5D).

   • Example Readout:

     • Key Identification: Successful

     • Type: 5C (MQB49)

     • Chip: NCF29A2

     • Immobilizer Location: Instrument Cluster

     • Status: Locked / Matched

   • Example Readout:

     • Key Identification: Successful

     • Type: 5D

     • Chip: NCF295E

     • Immobilizer Location: BCM (Body Control Module)

     • Status: Locked / Matched

3. Check Immobilizer Module:

   • Immobilizer in Instrument Cluster = MQB48 / 5C.

   • Immobilizer in BCM = 5D.

   • Non-MQB platform = MLB series.

   • Note: MLB has three generations: older 754J, MLB-specific, and 5D type!

   • 5C immobilizer data is stored in the internal memory chip of the Instrument Cluster (J285) .

   • 5D immobilizer data is migrated to the BCM (Body Control Module) . On some models, the BCM integrates an NEC microcontroller + an external 95320 EEPROM where the data is stored.

5C / 5D Immobilizer Data Storage Location

Key Details

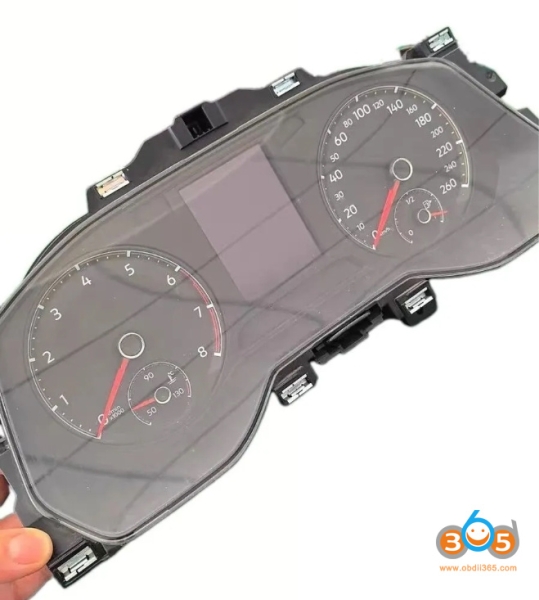

• 5C (J285): Immobilizer logic and data are fully integrated into the Instrument Cluster (J285). For all keys lost, you must remove the cluster, read the internal memory chip data, and then upload it for calculation (to generate the immobilizer data for a new key).

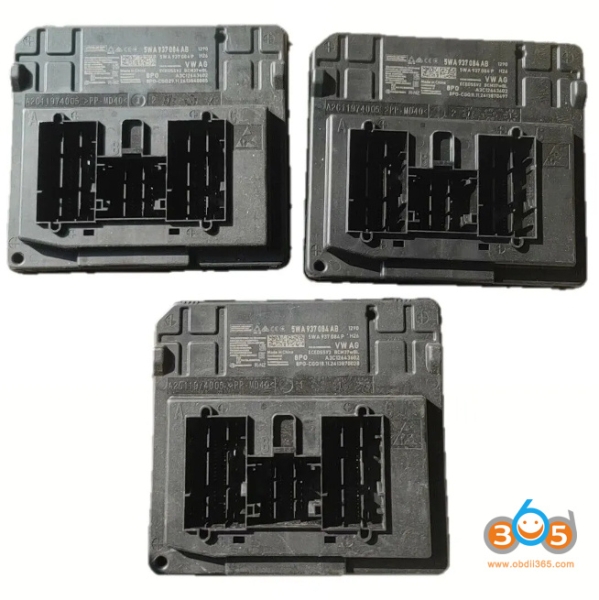

• 5D (BCM): The immobilizer core is migrated to the BCM. Most models have a BCM with an NEC main controller + external 95320 EEPROM; data is stored in the EEPROM. Some model years store data only inside the NEC. For all keys lost, you must remove the BCM and read the corresponding storage memory (EEPROM or MCU) to extract the data.

• Distinction from MQB48 (5A): MQB48 (5A) data is also stored in the J285 (Instrument Cluster), but the encryption level is lower than 5C/5D, making matching less difficult.

Reading & Matching Key Points

• 5C: Use a programmer to read the memory chip data from the Instrument Cluster. Upload the dumped data for calculation, then write the resulting data to the new key.

• 5D: Read the NEC / 95320 EEPROM data from the BCM. For some models, OBD online calculation is required. For all keys lost, remove the BCM and read its data, OR replace the BCM entirely to obtain server-side data in order to complete key matching.
