Question:
2017 VW Passat / Jetta Immo 4.5 cluster: How I locate the pogo pin using the chip mark, opposite corner, and counting six pins.
Pogo PIN location on a VW Passat/Jetta IMMO4.5 cluster:
-

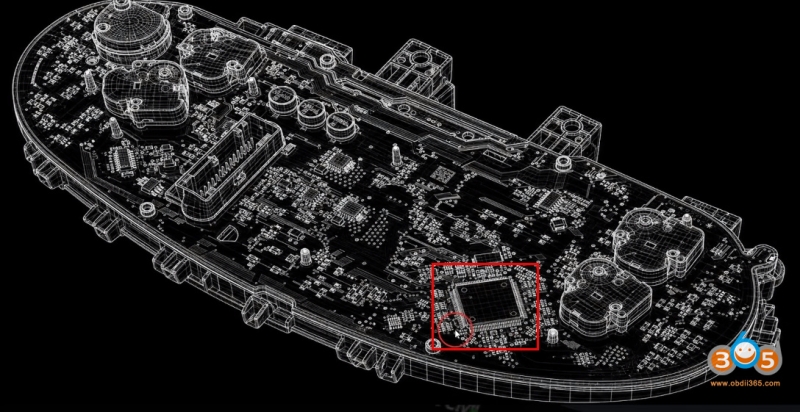

Locate the MCU (large square chip).
-

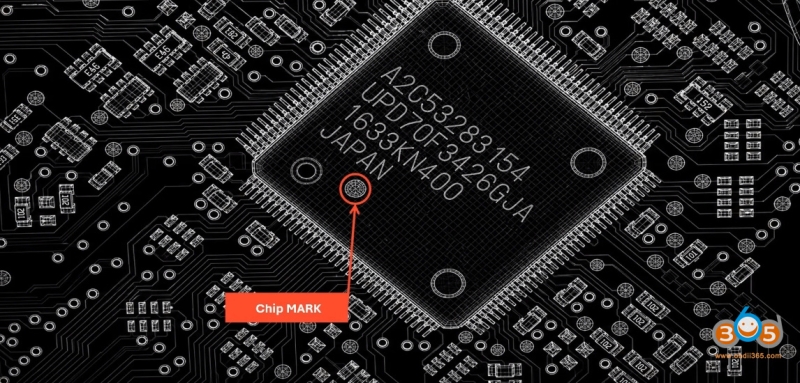

Find the chip mark (small dot on one corner).
-

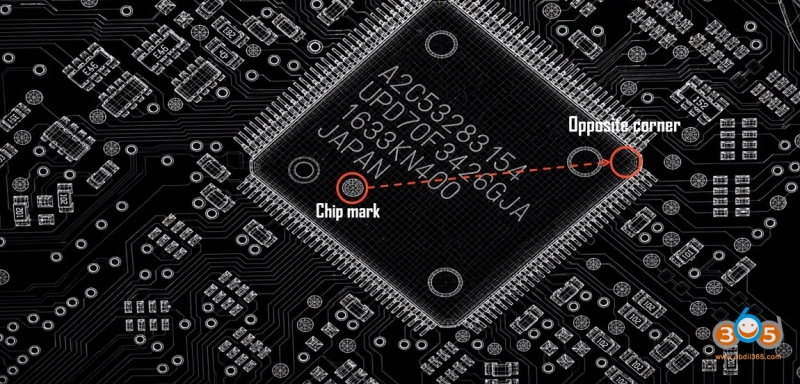

Go to the opposite corner of the chip mark.
-
Count six pins downward.
-

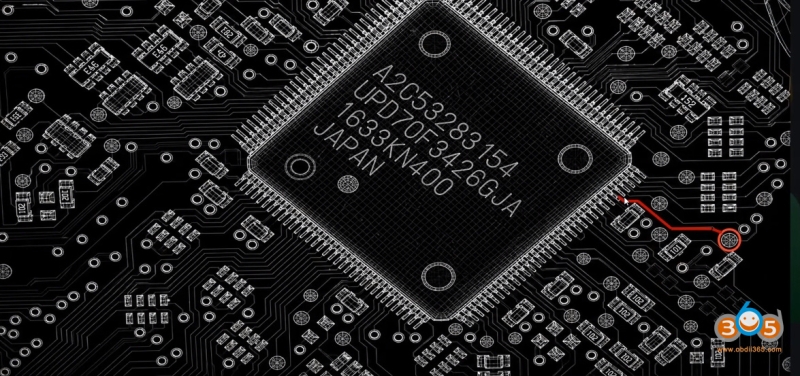

Trace the circuit to the board to identify the pogo pin point.
Why opposite corner? The target pin sits on the opposite side of the chip mark.
