Read VW EDC16U34 ECU CS and PIN Code with Autel IM508

Here we will show how to read CS and PIN code from VW Bosch EDC16U34 ECU with Autel MaxiIM IM508 XP400 pro.

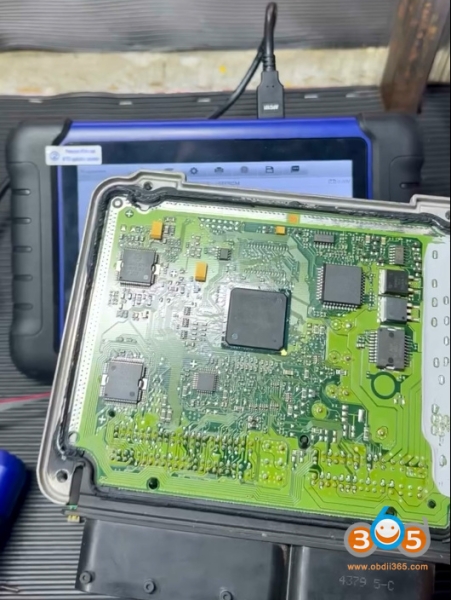

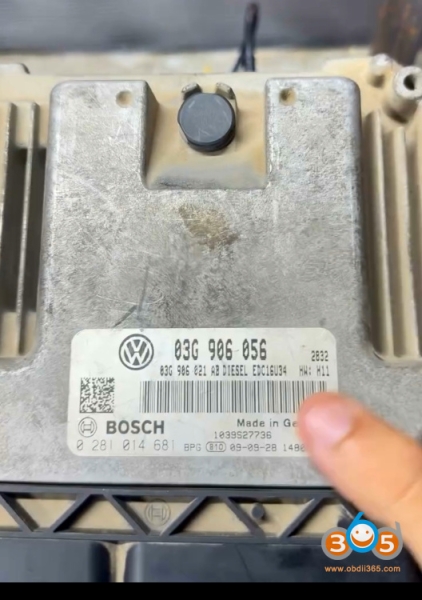

Model example: 2007 VW Touran

ECU type: Bosch EDC16U34

EEPROM chip: ST95320

Procedure:

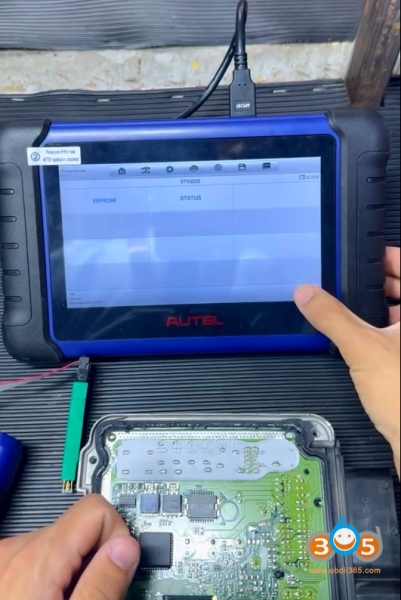

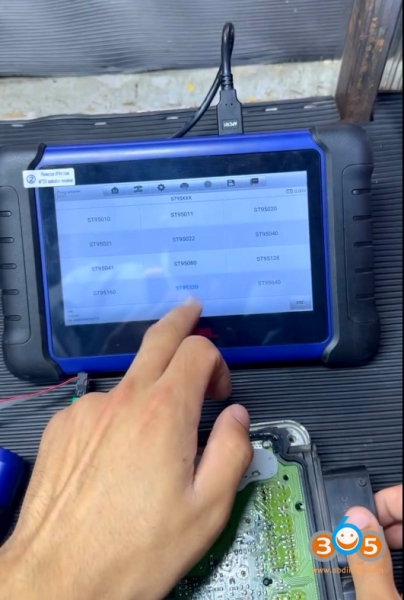

Go to EEPROM function, select ST95320.

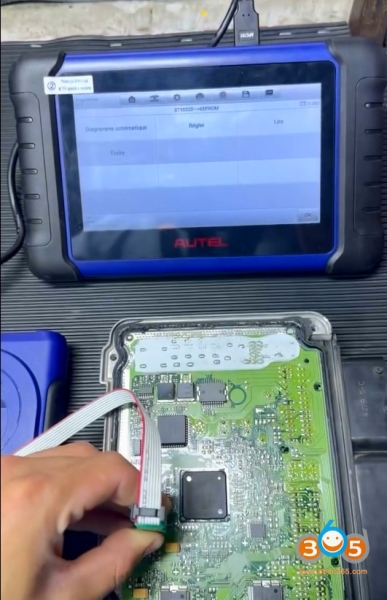

Connect the chip with XP400 Pro using the eeprom clip adapter.

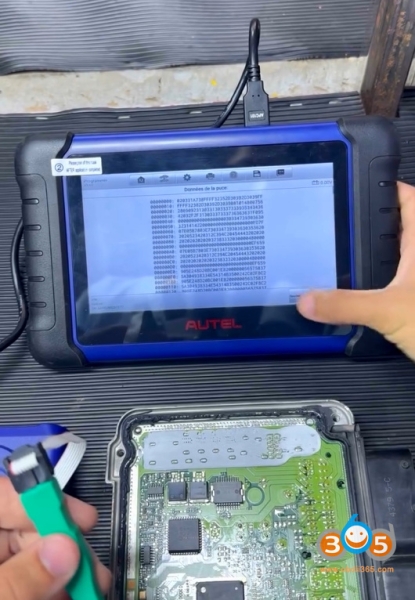

Read and save 95320 chip data.

Then go to IMMO programming function, select VW brand.

Choose Expert Selection.

Select Dump tool function.

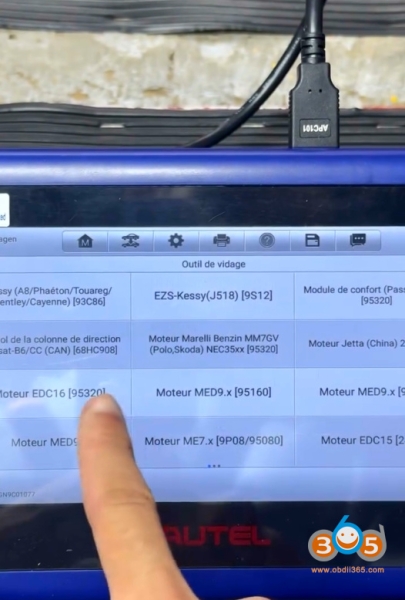

Choose Engine EDC16 [95320] option.

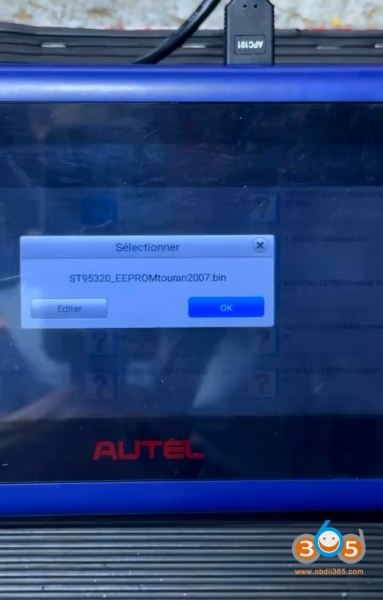

Upload and select 95320 eeprom data just saved.

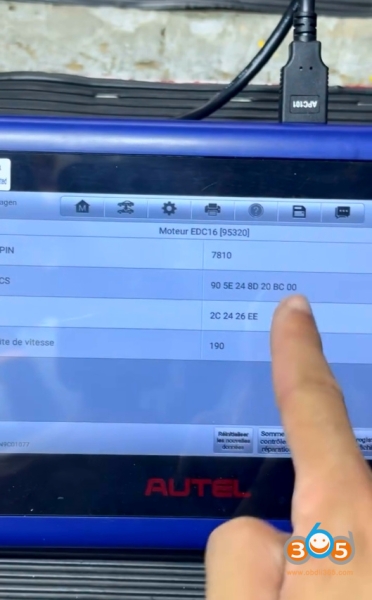

Autel IM508 will extract CS and PIN code of this ECU.

Now you can make new keys with the PIN code.
