Autel MaxiIM IM508S/IM608 II Ford F-150 BCM Dflash reading for adding keys/AKL function is still there. Here are the tips to find Ford APB131 BCM Dflash reading locations.
2021-2023 Ford F-150 Blade Key System:
Here is an example of reading Ford F-150 2021-2023 BCM Dflash for adding keys/AKL with Autel IM508 and XP400 pro.
Procedure:

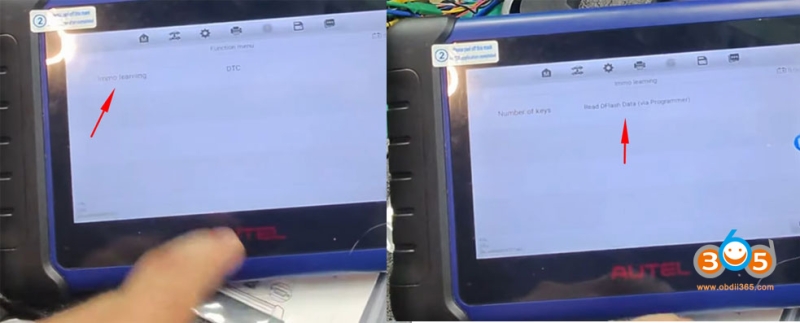

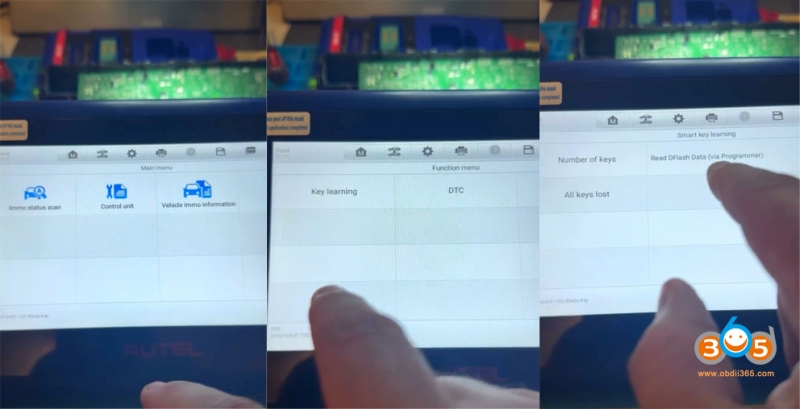

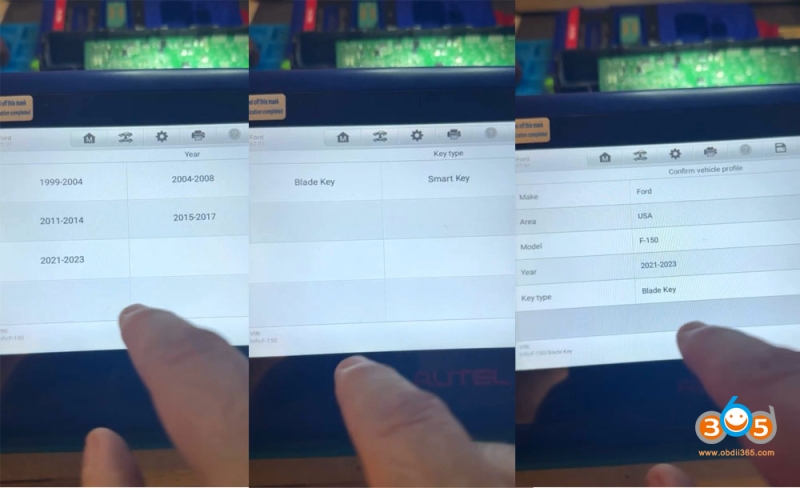

Menu path: IMMO-Ford-Manual Selection- USA- F150- 2021 to 2023- Blade key- Control Unit- Immobilizer (CAN)-Key Learning- Read Dflash Data (via Programmer).
Autel will show you the connection diagram to BCM using APB131 adapter.

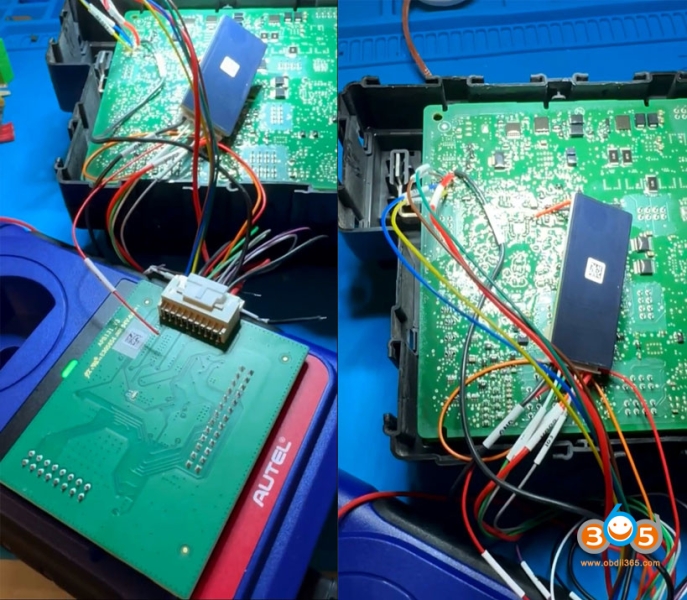

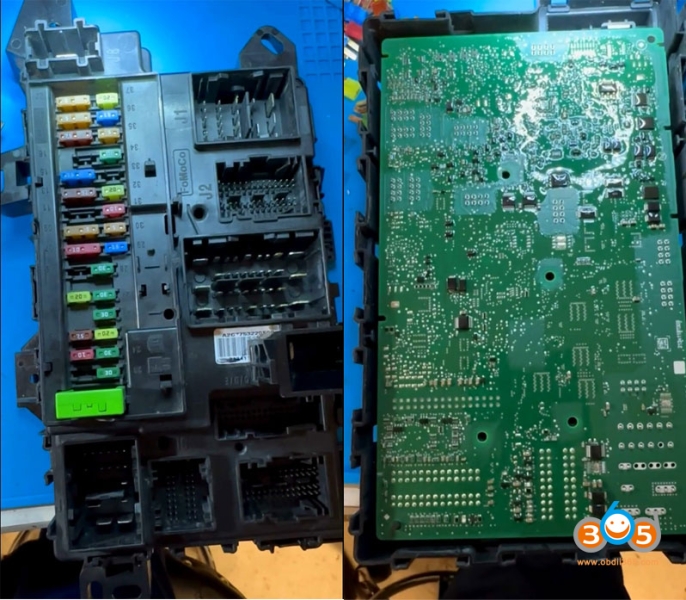

Connect BCM module with xp400 pro via APB131.

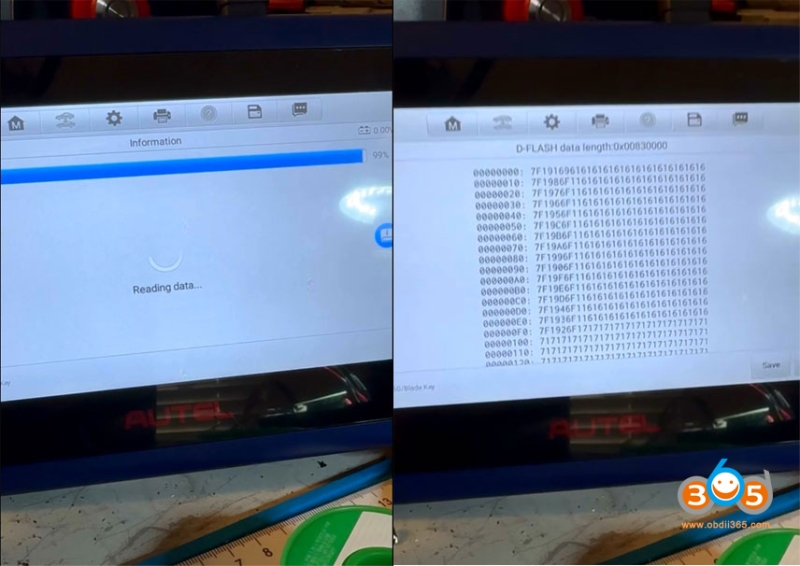

Read and save the BCM Dflash data to program key.
2022+ Ford Keyless System:
Autel IM508S/IM608 II Ford 2021-2023 Ford F-150 all keys lost function is found under System Selection if you’ve lost them due to updating.
If you go to the normal route after updating your device AKL has been moved to System Selection.

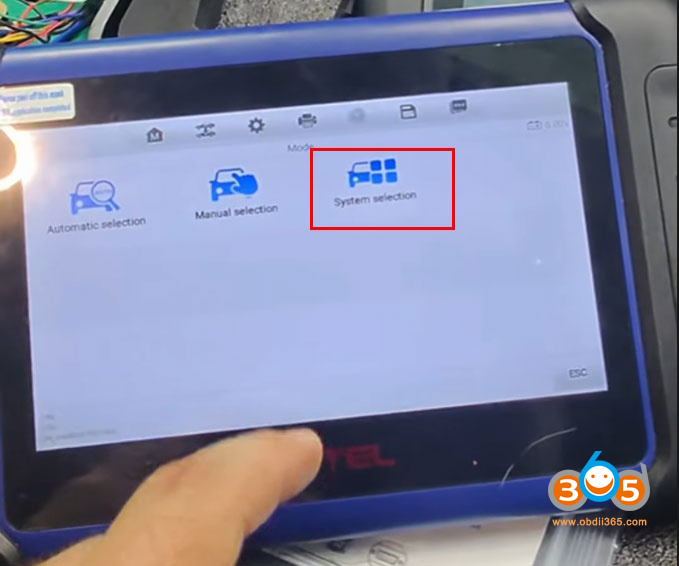

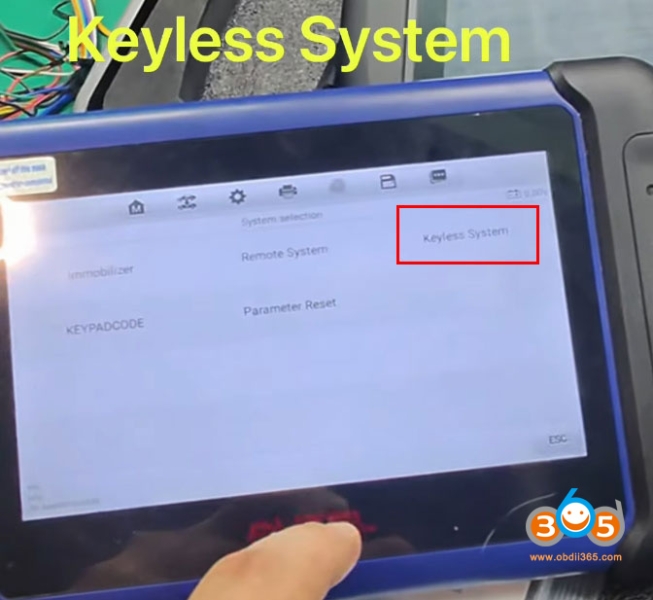

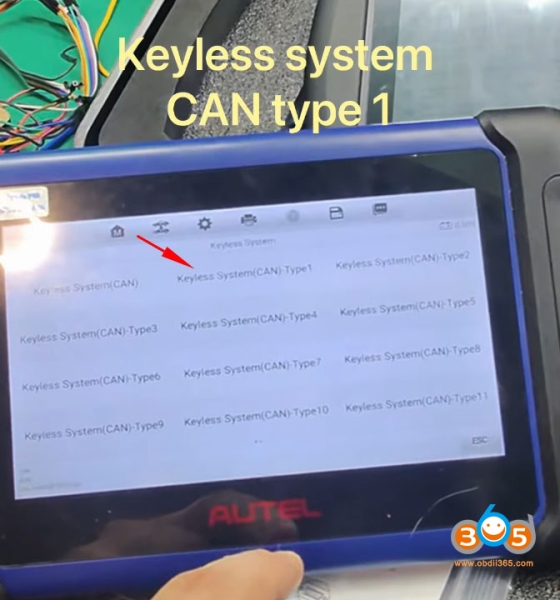

Menu path: System Selection- Keyless System- Keyless System (CAN) Type 1- Immo Learning- Read Dflash Data (via Programmer).
Then you can back up BCM Dflash data for adding keys/AKL.
