OBDSTAR G3 Adds 2022 Renault Clio 5 Blade Key with CAN Direct V2 Cable
How to add a 2022 Renault Clio 5 blade key using the OBDSTAR X300 Classic G3.
During the procedure, data was retrieved from the CAN bus using the CAN DIRECT V2 adapter; the Flash memory was read, the PIN code was obtained, a precoded key was generated, and the keys were programmed.
Tools used:
OBDSTAR CAN Direct V2 cable or 16+32 cable
Good charger
Working key
A new key to be programmed
Procedure:
NOTE: It is important to use battery support unit or at least good charger.
Similar procedure goes to following Renault models:
RENAULT
2020- RENAULT Clio 5
2020- RENAULT Captur
2020- RENAULT Arkana
2020- RENAULT Kangoo
2020 RENAULT Espace
2021- RENAULT Scenic
2020- RENAULT Zoe
2022- RENAULT Traffic
2021- RENAULT MEGANE 4 PH2
Step 1: Read Dflash

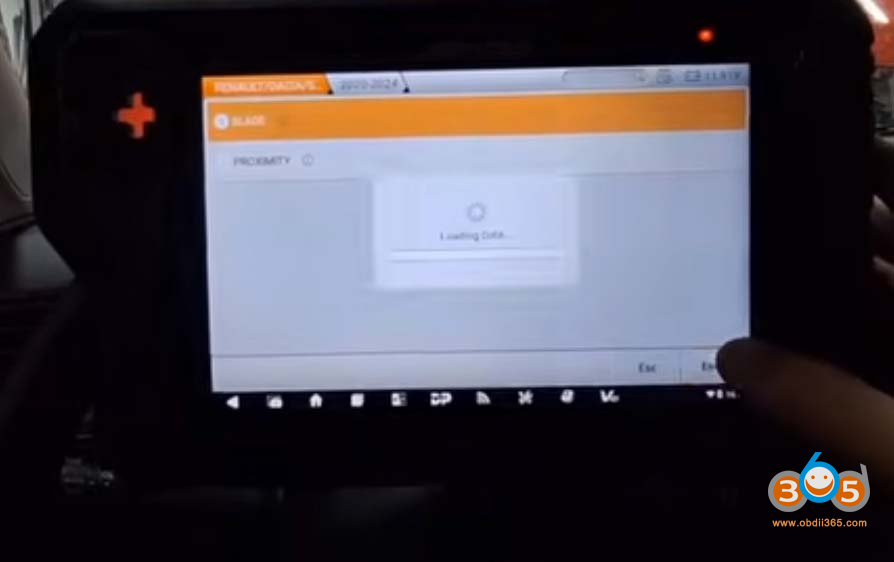

Select Renault- Clio 5- 2020 to 2024- Blade

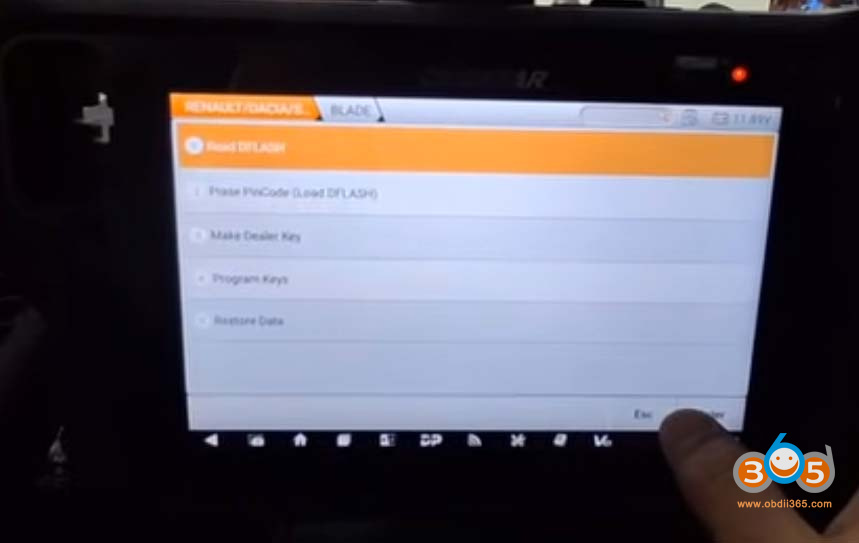

Read Dflash- via OBD.

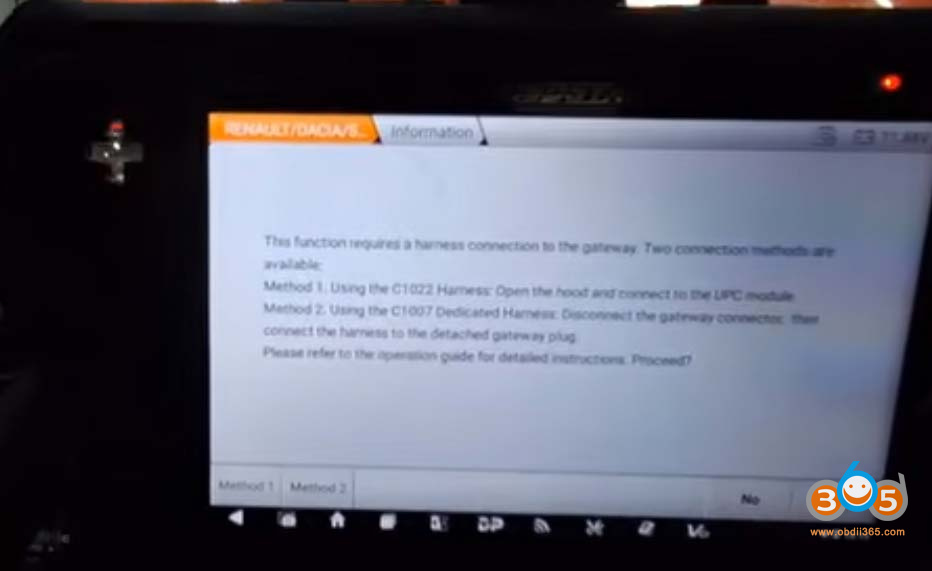

This function requires a harness connection to the gateway
There are two connections available.

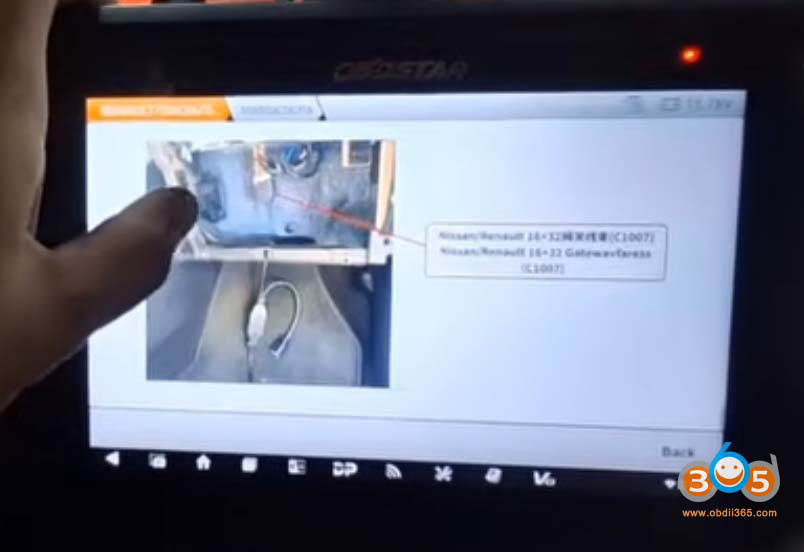

Use C1022 CAN Direct V2 or C1007 Renault 16+32 harness cable.
Here we use the CAN Direct V2 adapter to connect the gateway.

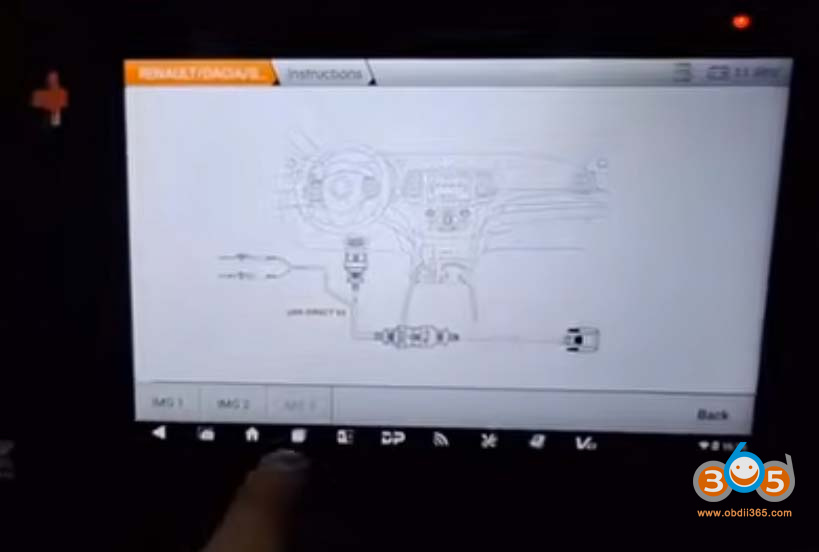

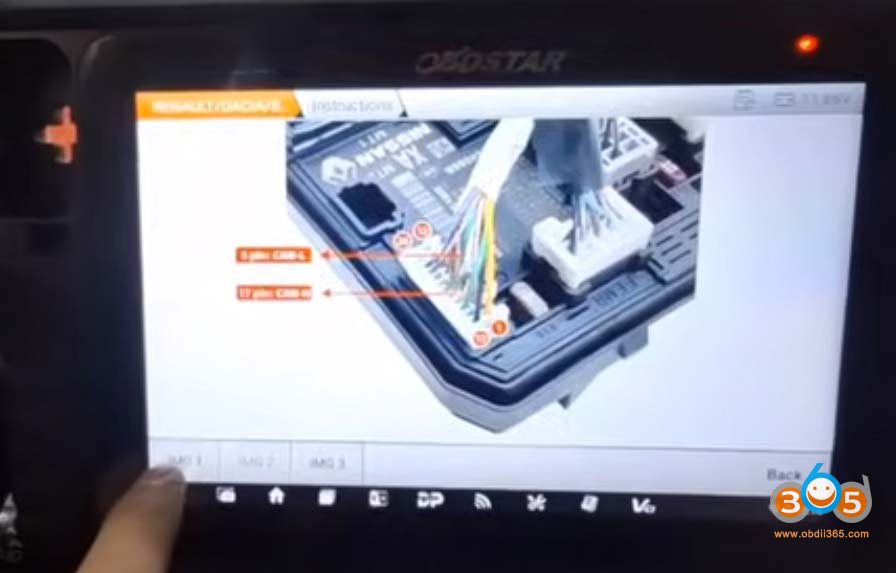

G3 will show you connection diagrams.

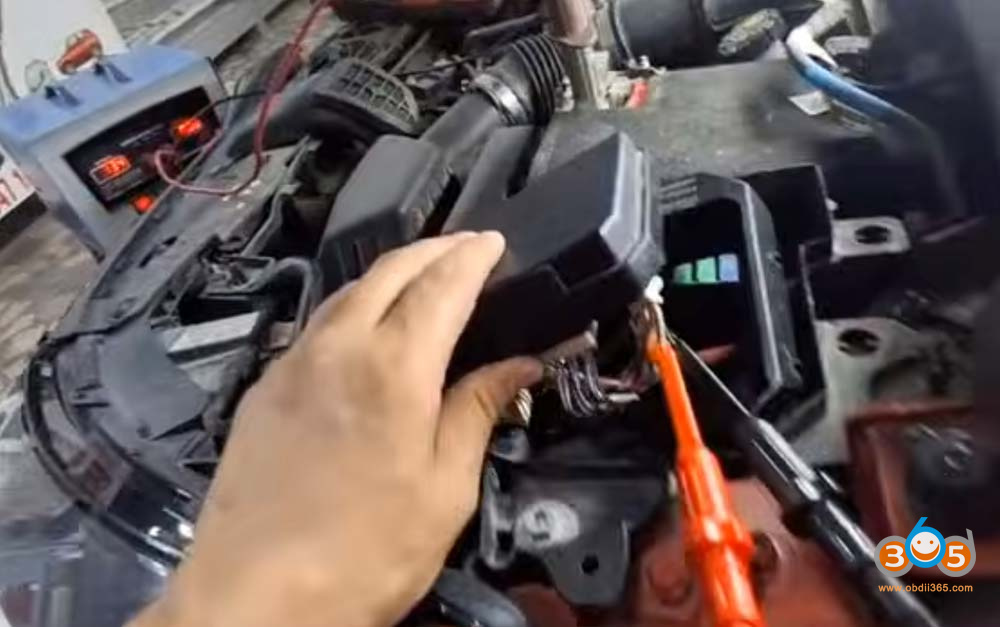

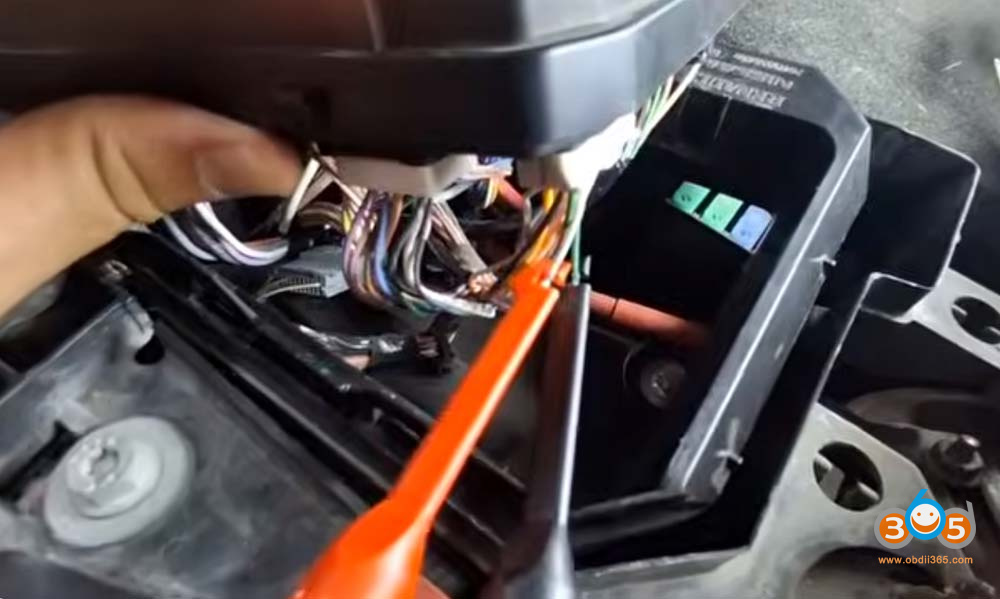

Connect CAN Direct kit with gateway

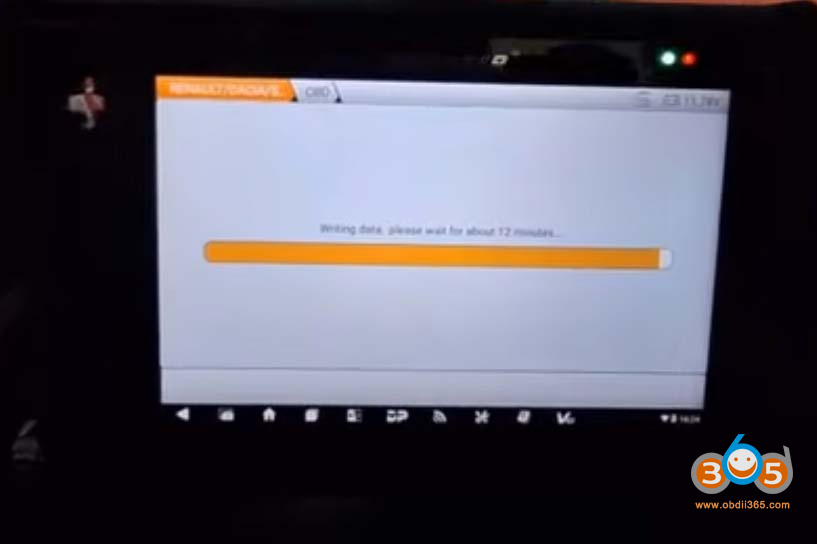

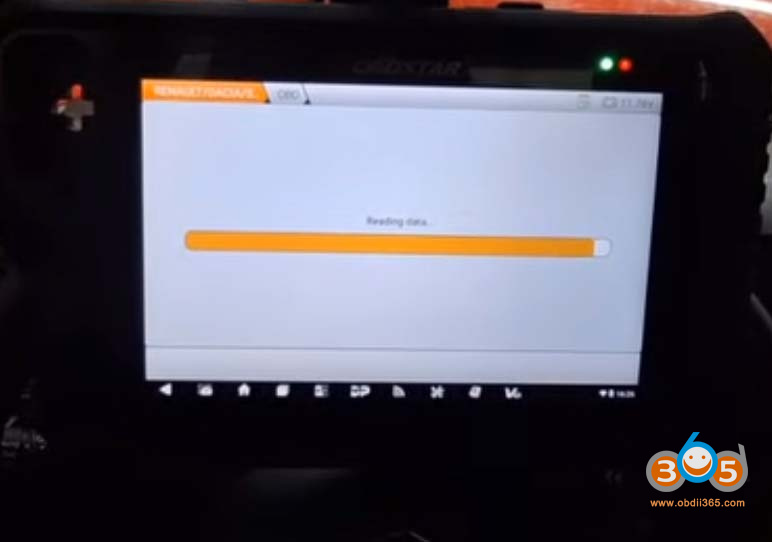

Read and save D-flash data.
Step 2: Read PIN Code

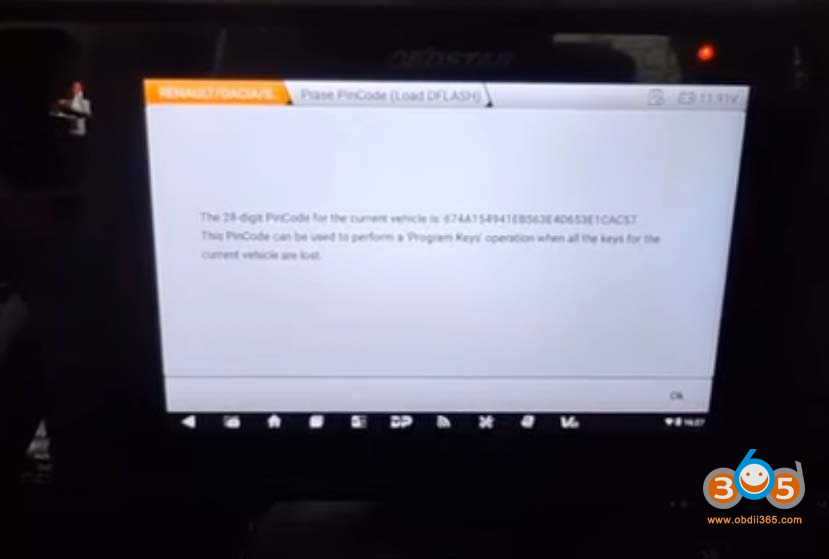

Load D-flash data to retrieve PIN code.
Step 3: Make dealer key

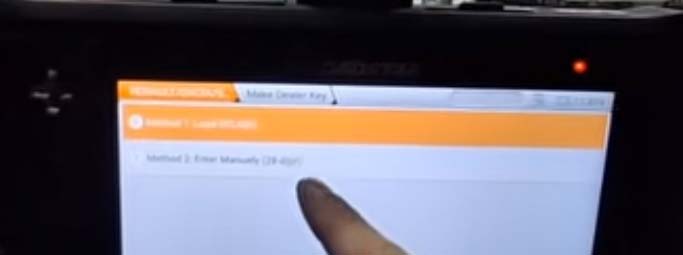

Choose Load D-flash or manually enter the 28-digit PIN code to make dealer key.

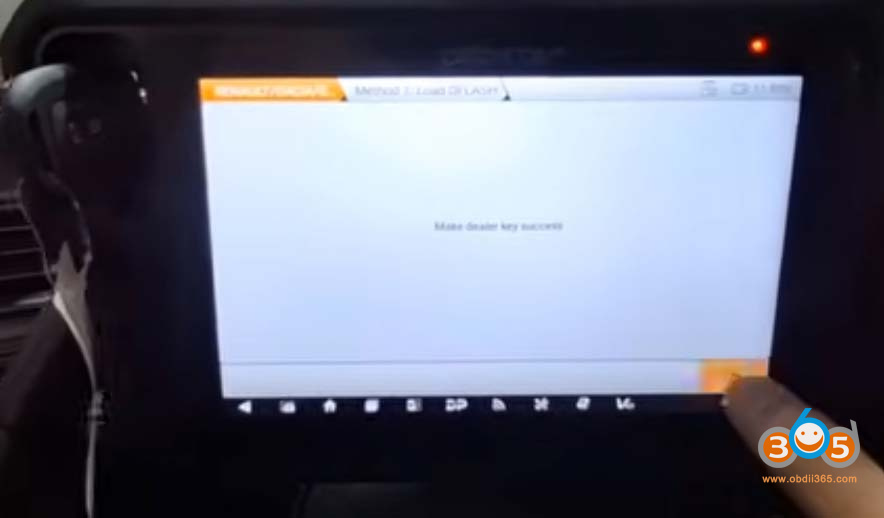

Make dealer key successfully.
Step 4: Program keys
Select Program keys.

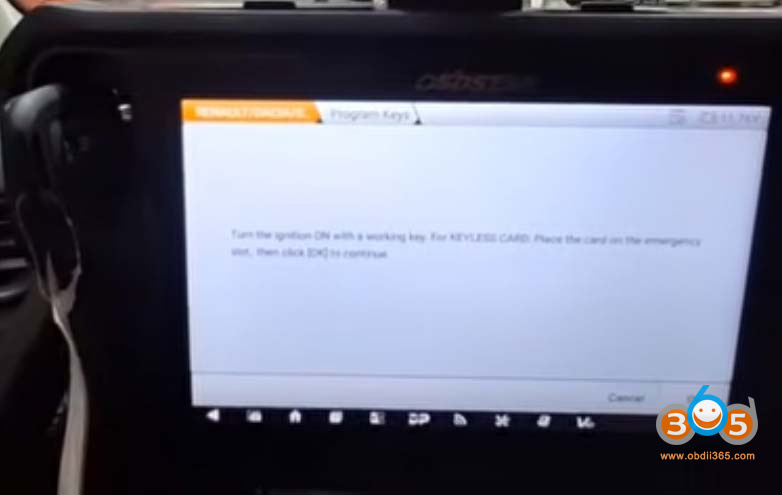

Turn the ignition ON with a working key.
Load Dflash to program keys.

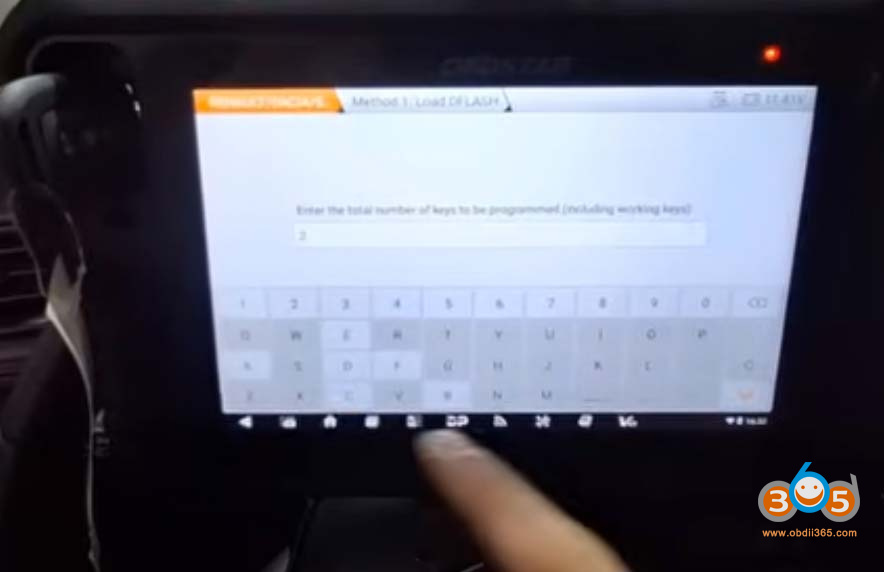

Enter the number of keys to be programmed.
All keys will be deleted.

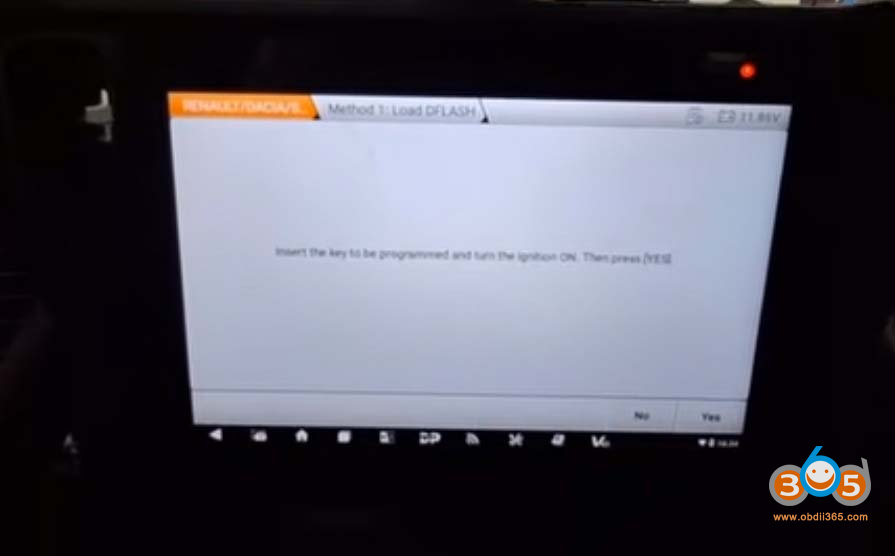

Insert the keys to be programmed and turn the ignition on.
Learn 1st ok
Insert next key to be programmed and turn the ignition on.
Learn 2nd key ok.
Test both keys.
