    Autel IM608 Copy NCF29XX NXP Smart Key with APB131 Cable

    Illustration for Autel IM608 Copy NCF29XX NXP Smart Key with APB131 Cable
    Universal Car Key Programmer
    — (0)

    Autel MaxiIM IM508 & IM608 also support reading original NCF29xx NXP smart key data to copy a spare key.



    Currently supported NXP types:
    NCF2951, NCF2953, NCF295E, , NCF2971, NCF29A1, NCF29A2, NCF29A3, NCF29A4, NCF29A7, NCF29AE.



    Tool required
    Autel MaxiIM IM508/IM608
    Autel XP400 Pro
    Autel APB131 cable (can also copy key without apb131)
    Original key
    New key to be cloned.

    Procedure:

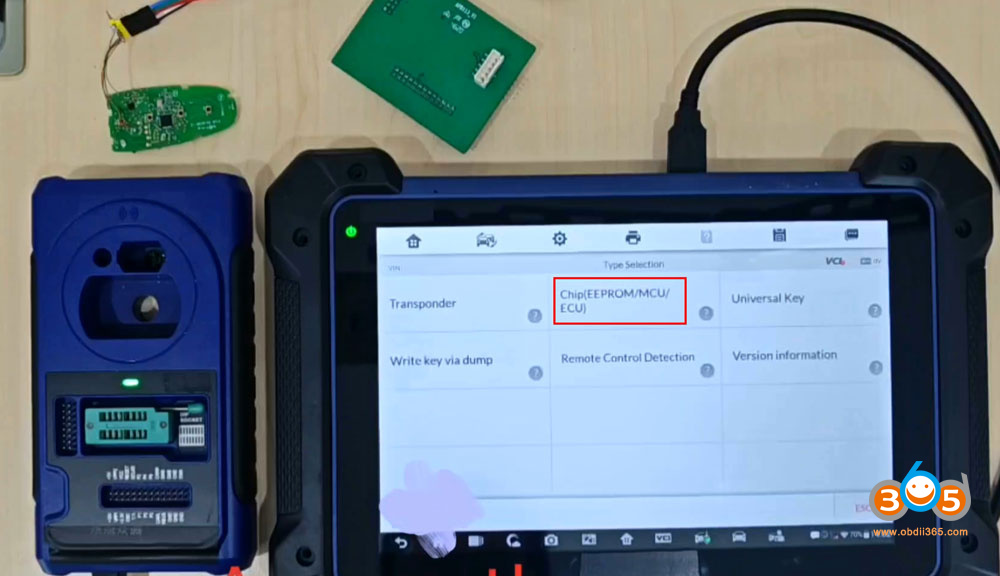

    Go to the Programmer function.

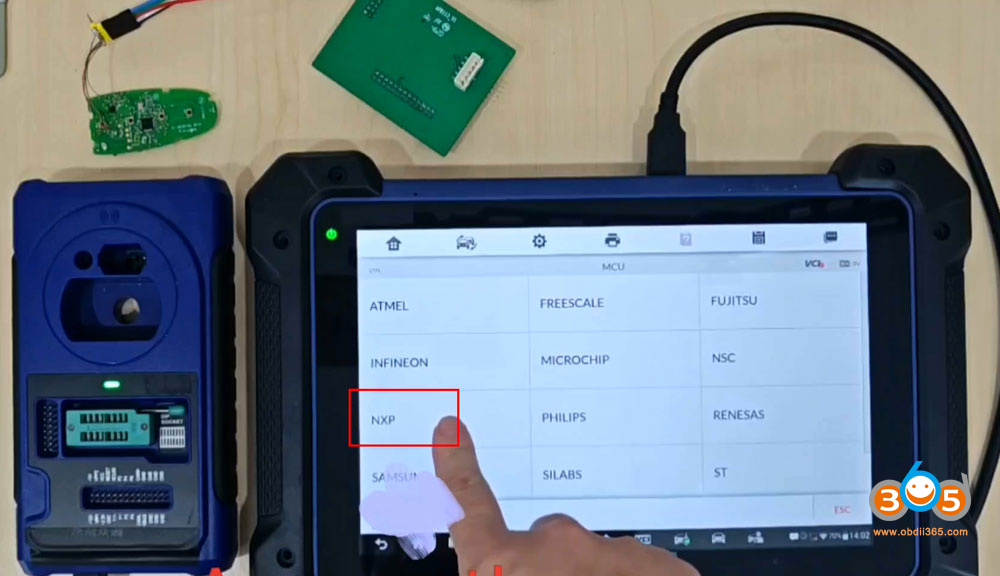

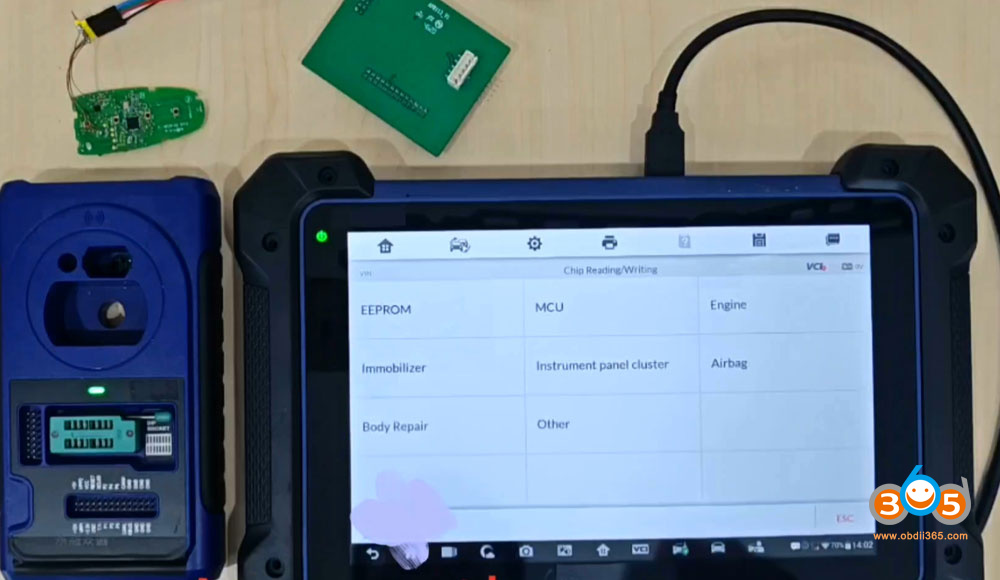

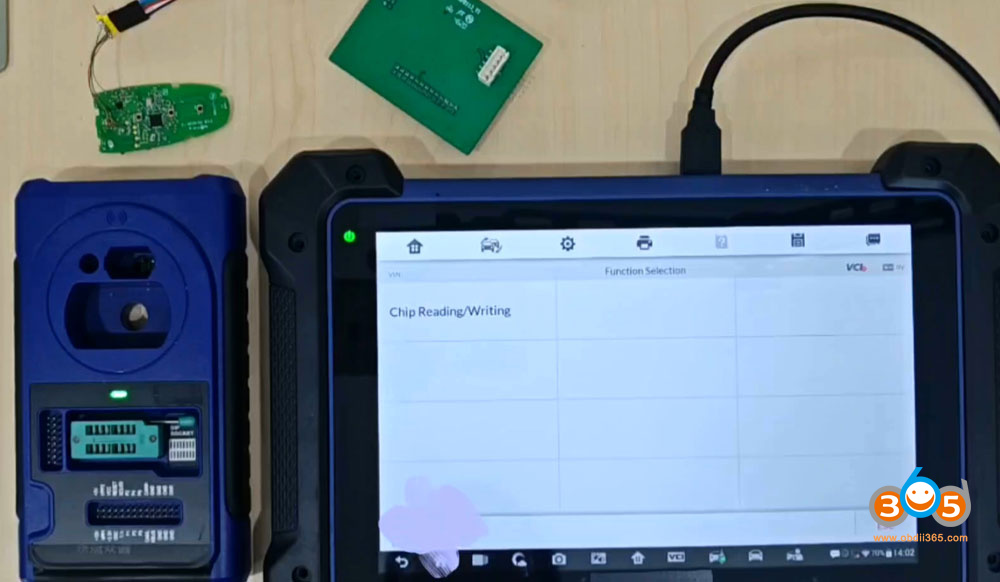

    Select Chip (EEPROM/MCU/ECU)- Chip Reading/Writing- MCU-NXP-NCP29XX.

    autel-im608-copy-nxp-ncf29xx-key-1

    autel-im608-copy-nxp-ncf29xx-key-2

    autel-im608-copy-nxp-ncf29xx-key-3

    autel-im608-copy-nxp-ncf29xx-key-4

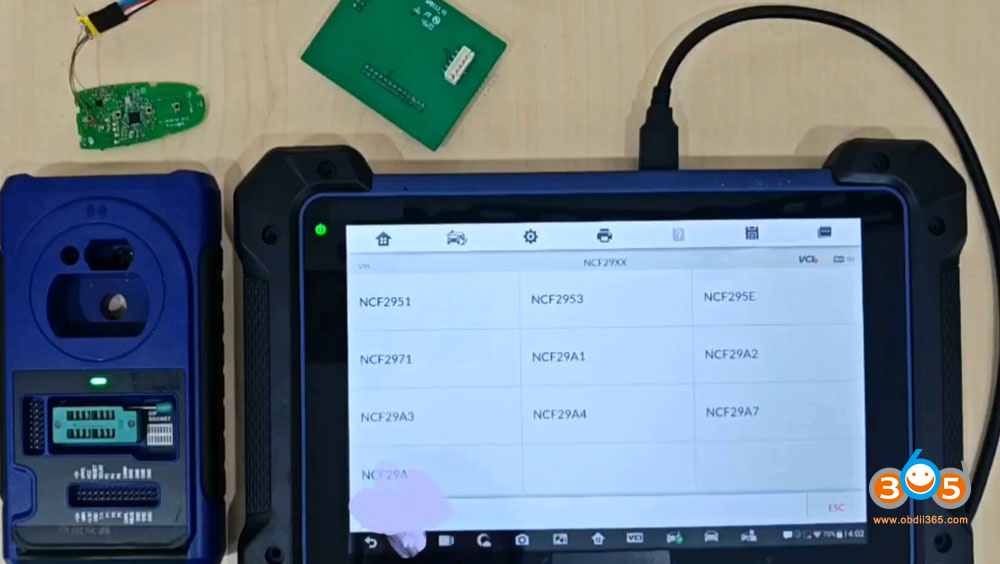

    Select the correct NXP chip type.
    For example: NCF29A7

    autel-im608-copy-nxp-ncf29xx-key-6

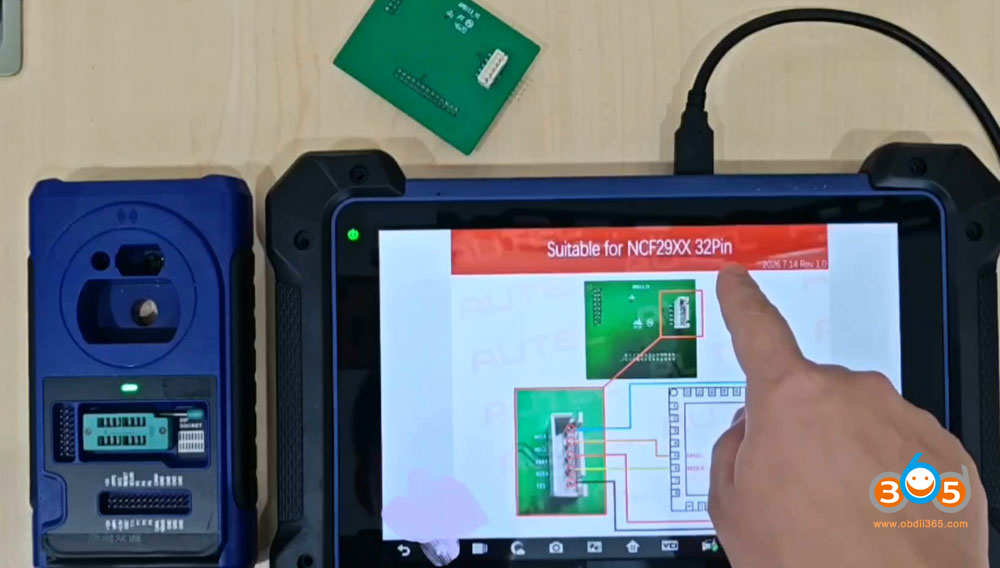

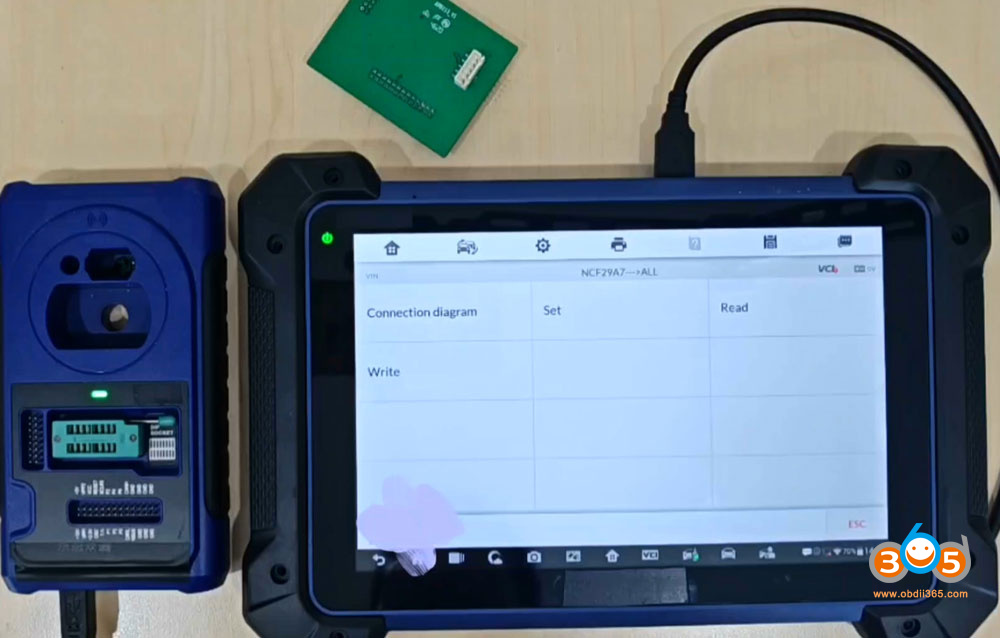

    Check the key connection diagram

    autel-im608-copy-nxp-ncf29xx-key-7

    autel-im608-copy-nxp-ncf29xx-key-8

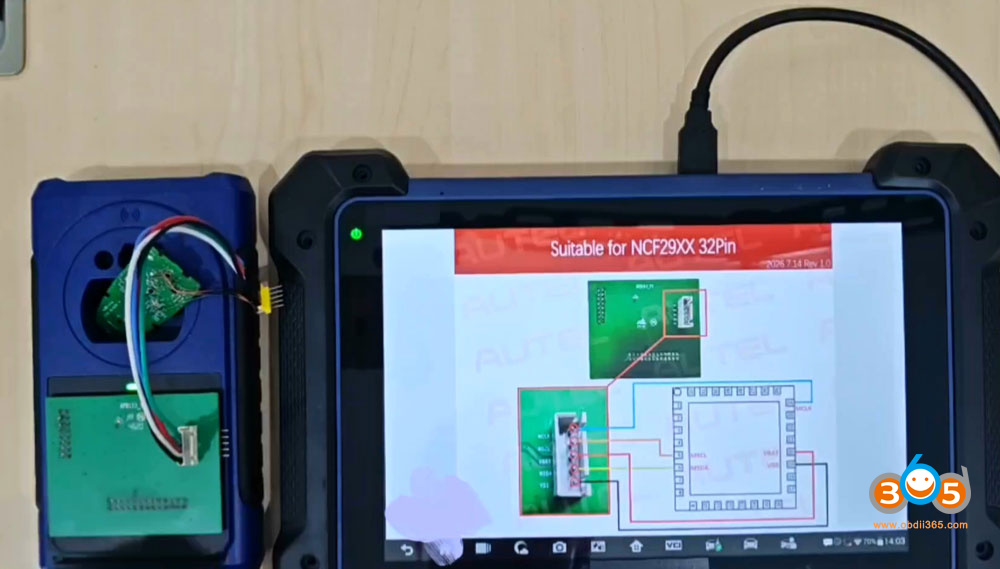

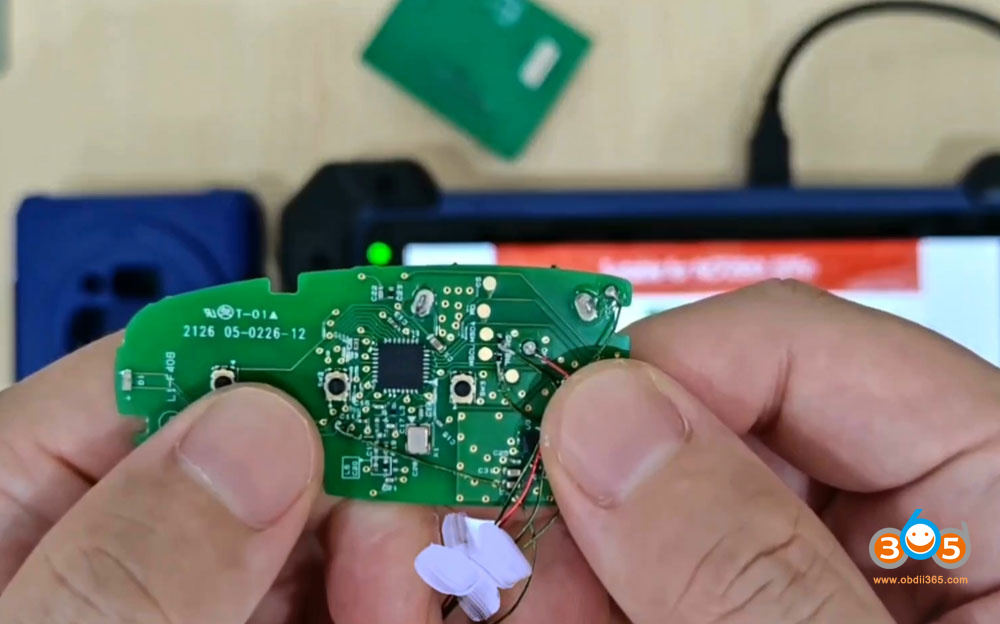

    Connect the apb131 cable to key circuit board according to the diagram.

    autel-im608-copy-nxp-ncf29xx-key-9

    autel-im608-copy-nxp-ncf29xx-key-10

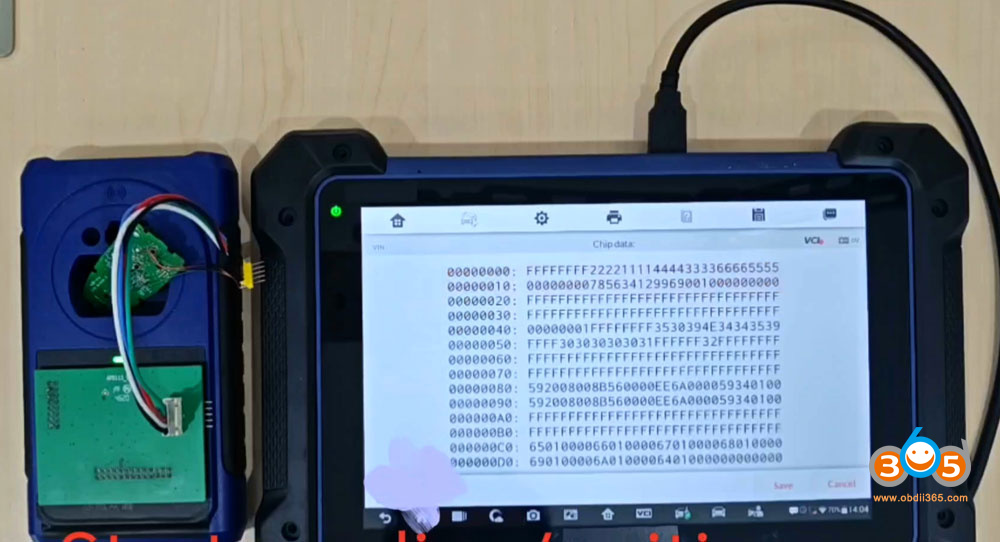

    Read and save original key data.

    autel-im608-copy-nxp-ncf29xx-key-11
    Remove original key.
    Connect a new original key (need to remove key shell) or Autel ikey.

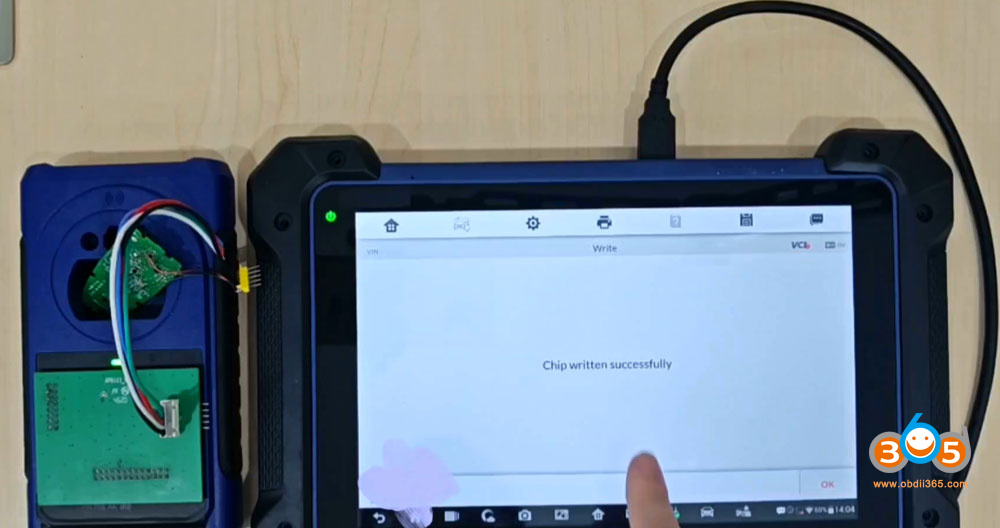

    Then write the original key data to the new key to clone a new key.

    autel-im608-copy-nxp-ncf29xx-key-12
