    CGDI K2 Copy Hyundai Kia 4A Smart Key with Solder Free Adapter

    Illustration for CGDI K2 Copy Hyundai Kia 4A Smart Key with Solder Free Adapter
    Universal Car Key Programmer
    — (0)

    Successfully copied a 2024 Hyundai Sonata ID4A smart key using CGDI K2 and Hyundai solder free adapter.

    Cgdi K2 Copy Hyundai 4a Remote 5

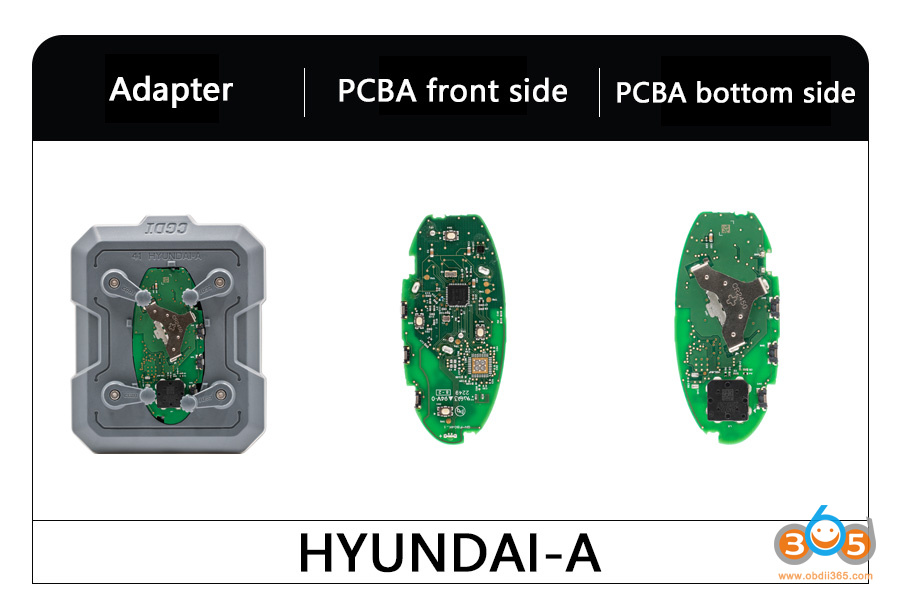

    Disassemble the original Hyundai/Kia smart key shell.

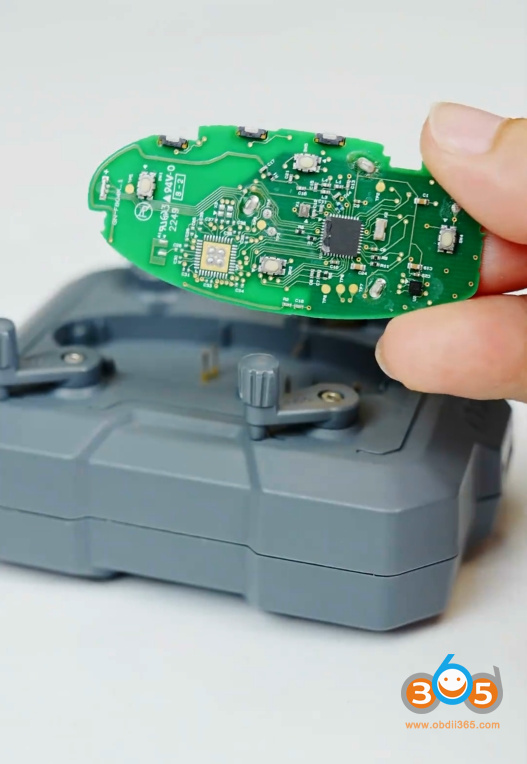

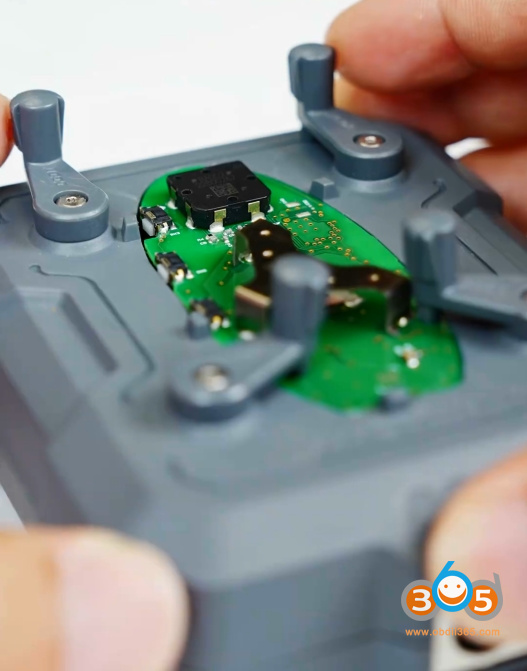

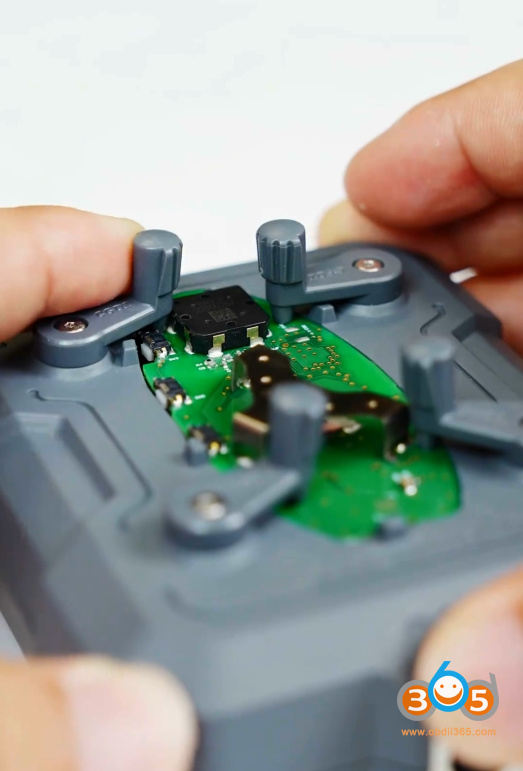

    Put the original key circuit board on the CGDI Hyundai adapter and lock the key.

    Cgdi K2 Copy Hyundai 4a Remote 1 Cgdi K2 Copy Hyundai 4a Remote 2  Cgdi K2 Copy Hyundai 4a Remote 4

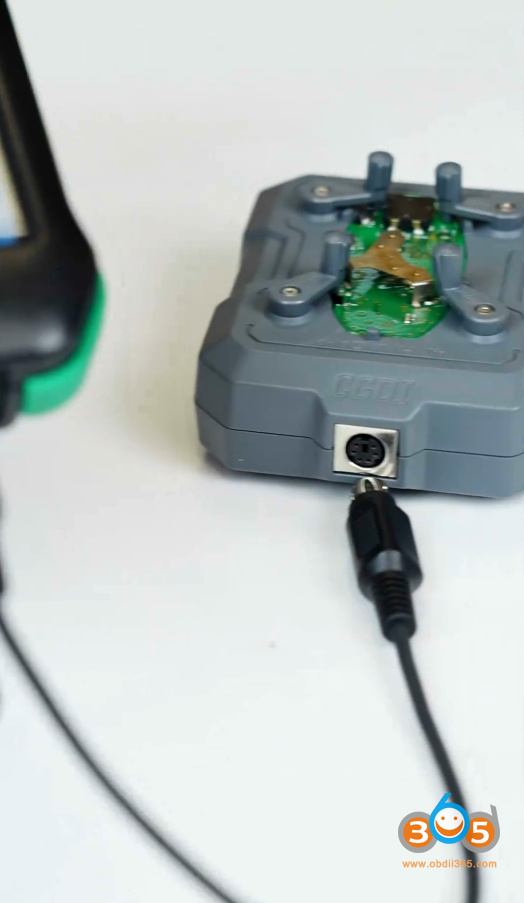

    Connect CGDI K2 and the Hyundai adapter via the renew cable.

    Cgdi K2 Copy Hyundai 4a Remote 3
    Select MCU Programmer function.
    Choose the NCF29A1 (locked) option.

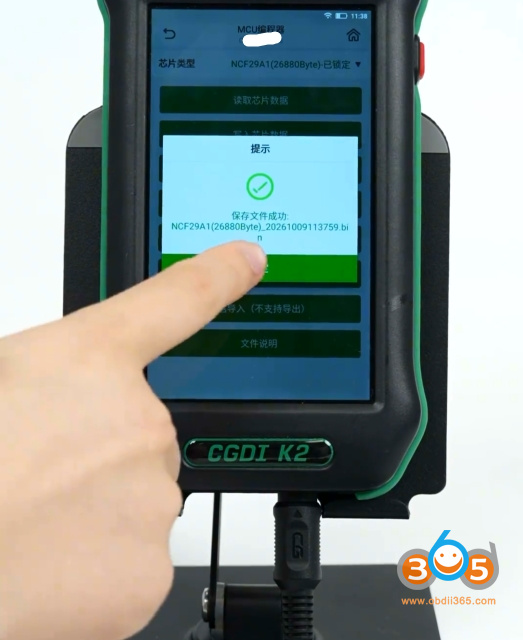

    Read chip data and save.

    Cgdi K2 Copy Hyundai 4a Remote 7

    Remove original key PCB.

    Put a new original key PCB into the Hyundai adapter.

    Then write data into a new key.



    If you don’t have the CGDI Hyundai solder free adapter, solder renew cable wires to the key circuit board instead.
