Problem:

Hi, i recently purchased the Xtool x100 pad2 tablet key programmer and i love it. But i think i have a battery problem. I left it fully charged and 1 day later i tried to use it and it was dead. I also noticed that the battery drains very quickly when in use, from 100% to 60% in about 15mins. What can i do about this?  Is it possible for you to fix or replace it?


			Xtool X100 PAD2 Battery Drains and Power off Working Solution

Final Solution to Xtool X100 PAD II Battery Drains and Power off problem from Xtooltech engineer:

Tools required:

1pc* Static bracelet

1pc* Hot air gun  (350±10℃ Temperature setup: 350±10℃)

Precautions: Please wear the static bracelet before each operation.

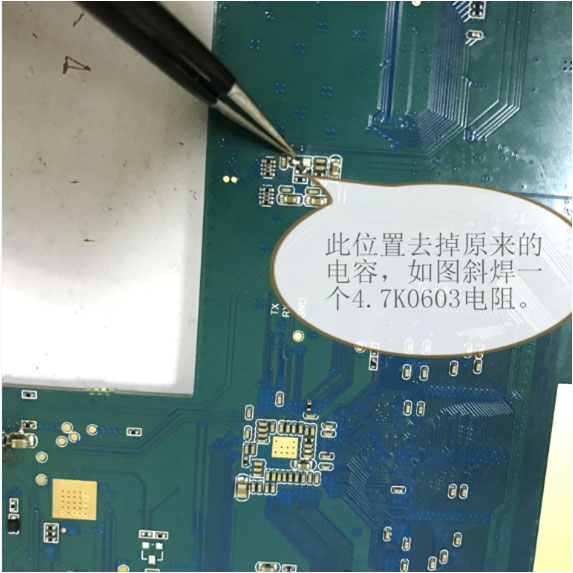

Procedure 1:  Change C6 capacitor

Position: C6

Name: Chip capacitor

Chip specification: 4.7UF/10V  0603

1.Disassemble the C6 capacitor and desolder a 4.7K 0603 resistor.


			Xtool X100 PAD2 Battery Drains and Power off Working Solution


			Xtool X100 PAD2 Battery Drains and Power off Working Solution


			Xtool X100 PAD2 Battery Drains and Power off Working Solution

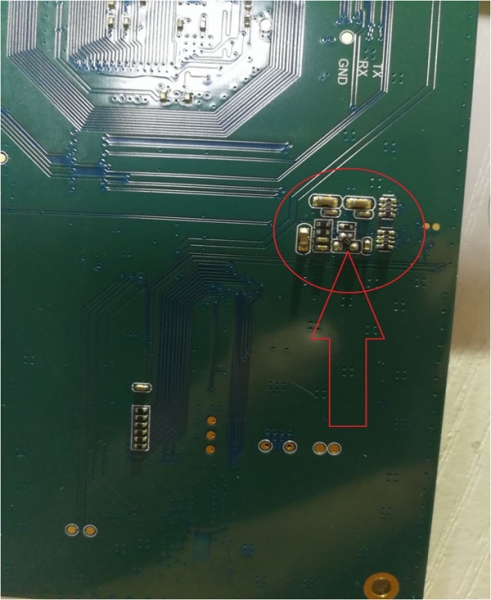

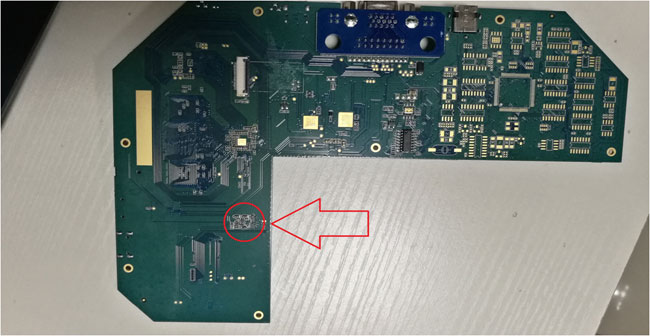

Procedure 2: Remove transistor

Position: Q14

Name: S8050

Chip specification:  0.1uF/50V 0402

1.Disassemble the Q14 transistor.


			Xtool X100 PAD2 Battery Drains and Power off Working Solution


			Xtool X100 PAD2 Battery Drains and Power off Working Solution

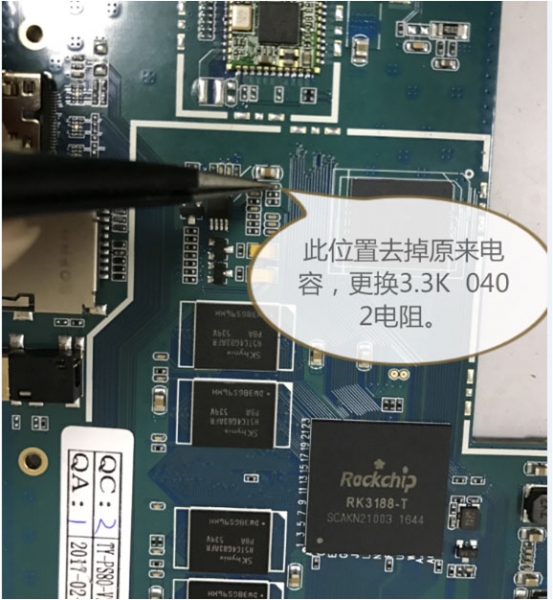

Procedure 3: Change C123 capacitor

Position: C123

Name: Chip capacitors

Chip specification:  0.1uF/50V 0402

1.Replace the C123 capacitor witth a 3.3K%5  0402 resistor.


			Xtool X100 PAD2 Battery Drains and Power off Working Solution


			Xtool X100 PAD2 Battery Drains and Power off Working Solution
