Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Here’s the step-by-step guide on reading pin code and program smart key on  Bentley Flying Spur pre-2012 with Lonsdor K518ISE key programmer by OBD.

K518ISE Supported BENTLEY Vehicle List

Series Origin Year Fuel Type Function
Flying Spur Other 12- Other Key Programming
Mulsanne Other Other 6.8 Liter Key(Smart Key) Programming

Procedure:

Step 1: Read Pin Code

Connect K518ise host with vehicle via diagnostic socket

Select Immobilization->Bentley->Flying Spur->-2012->Immobilizer->Read pin code


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Turn ignition to ON position

Reading pin code…


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Verifying immobilizer

Trying to get pin code


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Lonsdor K518 read Flying Spur ECU version, PIN and CS success

Write down the pin code

Step 2: Program Key

Select Learn Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Turn ignition switch to ON

Communicating

K518ISE display vehicle part number


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

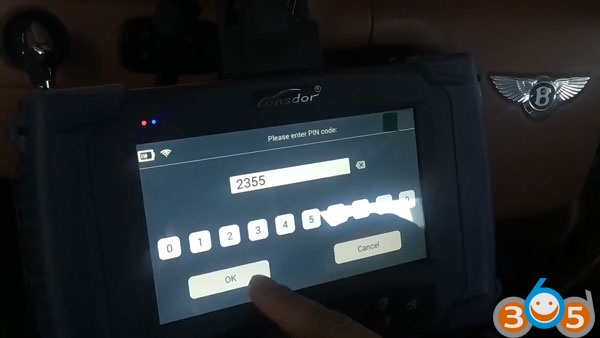

Lonsdor K518ISE requires to enter PIN code to access

Enter pin code just read and confirm


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Insert the key and switch ignition OFF, and remove the key from the ignition lock, then insert key and switch ignition on.


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Communicating

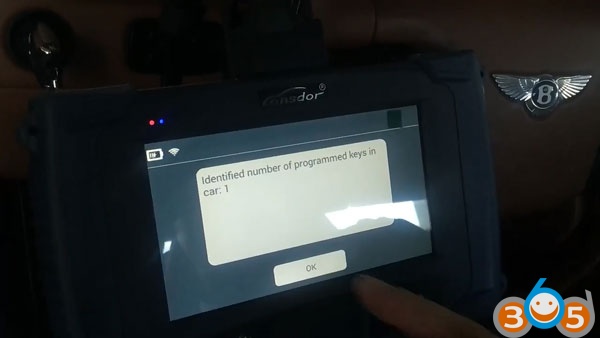

Identified number of programmed keys in car: 1


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

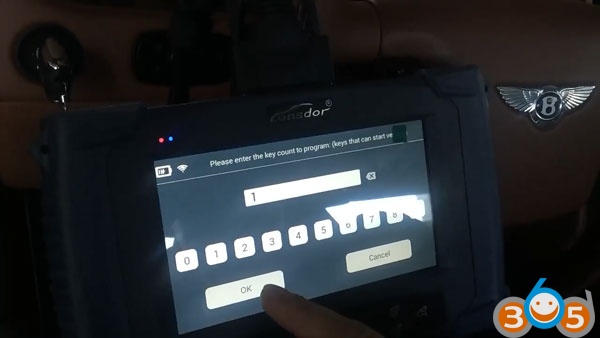

Enter key number to be programmed

Here we need to program 1 key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

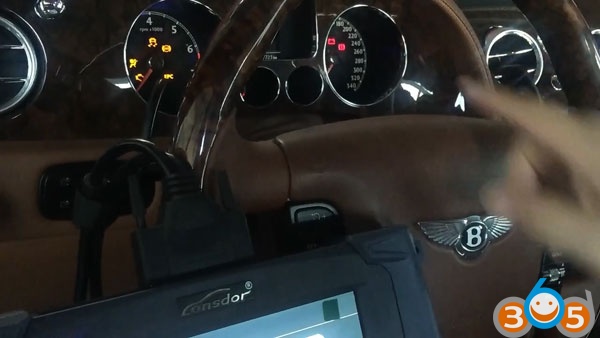

Turn the ignition to OFF position. Insert all keys in turn and turn ignition ON for at least 5 sec. When all keys are replaced, click OK to finish key learning.

Note: If the remote control can remotely control the vehicle, but cannot start car, the dashboard prompts IMMOBILIZER ADVANCED.


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key

Program success


			Lonsdor K518ISE Program Bentley Flying Spur -2012 Smart Key
