How to use Lonsdor K518ISE to Program Ferrari 458 Remote by OBD

October 21, 2017 Andrew Petrov universal-car-key-programmer

— (0)

Lonsdor K518ISE key programmer is able to program remote key on Ferrari 458, F12 and F149 currently. Here’s the guide on programming Ferrari 458 remote with K518.

Procedure:

Step 1: Backup immo data

Step 2: Program key

Step 3: Program remote

Step 1: Backup Immo Data
Connect K518ISE host with vehicle via diagnostic socket

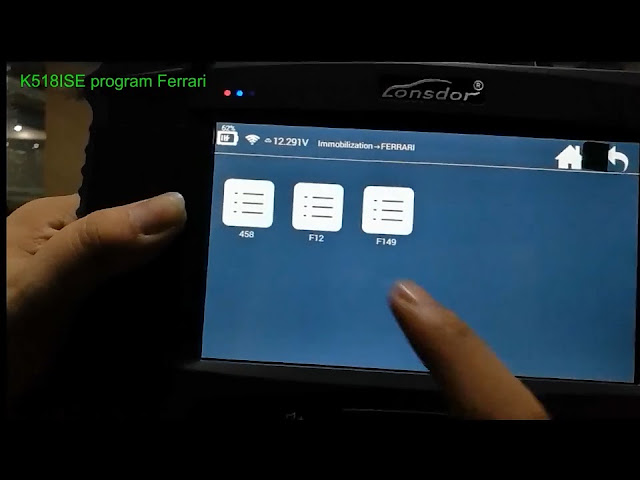

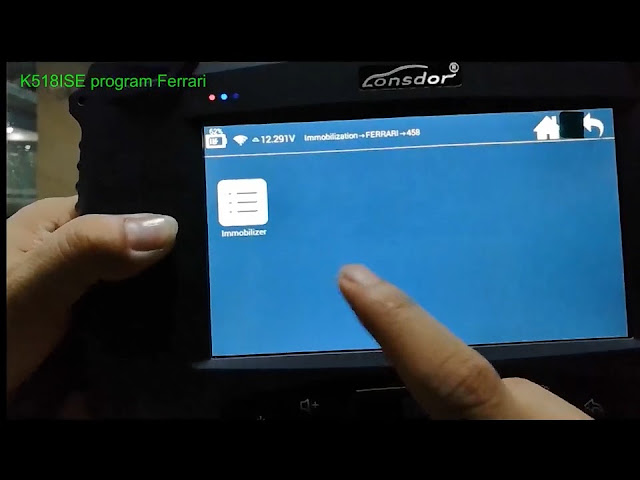

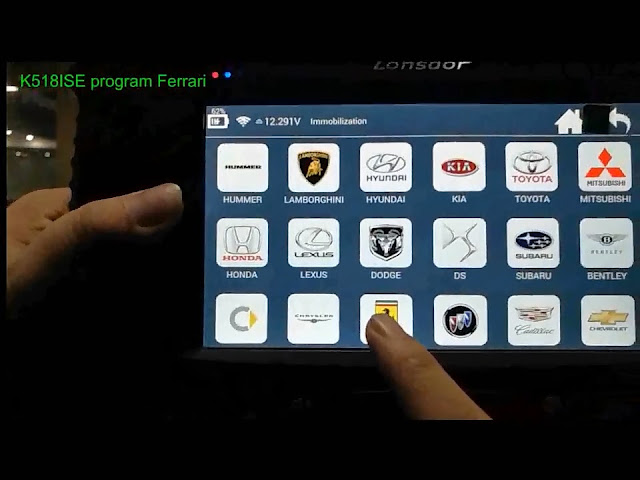

Select Immobilzation->Ferrari->458->Immobilizer->

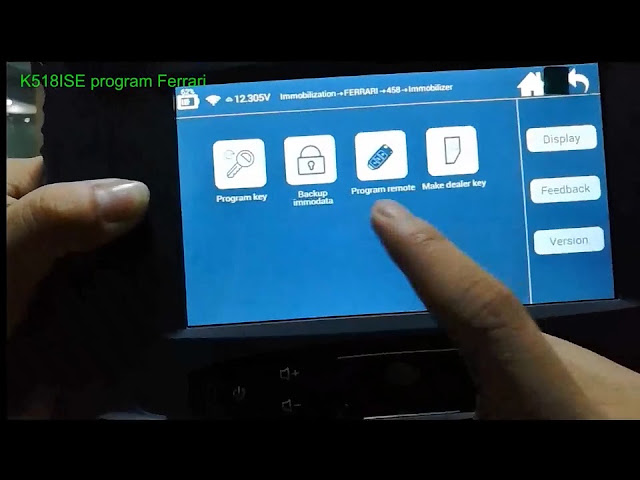

Select Backup Immo Data function

Turn ignition ON
Communicating

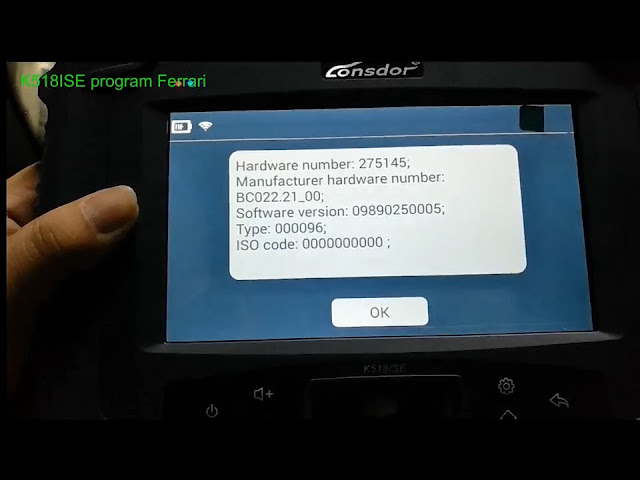

K518ISE will show hardware and software information

Turn ignition OFF

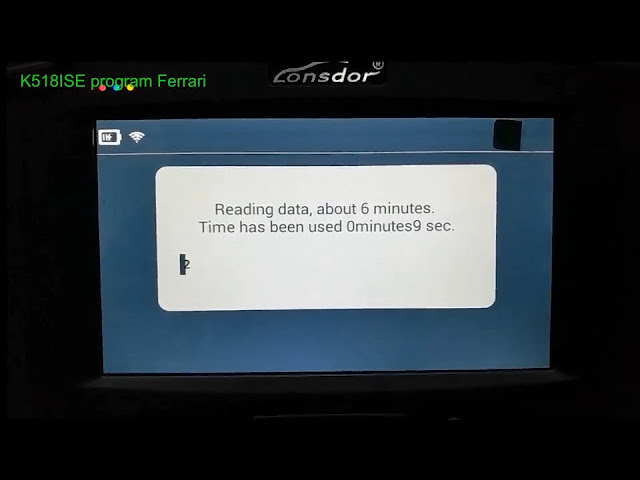

Reading immo data, wait for 6 minutes

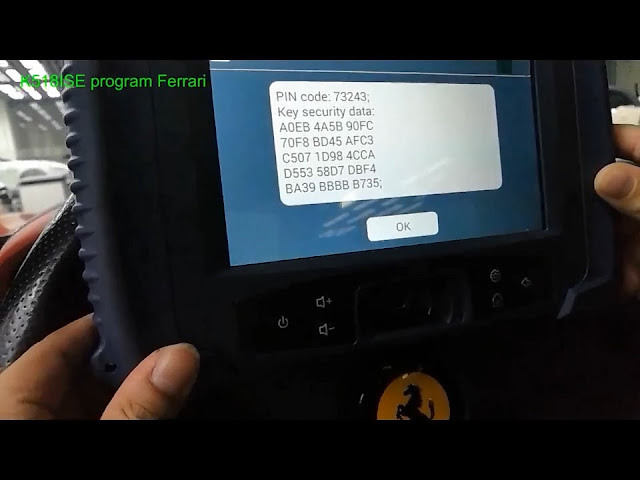

Lonsdor K518ISE will read Ferrari 458 pin code and key security data after 6 minutes
write down the pin code

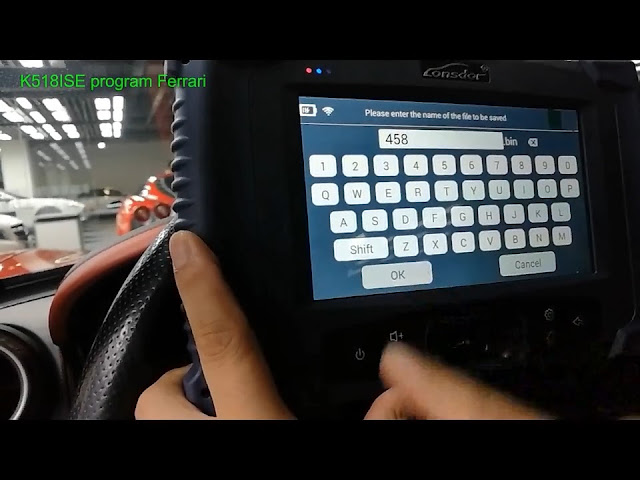

save immo data as bin format

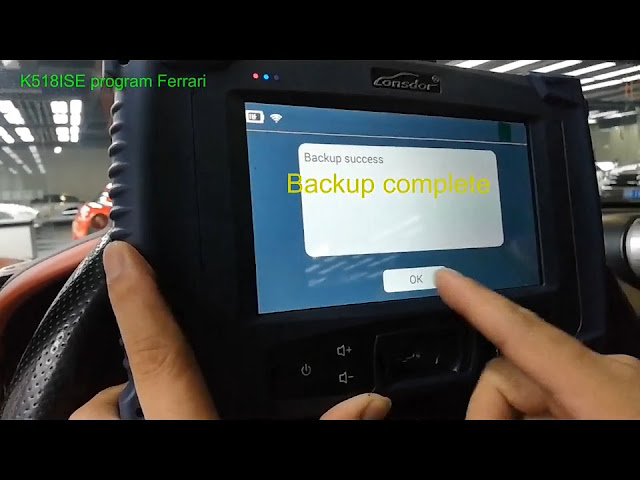

Backup success

Step 2: Program Key

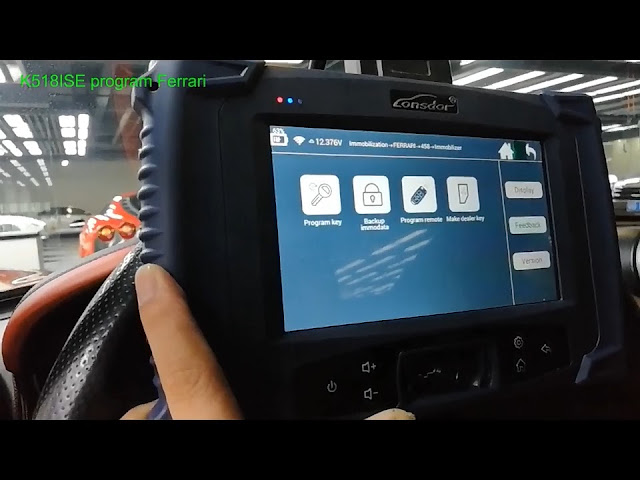

Select Program Key function

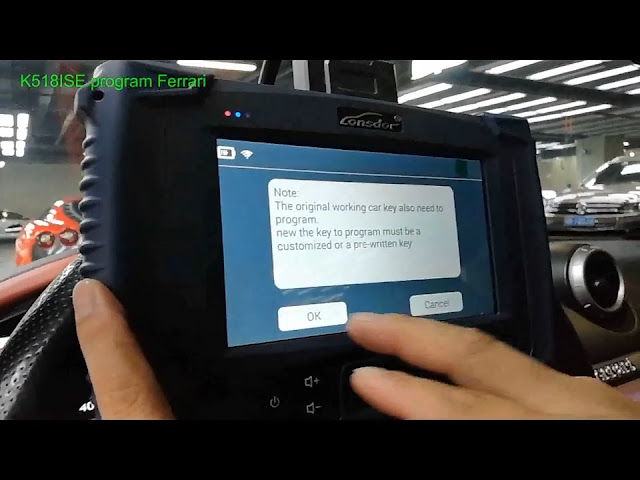

The original working key also need to program.
New key to program must be a customized or a pre-written key

Turn ignition ON
Lonsdor K518 then will require to enter PIN code to access

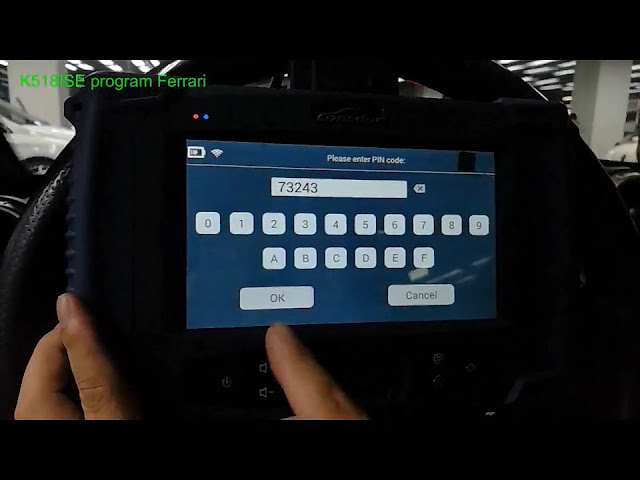

Enter 5-digit pin code and confirm

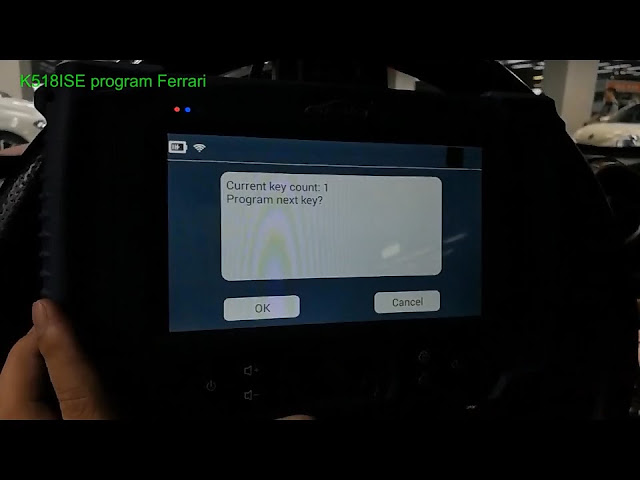

Number of keys programmed: 1
Press YES to program next key or press NO to go back

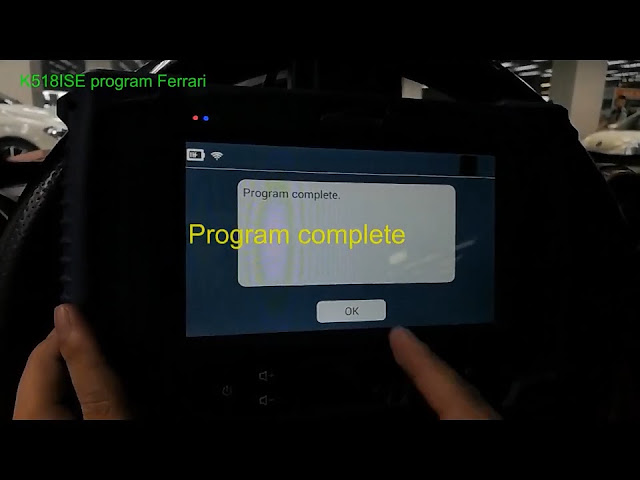

Program key complete

Step 3: Program Remote

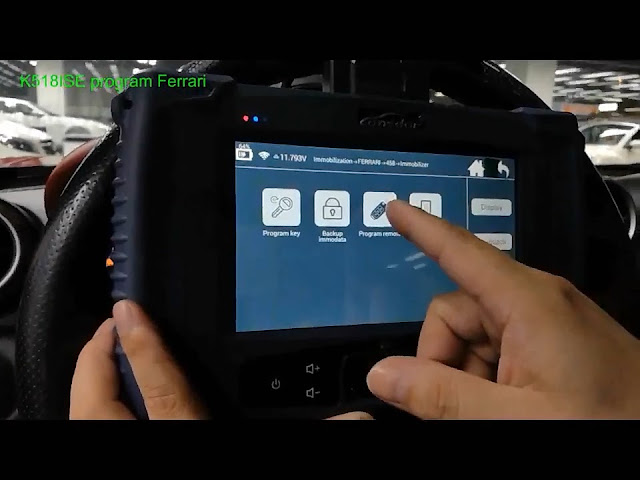

Select Program Remote function

Turn ignition ON

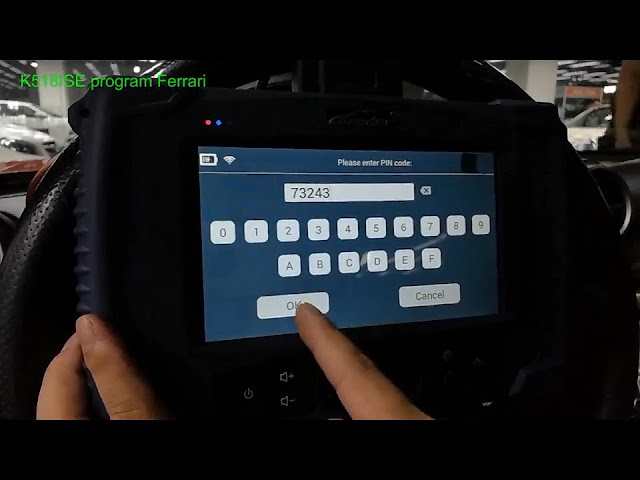

Again enter PIN code here

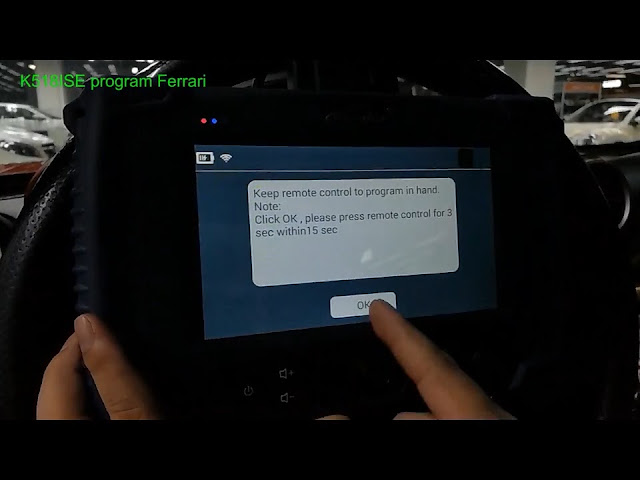

Hold remote key to be programmed in hand
Click OK

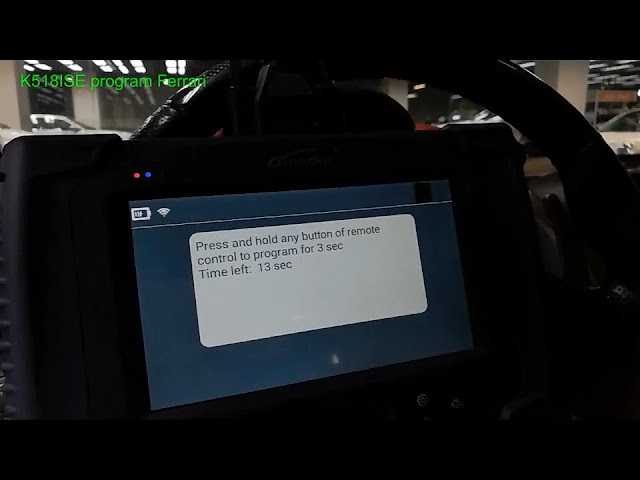

Click on remote control for 3 sec within 15 sec
press any button on remote key for 3 sec

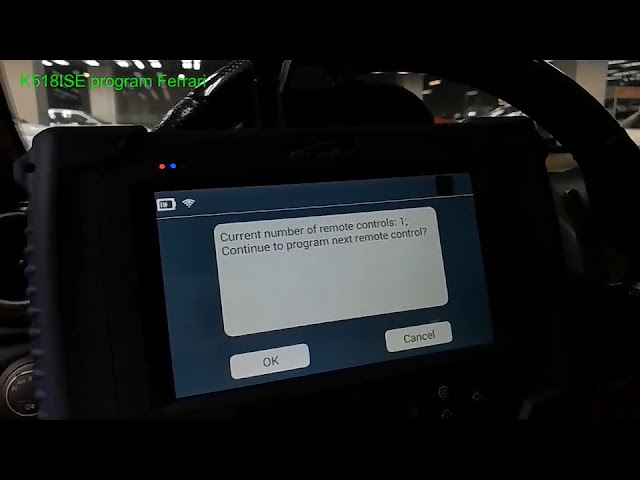

Number of remote control programmed: 1
Press YES to program next remote

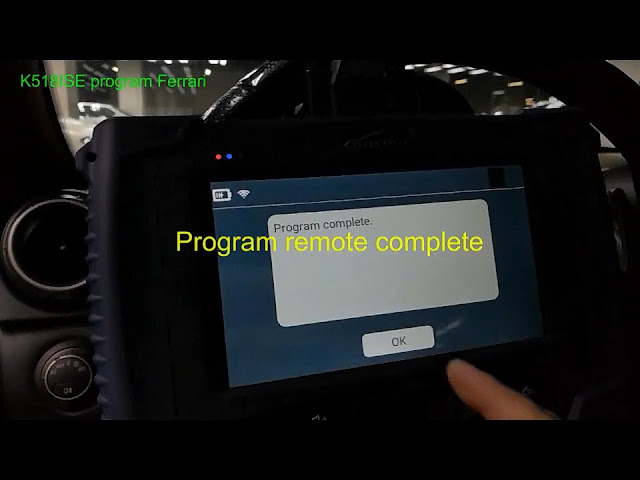

Program remote complete.
