How to use Lonsdor K518 to Program Ford Mustang 2016 Smart Key
Guide to program Ford Mustang 2016 smart key with Lonsdor K518 key programmer by OBD.
Key information:
Chip type: 4D63 chip
Frequency: 433MHz
Pin code: NO
Remote generation: smart key programming complete will generate remote automatically
Card slot: cup holder console
Device to program: Lonsdor K518ISE (English version of K518)

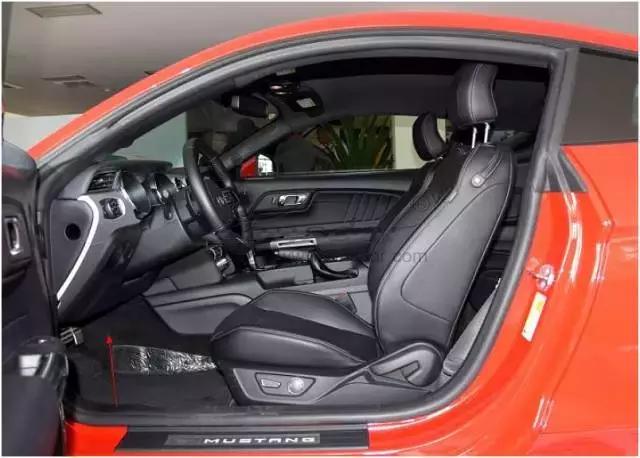

Ford Mustang OBD location
Ford-Mustang-

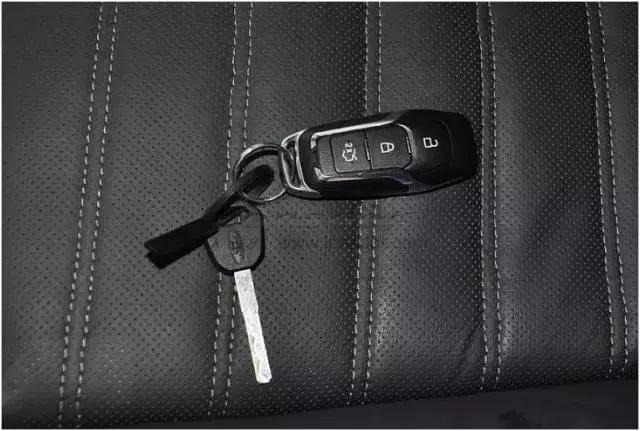

Ford Mustang 2016 key: 3-button smart key
1: Add smart key
Connect K518 host with vehicle via diagnostic socket

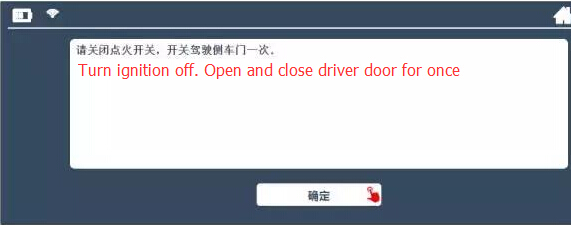

Turn ignition off.
Open and close driver door for once
Configuring

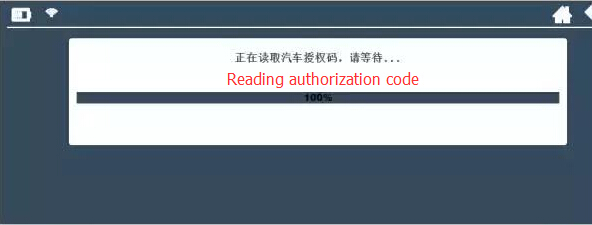

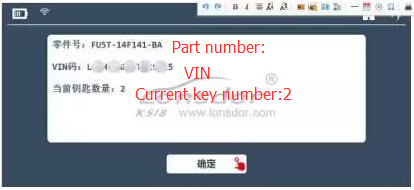

K518 reading vehicle information, part number, VIN, authorization code

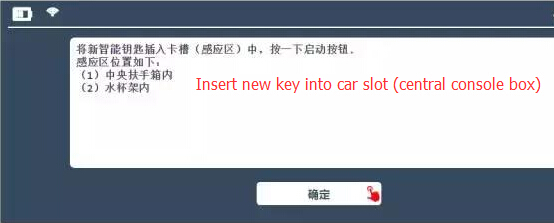

Insert a new smart key into card slot (in the car cup holder console)
Programming… please wait
2: All Keys Lost
If lost all your keys, follow these steps.

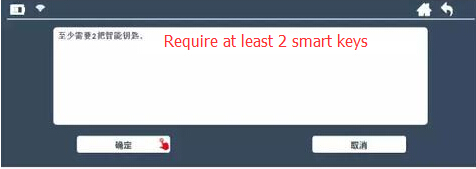

All keys lost requires at least 2 keys to program
Turn ignition OFF.
Open and close driver door for once.
Lonsdor K518ISE reading vehicle information, part number, VIN, authorization code

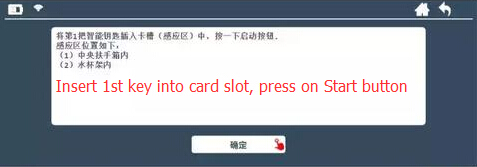

Insert 1st smart key into card slot, press on Start button
Programming..

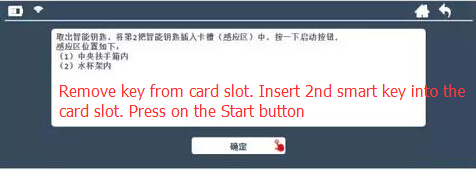

Remove 1st key from card slot, insert 2nd key into card slot and press on Start button
Programming…

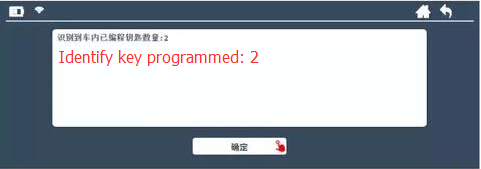

Identify key have been programmed: 2

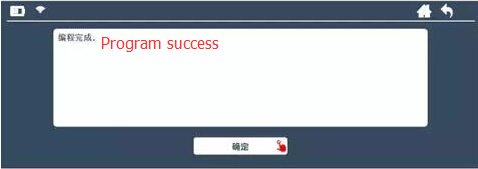

Program success.
