Program Lexus GS 450h All Smart Keys Lost with Tango Key Programmer

Guide to program smart key on a Lexus GS 450h under all keys lost situation using Tango key programmer and emulator by OBD.

 Device need:

Tango key programmer

Scorpio-LK Emulators SLK-03 for Tango with Authorization

Smart keys to be programmed

Procedure:

Connect Tango transponder programmer with vehicle via OBD socket

Insert SLK-03 emulator into Tango

Open laptop and start Tango.exe

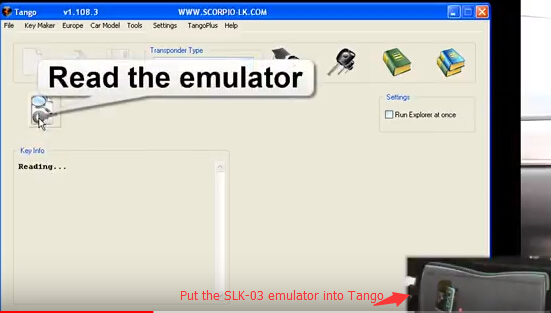

Click on Transponder icon and read the emulator

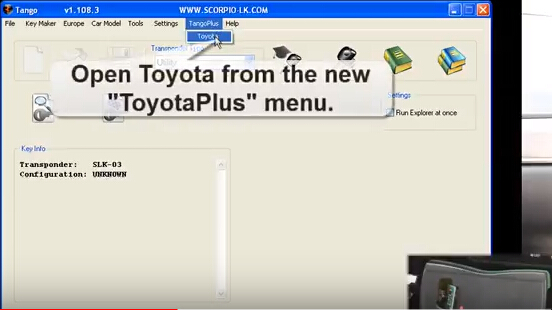

Select TangoPlus software tab->Toyota

Click “Connect to Car”

Connect okay

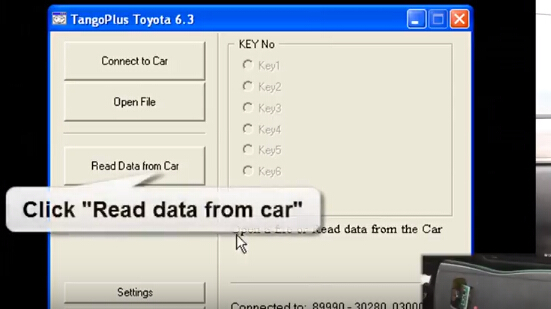

Select “Read data from car”

Reading eeprom…

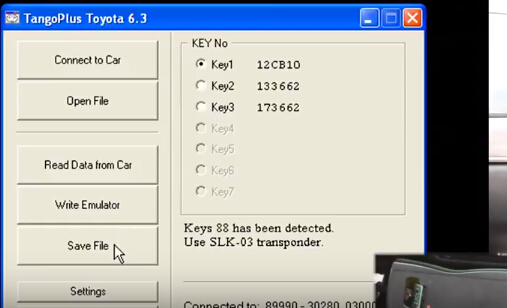

Save eeprom bin file

Keys 88 has been detected. Use SLK-03 transponder.

Select a key position

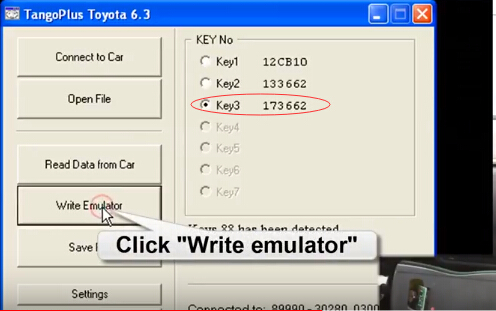

Click “Write emulator”

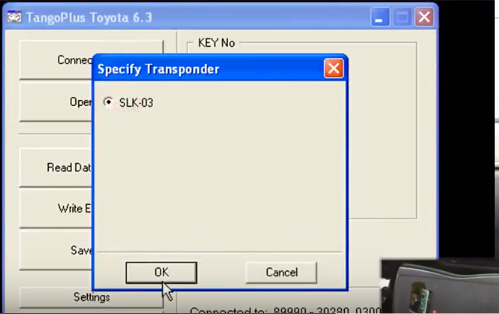

Specify SLK-03 tranponsder

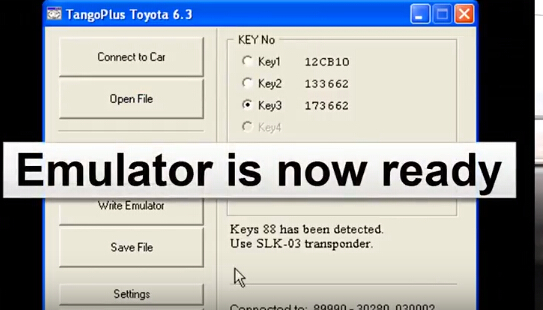

Emulator now is ready.

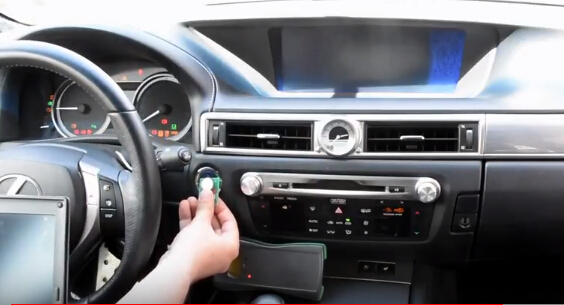

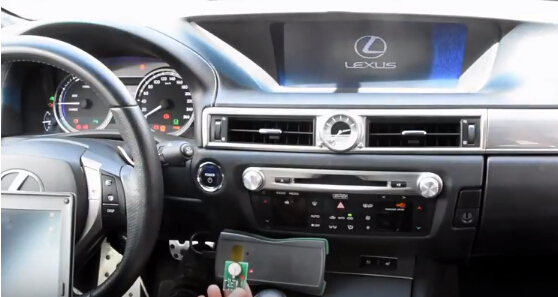

Attach the SLK-03 emulator to the Start button

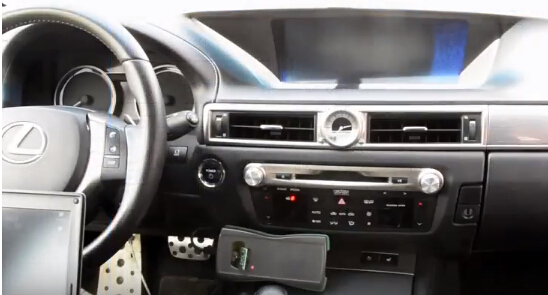

Dashboard turns on

Press on Start once and attach SLK-03 emulator to Start button again

Immo indicator flashes.

Tango program Lexus GS 450h all smart keys lost success.

Test the new key.
