Lonsdor K518ISE Program BMW 520D 2011 CAS4 All Keys Lost
Lonsdor K518ISE key programmer has successfully program remote smart key on a BMW 520D 2011 CAS4 Immo system when all keys have lost.
Procedure:
Step 1: Backup original EEPROM data
Read eeprom data with programmer, i.e VVDI Prog
Connect K518 host with laptop via USB cable

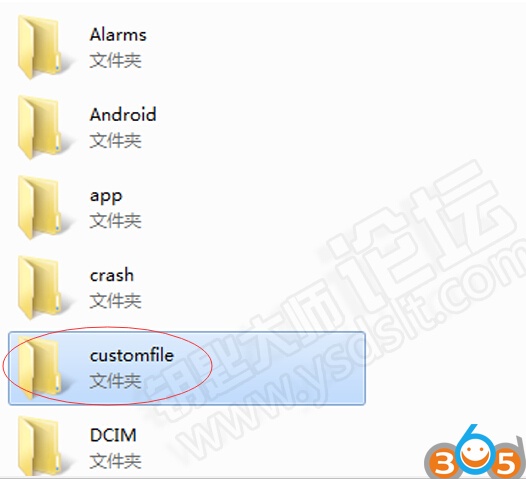

You will see “customfile” folder on K518 software

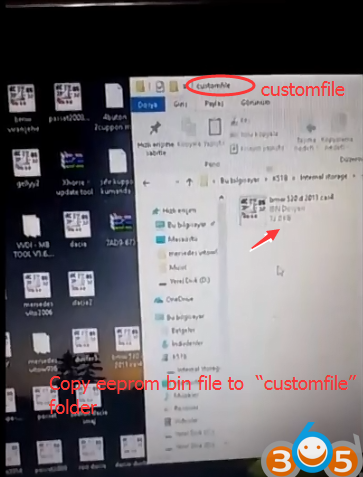

Copy the eeprom bin file to “customfile” folder
Step 2: Program key
Connect Lonsdor K518ISE host with vehicle via obd diagnostic socket

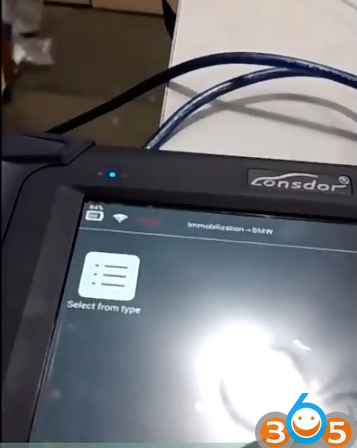

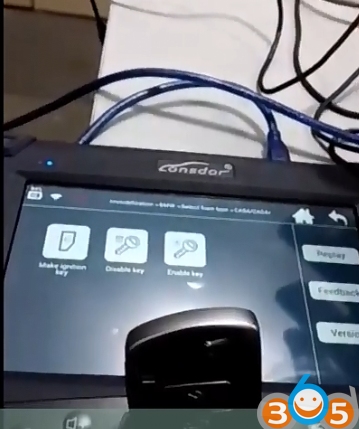

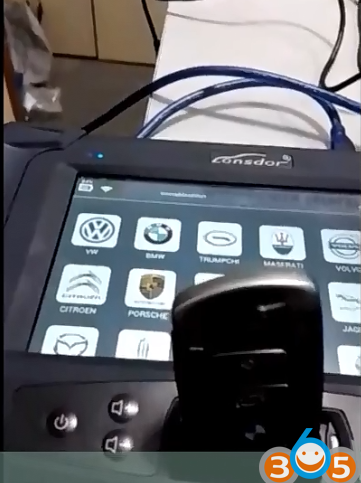

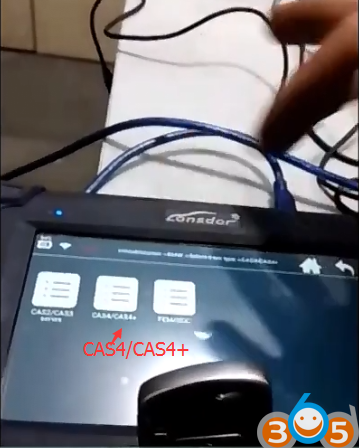

Select Immobilizer->BMW->Select from type->CAS4/CAS4+->Make Dealer Key

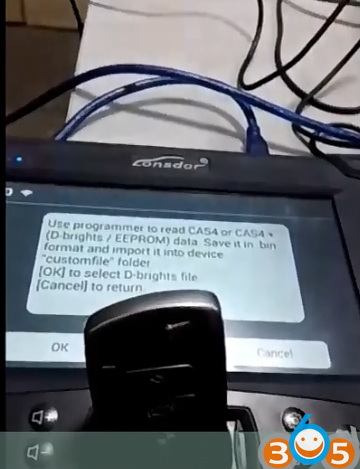

Use programmer to read CAS4 or CAS4+ (D-falsh eeprom data).
Save it in bin format and import it into device “customfile” folder
We have done this in Step 1
Click OK to select eeprom data

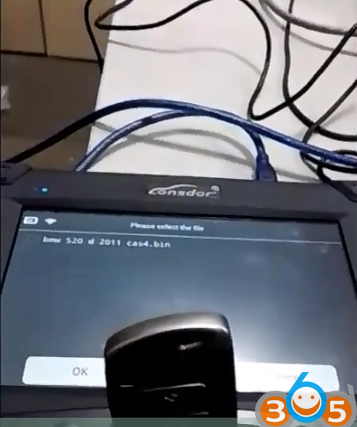

select BMW 520D 2011 CAS4.bin file

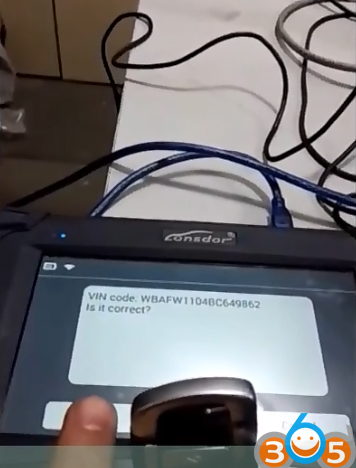

Lonsdor K518 key programmer will detect VIN etc

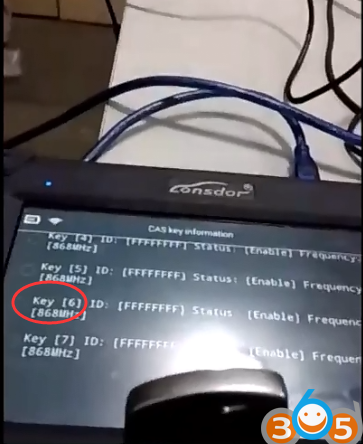

select a key position
Insert a new key into K518 card slot
Recognize key ID

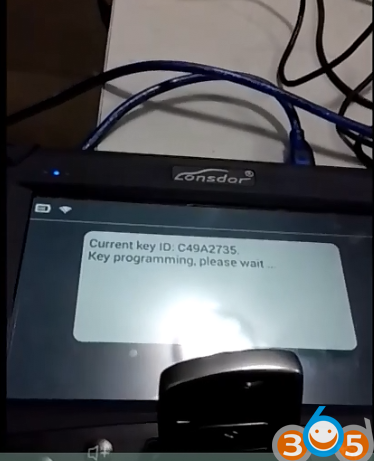

programming
Generate key success.

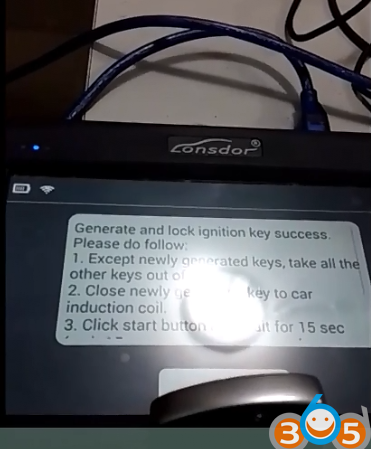

Complete following steps to sync key
1.Take other keys out of vehicle except the new generated key
2. Put the new key close to car induction coil
3.Click Start button for 15 sec
Test the new smart remote key and star vehicle.
