Program Benz Sprinter 2002-2005 Key with VVDI Prog and Tango

Here’s the guide to add immo key to Mercedes Benz Sprinter year 2002 to 2005 using Xhorse VVDI Prog and Tango transponder key programmer.

Step 1: Read data with VVDI Prog

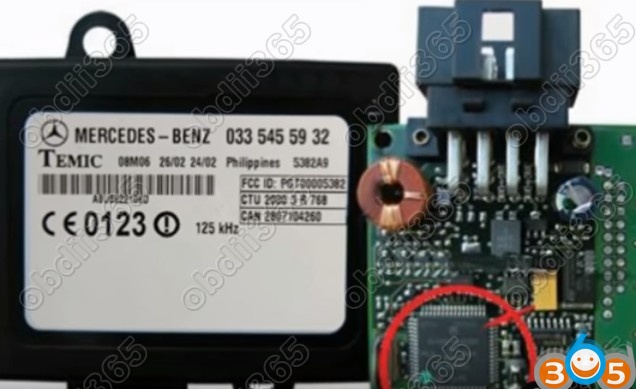

Remove Sprinter Immo box

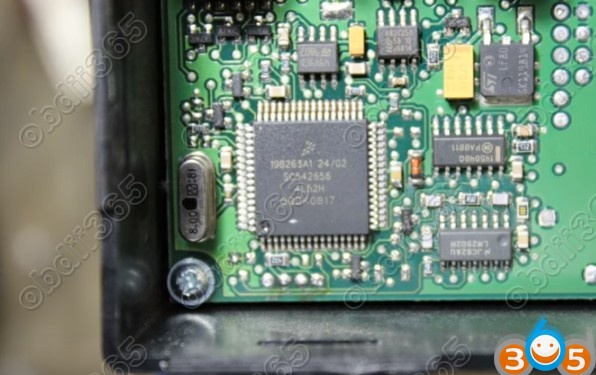

Find 4L52H mcu chip



Make connection

Open VVDI-Prog software

Select Type, Brand and chip: Sprinter Immo Box (2002-2005)

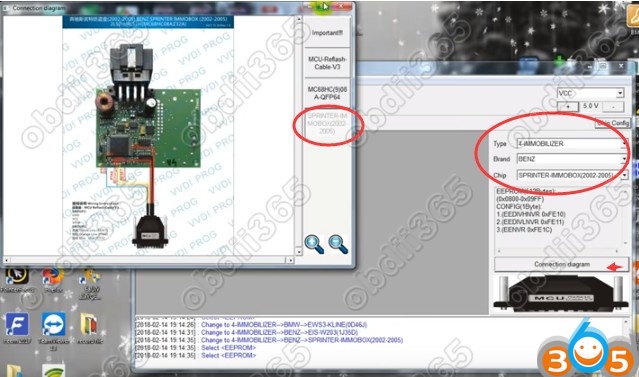

Click on Connection diagram and view diagram

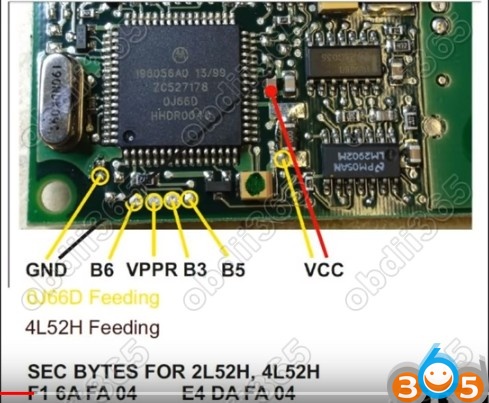

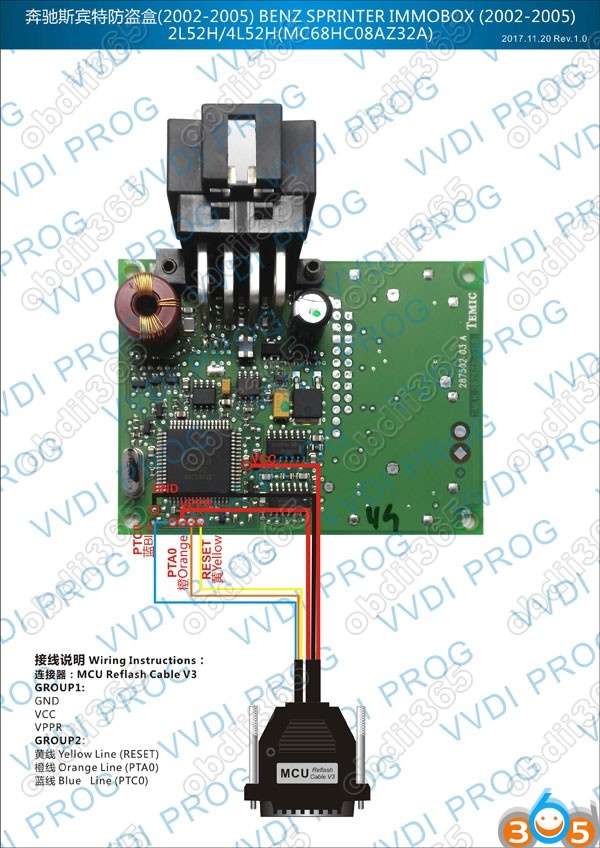

Sprinter 4L52H mcu pinout to VVDI Prog

Click on Chip Config

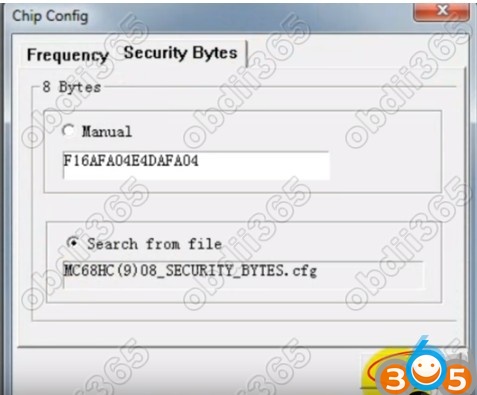

Select Security Bytes->Search from file->MC68HC(9)08_SECURITY_BYTES.cfg

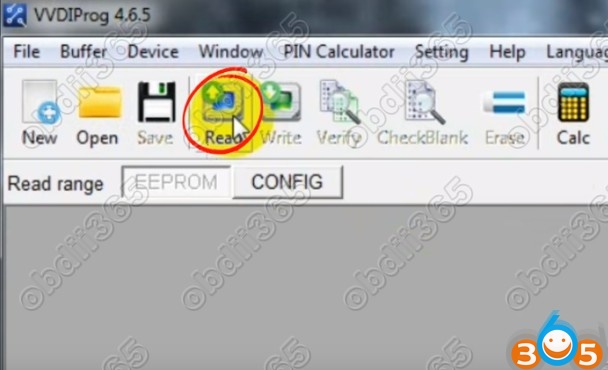

Read data

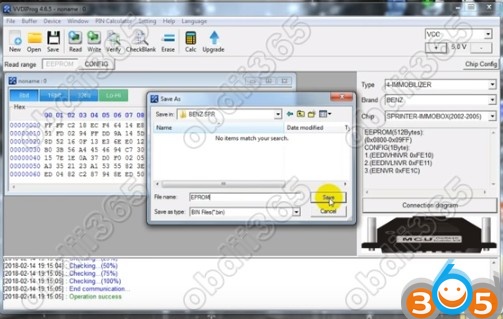

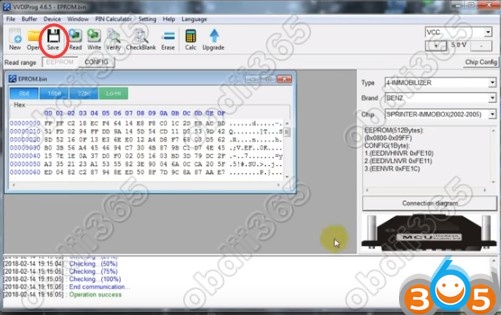

Save eeprom data

Step 2: Write transponder with Tango

Open Tango key programmer software

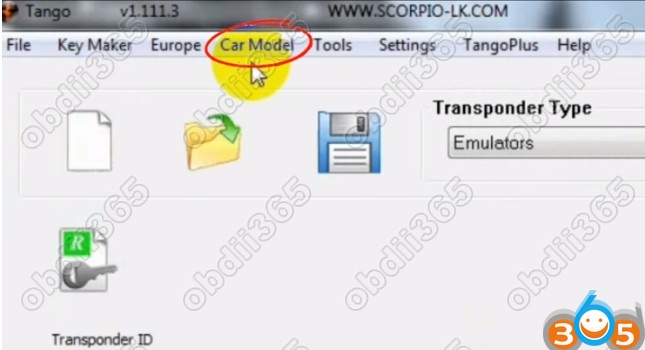

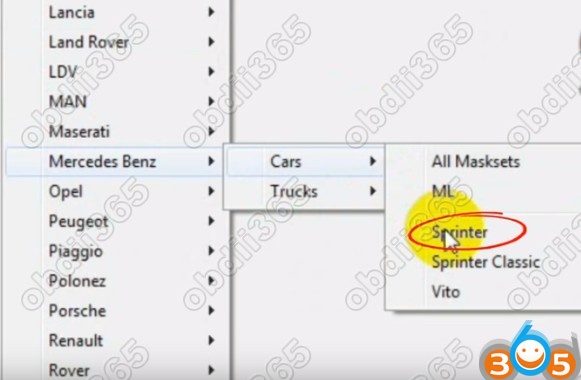

Select Car Model tab->Benz->Cars->Sprinter

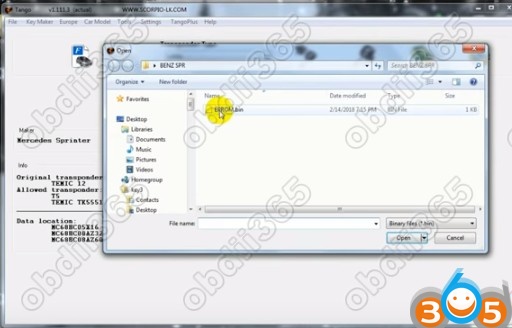

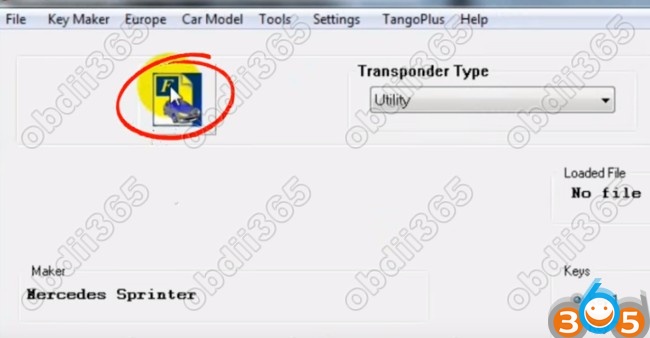

Load eeprom file just read by VVDI prog

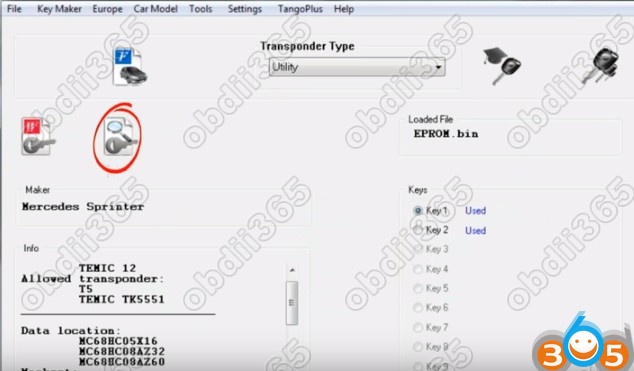

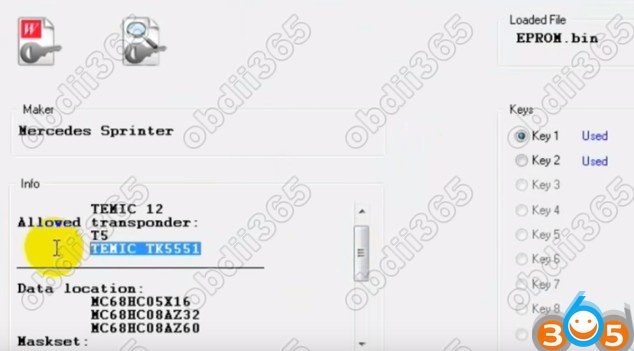

Click on Write key button

Then

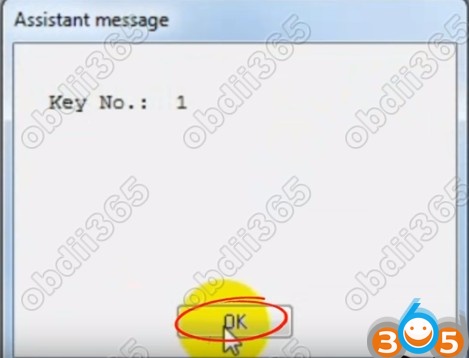

Confirm key position

Follow tango prompts until success.
