    How to Update Lonsdor K518ISE Kernel and Add Hibernation Function?

    universal-car-key-programmer
    (0)

    Here’s the step-by-step guide on adding Hibernation function on Lonsdor K518ISE tablet key programmer .



    Updated Device: Lonsdor K518ISE

    Updated Condition: for all K518 devices with working normally

    Updated Content: Added Hibernation function; Kernel update supported

    Update Benefit: Save power to prolong stand-by time. Auto standby function can prevent the device from being overheated in hot summer.

    Updated Version: K518 APK V1.5.25



    Preparation for Update:

    1. Power on the device or keep the battery level over 80%.
    2. Make sure wifi network is in good condition and the device receives signal normally;



    Update steps:

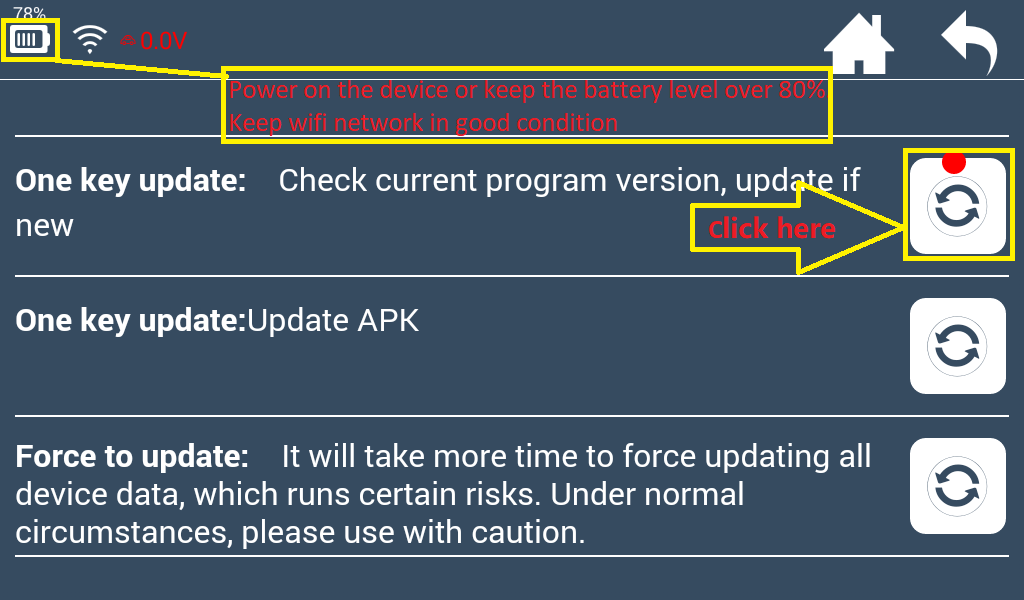

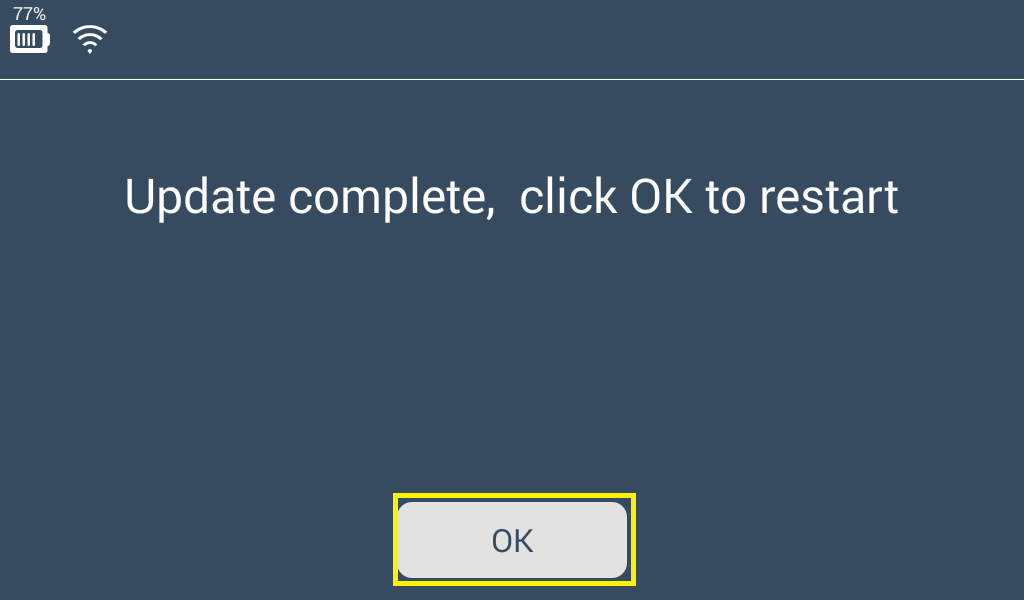

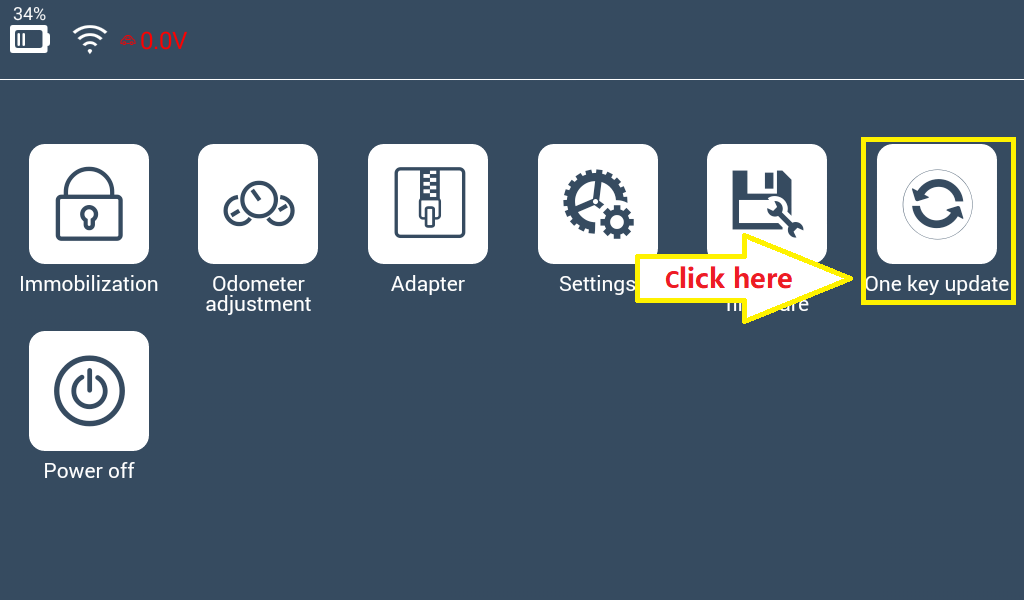

    1. Click [One key update] and skip to below K518ISE  interface. Then click the first button to update system. When the update complete, click [OK] to reboot the device.

     update-lonsdor-k518-hibernation-1

    update-lonsdor-k518-hibernation-2

    update-lonsdor-k518-hibernation-3

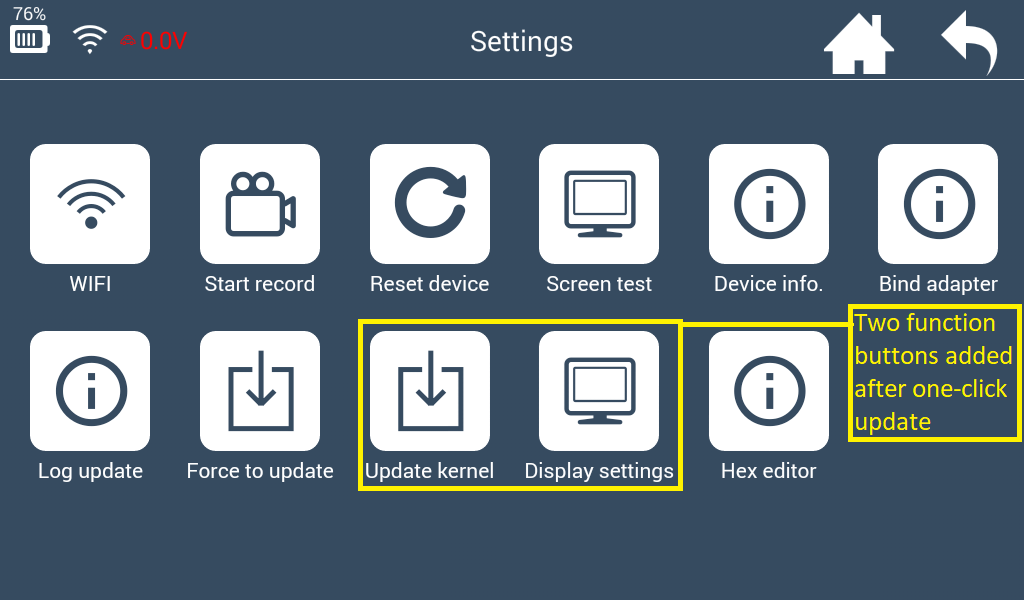

    1. After rebooting, click and enter [Settings] menu, you will find there are two additional function buttons: [Update Kernel ] and [Display Settings].

    update-lonsdor-k518-hibernation-4

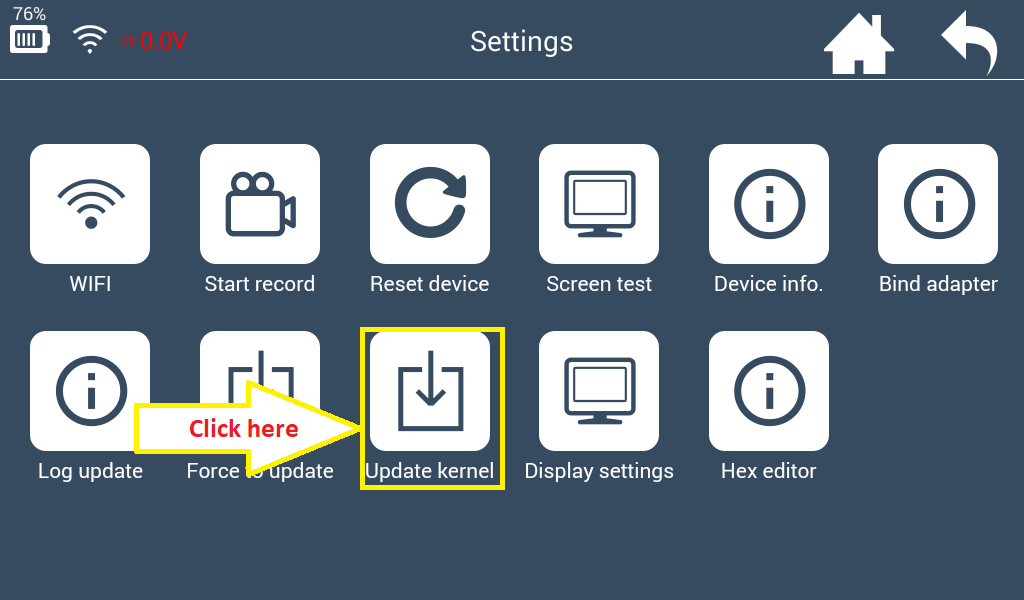

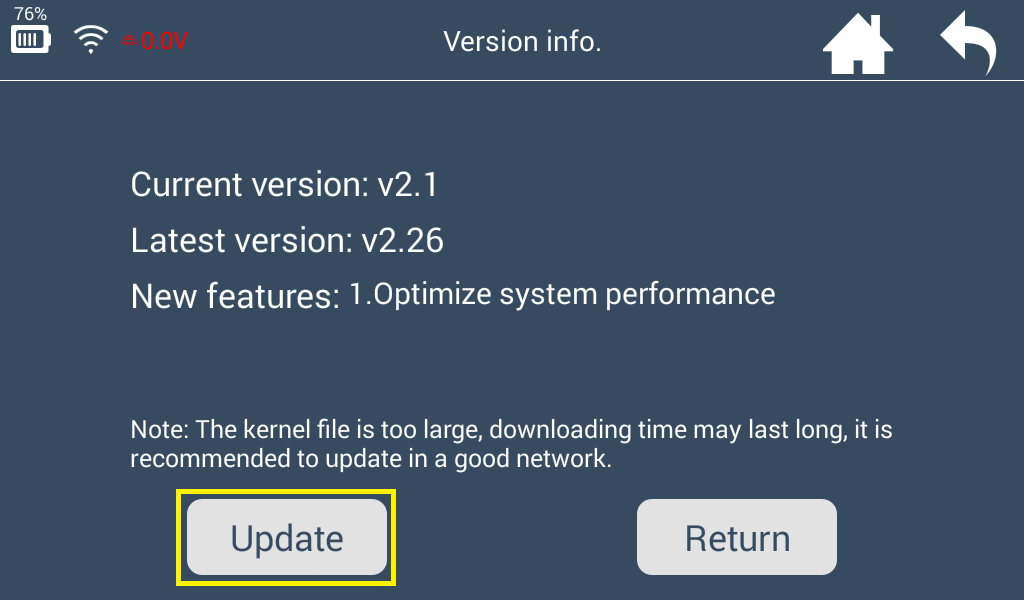

    1. Click [Update Kernel] first and skip to below interface, then press [Update] to update the kernel.

     update-lonsdor-k518-hibernation-5

    update-lonsdor-k518-hibernation-6

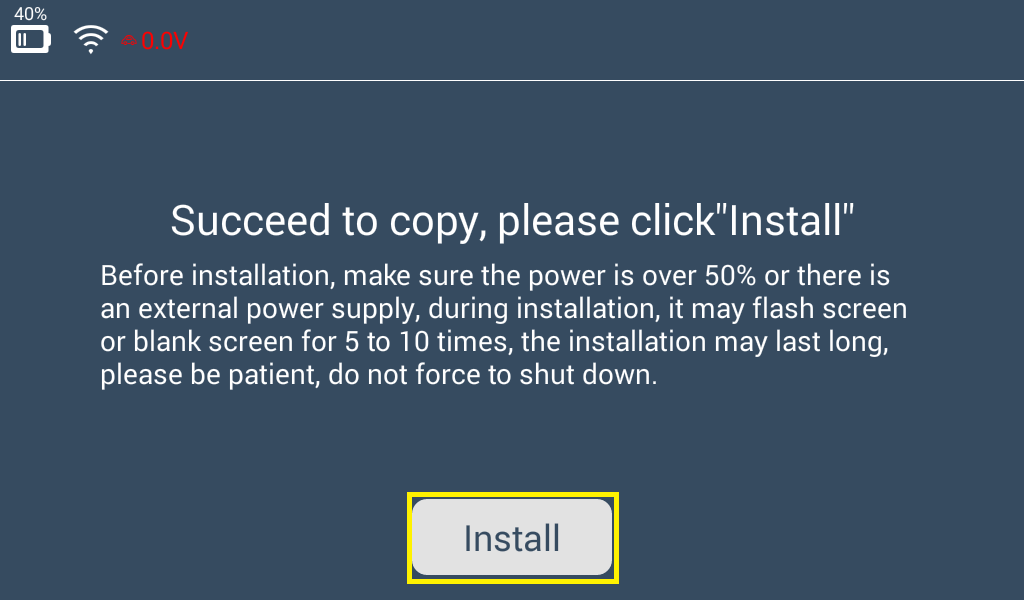

    1. Click [Install] after updating the kernel file. And the device will reboot to install kernel.

    update-lonsdor-k518-hibernation-7

    1. Blank screen is normal during the installation. The whole process will take 5 minutes, be patient to wait and don’t restart the device manually.

    update-lonsdor-k518-hibernation-8

    update-lonsdor-k518-hibernation-9

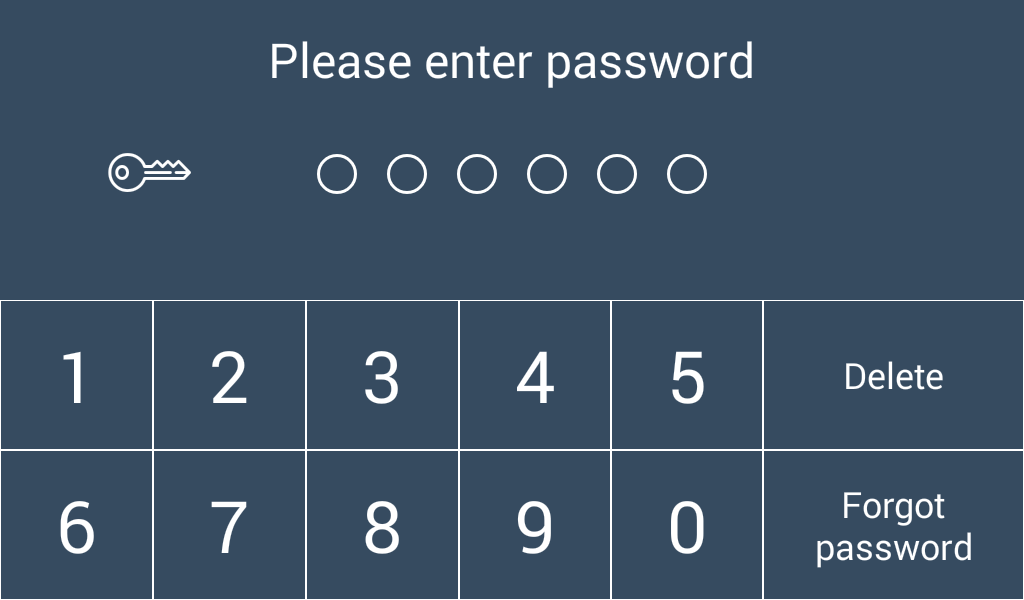

    1. The update complete when the password input interface appears. Screen auto-lock in the [Display Settings ] is added.

     update-lonsdor-k518-hibernation-10

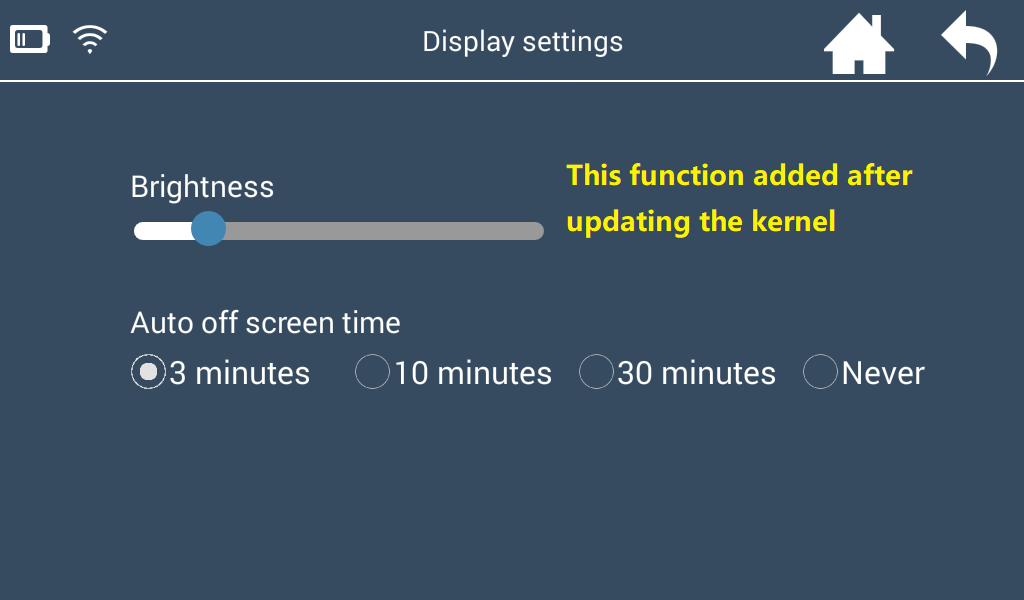

    1. Enter [Settings]→[Display Settings] to adjust the screen brightness and screen auto-locking time .

     update-lonsdor-k518-hibernation-11

    Save power to prolong stand-by time. Auto standby function can prevent the Lonsdor K518 from being overheated in hot summer.



    Lonsdor-K518ISE-HEX-editor-Instruction.docx

    Lonsdor-K518ISE-update-Hibernation-Function-obdii365.doc
