Program Mitsubishi Grandis 2010 PCF7936 Key with VVDI Prog and Tango
How to: program PCF7936 transponder key to a Mitsubishi Grandis year 2010 using Xhorse VVDI Prog and Tango key programmer.
Original transonder: PCF7936
Data location 24C02
Immo location: behind the decroative penal
Take off the decorative panel, the immo is in depth at the right upper corner
Step 1: Read IMMO Dump
Read immo dump with vvdi prog or Orange 5

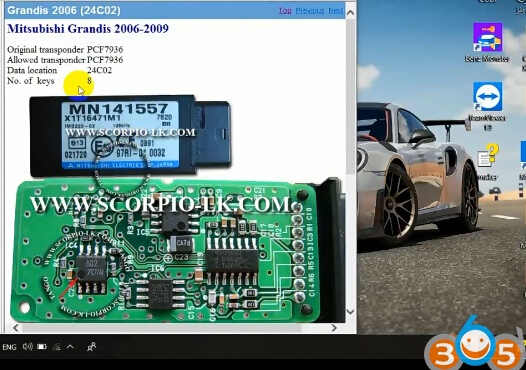

If you cannot find the wiring connection in vvdi-prog
use the wiring diagram in Orange 5

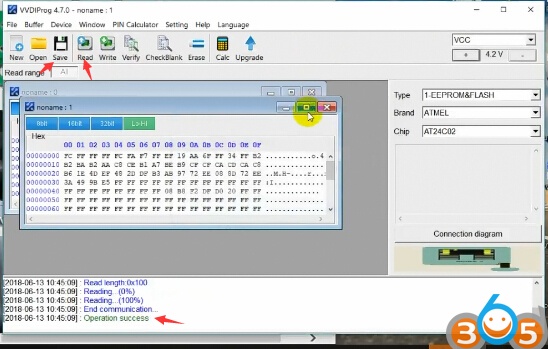

Open vvdi prog software
Select EEPROM/Flash->ATMEL->AT24C02

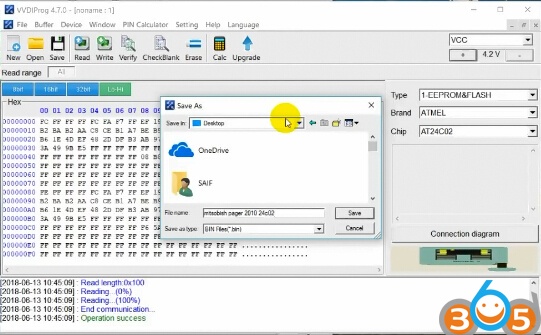

Save eeprom data
Step 2: Program transponder

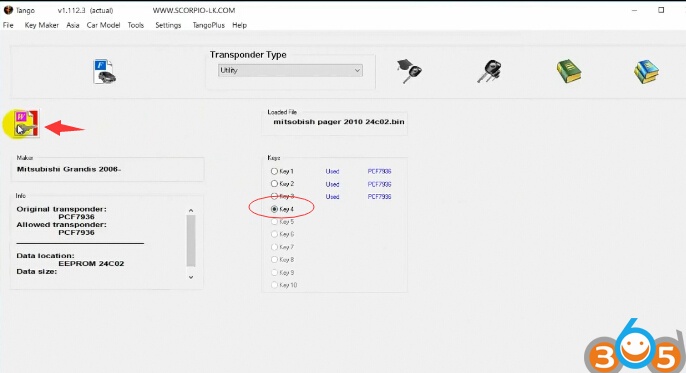

Open Tango software
Select Car Model->Mitsubishi->Grandis
Upload dump file read by vvdiprog
Select an unused key position
Insert new PCF7936 transponder into tango key programmer
Write key.
Until write key success.
Try to start car with new key.
