Program Citroen C3 Picasso 2013 Remote Key with Xtool X100 or Lonsdor K518



Here is the Citroen C3 Picasso 2013 pin code reading and remote programming guide.



Tools need:

working remote key

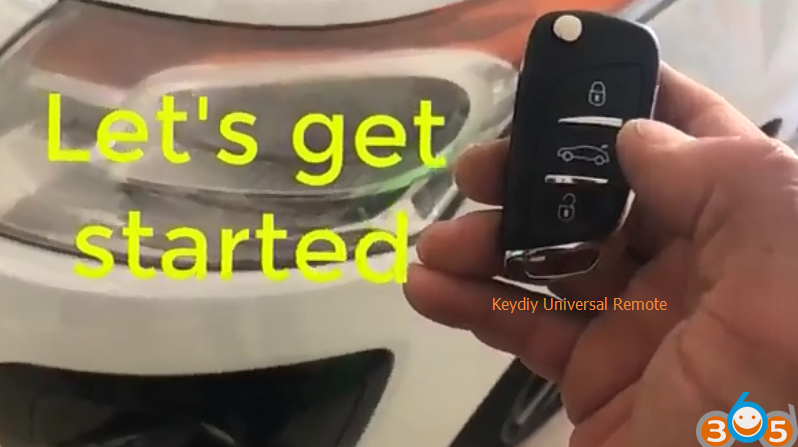

Keydiy universal remote key

Key programmer (I have Lonsdor K518ISE and Xtool X100 PAD2)





First try with Xtool X100 Pad2

Connect X100 pad2 with vehicle


Select IMMO function->Citroen->Read Pin code
There are only 3 options
Select Type 1

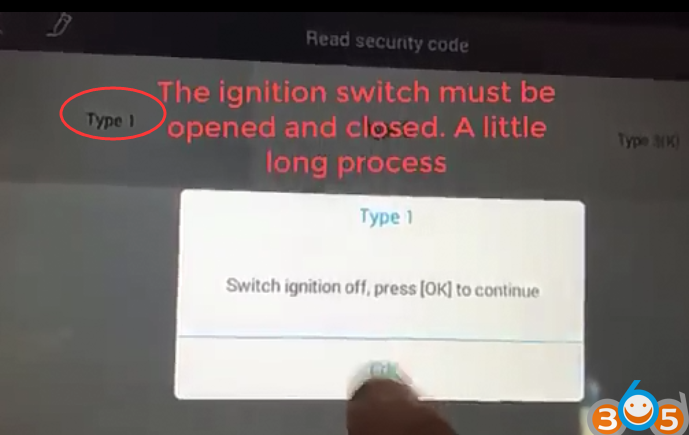

Turn on ignition with programmed key

Turn off ignition

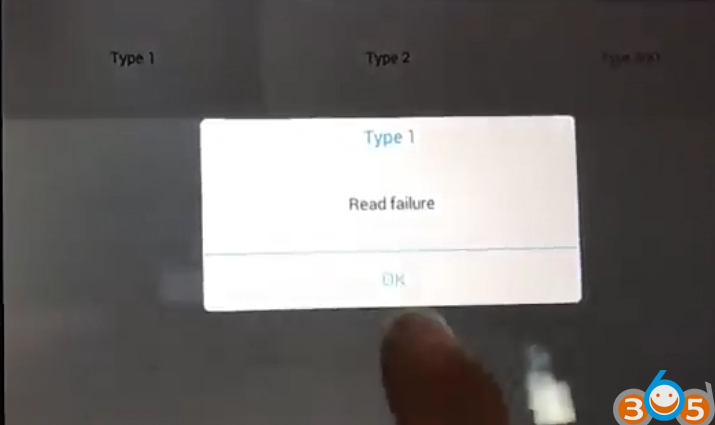

X100 Pad 2 kept asking turn on and off ignition and finally it failed to read pin code.



So I try read pin code with Lonsdor K518ise

Turn on ignition switch

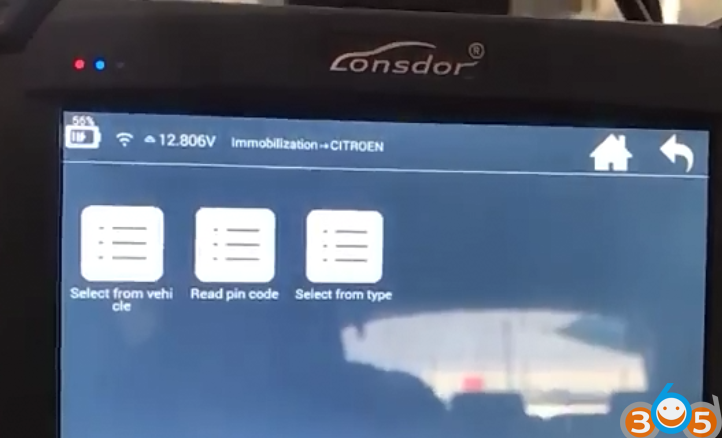

Select Citroen->Read Pin code

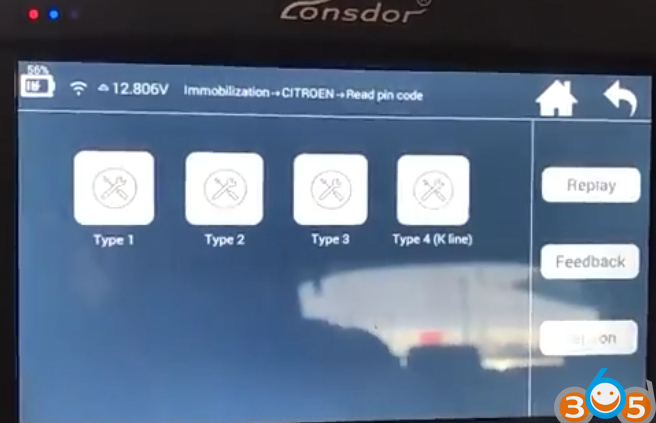

Lonsdor have 4 options, select Type 1


Turn off ignition, don’t insert key

Turn on ignition

Turn off ignition

Turn on ignition

Turn off ignition

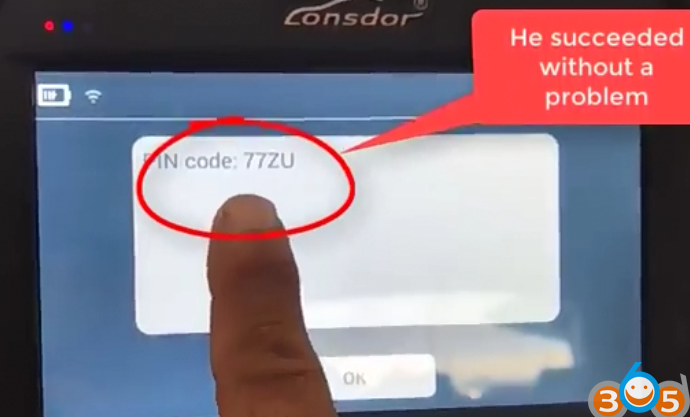

Read pin code success

Now start programming

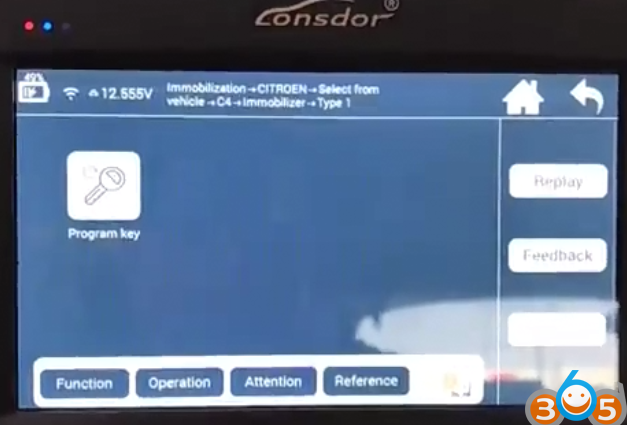

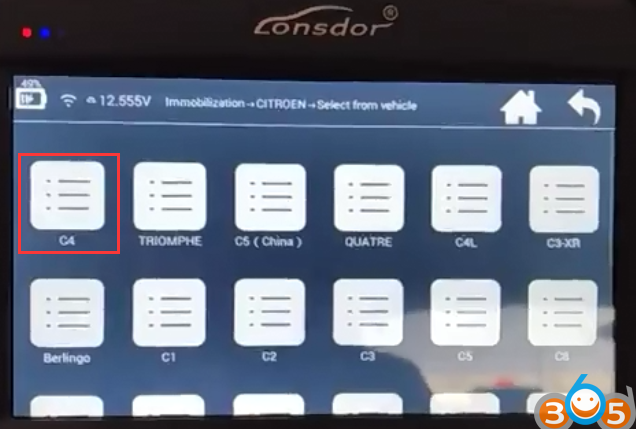

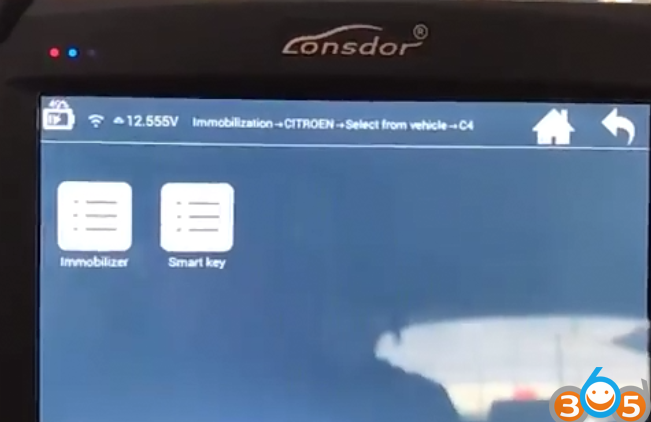

Select Citroen->Select from vehicle->C4->Immobilizer->Type 1->Program key

Turn on ignition

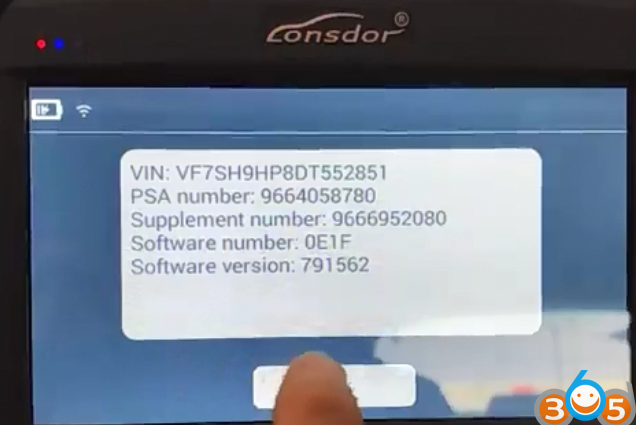

Lonsdor K518 reads vehicle information VIN, PSA number etc

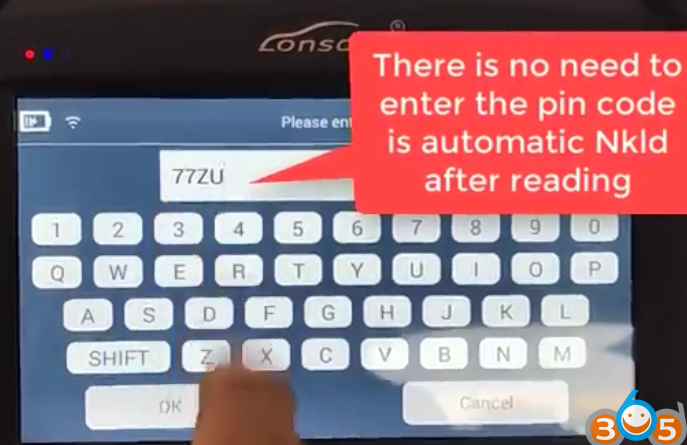

Auto enter pin code to access

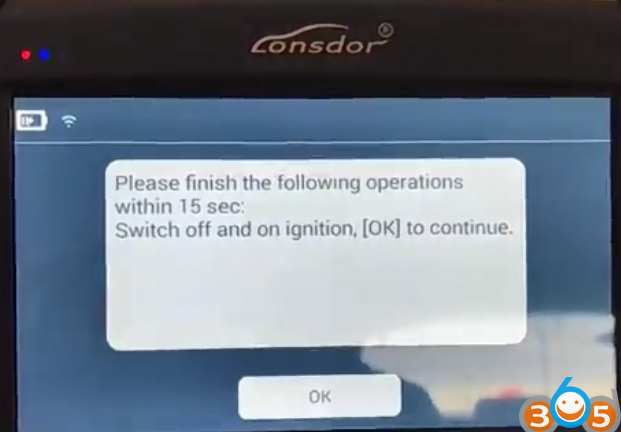

Switch off and on ignition within 15s

Program key completed, program next key

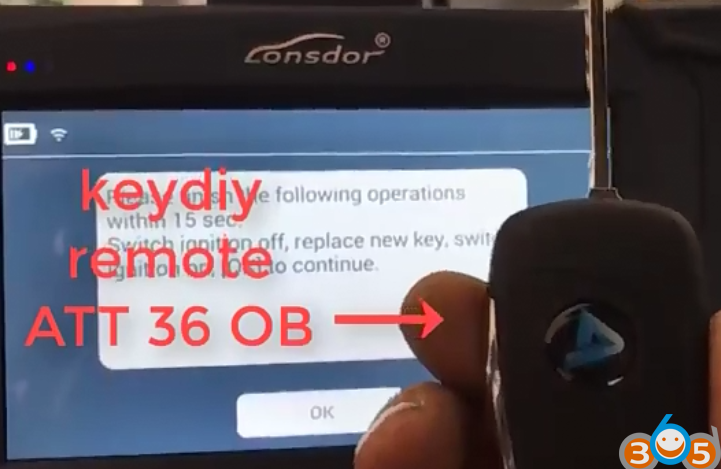

Switch ignition off, replace new key, and turn on ignition within 15s

Program 2nd key success

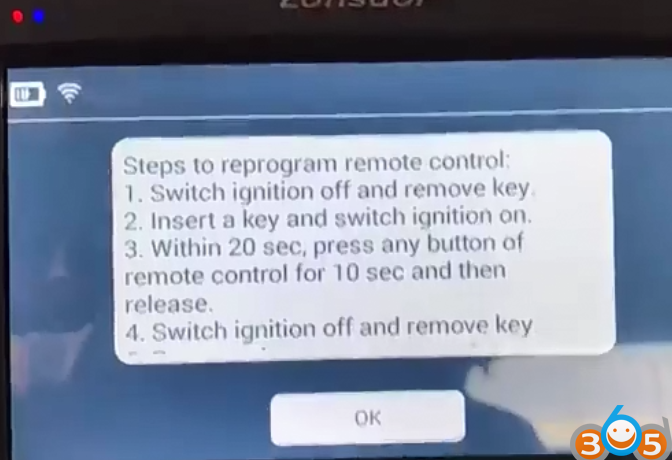

Steps to program remote control

1.Turn off ignition and remove key
2. Insert a key and turn on ignition
3. Press any button of remote control for 10s then release within 20s
4. Switch ignition off and remove key

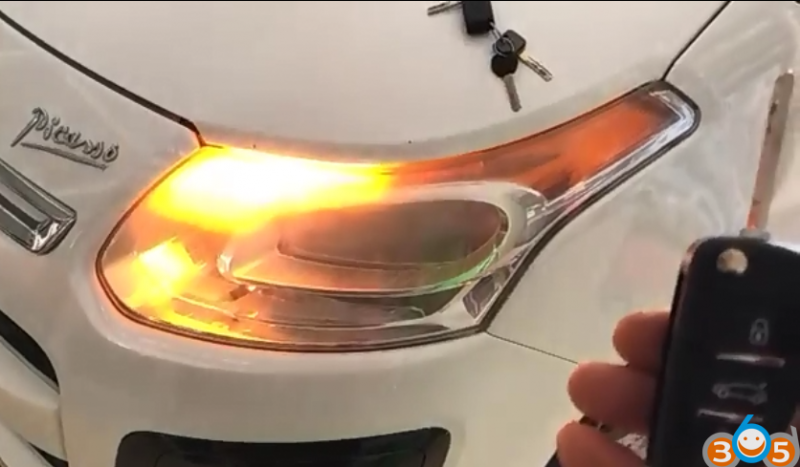

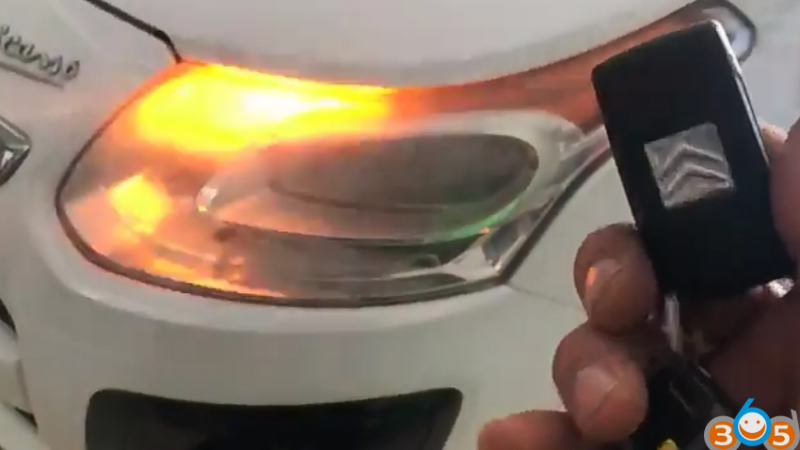

Test remote control

Success.



Lonsdor K518ISE Program Citroen C3 Picasso 2013 Remote Key
