How to Program EWS4 Key with AK90 or R270 Programmer

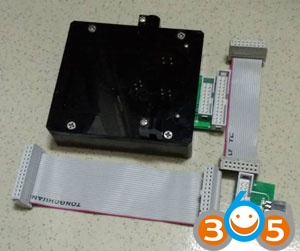

As titled, here obdii365.com introduces 2 methods to program BMW EWS4 (EWS4.3 & EWS4.4 transponder) using BMW EWS-4.3 & 4.4 IC adapter adapter without soldering.
Method 1:
Program EWS4 key with AK90+/AK91 & EWS4 adapter
Remove EWS4 immo box

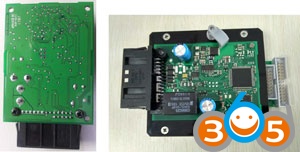

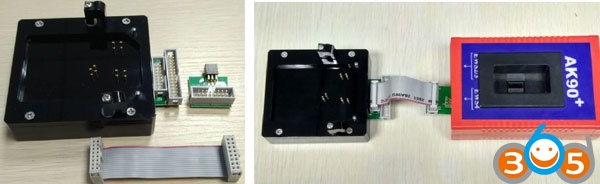

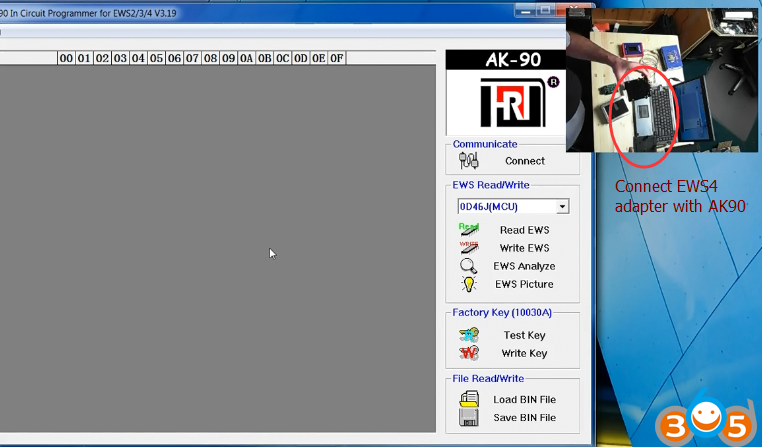

Connect EWS4 board to EWS4 adapter and AK90 key programmer
Select MCU 2L86D and Read EWS

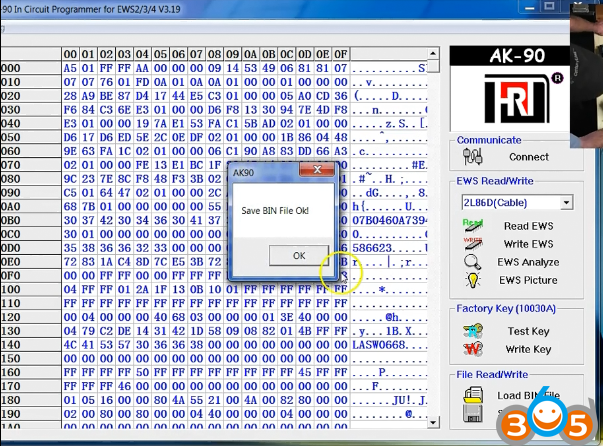

Read data success and save data

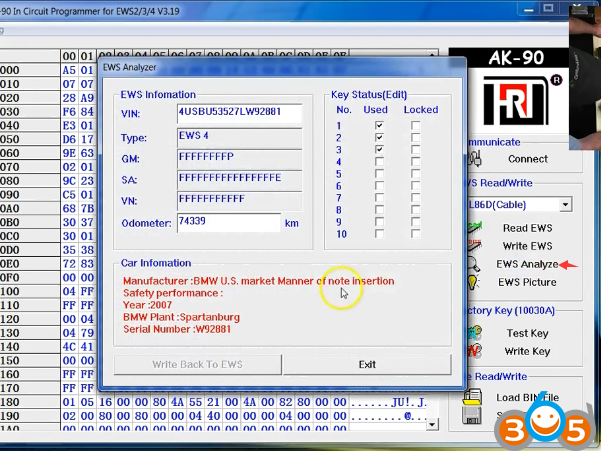

EWS Analyse
You should be at the main screen with all the numbers and letters on, place your virgin/new key into the slot on the AK90 and select write key
Select the slot and select write key you will get a warning making sure that you have placed key in slot just select yes
After aprox 1-2mins you should see confirmation that the keys data is coded
Put EWS4 unit back to car.
Method 2:
Read dump with R270 & Write key with key programmer

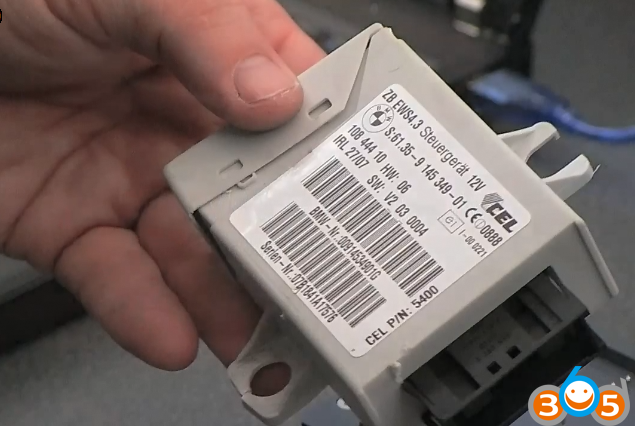

Again remove EWS4 immo box

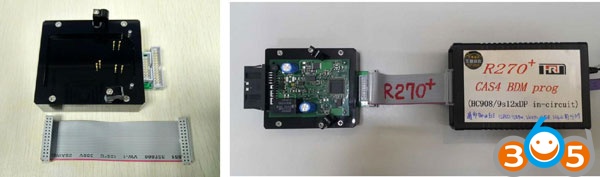

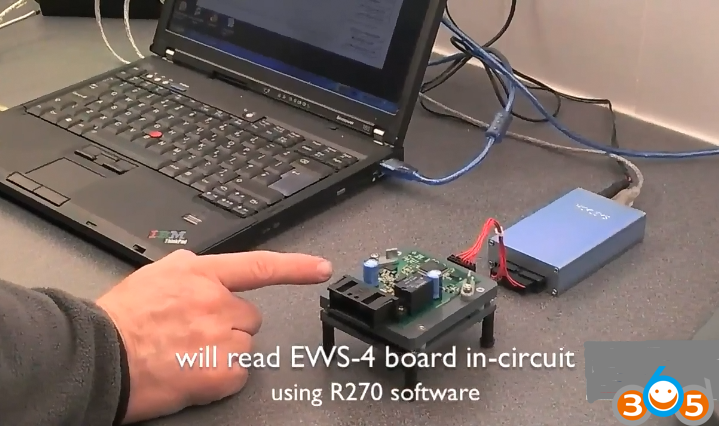

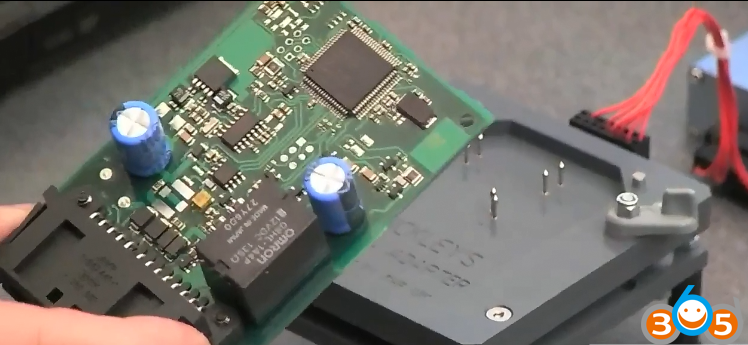

Connect EWS4 board with EWS4 adapter and R270 BDM programmer
Open R270 in-circuit programmer software

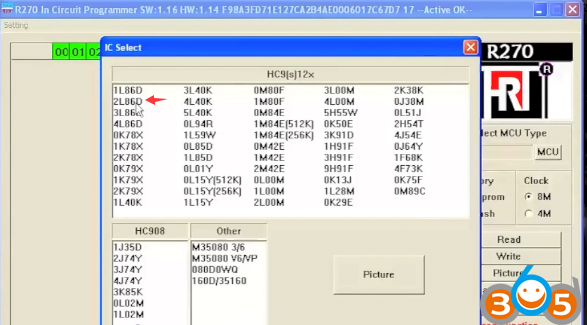

Select correct MCU: 2L86D
Press Read

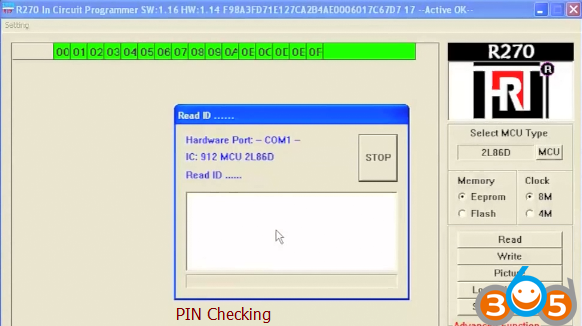

Software requests to check pin state
Press YES

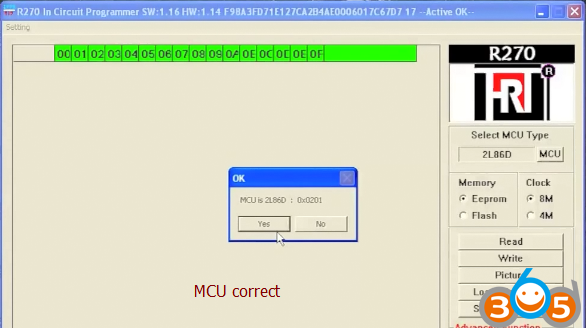

Pin check and MCU correct

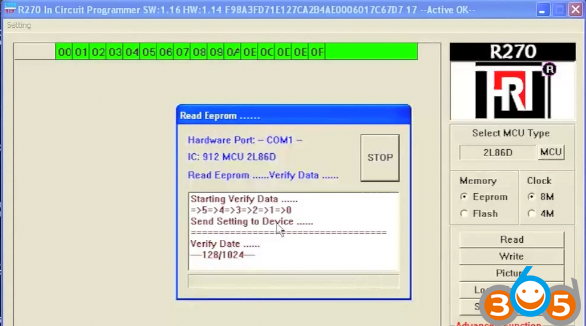

Press Yes and read begins

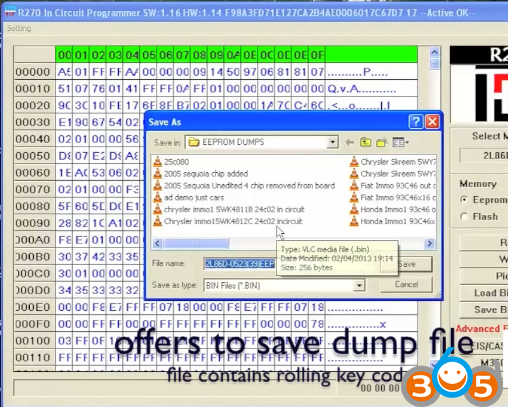

Save dump file (file containing rolling key codes)
Open your key programmer software, i.e AD-900 pro or other programmer can be loaded dump file

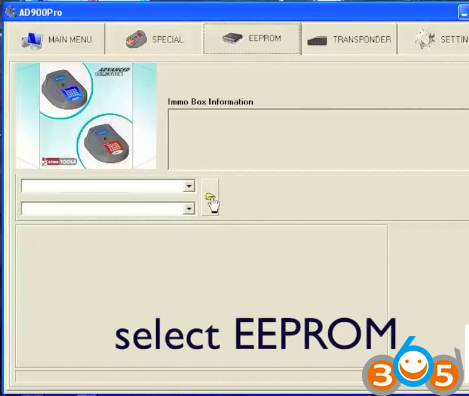

Select EEPROM and upload bin file read by R270
Software opens correct module 063 for BMW EWS4
Key slot 1 to 4 are listed

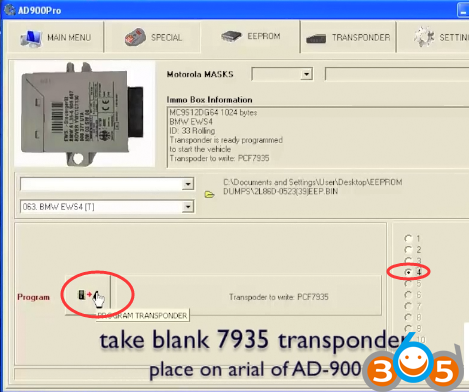

To avoid manufacturer conflict, select highest available slot 4

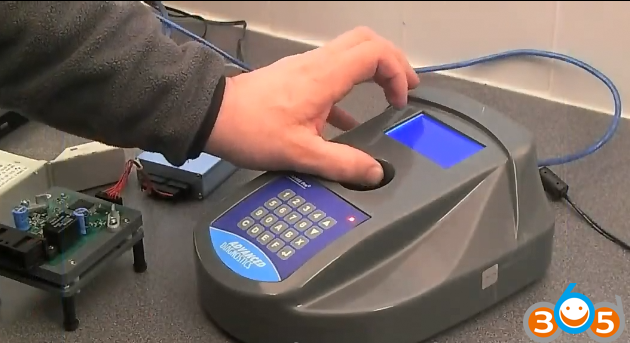

Insert blank 7935 transponder into AD900 and press Program button
Data is sent to the AD900
Transponder is produced to start vehicle
Then reinstall EWS4 immo box back to vehicle.
