How to Program Citroen C4 Picasso Wireless Remote Key by OBD
Here’s the instruction to generate Citroen C4 Picasso Wireless Remote Key with Xhorse VVDI key tool and program remote control with Lonsdor K518ISE key programmer.
Tools need:
Xhorse VVDI Key Tool remote maker
Original remote key
Xhorse VVDI wireless remote key
Lonsdor K518ISE key programmer
Step 1: Generate Remote with VVDI Keytool

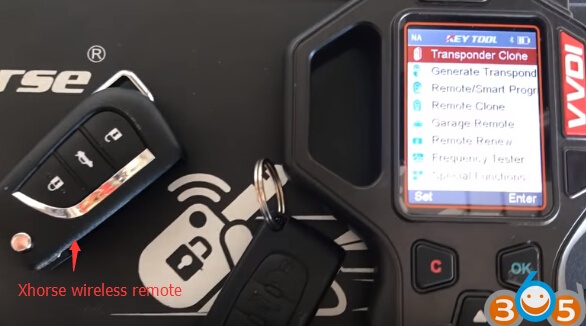

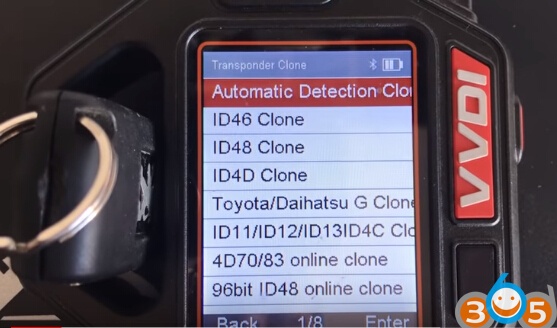

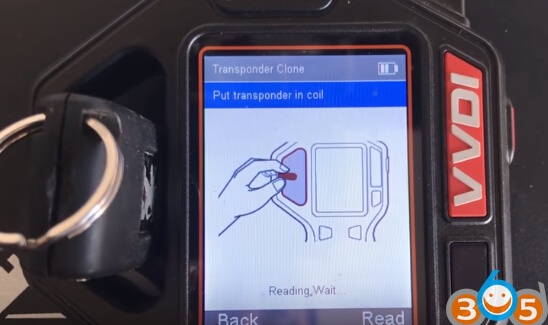

Insert original key into coil, select Transponder Clone->Automatic detection clone

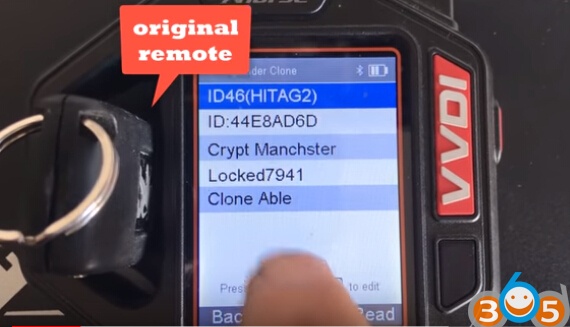

Read original remote ID46, locked 7941 transponder
Insert vvdi remote into coil

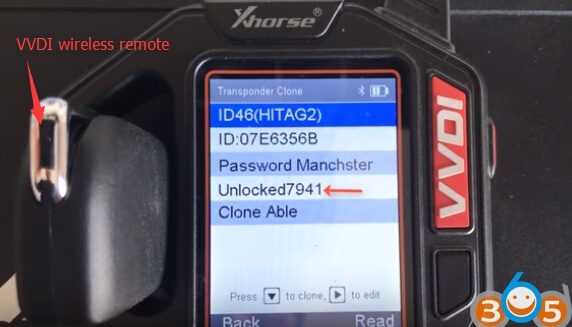

Identify remote ID46, Unlocked 7941
Disassemble the vvdi remote, insert PCB into coil

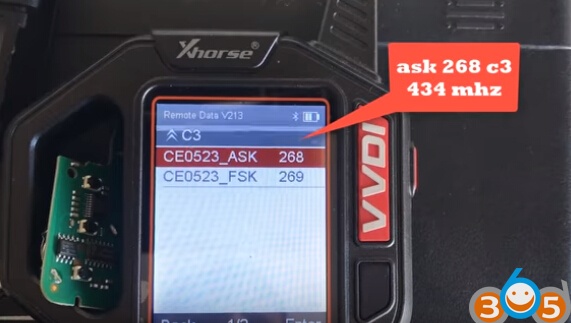

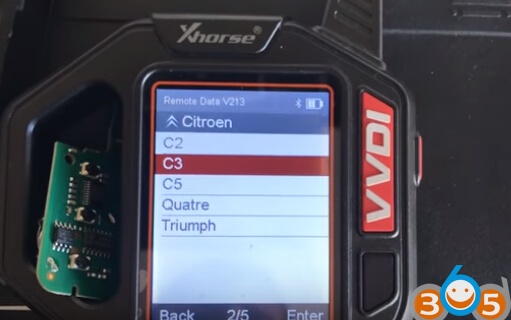

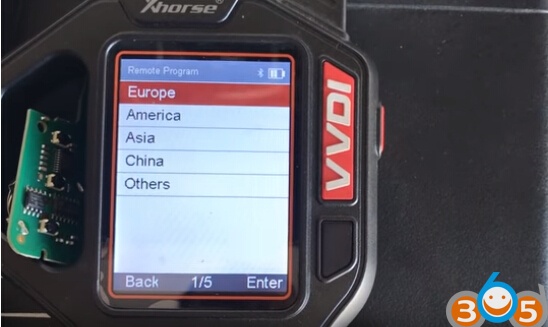

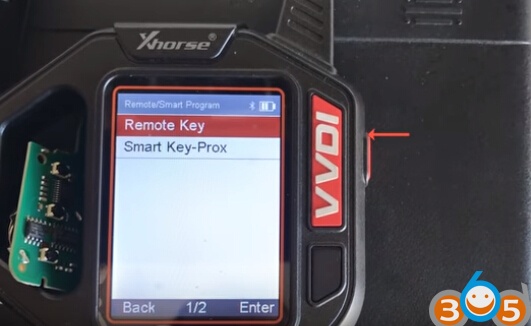

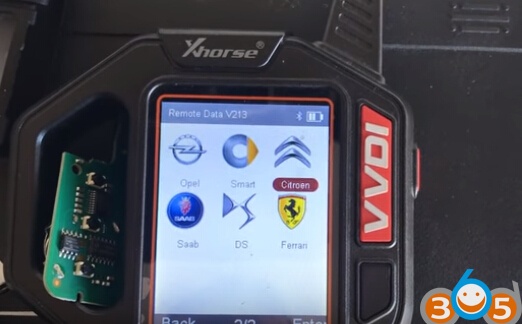

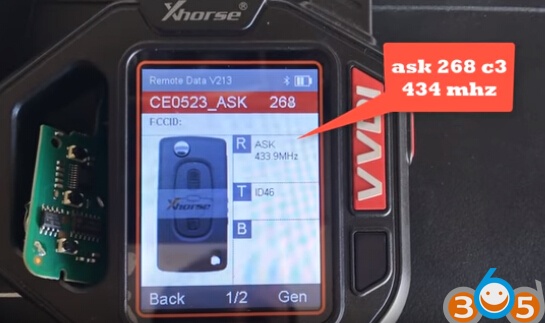

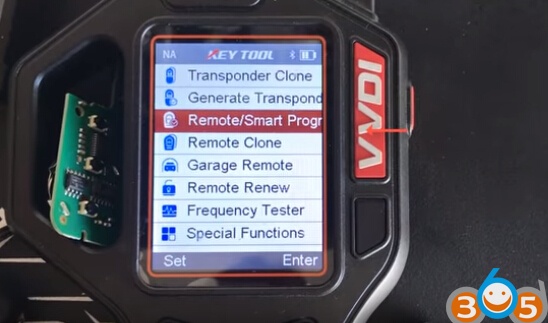

Select Remote/Smart Program->Remote key->Europe->Citroen-> we enter from C3 (268 c3 434MHz)

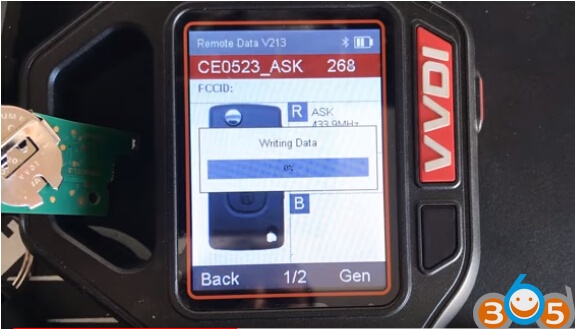

Press Gen button to write remote

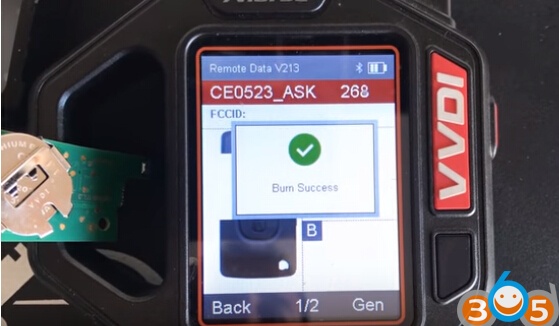

Generate remote key success
Step 2: Program remote key with Lonsdor K518ISE
Connect K518 host with vehicle via OBD socket

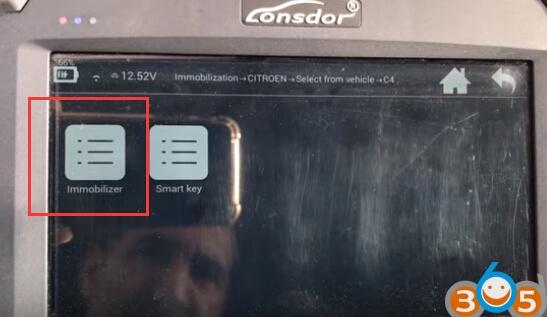

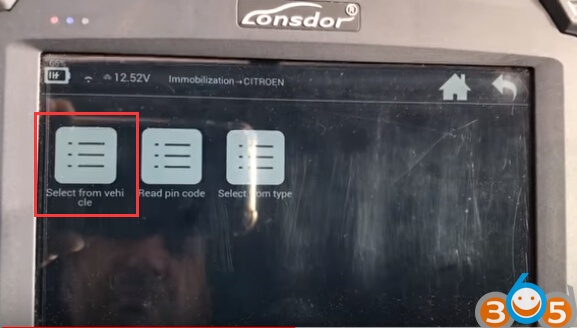

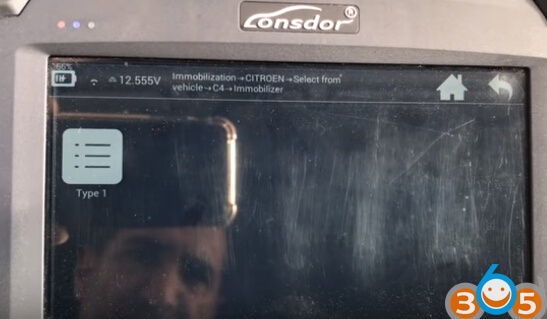

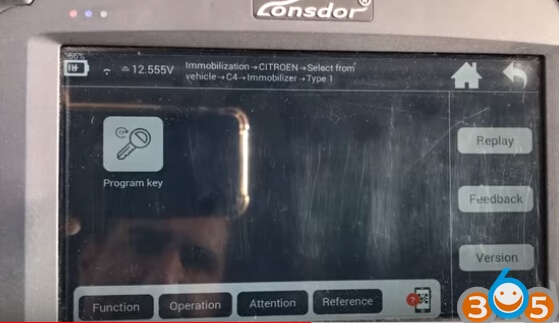

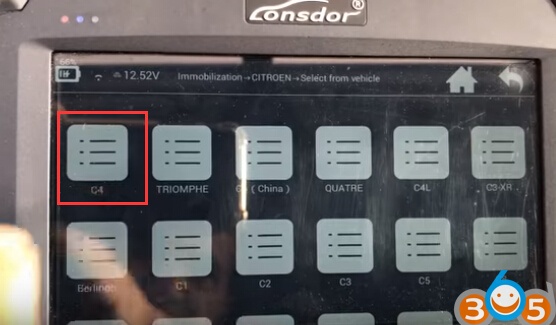

Select Immobilizer->Citroen->Select from vehicle->C4->Immobilizer->Type 1->Program key

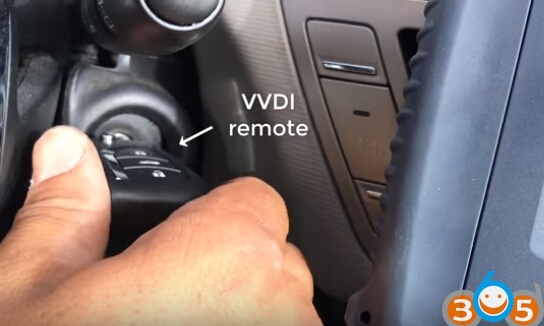

Turn on ignition switch with vvdi key

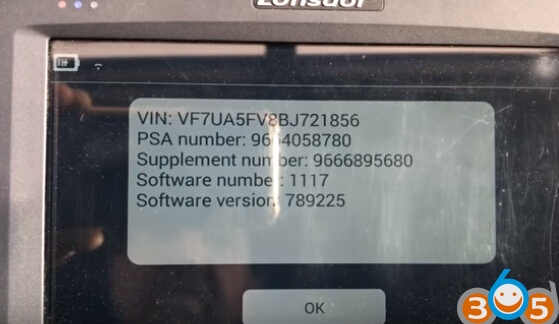

Lonsdor 518 read vehicle information

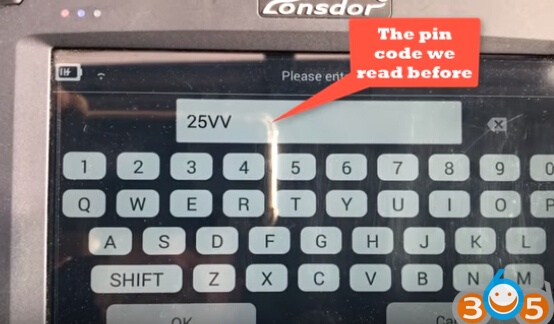

K518 ask to enter 4-digit pin to access (you should read PIN first, then it will auto fill in the blank)
Verifying PIN

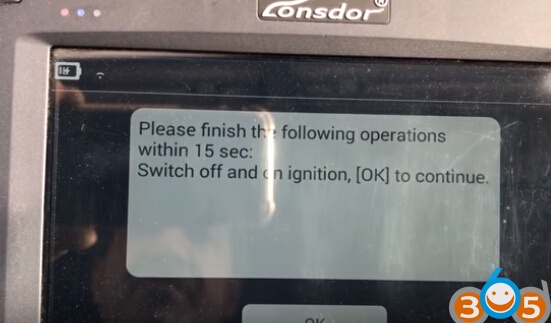

Turn ignition off and on within 15 sec
Programming…

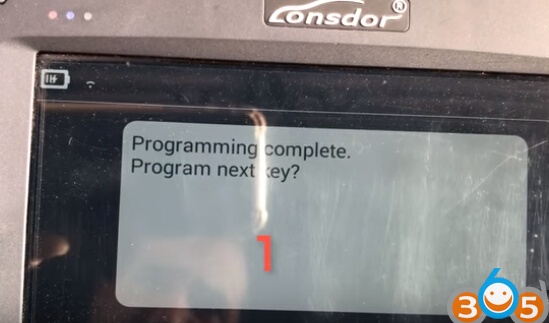

1st key programming complete

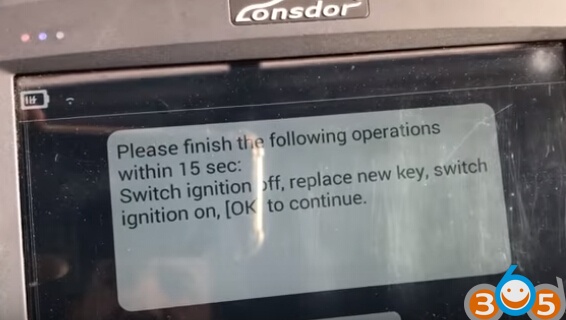

Turn ignition off, replace a new key, turn on ignition within 15 sec

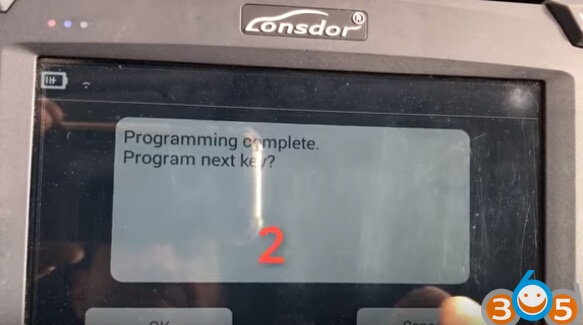

Program completed

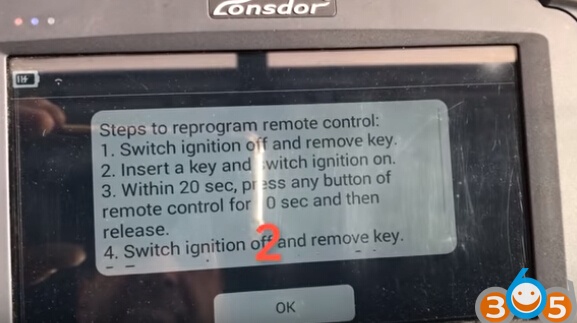

Manually reprogram remote control:
1.Switch ignition off and remove key
2.Insert a key and switch ignition on
3.Press any button of the remote key for 10 sec then release within 20 sec
4. Switch ignition off and remove key

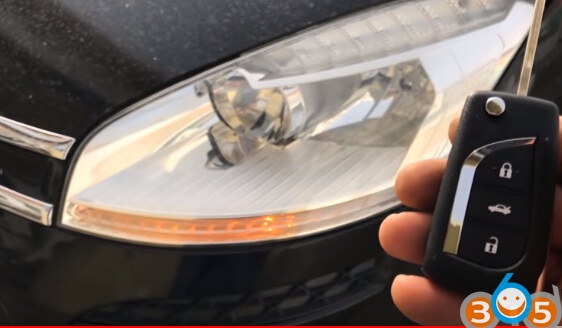

Test the remote key
Done.
