How to connect CGDI AC Adapter with CGDI MB for Data Acquisition?

Finally CGDI company released the CGDI MB AC Adapter which will shorten the data acquisition time from 2 hours to about 10 minutes – 35minutes without dismantling the EIS.


			How to connect CGDI AC Adapter with CGDI MB for Data Acquisition?

Supported Benz Models and the data collection time:

S Series W221 EIS 216 acquisition time: 12 minutes
E Series W211 EIS 211 acquisition time: 9 minutes
C Series W209 EIS 209 acquisition time: 9 minutes
B Series W246 EIS 169 acquisition time: 35 minutes
A Series W246 EIS 169 acquisition time: 35 minutes
R Series W251 EIS 164905 acquisition time: 12 minutes
ML Series W164 EIS 164905 acquisition time: 12 minutes
GL Series W166 EIS 164905 acquisition time: 12 minutes

Same function as VVDI MB Power Adapter

Note: CGDI AC Adapter can only work with CGDI MB. VVDI MB Power adapter can only work with VVDI MB as well.

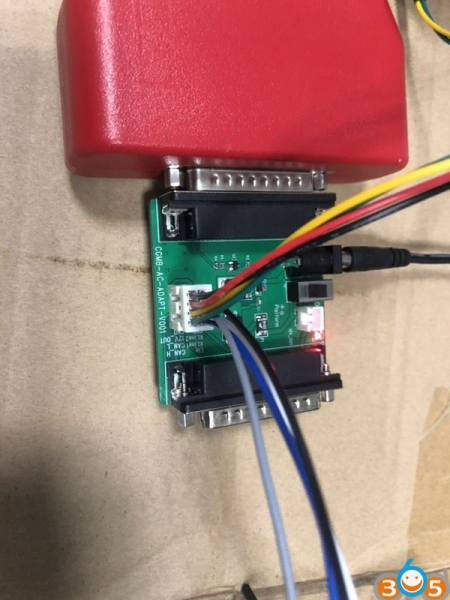

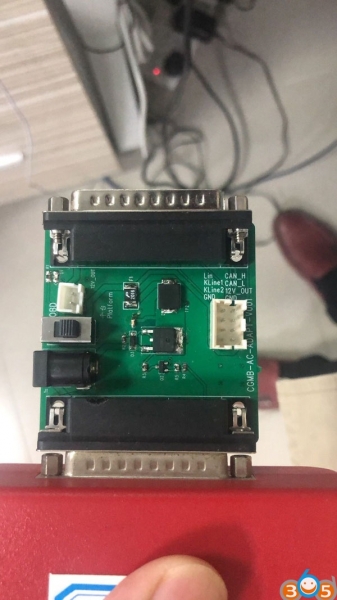

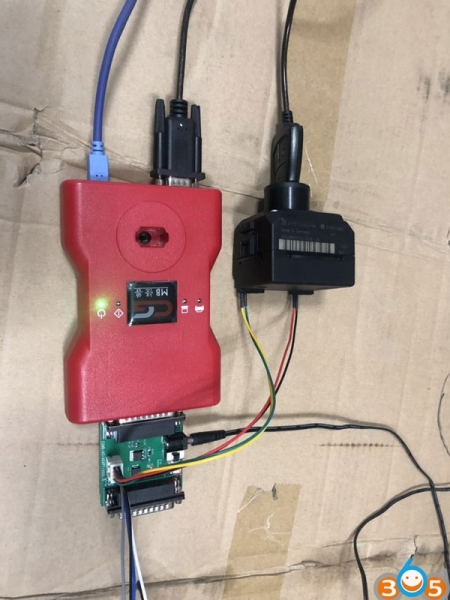

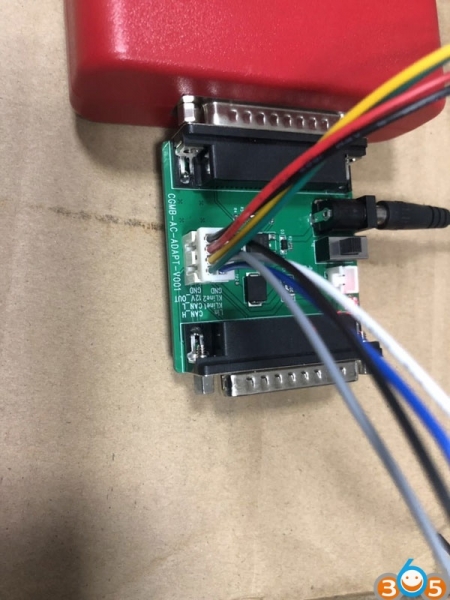

How to connect CGDI AC Adapter with CGDI MB?


			How to connect CGDI AC Adapter with CGDI MB for Data Acquisition?


			How to connect CGDI AC Adapter with CGDI MB for Data Acquisition?


			How to connect CGDI AC Adapter with CGDI MB for Data Acquisition?

Related post: CGDI MB Program Mercedes W164 EIS Key on bench
