Program Fiat Palio ID48 2002 Key with VVDI Prog and Tango
How to program Fiat BSI module transponder chip key for Fiat Palio, Adventure, Panda etc with VVDI Prog and Tango key programmer.
Example: Fiat Palio (Magneti Marelli) 2002 with Megamos ID48 chip
Read Dump
In VVDI Prog, select 4-Immobilizer->Fiat->BSI

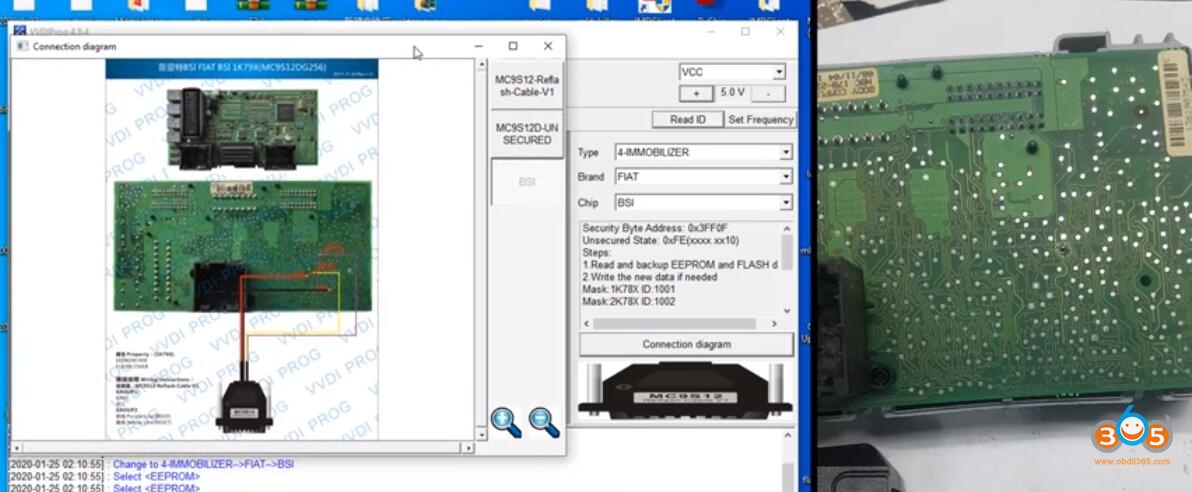

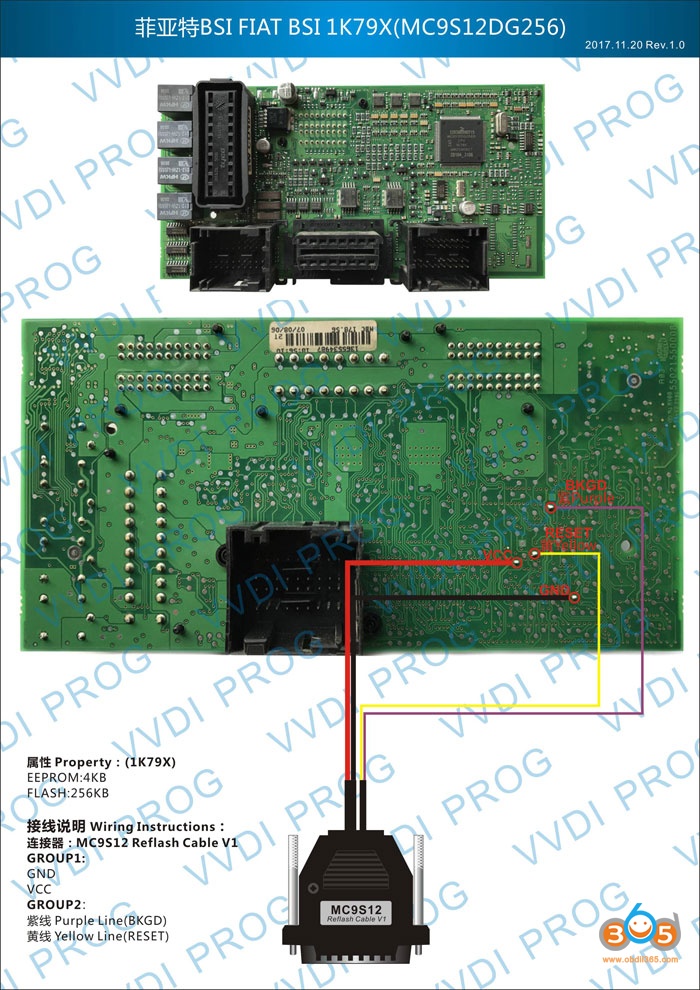

Check BSI wiring diagram

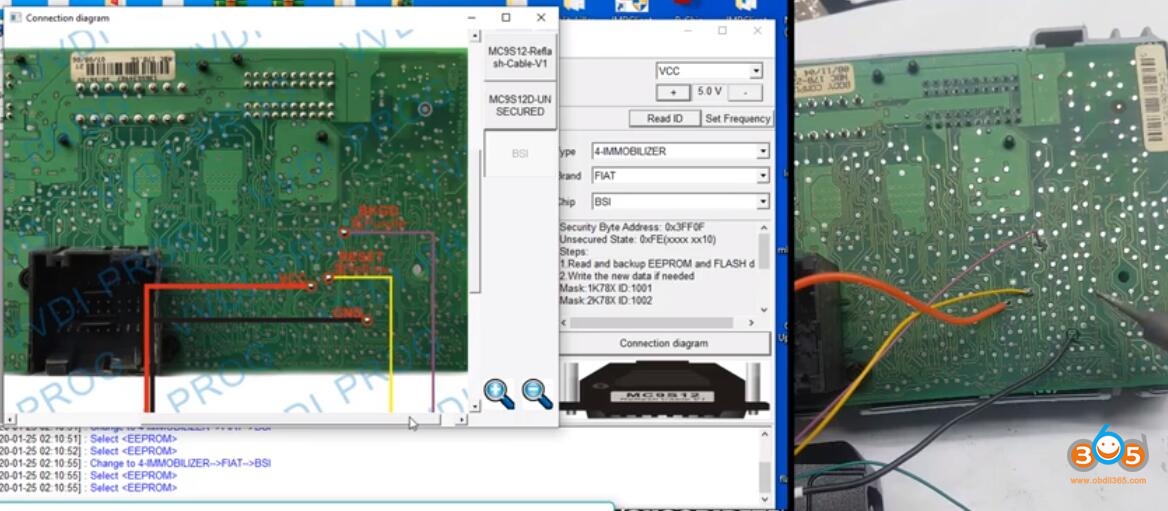

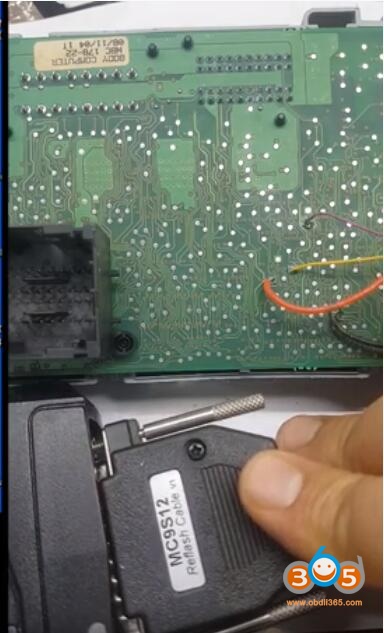

Follow wiring diagram to connect BSI module with vvdiprog mc9s12 adapter

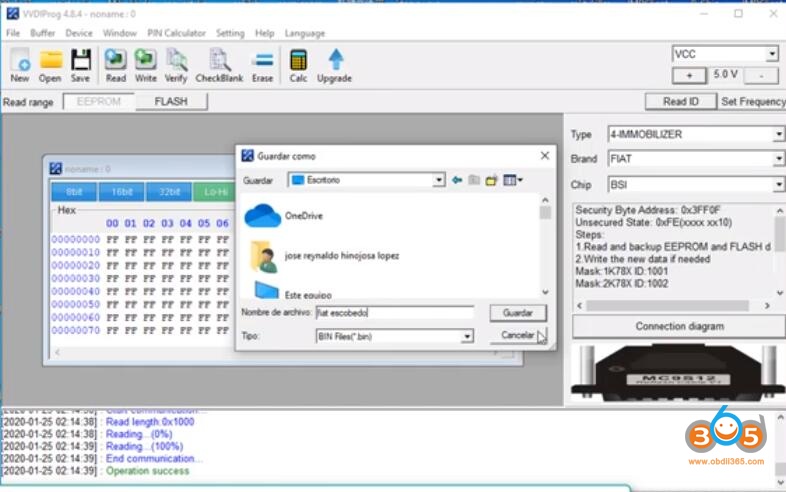

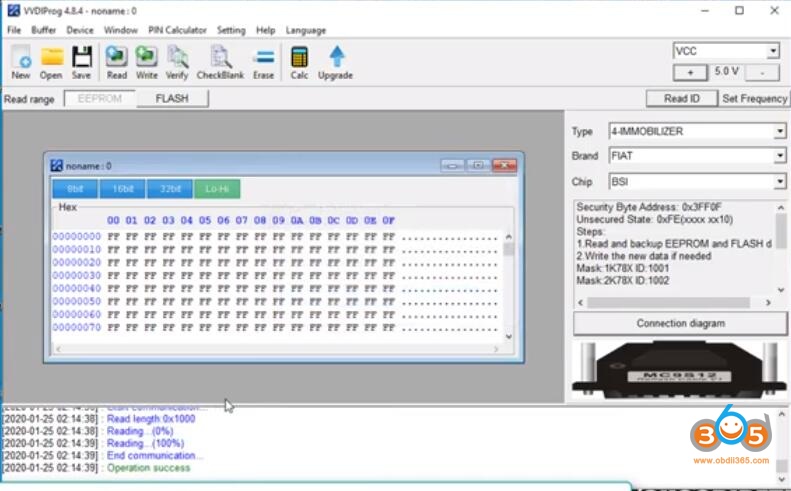

Read data and save dump
Write Key
Open Tango key programmer software

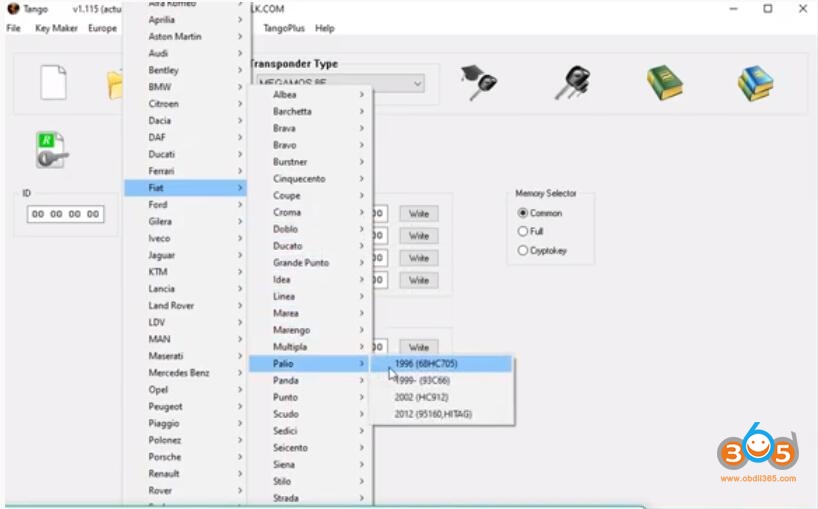

Select Car Model->Fiat->Palio 2002 HC912

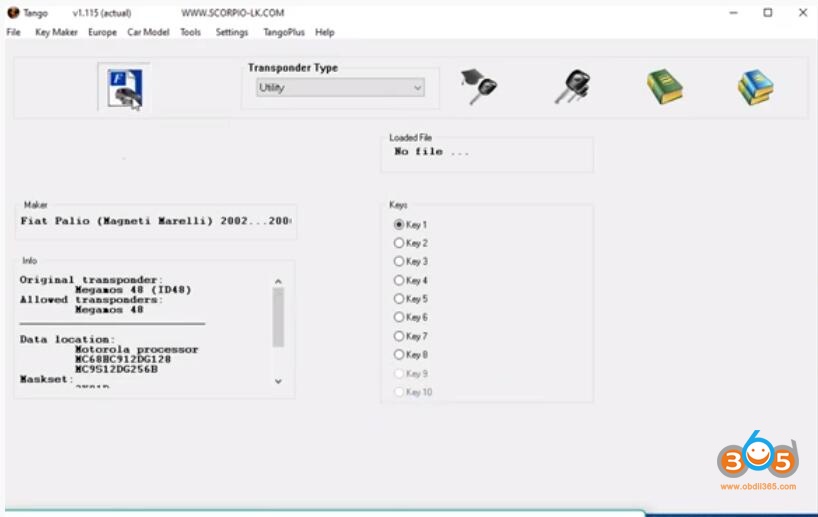

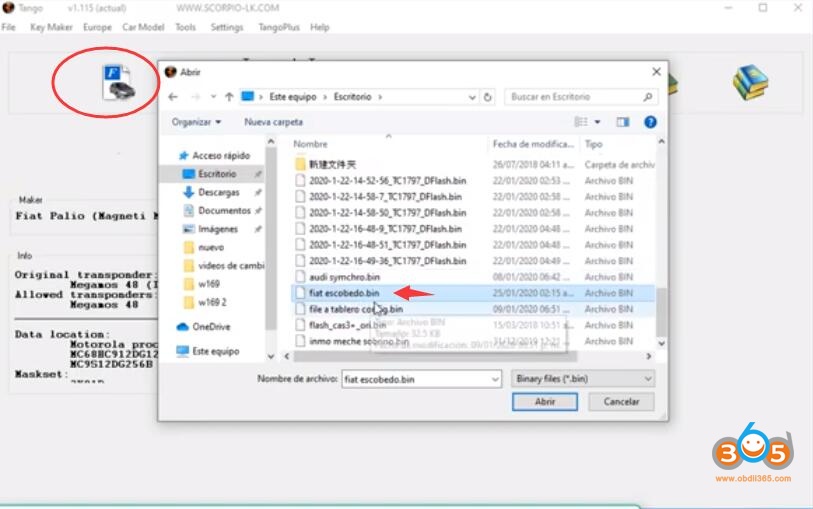

Upload dump file read by vvdi-prog

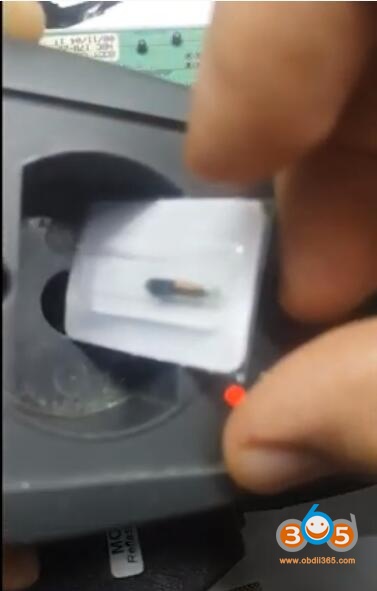

Place an ID48 transponder into Tango programmer

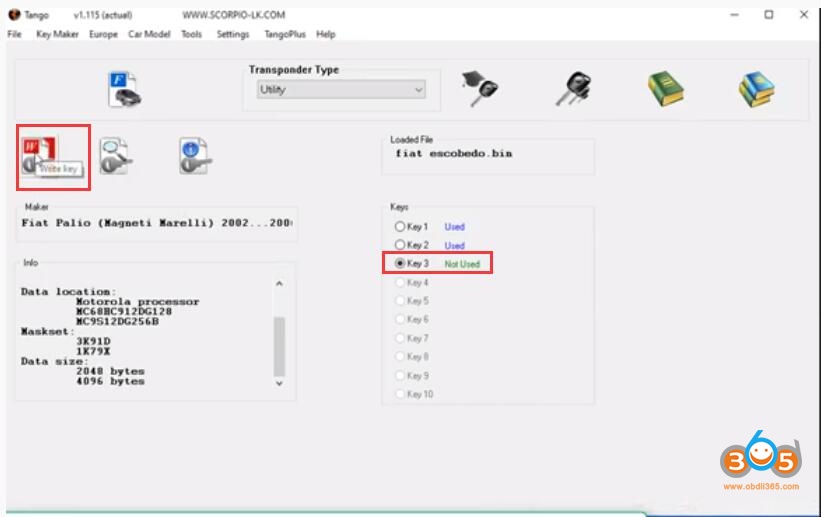

Choose a not used key position and Write key

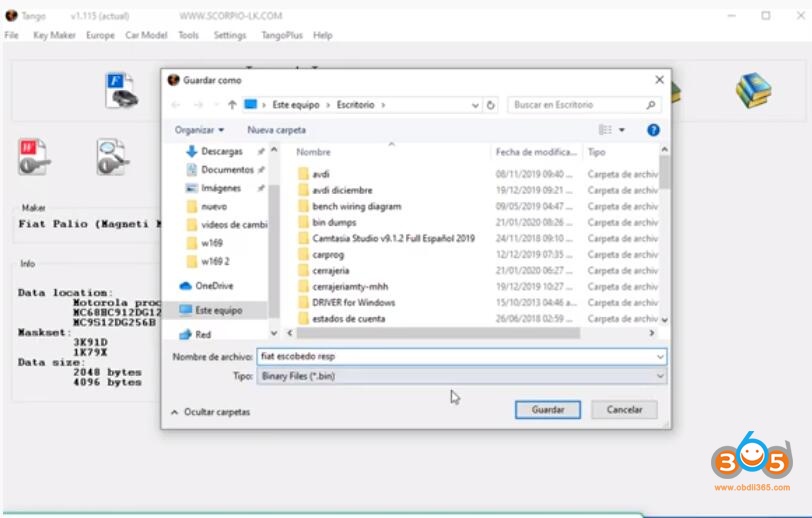

Save new key data
Upload the new file to the immobilizer memory to complete key matching.
Write back data

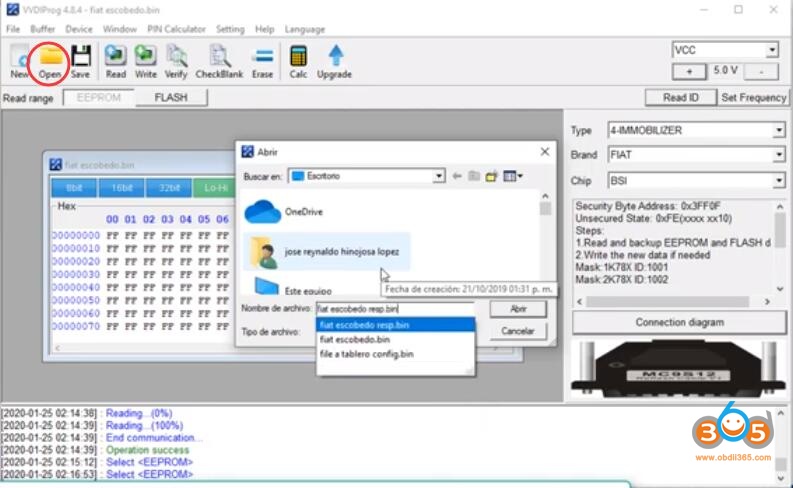

In VVDI Prog software, open new key data

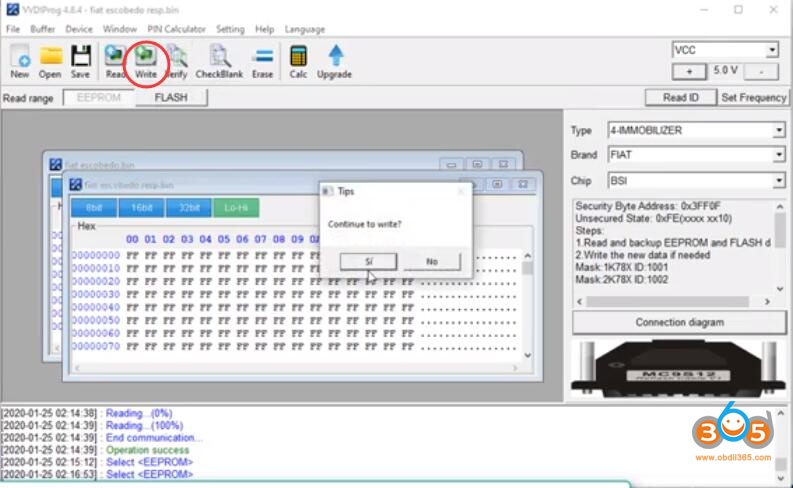

Press Write
Save dump data

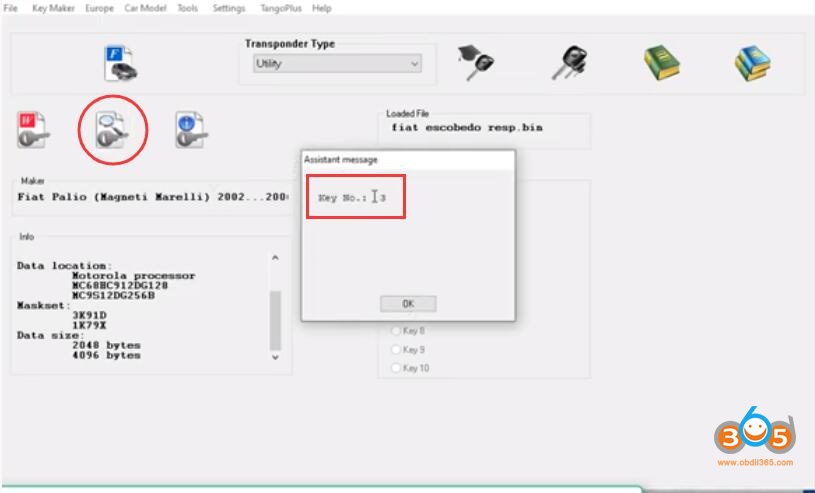

Upload dump data to Tango to check key is well programmed.
