How to Program Hyundai Grandeur Azera 2009 All Key Lost

Hyundai Grandeur Azera (tg) 2009 All Key Lost. Successfully made with vvdi remote. Successful remote program and key program with Lonsdor K518ISE. However, reading the pin code failed. Reading pincode with dongle.

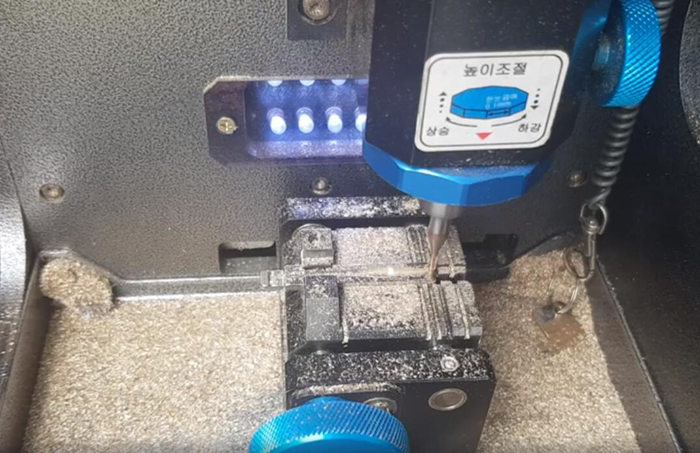

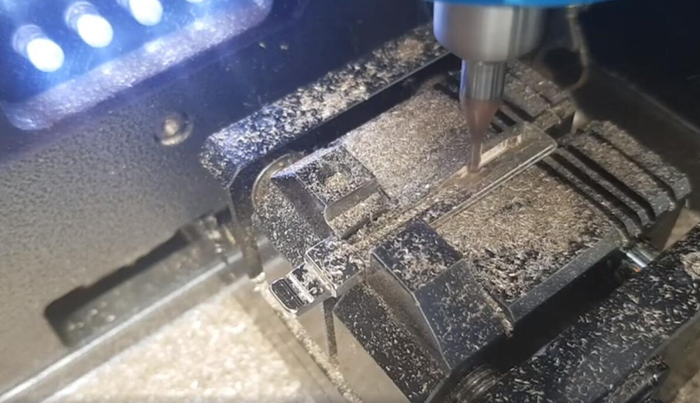

Step 1: Get key cut by key cutting machine.

It’s an old machine, it’s discontinued now. Miracle High. Now there are a50.a70 a90 etc. as Miracle series.


			How to Program Hyundai Grandeur Azera 2009 All Key Lost


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

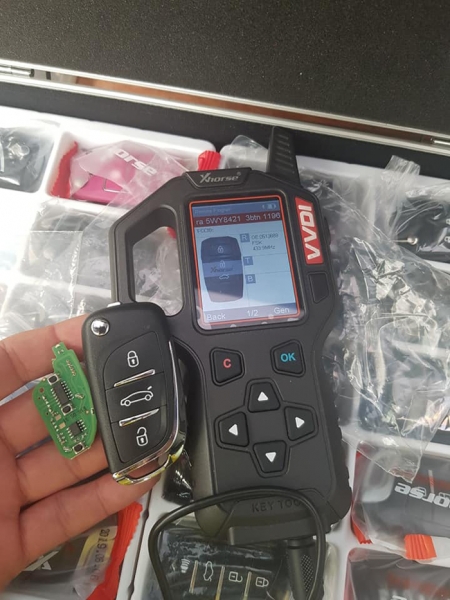

Step 2: generate vvdi remote with vvdi key tool


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

Step 3: Program key with Lonsdor K518

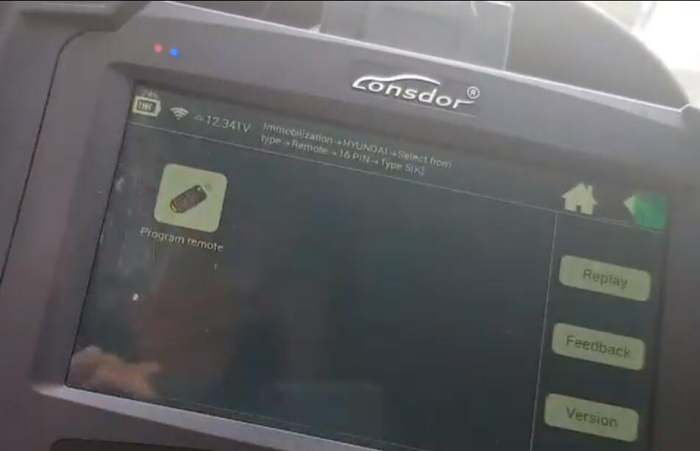

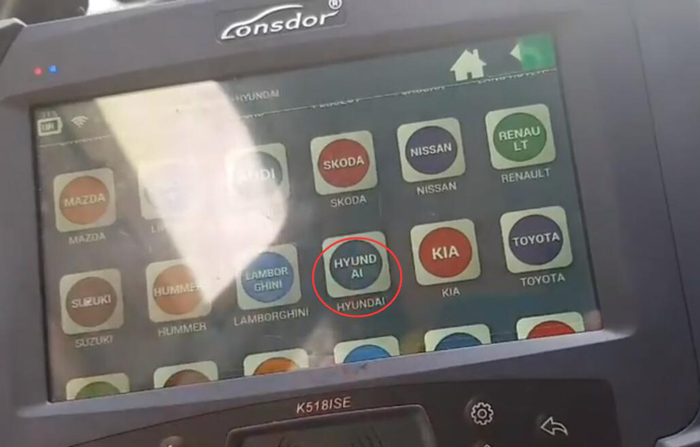

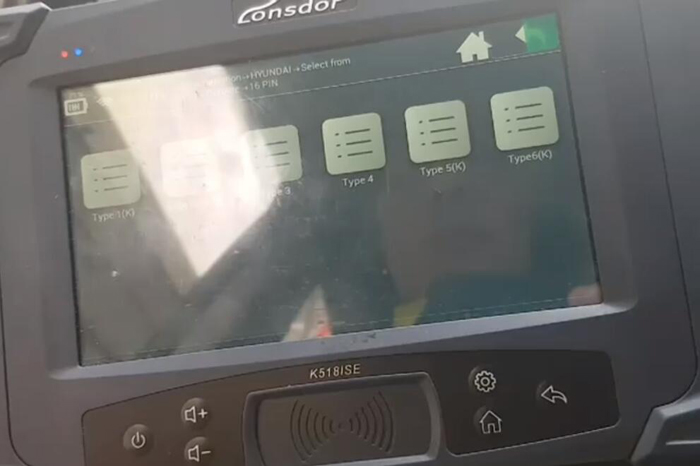

Select Immobilizer->Hyundai->Select from type->remote->16 PIN-> Type 5 (K)->Program remote

If not sure which type to choose from, try them one by one


			How to Program Hyundai Grandeur Azera 2009 All Key Lost


			How to Program Hyundai Grandeur Azera 2009 All Key Lost


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

Turn on switch ignition


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

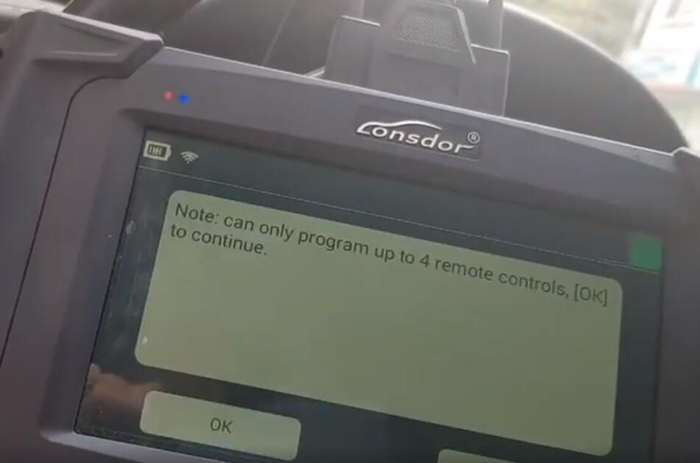

Lonsdor can only program up to 4 remotes


			How to Program Hyundai Grandeur Azera 2009 All Key Lost


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

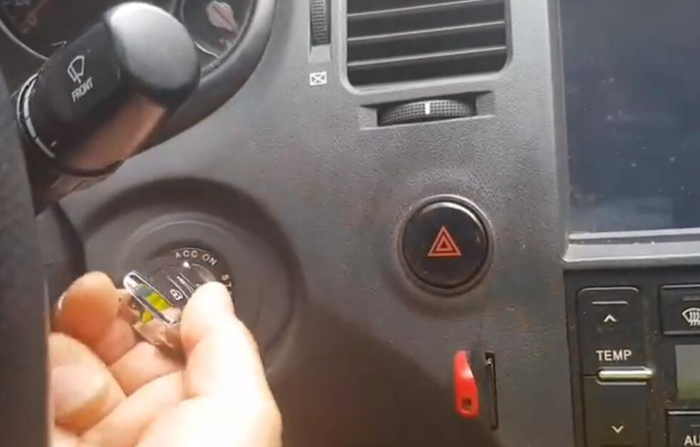

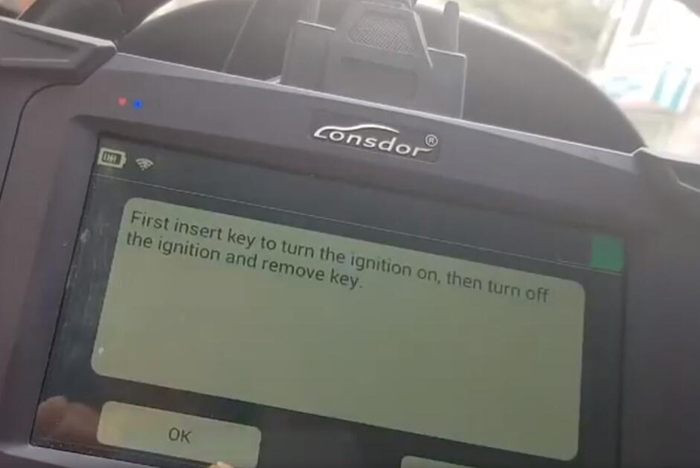

Insert key to turn ignition on, then turn off ignition and remove key


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

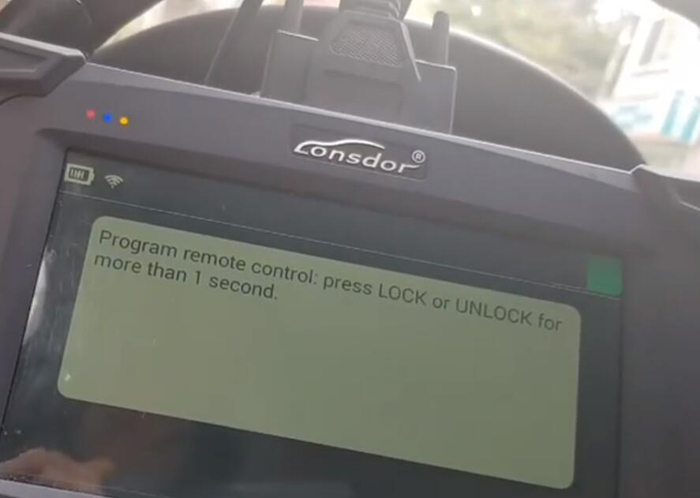

Program remote control: Press LOCK and UNLOCK from more than 1s


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

Program success.

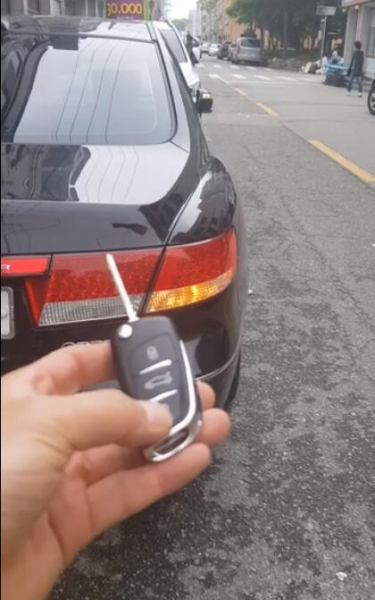

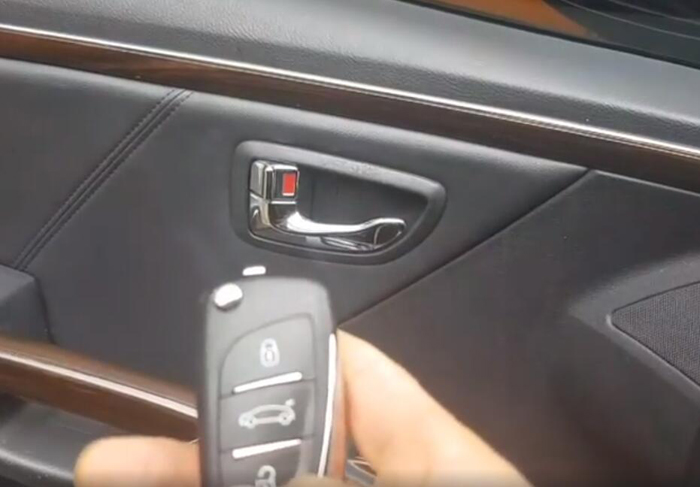

Test remote control


			How to Program Hyundai Grandeur Azera 2009 All Key Lost


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

Remote control works.

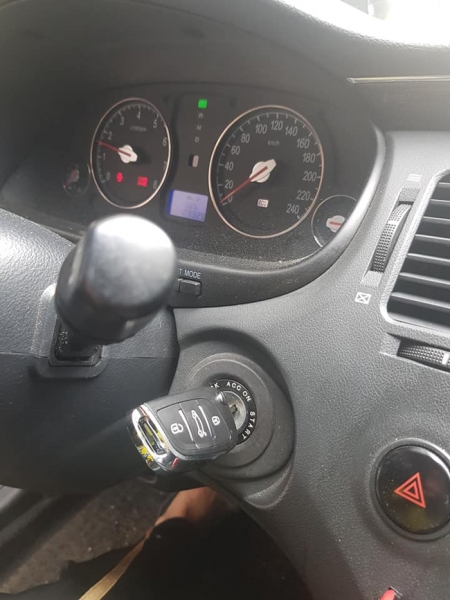

Test the new key and start engine.


			How to Program Hyundai Grandeur Azera 2009 All Key Lost

Done.
