Program Land rover 2015-2018 Smart Key with Xtool X100 PAD2 via OBD

Xtool tablets released new upgrade adding 2015-2018 Jaguar/Land Rover all smart keys lost/add key via OBD bypass PIN code in July 2021. Here is a demo guide on adding a spare smart key with xtool x100 pad2. All keys lost is similar to add key procedure. Same update goes to x100 pad3, a80 h6 pro etc.

1 Generate smart key

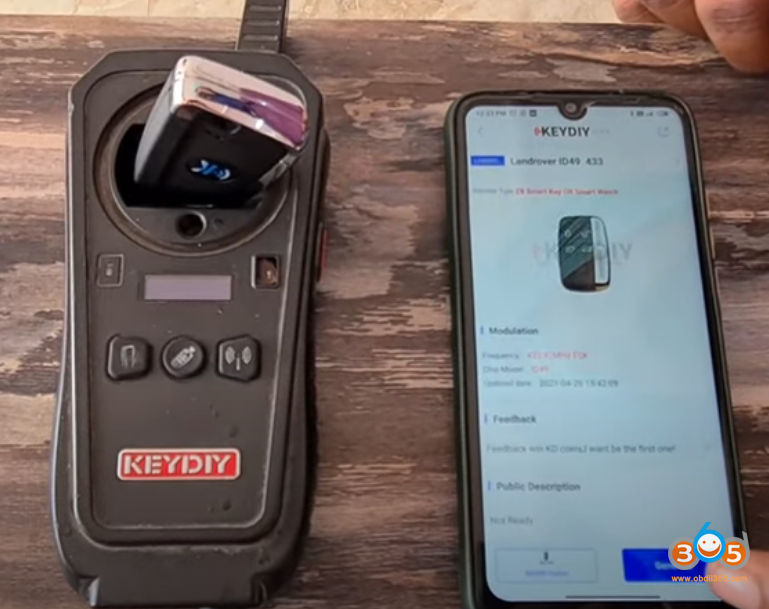

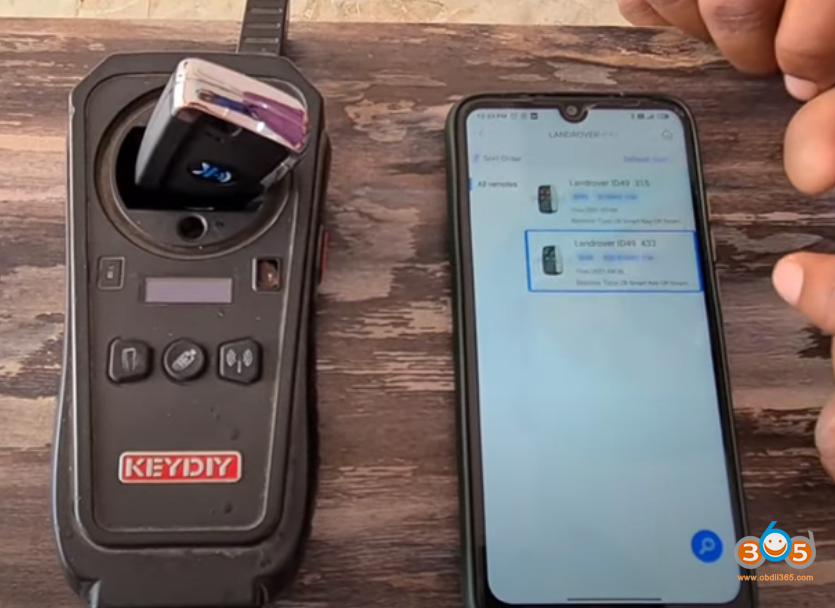

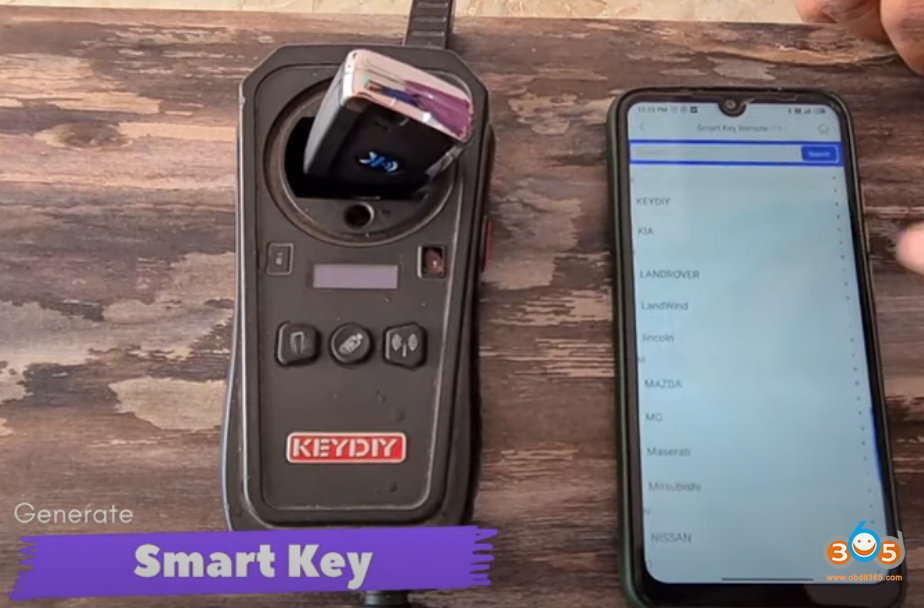

generate smart remote with keydiy remote and kd-x2 remote maker
Select Land rover – Landrover ID49 433MHz – Generate

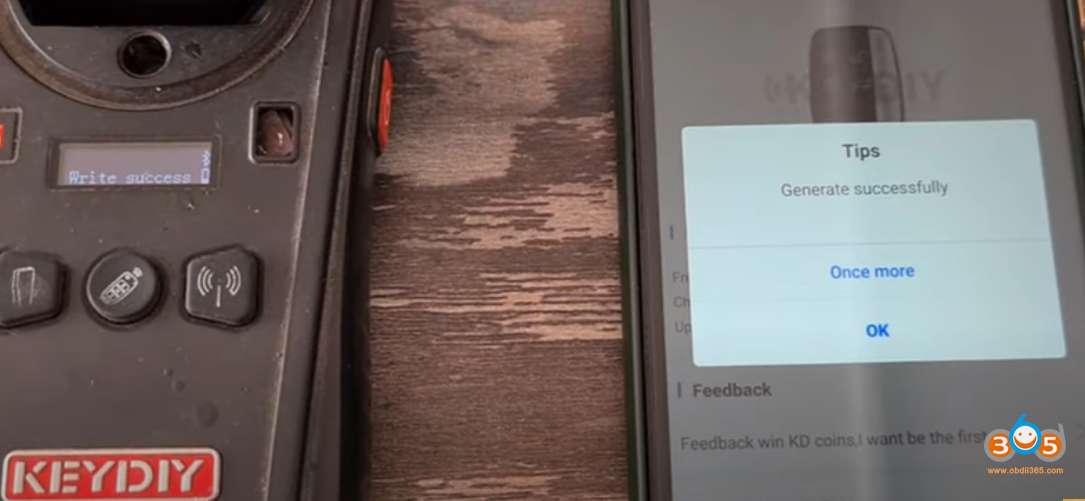

Generate remote successfully

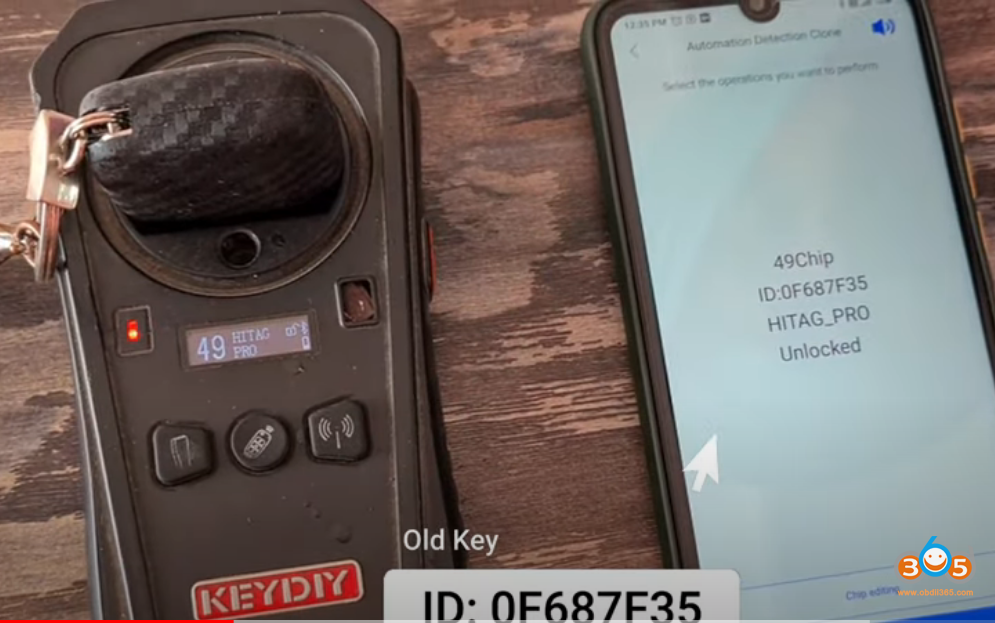

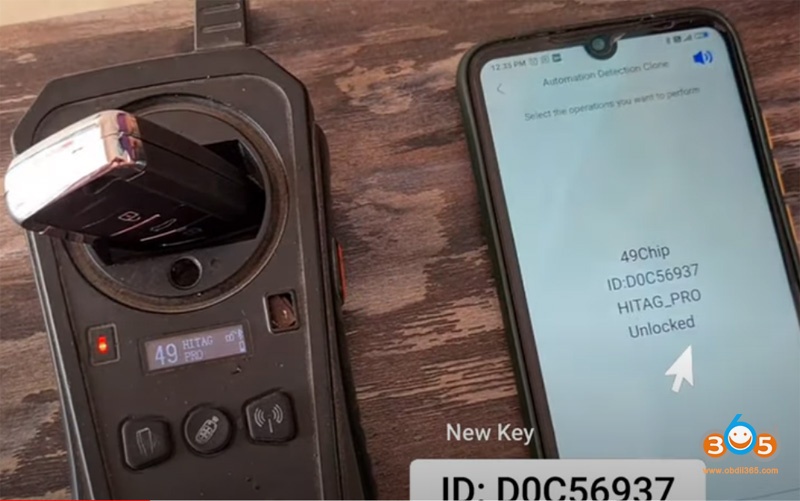

Test both keys to read ID

2.Program key with xtool x100 pad 2

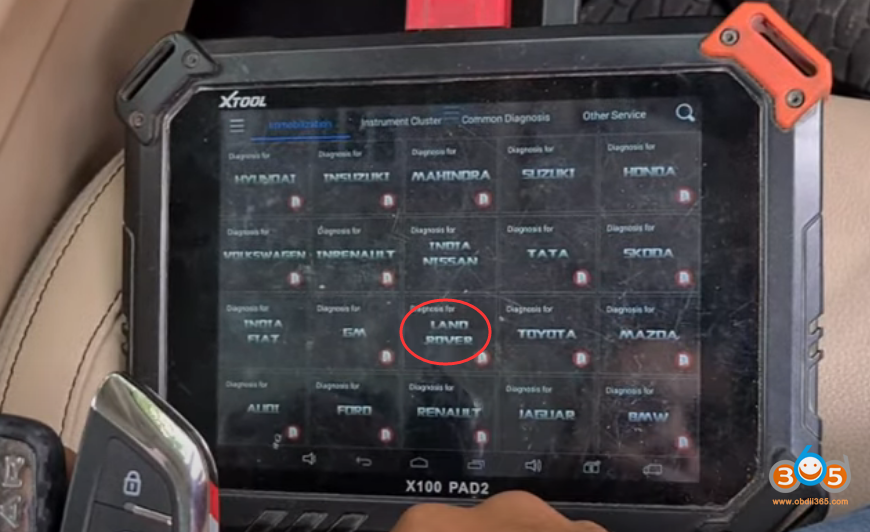

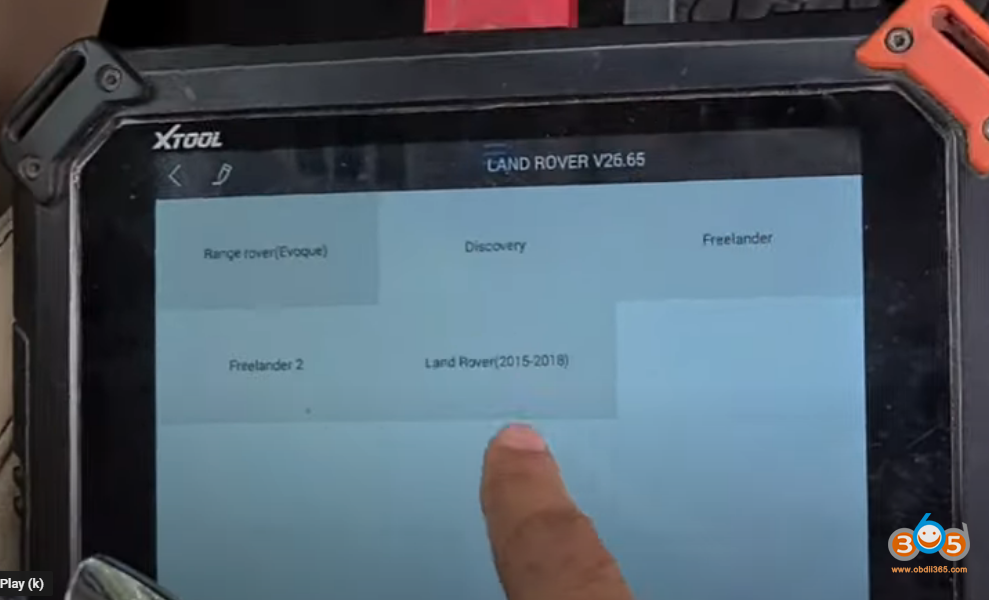

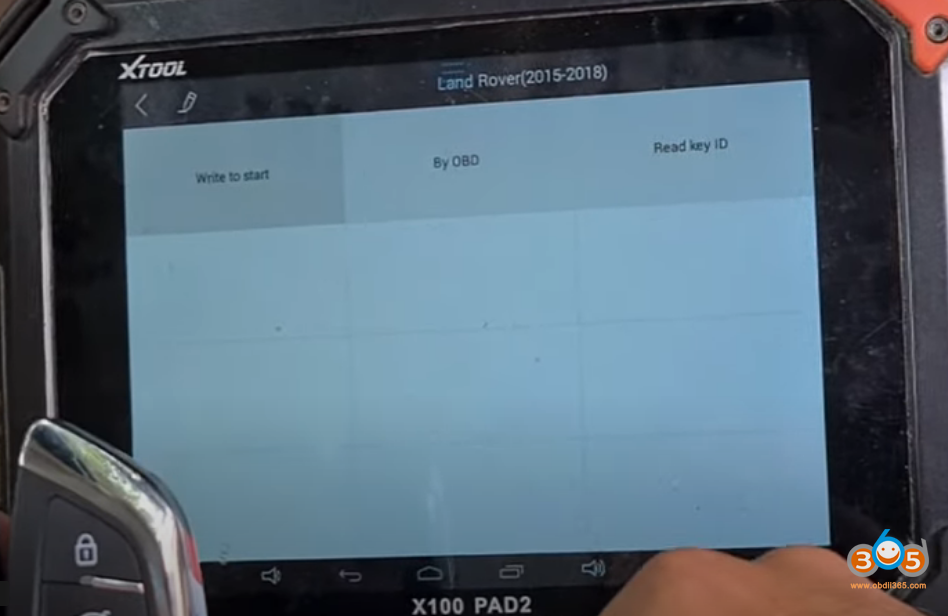

Select Land rover in x100pad2, Land rover 2015-2018 – Read key ID

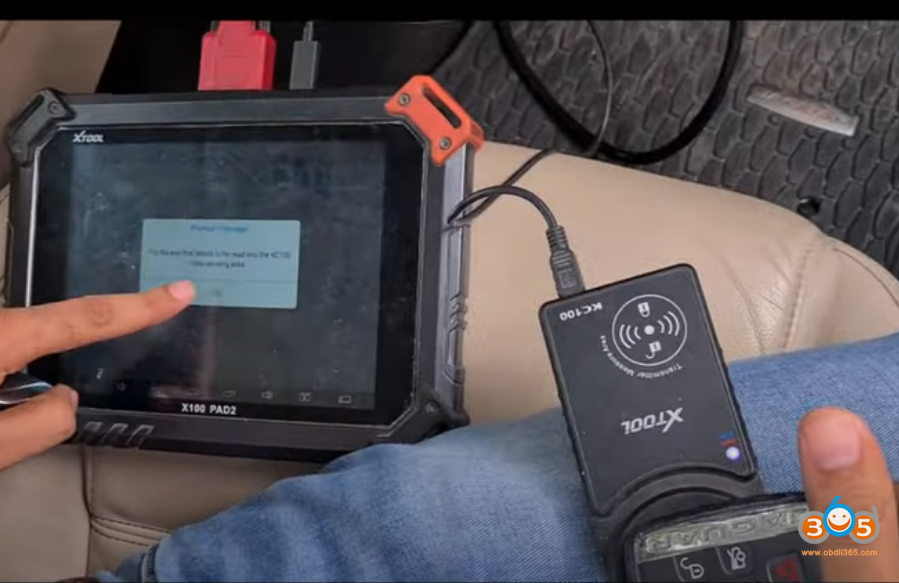

Put the key to be read into the KC100 adapter
Select add key By OBD

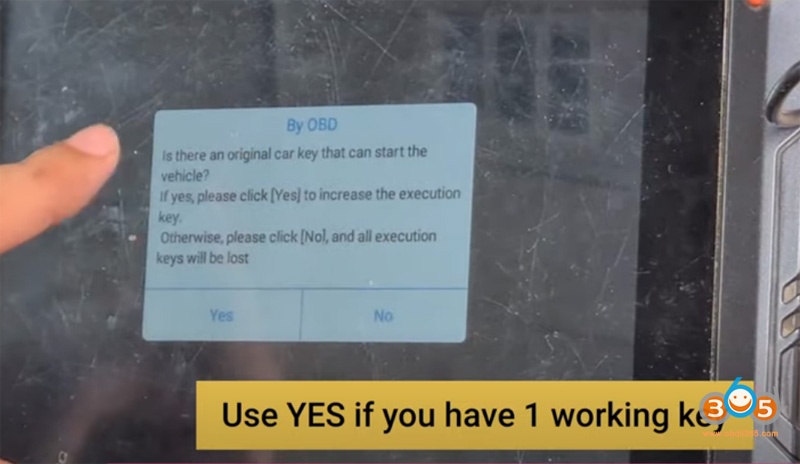

Select Yes if you have 1 working key
To perform add key function, 1). you must have an unlocked original car key 2). only supports the sub-factory key whose ID can be changed or the key generated by the salve machine

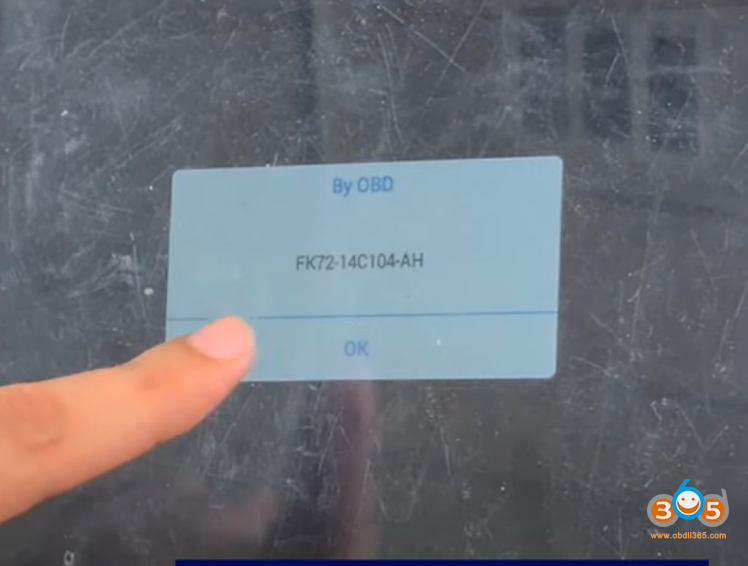

Delect vehicle KVM type FK72
Put original key in KC100

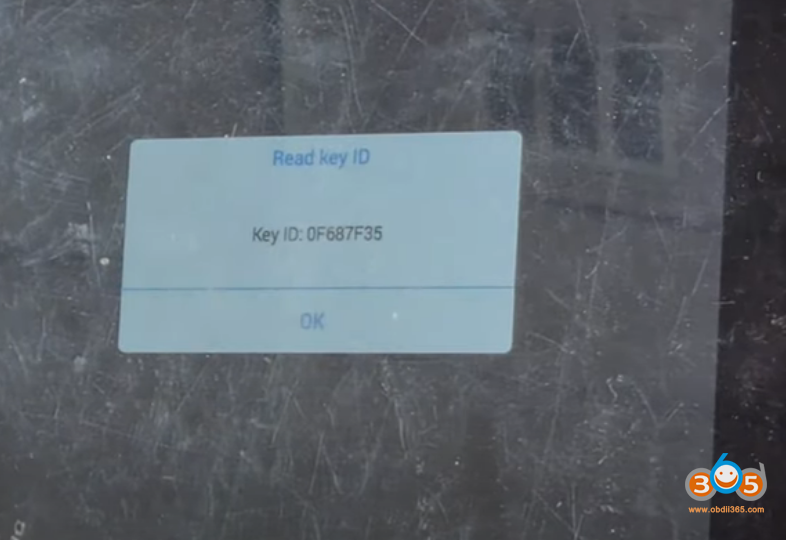

Read key ID from original key

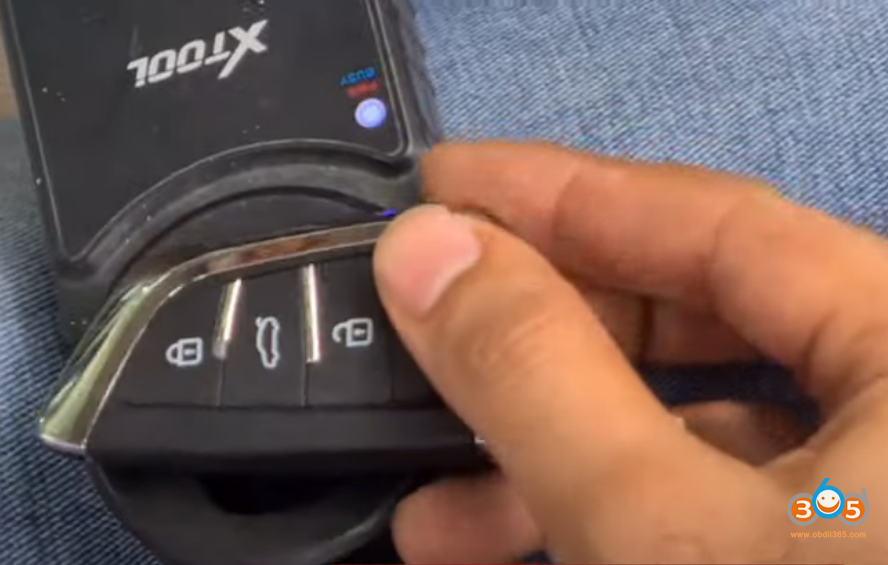

Then put new key into KC100

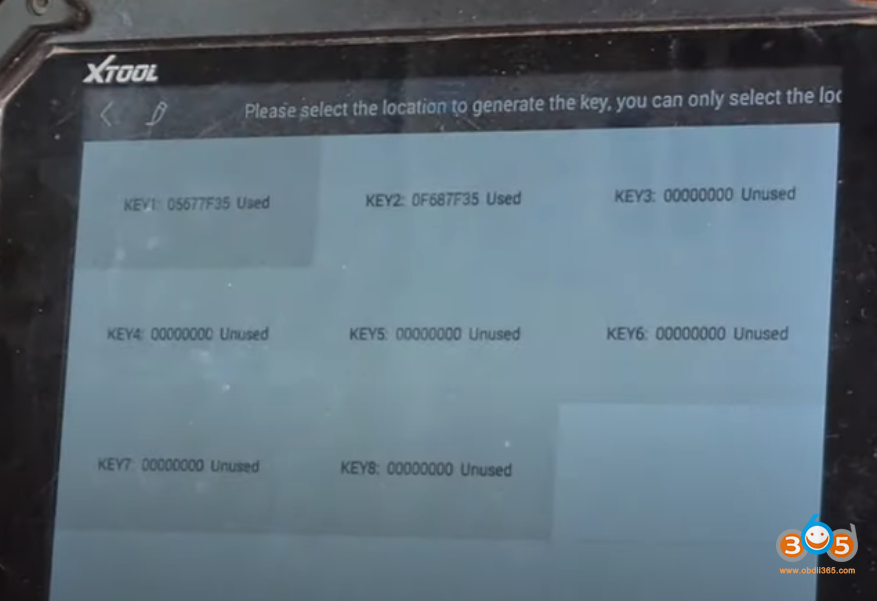

original key is stored at this position key ID:0F687F35

we will use this position (ID:05677f35) to store new key as the key is lost and no longer available
select this key position

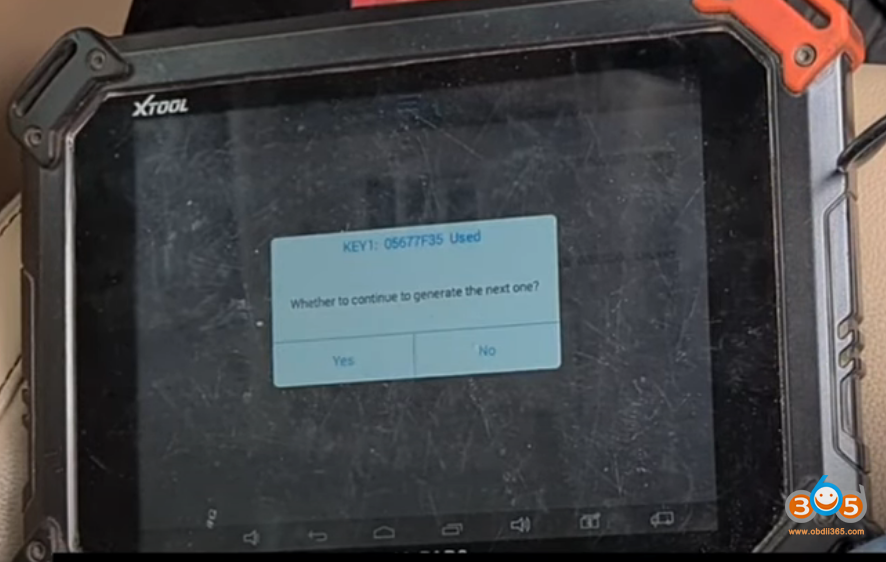

Select No if we don’t want to add any other key

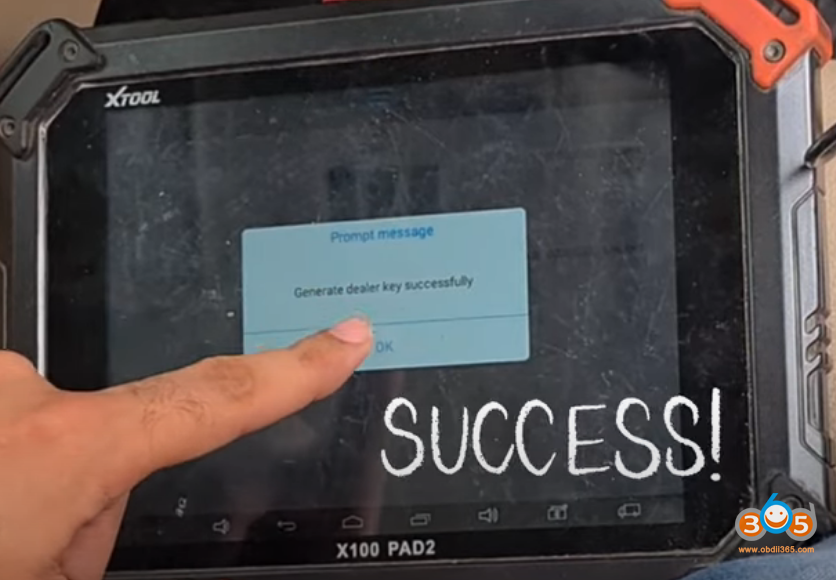

program success

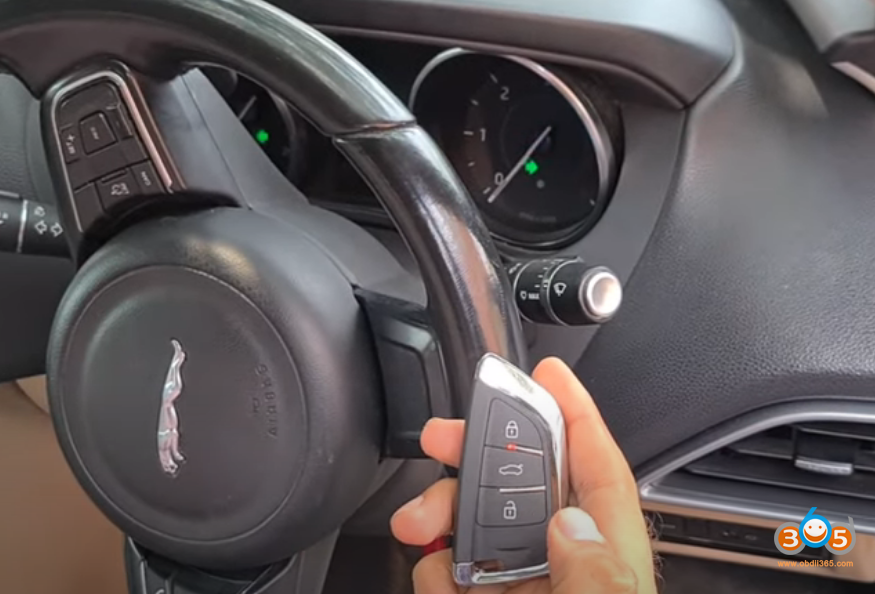

test both keys, remote all working, both can start car.
Done.
