Where to Buy Autel APB130 Adapter for MQB NEC35XX?
Autel MaxiIM IM508 and IM608 series recently released VAG MQB NEC35XX locked immo data reading. The function requires XP400 Pro and APB130 adapter.
The APB130 adap
Compatible with Autel IM508S, IM608 PRO II (IM608 II) IM508, IM608 PRO with XP400 Pro.
Update Information and MQB car, cluster and chip type, check the previous post:
Procedure:
(Images may not clear, never mind, will update later)

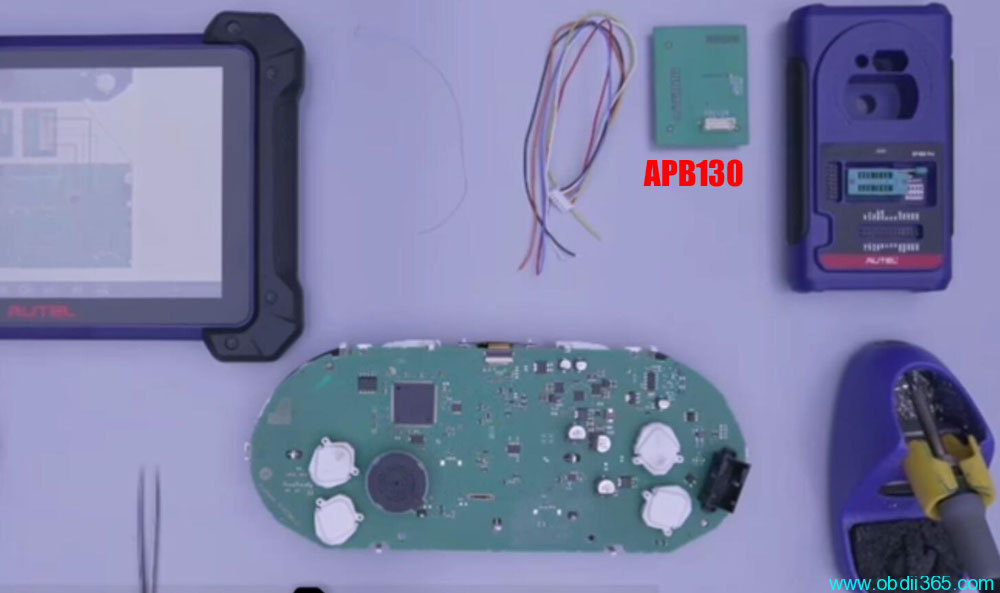

Prepare IM508/IM508, XP400 PRO, APB130 adapter, remove and disassemble MQB cluster

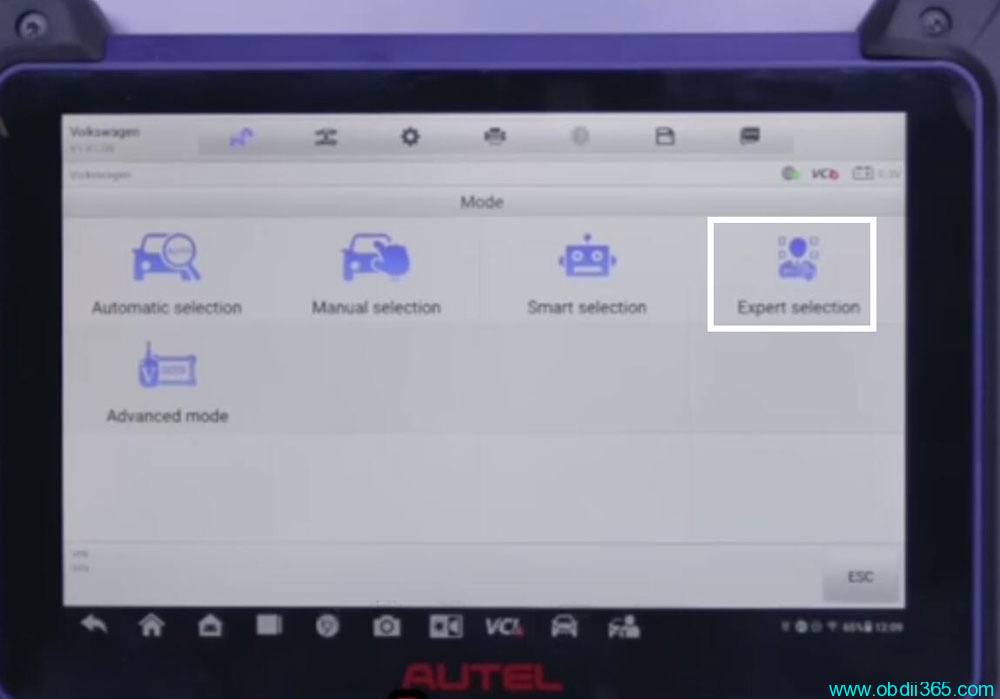

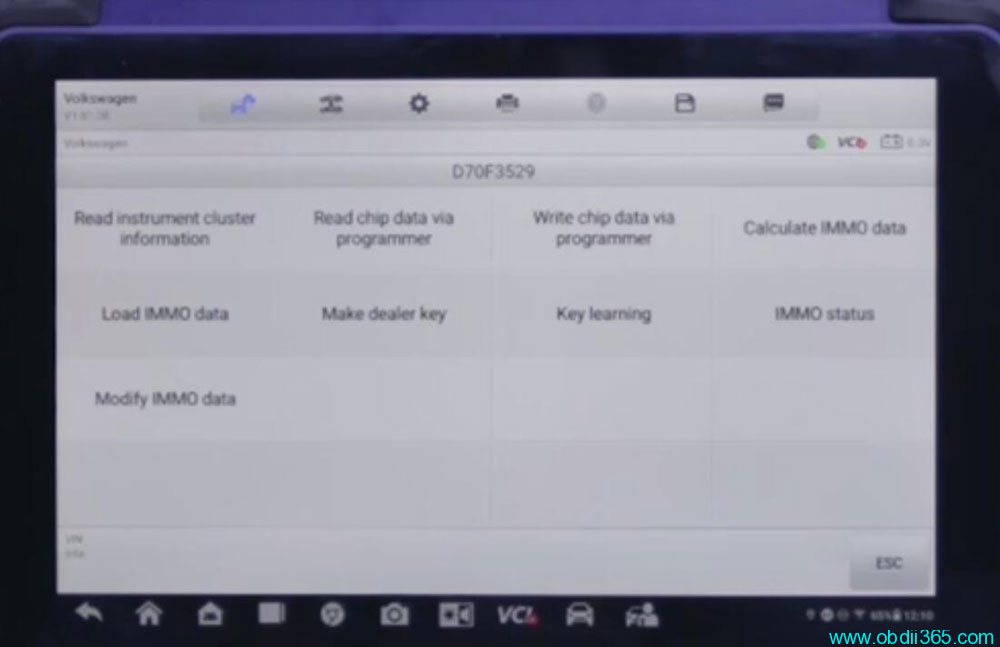

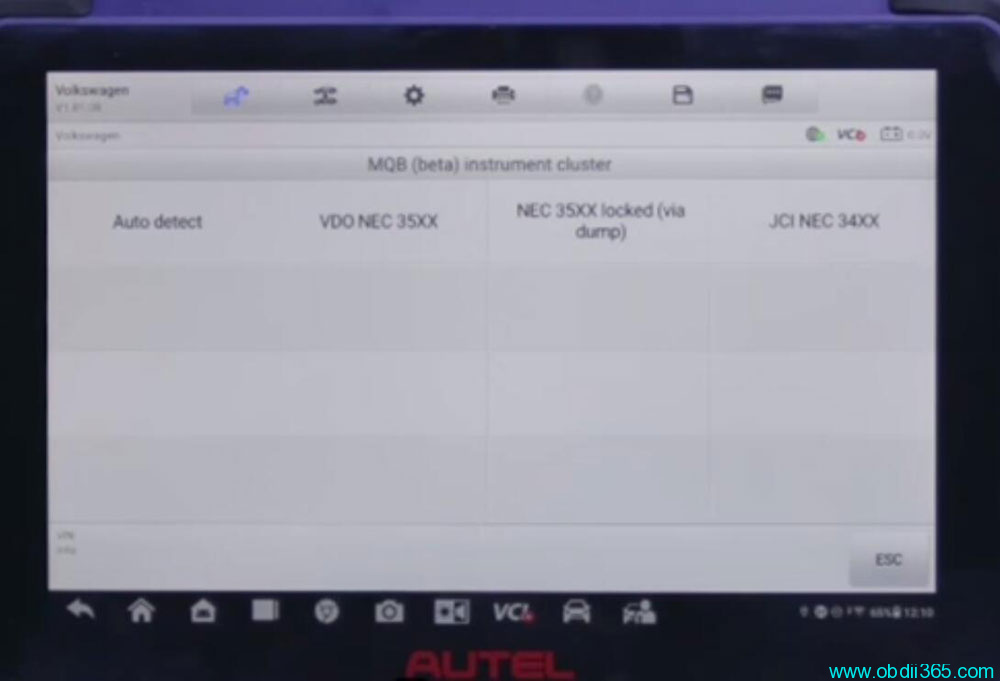

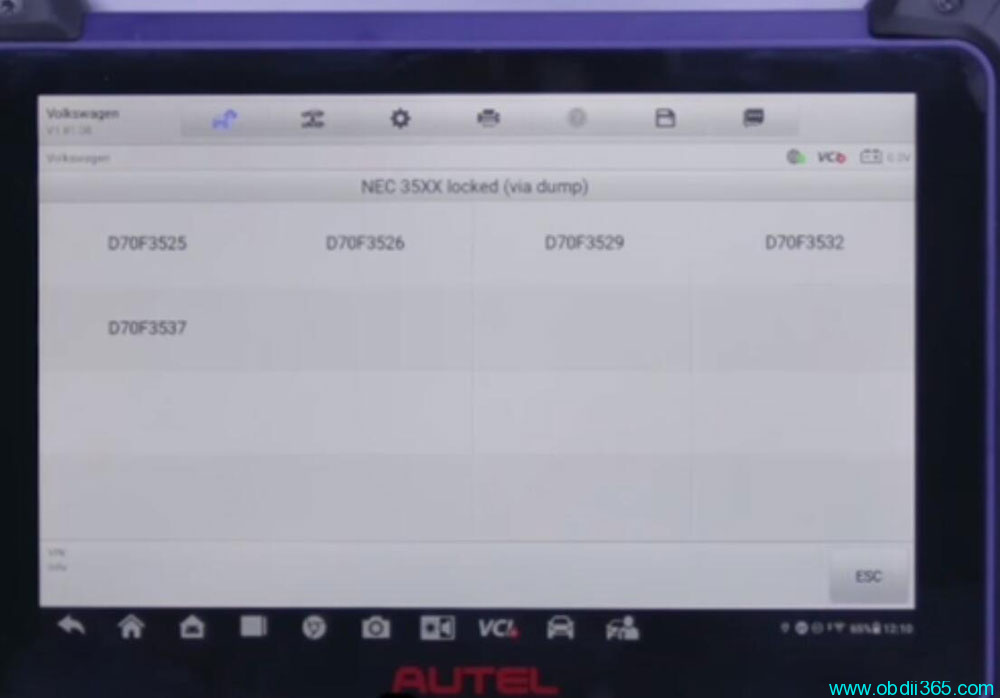

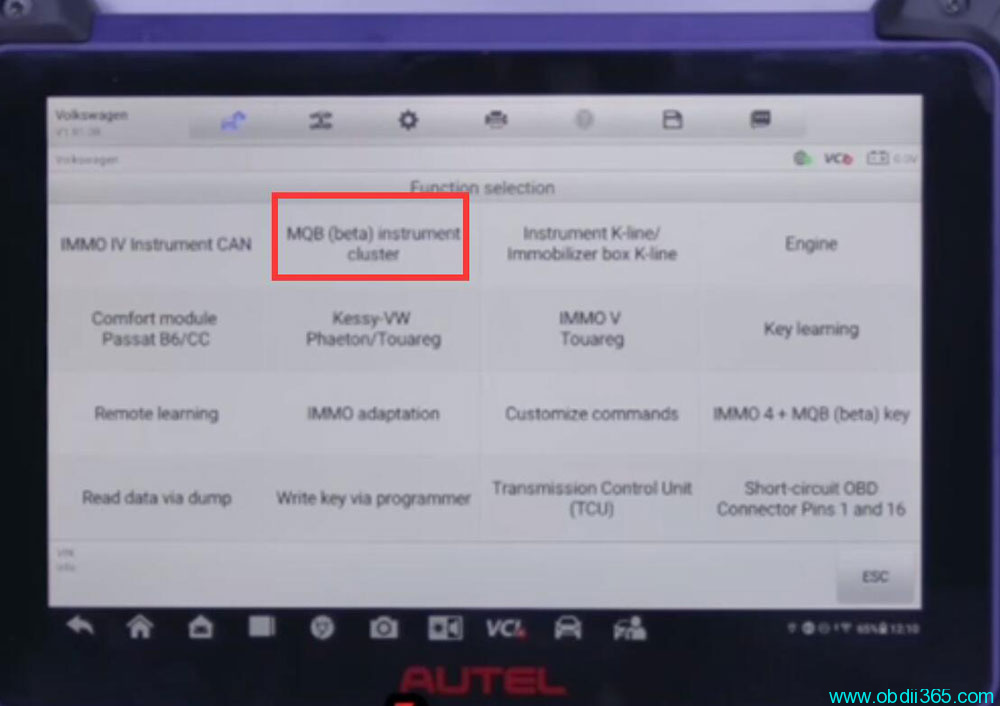

Select VW-> Expert selection->NEC35XX locked (via dump)->chip type, i.e D70F3526-> Read chip data via programmer

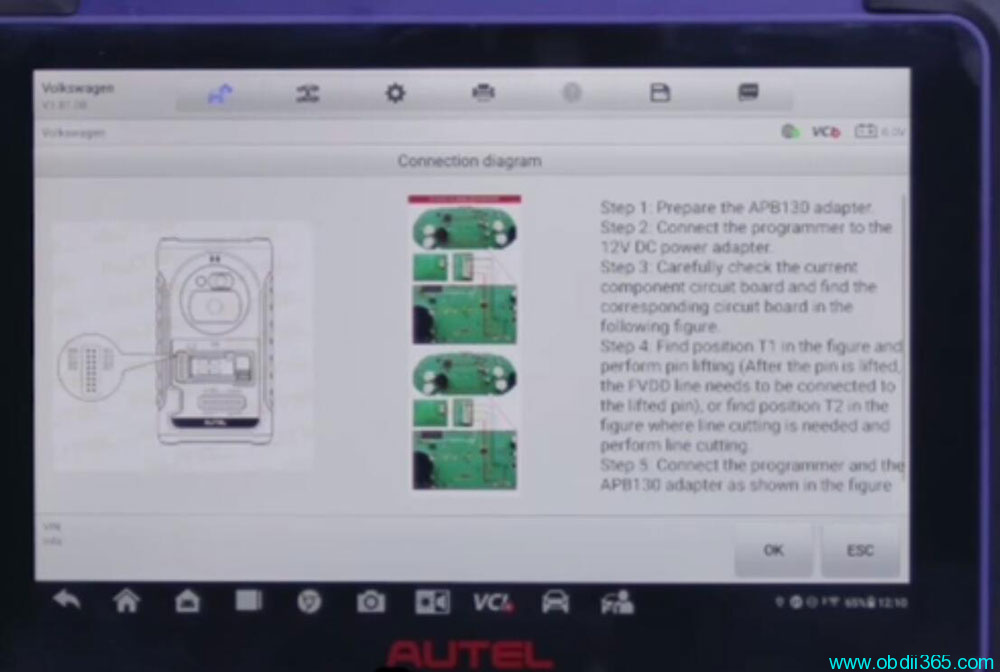

IM608 will show you wiring diagram and instructions

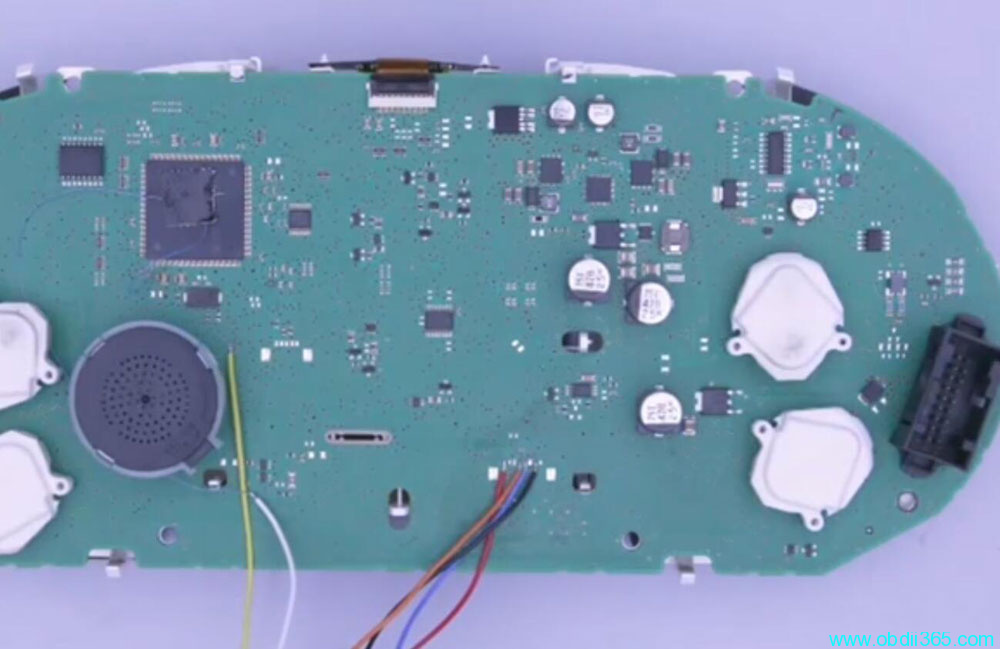

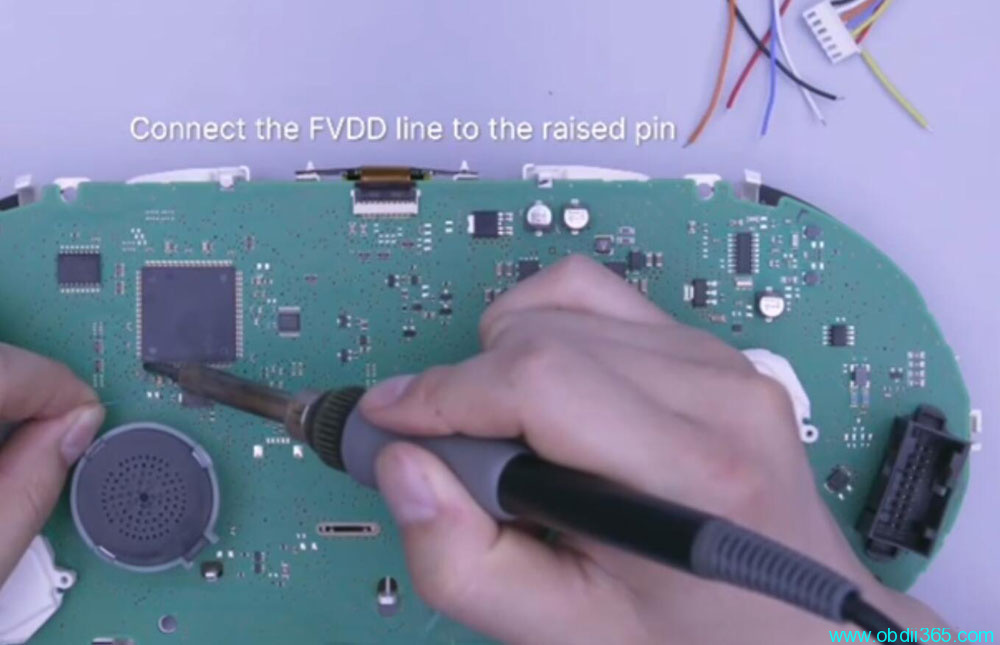

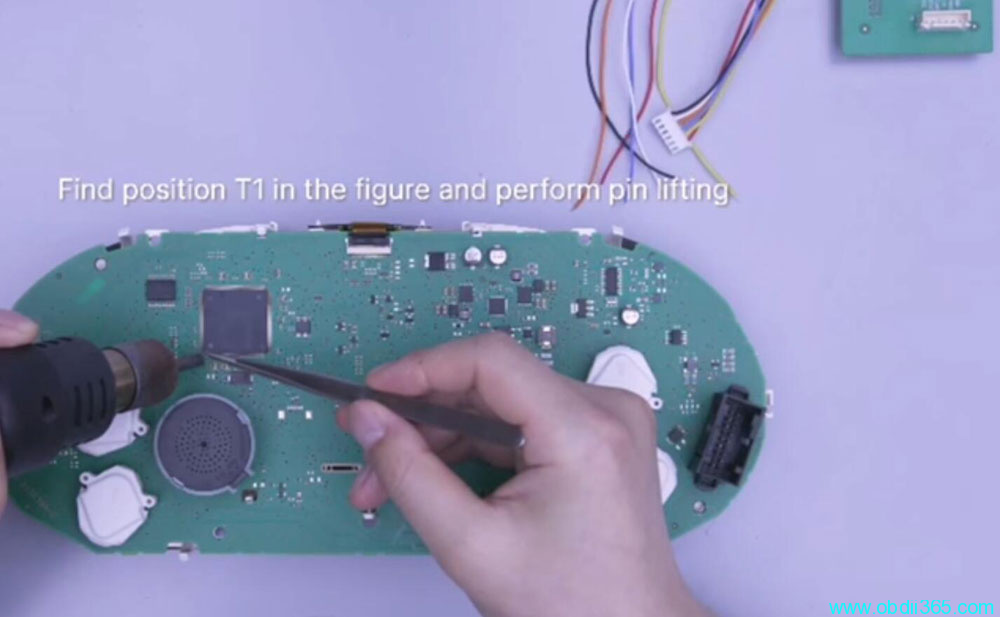

Follow wiring diagram to solder mqb cluster (lift pin method here)

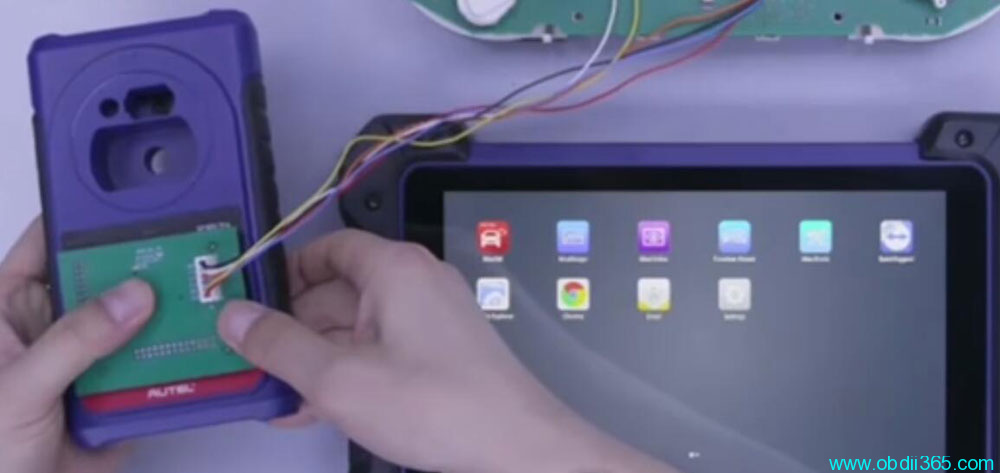

Connect apb130 adapter with xp400 pro, connect xp400 pro with im608 via USB cable

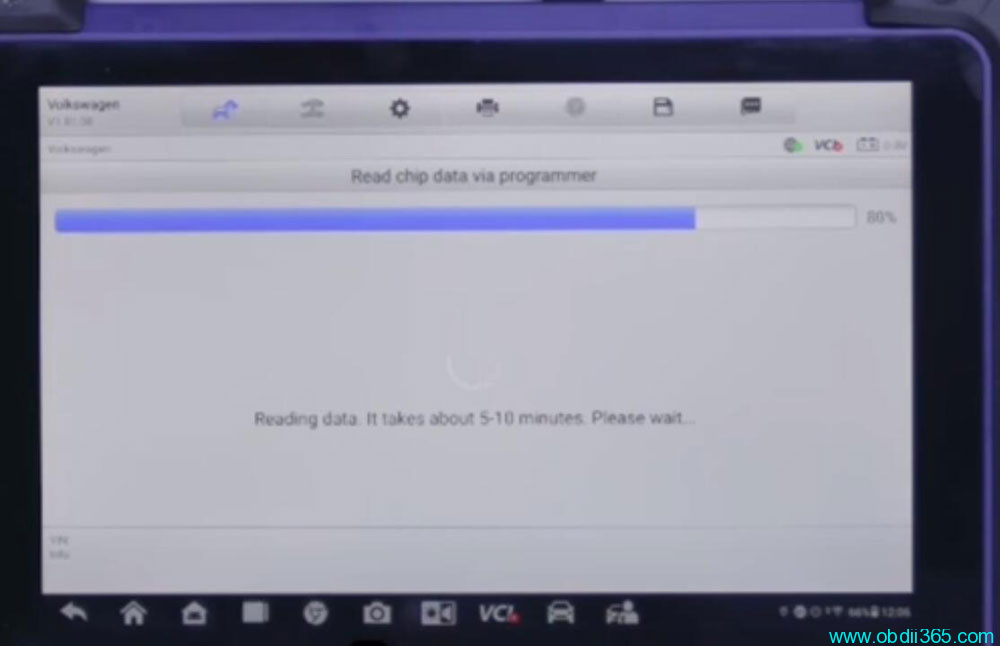

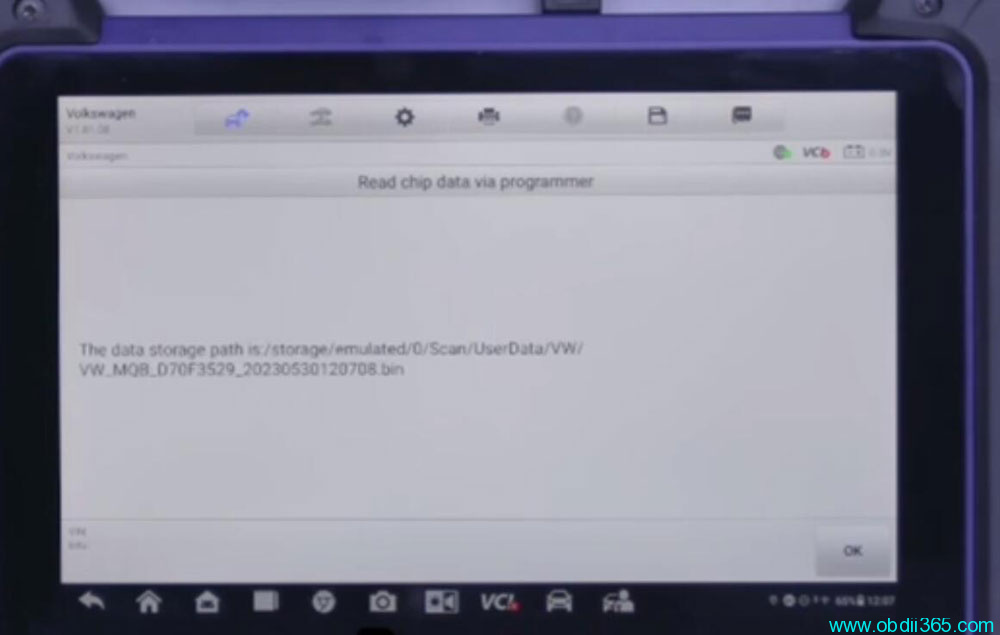

Read chip data (takes 5-10 minutes) and save

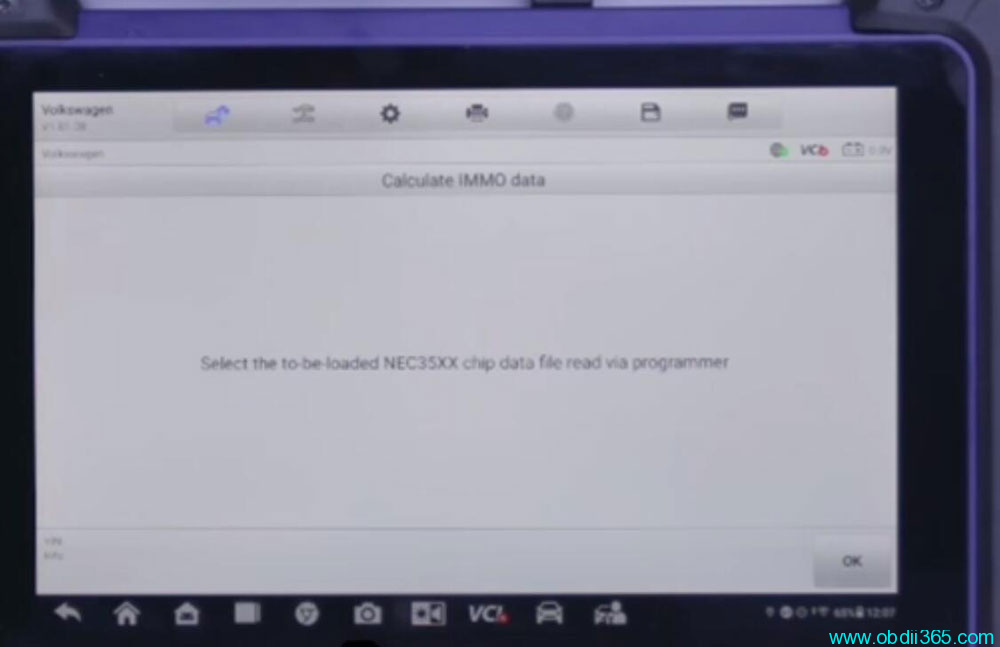

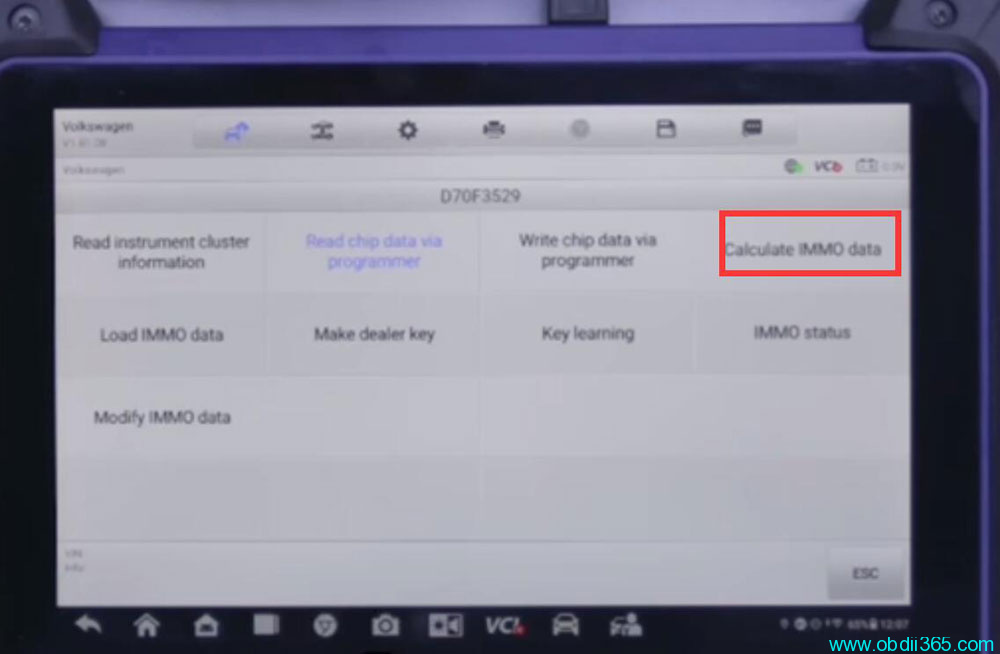

Then Calculate immo data
Upload immo data just saved

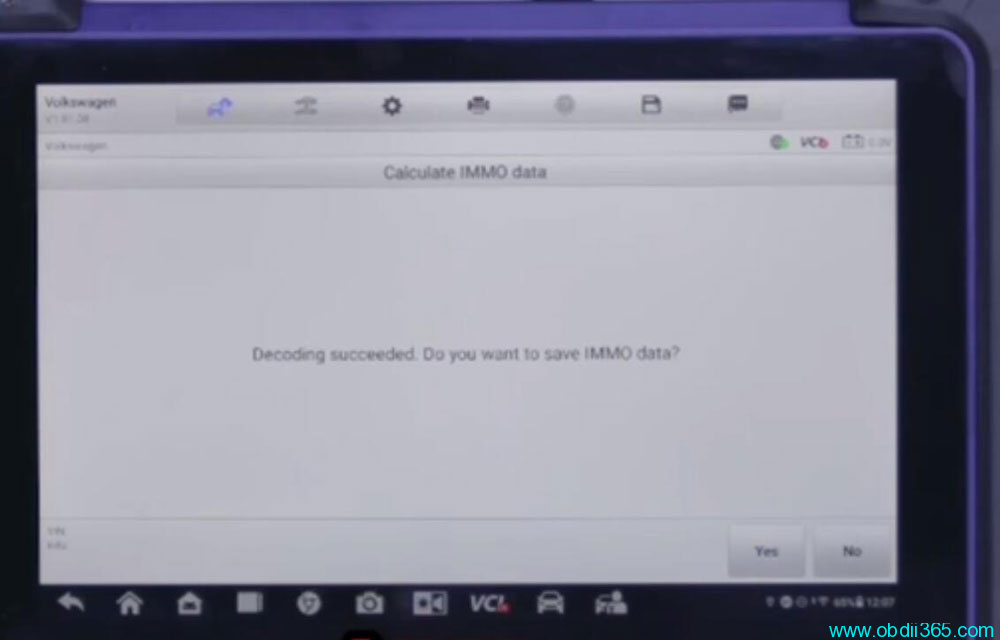

Decode immo data

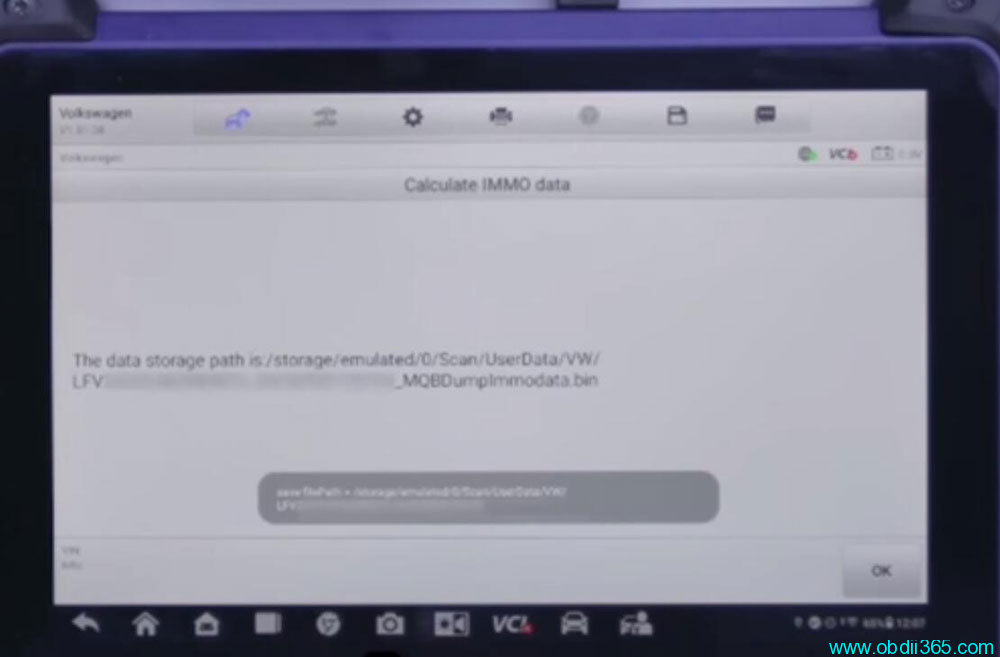

Save new immo data

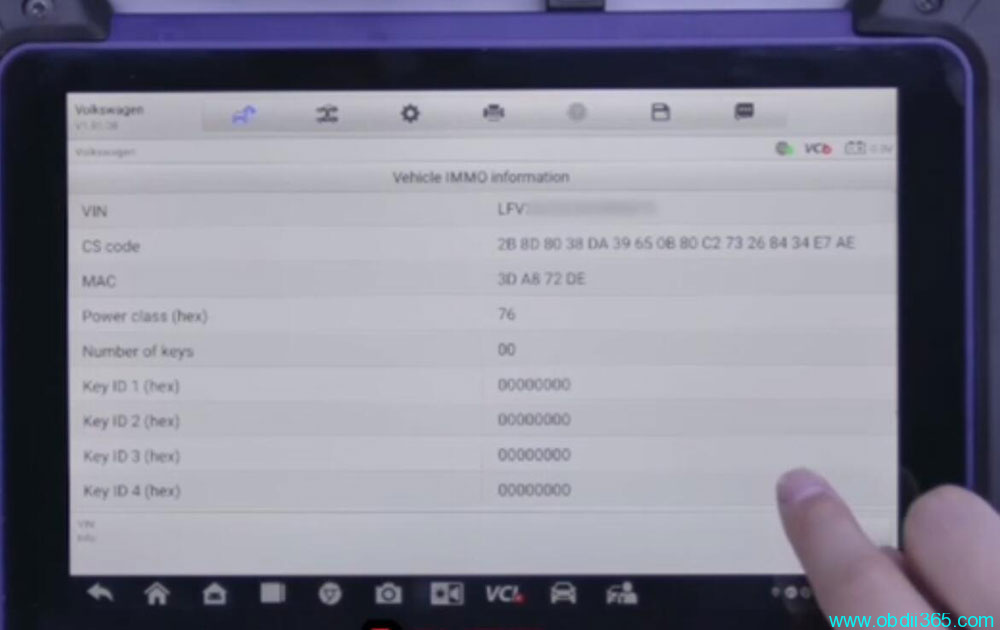

Now you will get CS, PIN, Mac etc. Then you can make dealer key and learn key with the immo data.
