How to Program Toyota Avalon 2014 All Smart Keys Lost via OBD
Test report: I’ve successfully programmed TMS37200 smart key on a Toyota Avalon 2014 Middle East model under all keys lost situation via OBD.
Main Procedure:
Step 1: Backup EEPROM with Lonsdor K518ISE
Step 2: Write key with Tango & SLK-03 emulator
Step 3: Add/register smart key with Lonsdor K518
(If you don’t have Tango, you can program smart key with K518 and Lonsdor SKE-IT Smart Key Emulator as well)
How to:
Step 1: Backup EERPOM

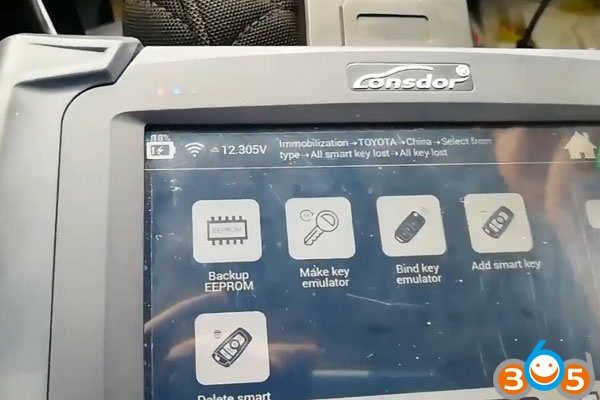

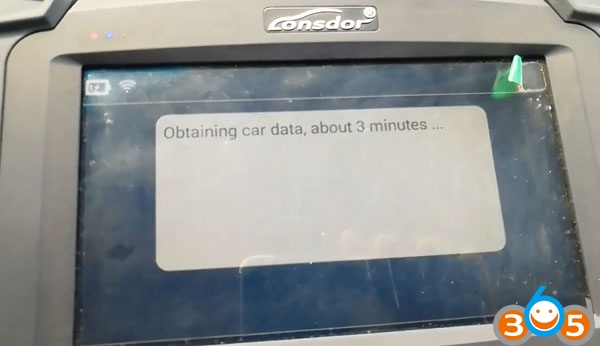

in Lonsdor k518, Select Immobilizer->Toyota->China->Select from type->All smart key lost->All key lost->Backup EEPROM

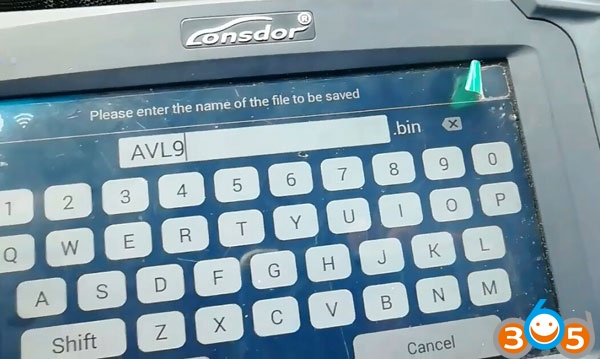

Save eeprom to bin file, i.e AVL9.bin

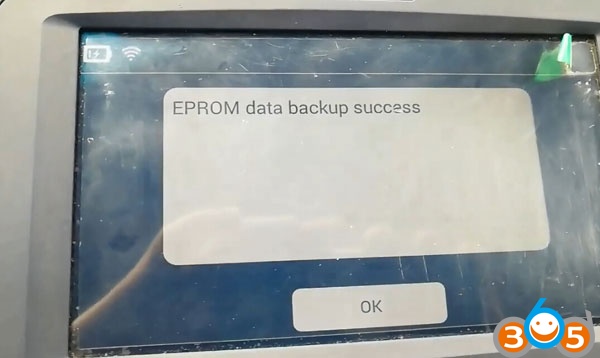

EEPROM data backup success

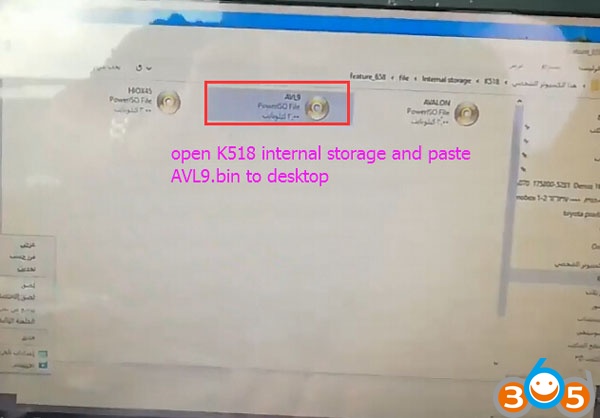

Open K518 internal storage folder, copy and paste AVL9.bin to desktop
Step 2: Write key
Connect Tango transponder key programmer with laptop
Open Tango software, select car make and model

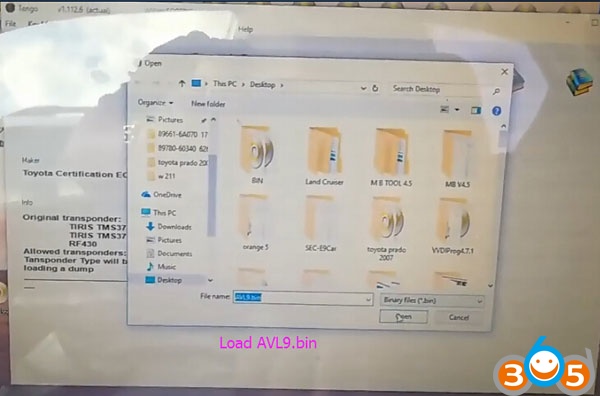

Upload eeprom data read by k518 from desktop
Detect transponder information, 4 keys programmed
Insert a SLK-03 emulator key into Tango, press Write Key
Select SLK-03 transponder
Writing key
Put the emulator key close to vehicle Start button
Write key success
Step 3: Add smart key

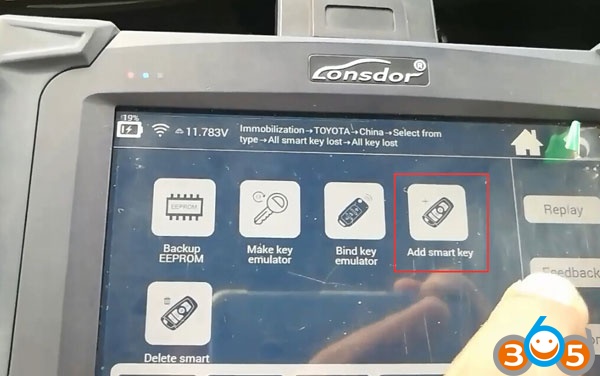

In Lonsdor K518 Toyota all smart keys lost menu, select Add Smart Key

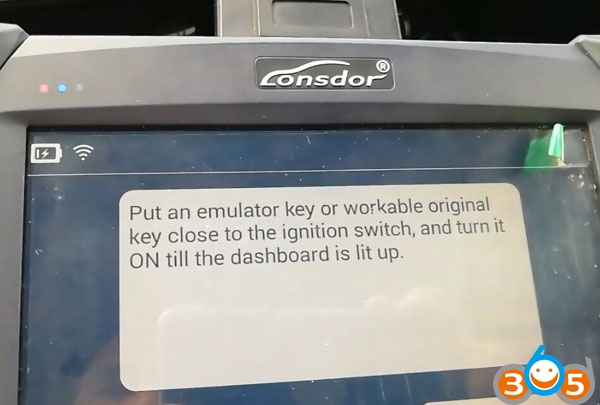

Put an emulator key or working key close to the ignition switch, turn it ON until the dashboard turns on

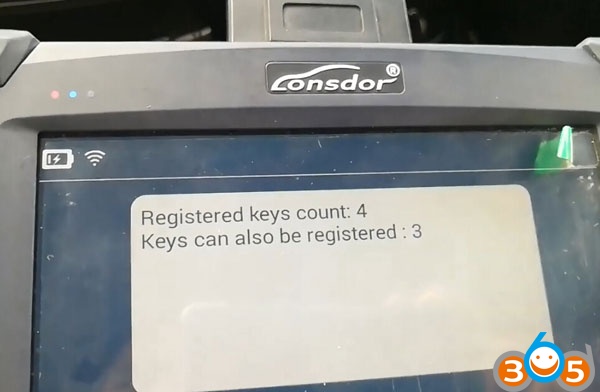

Lonsdor detects 4 keys have registered.

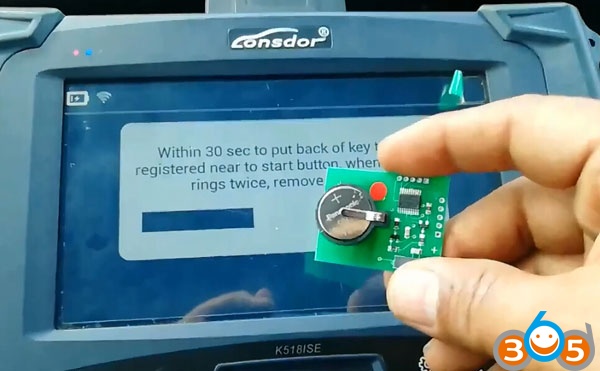

Put the key to be registered near to Start button, when buzz rings twice, remove the key within 30 sec

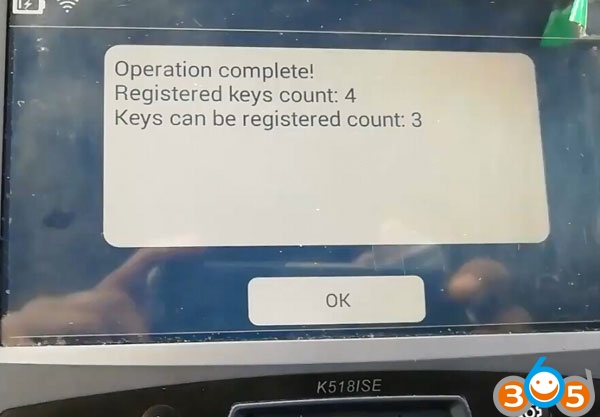

Operation completed.
The emulator key now can start vehicle.
Done.
