ND900 Mini erase Toyota Lexus smart key 4D71 chip

Here is the instruction on clearing Toyota Lexus 4D 71 chip original data using ND900 Mini transponder key programmer in order to re-match the smart key to the car.

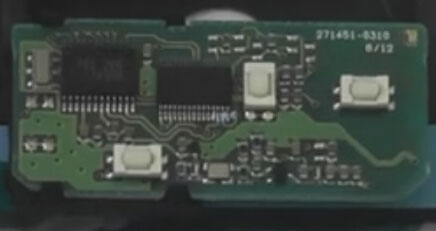

4D-71 Chip:

4D-71 Chip for Toyata/Lexus Smart Key

P1 Data: 34, 54, 74, 94, B4

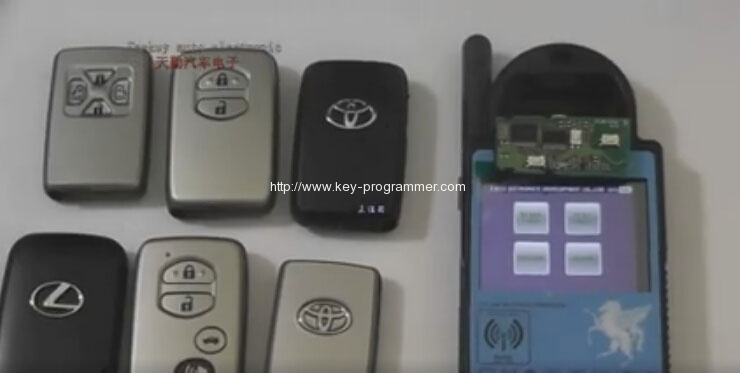

Smart keys compatible:

toyota-4d71-chip-nd900-mini-(1)

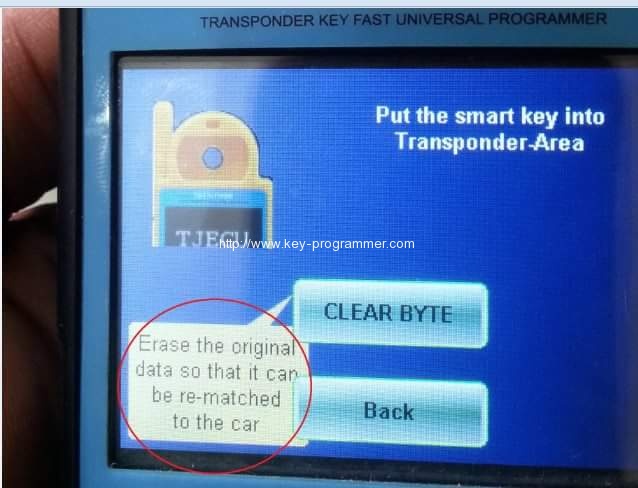

Why need to erase the chip?

Erase the original data so that it can be re-matched to the car

toyota 4d71 chip nd900 mini 1-1

How to clear Toyota 4D-71 Chip using ND900 mini key programmer?

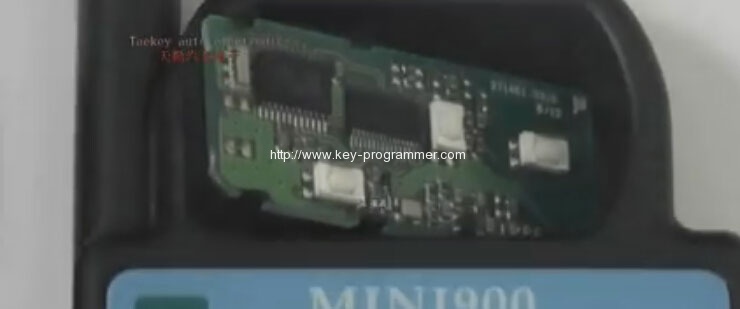

Put the chip into the transponder area

reason for chip erasing-2

toyota 4d71 chip nd900 mini 2-3

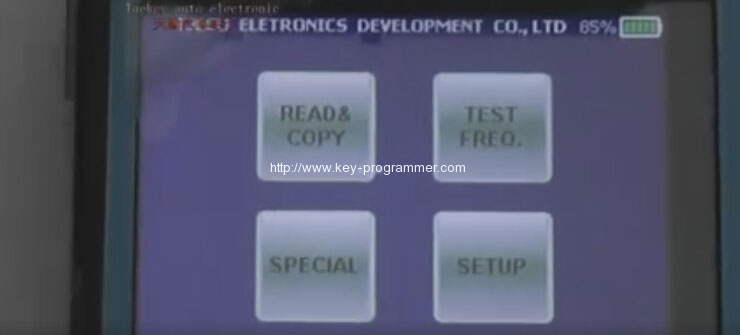

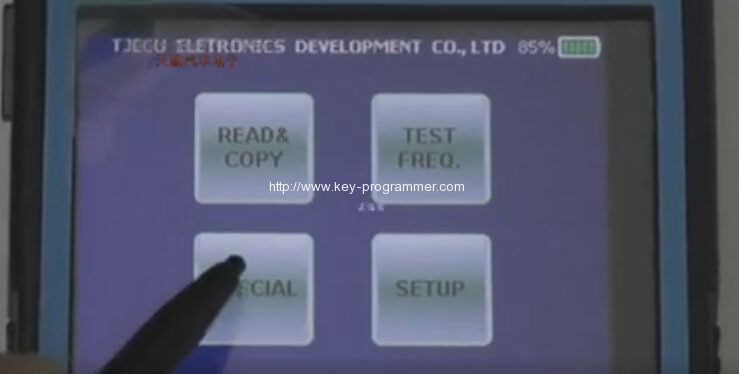

Select SPECIAL

toyota 4d71 chip nd900 mini 3-4

toyota 4d71 chip nd900 mini 4-5

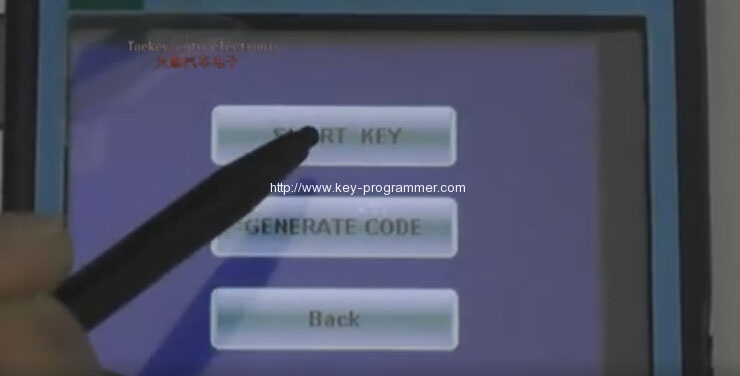

Then SMART KEY

toyota 4d71 chip nd900 mini 5-6

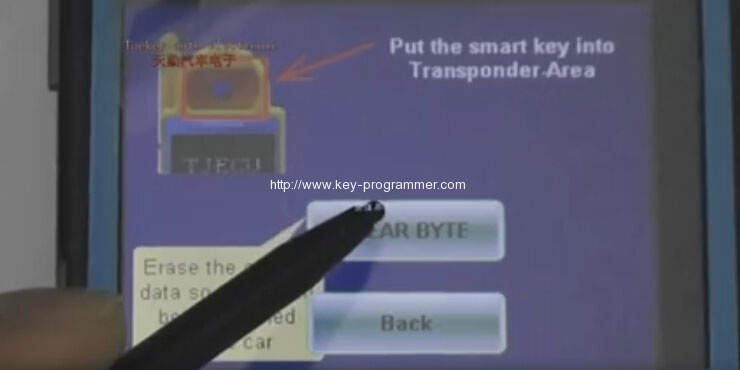

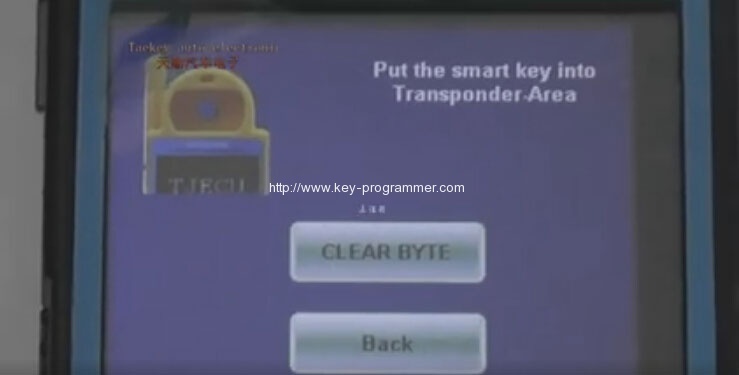

Then CLEAR BYTE

toyota 4d71 chip nd900 mini 6-7

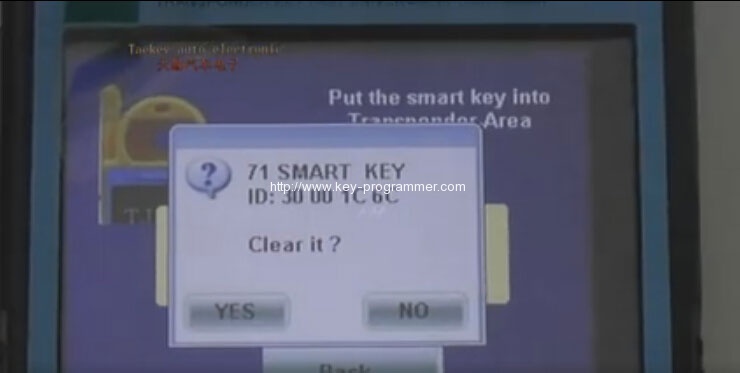

Confirm the chip ID, then clear it

toyota 4d71 chip nd900 mini 7-8

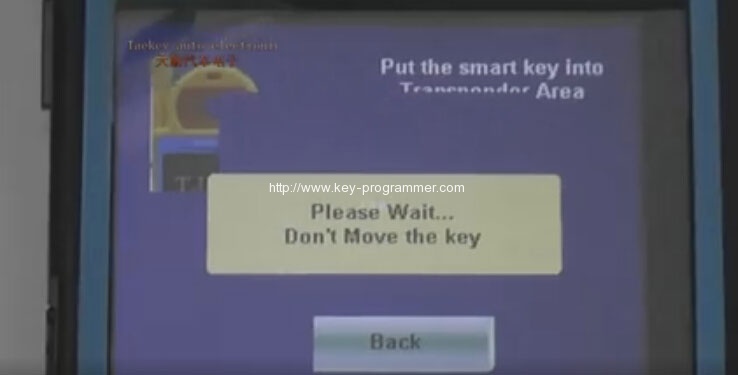

Don’t remove the chip when clearing byte

toyota 4d71 chip nd900 mini 8-9

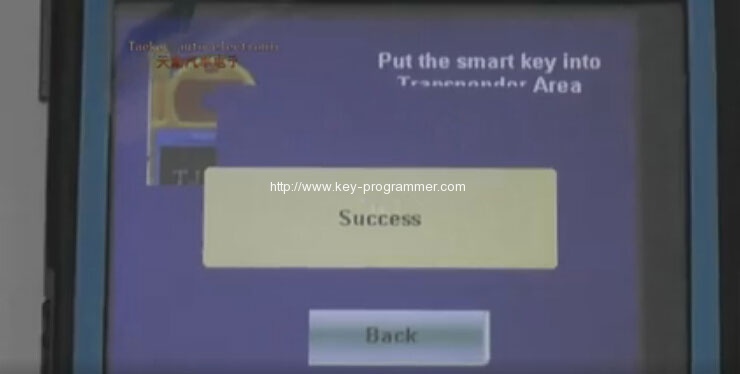

Mini ND900 transponder clear 71 chip success!



toyota 4d71 chip nd900 mini 9-10

toyota 4d71 chip nd900 mini 10-11
